Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
16.3. Light [F4]
Checks the lighting devices installed on the fiducial camera, fly camera, and fix camera.
Figure16.6 “Camera Light Diagnosis “dialog box
<Camera Select> combo box
Select the camera on which the lighting device to be checked is installed.
<Camera No.> combo box
Fly Cam: Select the Fly camera on the front gantry.
Memo The Fly camera for recognizing each head is as follows:
Fly Cam6: Head #6
Fly Cam1: Head #1~Head #2
Fly Cam2: Head #3~Head #4
Fly Cam3: Head #5~Head #6
Fly Cam4: Head #7~Head #8
Fly Cam5: Head #9~Head #10
Fix Cam(Option): Select the fix camera.
Fid Cam(Option): Select the fiducial camera.
<Light Value> group
Set the light value.
When the fiducial camera is selected, the range of light level that can be set is as
16-7
Diagnosis
follows.
<Outer>: The range of the Outer light level is 0~15.
<Inner>: The range of the Inner light level is 0~15.
When the fly camera is selected, the range of light level that can be set is as follows.
<Side>: The range of the side light level is 0~15.
<Outer>: The range of the Outer light level is 0~15.
<Coaxial>: The range of the Coaxial light level is 0~15.
When the fix camera is selected, the range of light level that can be set is as follows.
<Side>: The range of the side light level is 0~15.
<Outer>: The range of the Outer light level is 0~15.
<Inner>: The range of the Inner light level is 0~15.
<Close> button
Closes the dialog box.
16-8
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
16.4. Vacuum [F5]
Checks the air pressure status of the head.

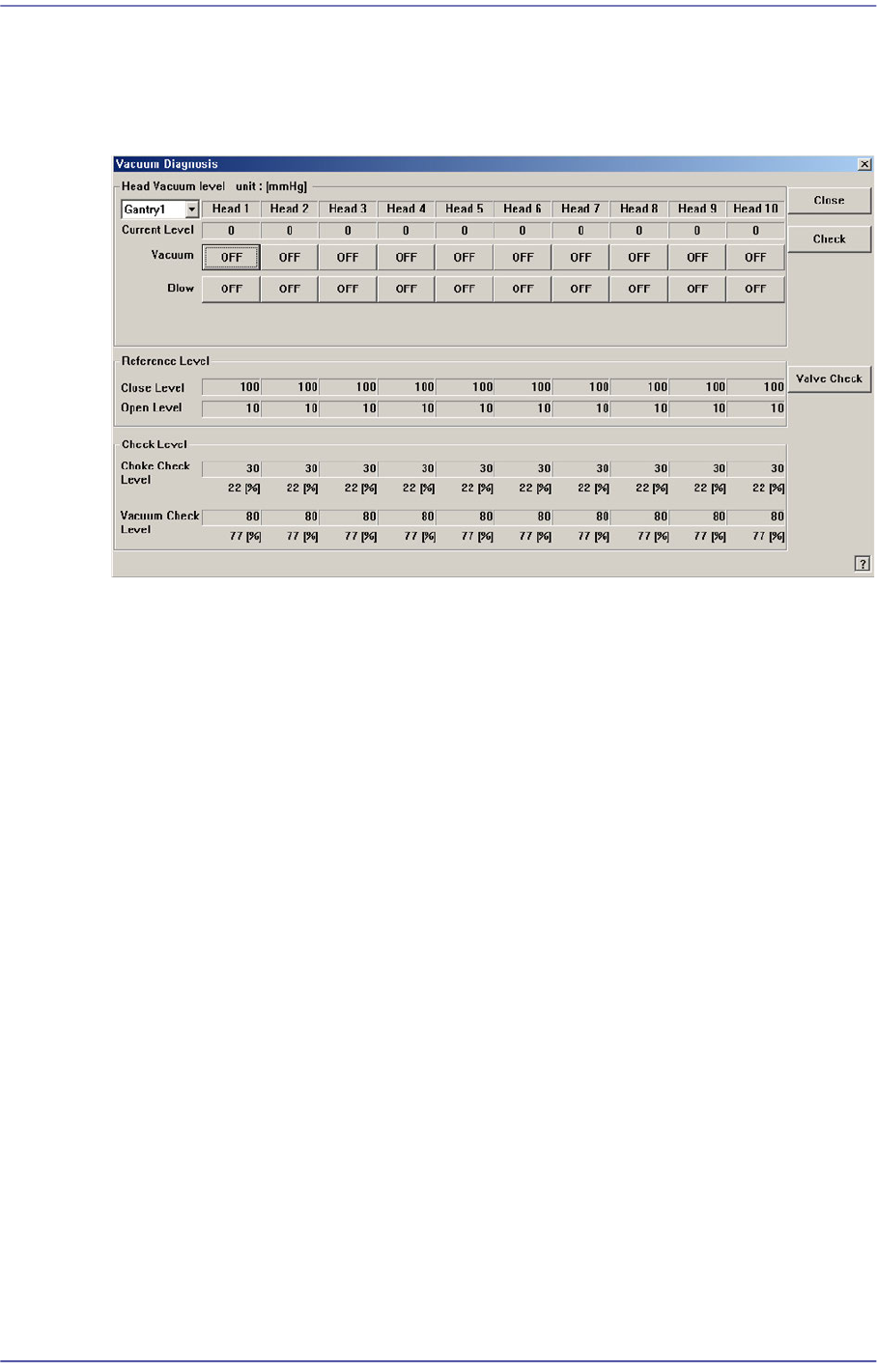

Figure16.7 “Vacuum Diagnosis” dialog box
<Head Vacuum level> group
Displays the vacuum level of each head and controls the vacuum generator.
<Gantry> combo box
Select the gantry for which the pneumatic pressure can be checked.
<Current Level>
Indicate the current pneumatic pressure of each head.
<Vacuum OFF> button
Pressing this button when “OFF” is indicated will supply constant pneumatic
pressure of 0.1Mpa inside the spindle and indicate “ON” on the button.
<Blow OFF> button
Pressing this button when “On” is indicated will shut off the pneumatic pressure
supplied to the spindle and indicate “OFF” on the button.
<Reference Level> group
When the vacuum level is used as a criteria for determining the component pick-up by
each head, displays the standard value.
<Close Level>
Indicate the pneumatic pressure of each head when the nozzle hole is plugged,
with the nozzle being inserted into the nozzle holder.
<Open Level>
Indicate the vacuum value of each head when the nozzle hole is opened, with the
