9-14

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

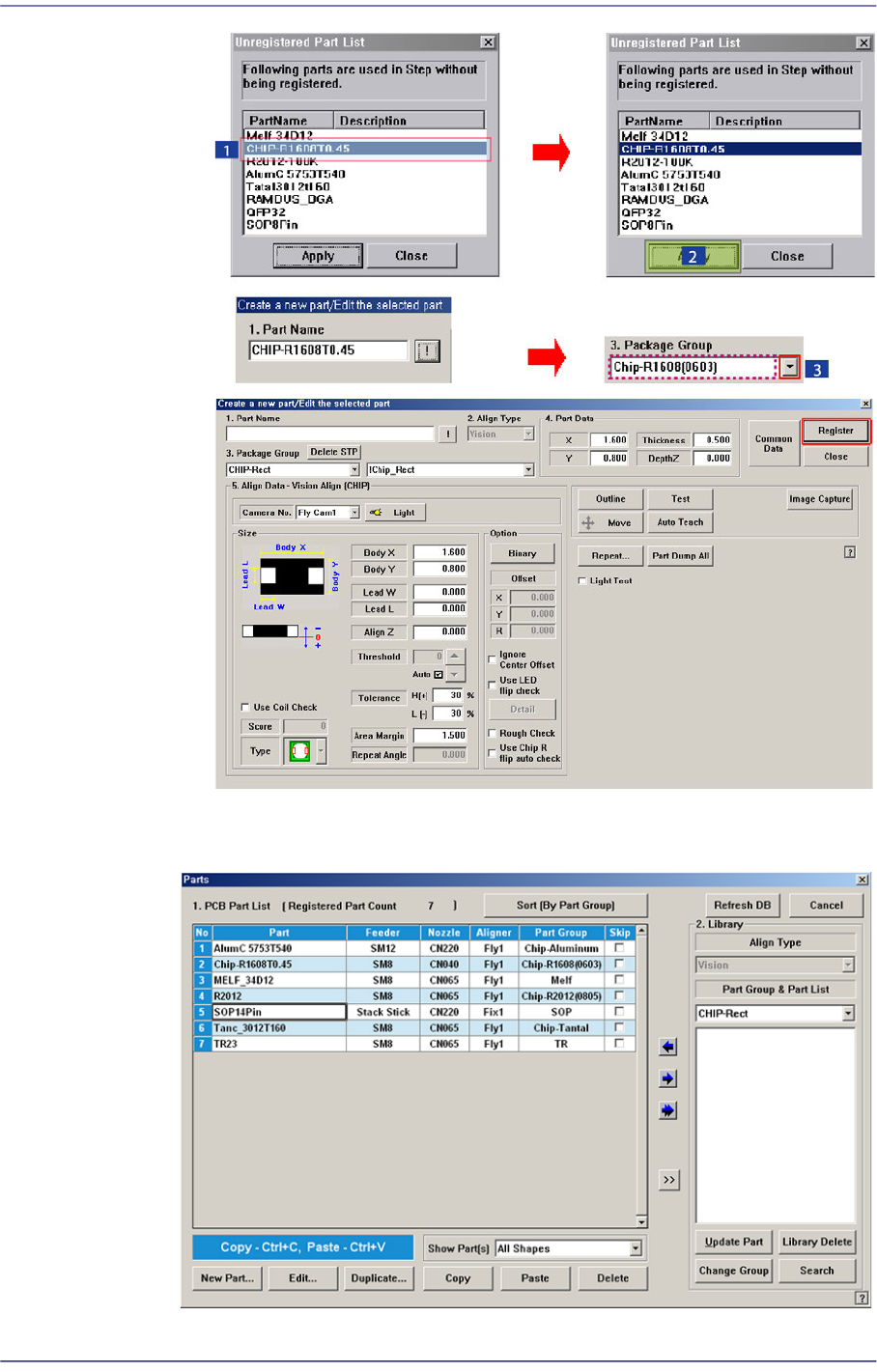

 When all the unregistered part information is registered, they are displayed as

follows.

9-15

Step Programming

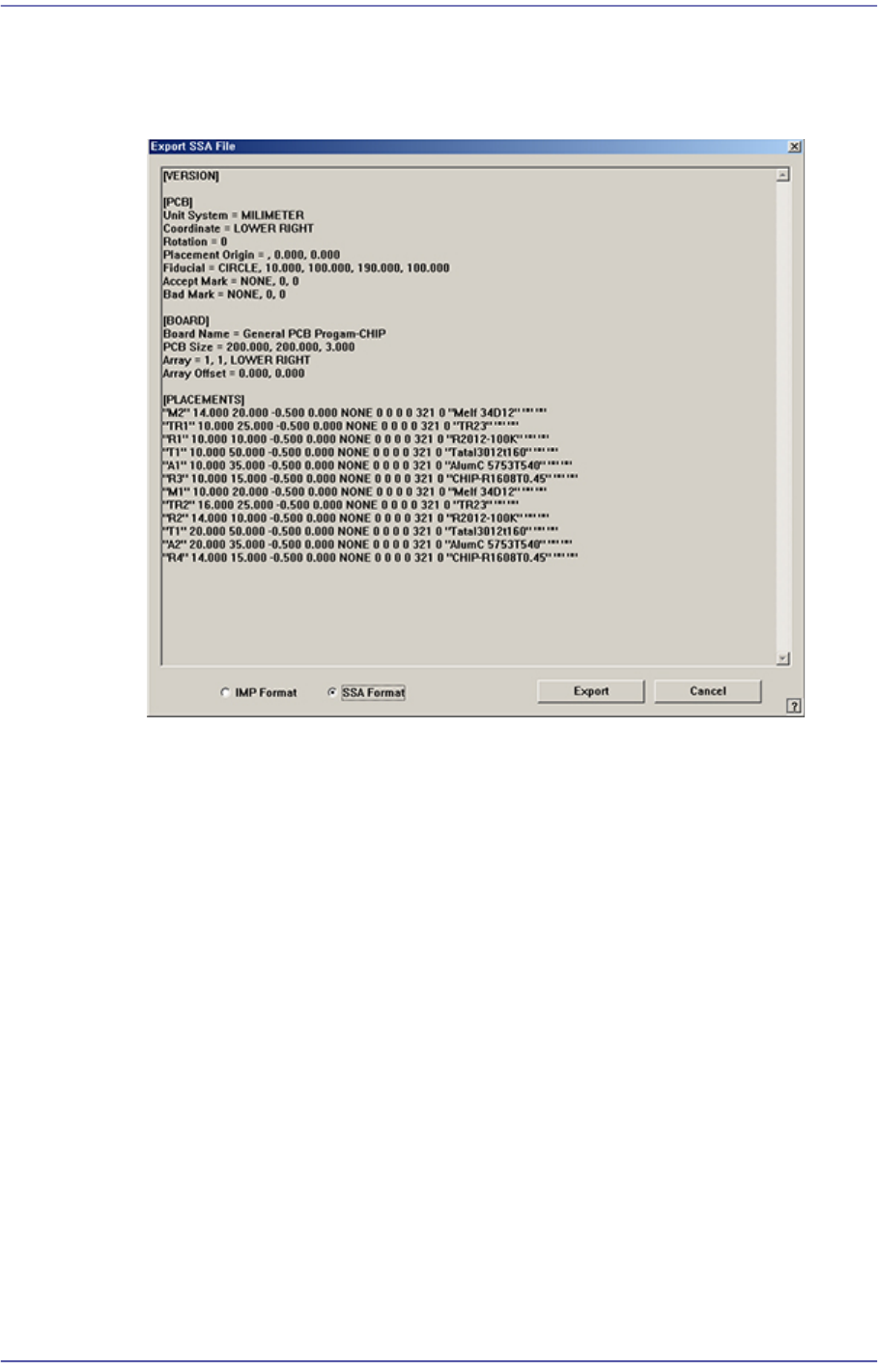

 <Export…> button

Converts the step data created by this machine into other format (SSA Format) ASCII

File. When this button is clicked on, the following dialog box is displayed.

Select the format to be converted and press the <Export> button. The formats that can

be selected are as follows:

9-16

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

 IMP Format: Converts the file to the file in IMP format.

 SSA Format: Converts the file to the file in SSA format.

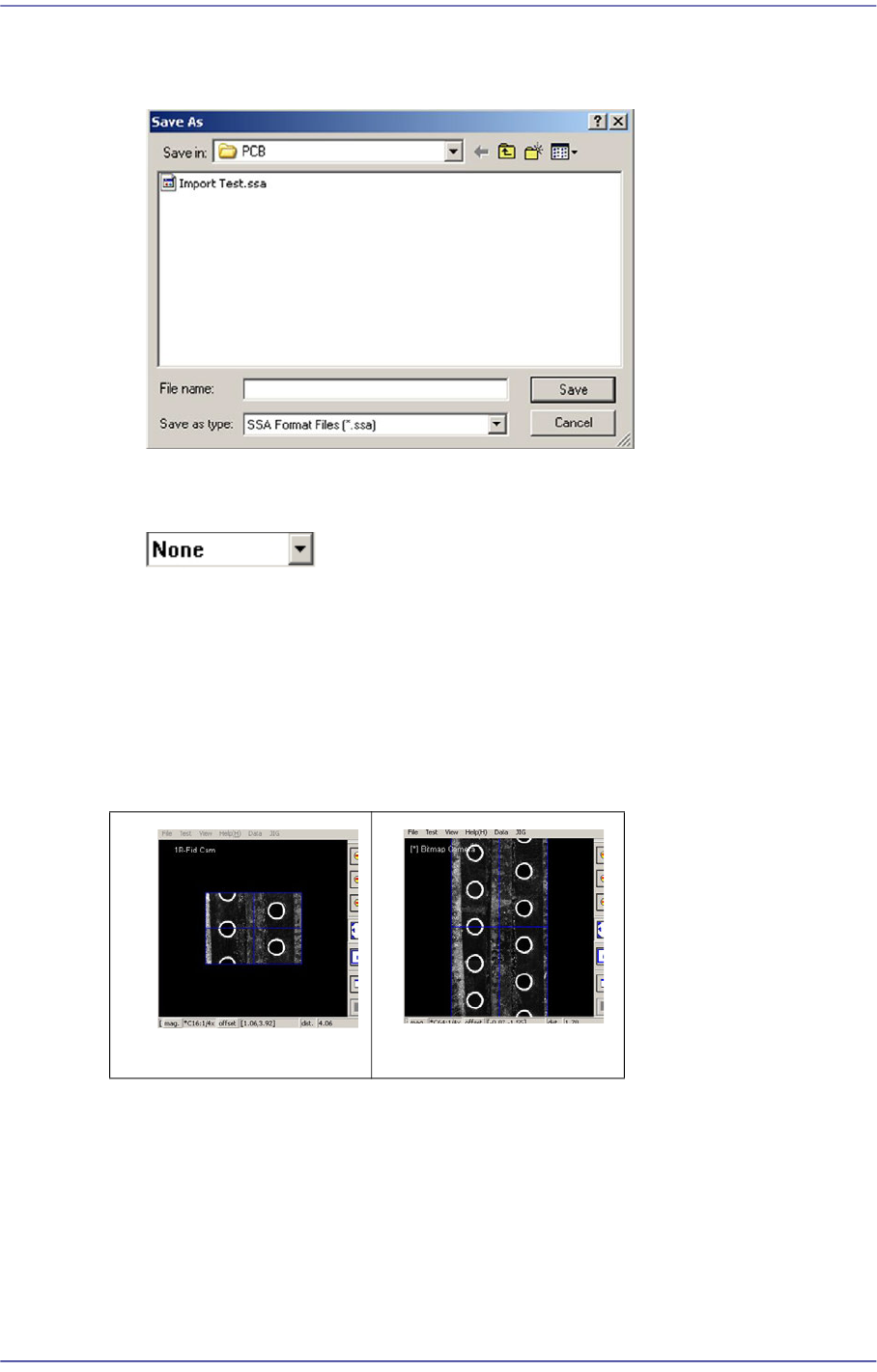

When the <Save> button is clicked on after the ASCII File name has been set,

converts the step data into SSA format and saves the data under the set file name.

 button

 <None>

The panorama recognition function of the PCB vision is not used.

 <Panorama>

It is possible to display the PCB shape on one vision window by performing split

recognition of the PCB shape and composing the split images into one.

 <Cancel> button

Cancels the edited data.

None

Panorama
