15.3.3. <Flux> Tab Screen

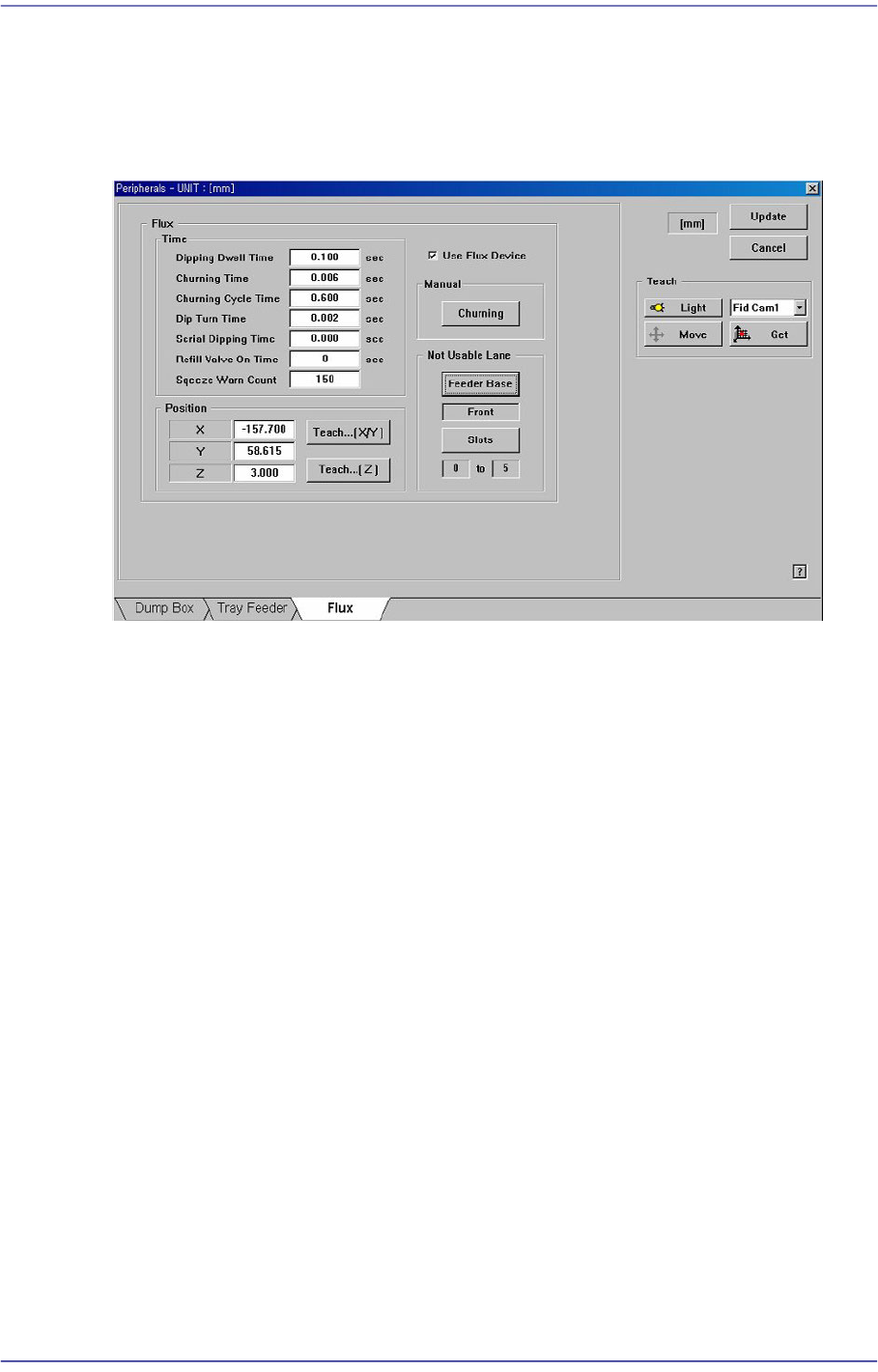

Sets the data related to the flux module. If this tab is selected, the following dialog box is
indicated.
Figure15.9 “Tray Feeder” Tab Dialog Box
<Time> group
This is enabled when the <Use Flux Device> on the right is selected. It sets the item
related to the movement of the flux module.
<Dipping Dwell Time> edit box
Refers to the delay time after the part contacts with the disk of the flux module in
order to apply flux on the part. (Dipping Delay Time)
<Churning Time> edit box
Refers to the period of time required for disk rotation when the flux module is
operated manually.
<Churning Cycle Time> edit box
Refers to the rotating cycle of the flux module disk for flux churning.
<Dip Turn Time> edit box
Refers to the period of time required for flux churning for automatic production.
(Squeezing Time)
<Serial Dipping Time> edit box
Refers to the minimum period of time required for flux churning when several
heads are dipped continuously during automatic production.
<Refill Valve On Time> edit box
Refers to the flux replacement cycle. If it is set to ‘0’, the warning message is not
15-16
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
indicated.
The set value can be initialized by the submenu ‘Flux.’ of the ‘Product’ menu.
<Squeeze Warn Count> edit box
This is set for cleaning the flux module during automatic production. If the
corresponding count is reached, the warning message is indicated.
The set value can be initialized by the submenu ‘Flux.’ of the ‘Product’ menu.
<Position> group

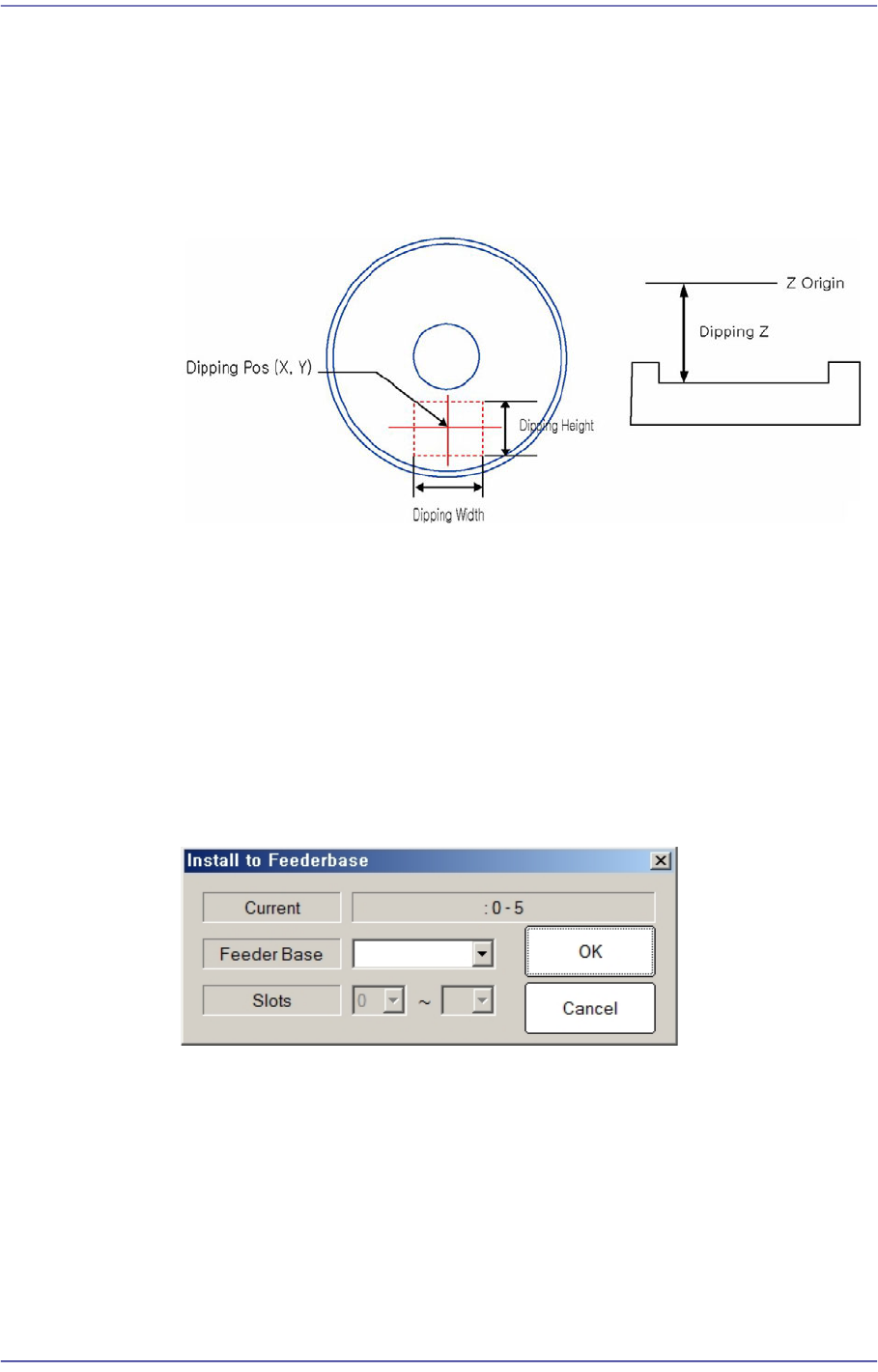

This is enabled when the <Use Flux Device> on the right is selected. Set the dripping
position. If the setup slot is determined at the feeder base of the flux module, the
dripping position is set automatically.
<X> edit box
Refers to the X coordinate of the dripping position.
<Y> edit box
Refers to the Y coordinate of the dripping position.
<Z> edit box
Refers to the Z coordinate of the dripping position.
<Teach…X/Y> button

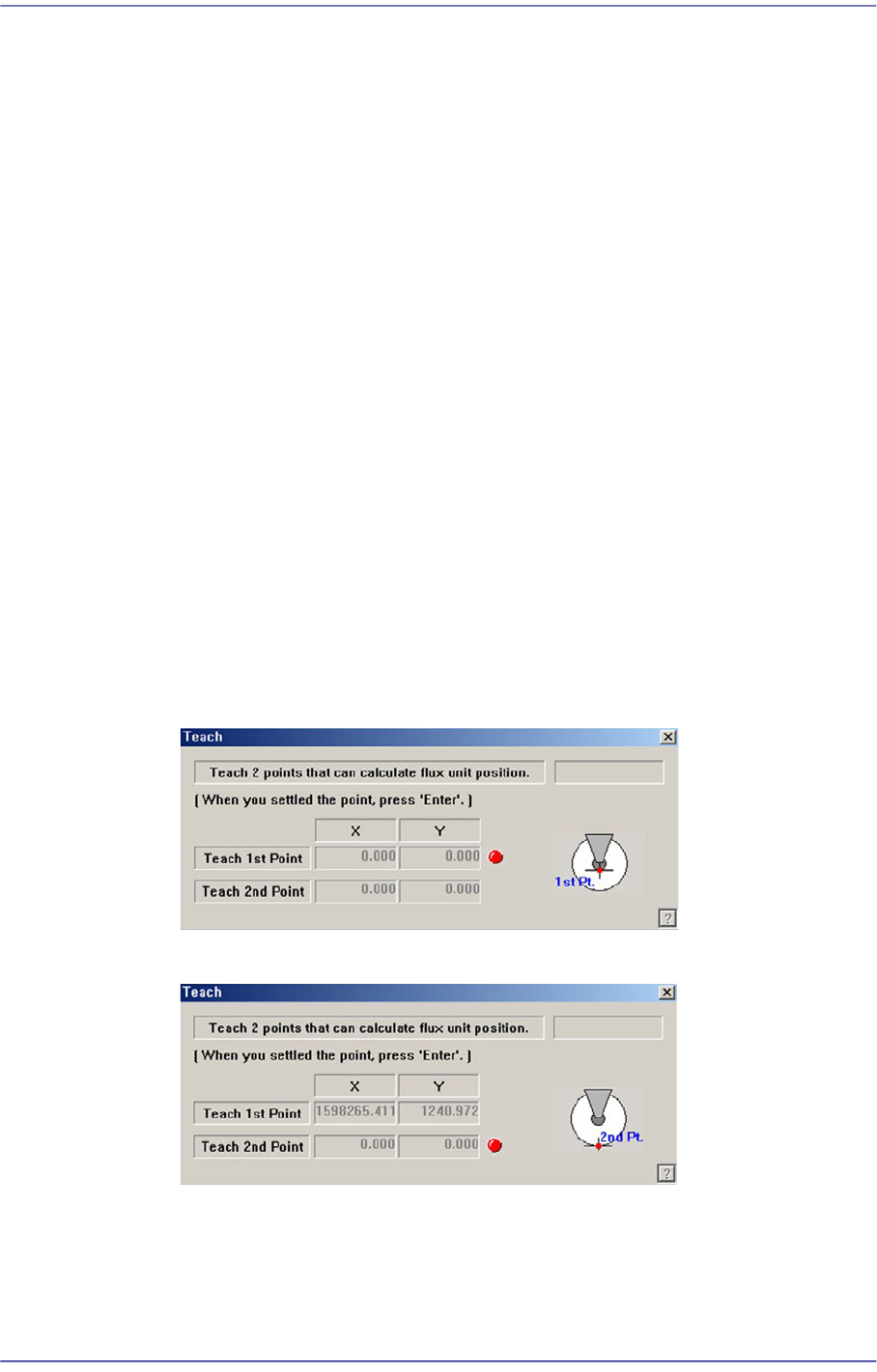

Execute the following dialog box to teach the XY coordinate of the dripping
position.
Set the first point correctly and press the ‘Enter’ key.
Set the second point correctly and press the ‘Enter’ key.
<Teach…[Z]> button
Teach the Z coordinate of the dripping position. The teaching procedure is as
follows:
15-17
System Setup
Select the device to be taught first from <Device> in the <Teach> group and
insert the CN040 nozzle in the nozzle holder of the corresponding head.
Move the head to the dripping position.
Move down the spindle of the head until it contacts the disk surface. If the
nozzle end contacts with the disk surface, the change in the pneumatic
pressure occurs and the Z axis position is taught automatically.
<Use Flux Device> check box
This check box is selected to set the item related to the flux module.
<Churning> button
If this button is selected, the disk of the flux module rotates.
<Not Usable Lane> group
It sets the item related to the operation of the flux module.
<Feeder Base> button
Selects the feeder base on which the flux module is to be installed.
