Part Registration
right direction
<Lead Width (Up/Down/Left/Right)>: Lead width
<Lead Length (Up/Down/Left/Right)>: Lead length
<Lead Pitch (Up/Down/Left/Right)>: Pitch between leads
<X/Y Lead Num>: Number of leads at one side in the X/Y direction
<Lead Foot>: Length through which the lead contacts with the bottom surface
<Part Type Setup> group
It is possible to select the part category and group in order to obtain the recommended
lighting value for the part to be registered.

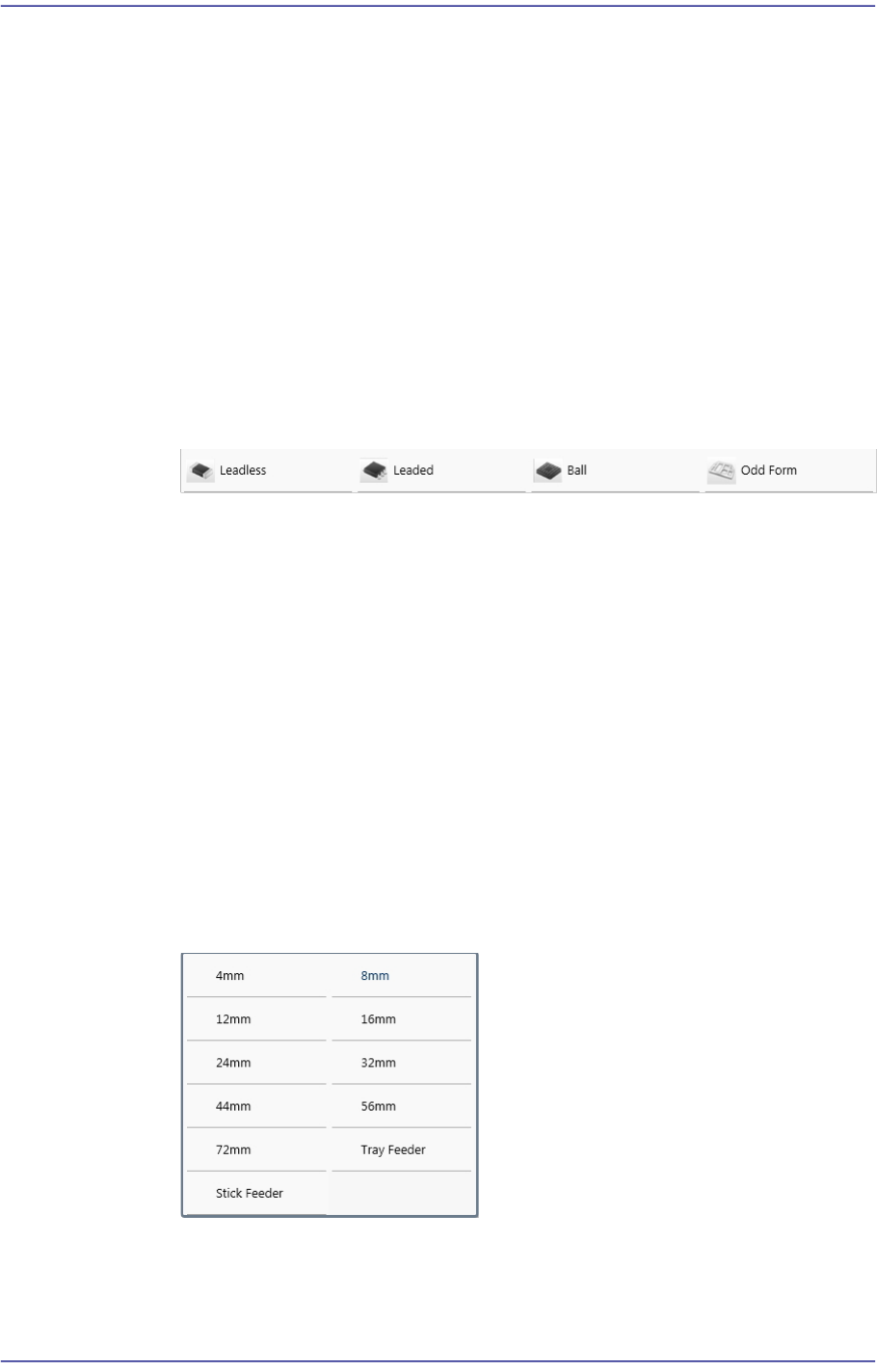

<Component Shape> combo box
Select the shape of the part to be registered.
<Component Type> combo box
Select the Type of the part to be registered.
<Component Scale> combo box
Select the size of the part to be registered. Enabled when the Capacitor and
Resister parts are selected.
<Part group> Caption Box
Displays the group to which the part to be registered belongs.
‘Feeder/Nozzle Setup’ area
Set the type of feeder to supply parts as well as the nozzle to pick parts.
<Feeder> combo box
Selects the type of the feeder to supply parts. Selectable feeder types are as
follows:
<Feeder Pitch> combo box
Used when the electrically driven feeder is selected. Selects the pitch of the tape
feeder selected from the <Feeder> combo box.
7-18
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
<Nozzle List> List Box
Displays the nozzle that picks up a part. For further details, refer to “Chapter7.
Nozzle type and application of part” in the Operation Handbook.
Selecting the nozzle in the nozzle list, the shape of contact between the nozzle and
part is indicated in orange in the vision window.
It will be helpful to refer to this shape in selecting an adequate nozzle.
<Nozzle Selection> button
If there is no adequate nozzle in the nozzle list, click this button to select an
adequate nozzle.
<Nozzle Name> View Field
Displays the nozzle name.
<Body X/ Y (mm)> View Field
Displays the X and Y sizes of the part layout.
<Offset X/ Y (mm)> edit box
Input the X and Y offsets from the nozzle center.
<Pickup Angle> edit box
Set the part pickup angle.
<Nozzle Library> group
<Filter> combo box
- ALL
Selected in cases displays all types of nozzles in the following list
box.
7-19
Part Registration
- CN
Selected in cases displays only the CN nozzles in the following list
box. For the HP head of the SM series and EXCEN series models, the
CN nozzle is used.
- VN
Selected in cases displays only the VN nozzles in the following list
box. For the HS head and MF head of the EXCEN PRO(M), the VN
nozzle is used.
- VS & VL
Displays only the VS and VL nozzles in the following list box. For the
HS head of the EXCEN FLEX, the VS and VL nozzles are used.
- Special
Selected in cases displays only the Special nozzles in the following
list box.
- Etc
Selected when displaying only the nozzles other than VN, CN, VS,
VL and Special nozzles in the following list box.
<Recommended> List Box
Displays the nozzles recommended for the corresponding part.
<All> List Box
Displays the nozzles conforming to the conditions selected from the
<Filter> combo box.
<Selected Nozzle> List Box
Displays the registered nozzles so that they can be used for part pickup.
The nozzle information set here is used to perform optimization later.
The priority in applying nozzles is determined according to the order in
which nozzles are set.
button
Adds the nozzles in the left <Recommended> list box or <All> list box to
the <Selected Nozzle> list box.
Register the selected nozzles as a nozzle to be used for part pickup.
button
Adds the nozzles selected from the right <Selected Nozzle> list box to the
left <Recommended> list box or <All> list box.
Performs setup so that the selected nozzles will not be used for part
pickup.
