15-11
System Setup
15.3. Peripherals [F6]
Performs setup for the dump box, tray feeder and flux device.
15.3.1. <Dump Box> tap dialog
Setup items related with the ‘Dump Conveyor’ and ‘Dump Box’ defined by the user.

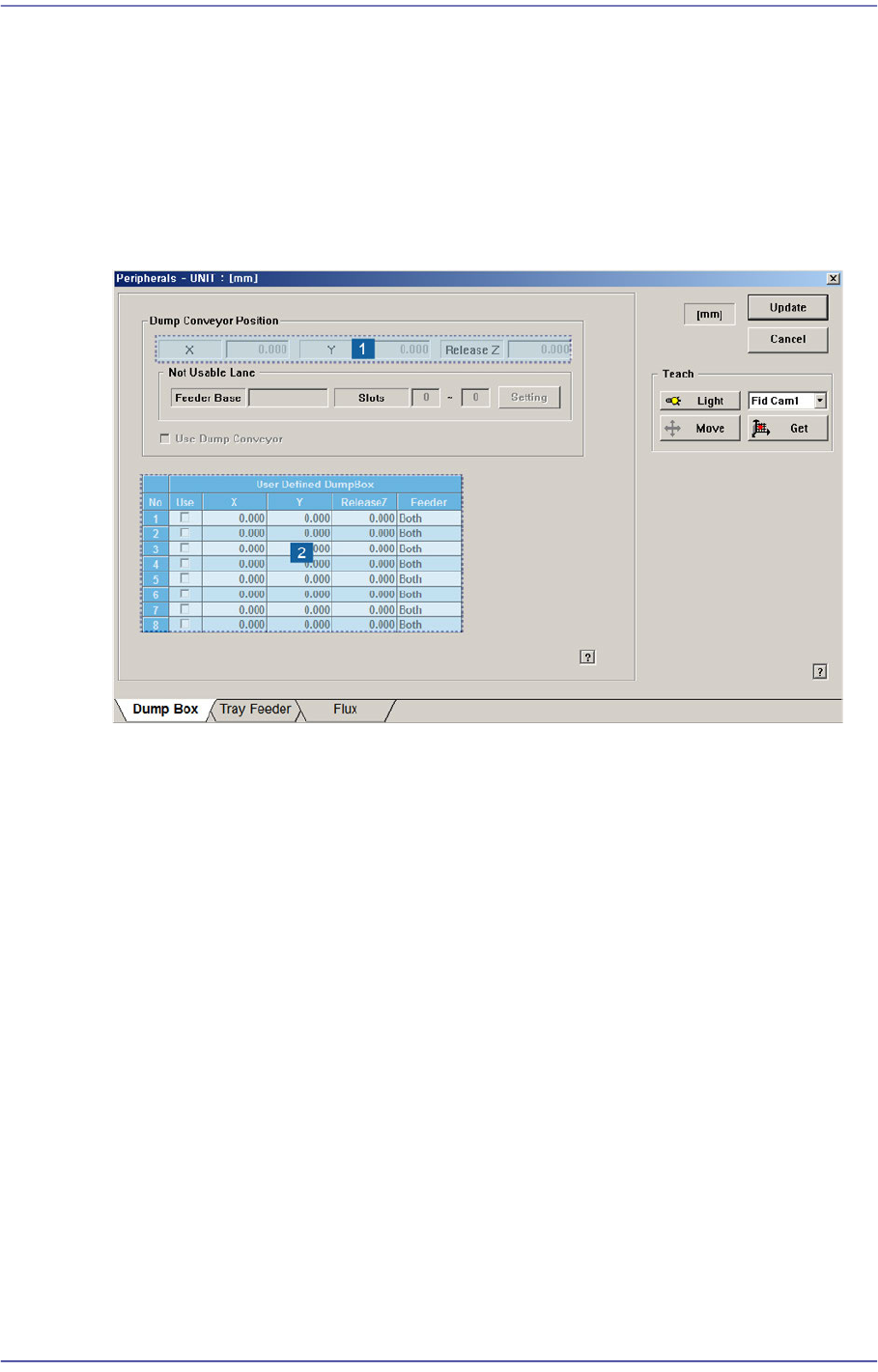

Figure15.7 “Dump Box” tap dialog
1: Position
2: User Defined Dump box
<Dump Conveyor Position> group
Inputs the items to be set related to the dump conveyor. From the equipment which it
sees it is a function which it does not support.
‘Position’ group
X, Y: Enter the part dumping position on the dump conveyor by teaching the
X and Y coordinates.
Release Z: Enter the Z axis height when dumping the part.
<Not Usable Lane> group
From the equipment which it sees it is a function which it does not support.
<Setting> button
Clicked to set the feeder group that cannot be used due to the installation of
the dump conveyor.
<Use Dump Conveyor> check box
Determines whether to use the dump conveyor. D This check box must be selected
15-12
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
to set the dump conveyor related items.
‘User Defined Dump box’ group
Setup the data related with the ‘User Dump Box’ installed by the user. The maximum
number of ‘User Dump Box’ able to be installed by the user is 8.
‘User Dump Box’ is utilized for dumping parts in the ‘User Dump’ position when
dumped parts are expensive, or require classification, or parts error has occurred in a
box installed in the equipment by the user.
Memo “System default Dump Box” is assigned as the default box when
‘Dump’ item of the feeder supplying the corresponding part in the
feeder dialog box is not assigned after setting up the ‘User Dump
Box’.
Method of setting up the ‘User Dump Box’ is as follows;
1. Select <Use> check box and move the head to the position where the ‘User Dump
Box’ is installed using the ‘Teaching Box’.
2. Select ‘Fid Cam’ in the <Teach> area, and fit the center of the ‘User Dump Box’
to the center of cross lines of the ‘Fiducial Camera’ seen on the SMVision
window.
3. Input the value of the present coordinates by clicking on the <Get> button.
4. Select the head to be used for the User Dump Box selected from the <Feeder>
area.
5. Click on the <Update> button to reflect the changed value.
After updating, select ‘User Dump’ of the feeder supplying parts using ‘User
Dump’ in the feeder dialog box.
<User defined Dump Box - No> column
Indicates the number of ‘User Dump Box’.
< User defined Dump Box - Use> column
Setup whether to use the corresponding ‘User Dump Box’ or not.
< User defined Dump Box - X> column
Setup the X position of the corresponding ‘User Dump Box’.
< User defined Dump Box - Y> column
Setup the Y position of the corresponding ‘User Dump Box’.
< User defined Dump Box –Release Z> column
Setup the height of the head Z-axis while dumping in the corresponding ‘User
Dump Box’.
15-13
System Setup
< User defined Dump Box –Feeder> column
Select the head to be used when dumping a part into the selected User Dump Box.
For example, when 'Front' is selected, only the part on the front head can be
dumped into the User Dump Box. When 'Both' is selected, the parts on both the
front and rear heads can be dumped into the User Dump Box.
<Update> button
Transmits the change data to the equipment and closes the dialog box.
<Cancel> button
Ignores the change data and closes the dialog box.
15.3.2. <Tray Feeder> Tab dialog
Sets the tray feeder related data. Selecting this button will display following dialog box.

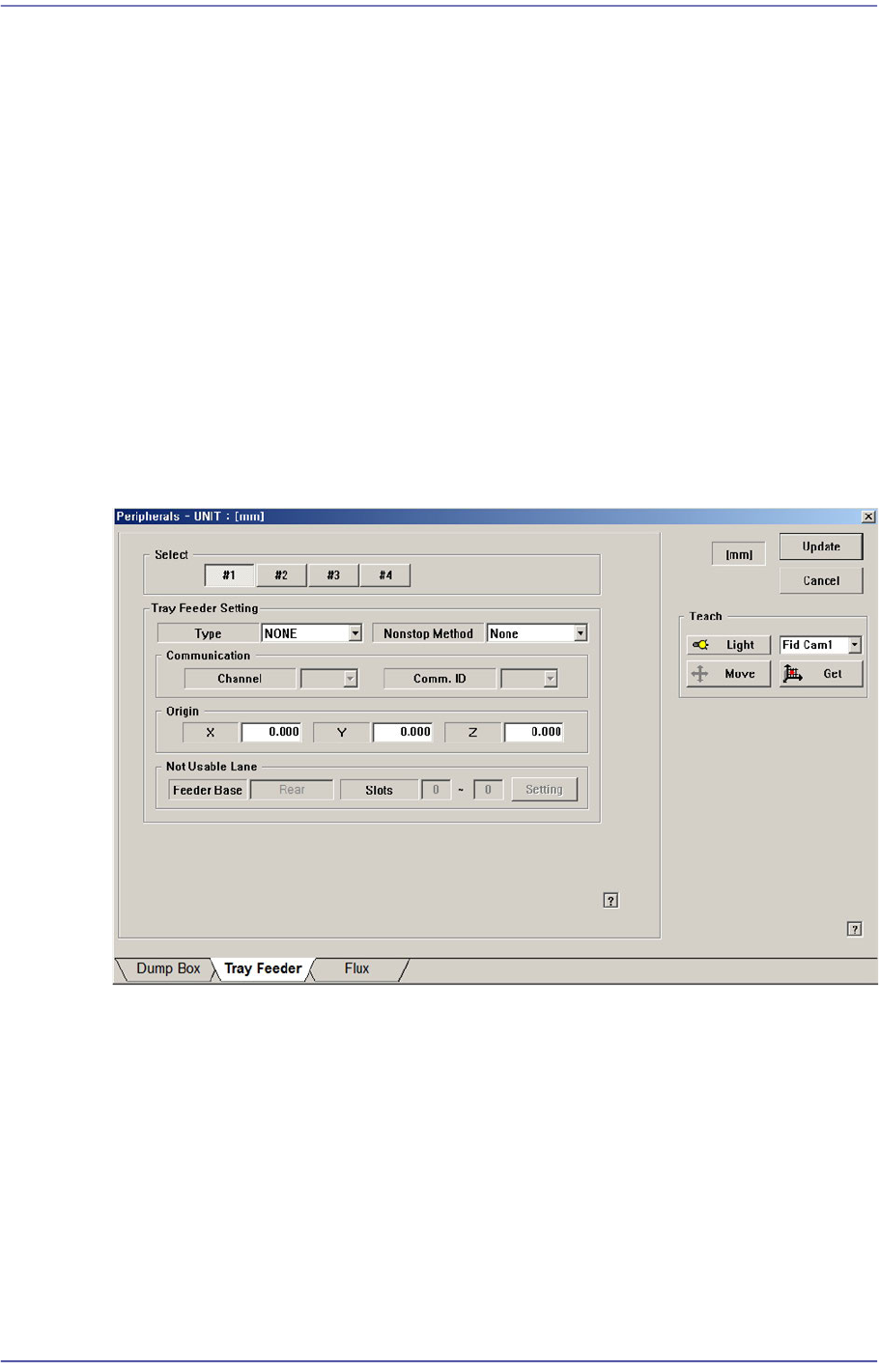

Figure15.8 “Accessory” dialog box “Tray Feeder” Tab dialog
<Select> option button
Selects the tray feeder unit. Available tray feeder units are No. 1 to No.4 tray feeder
units.
That is, a total of 4 tray feeders can be installed. (Maximum 2 trays can be installed for
the type of trays that can communicate with the equipment.)
<Tray Feeder Setting> group
Selects the type of the set tray feeder unit. Available type is as follows.
<Type> combo box
Selects the type of the set tray feeder unit. Available type is as follows:
