14-83

Machine Calibration

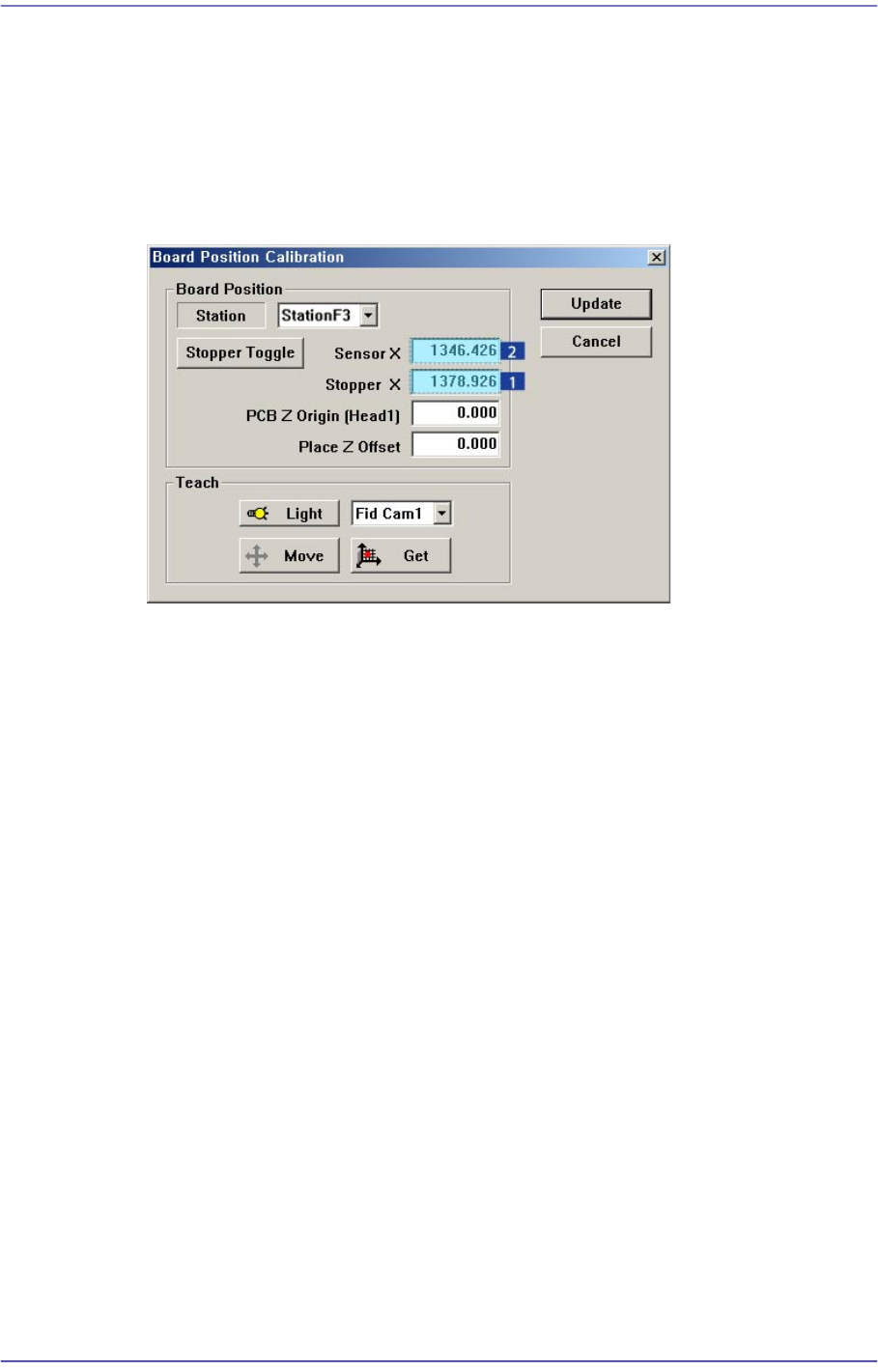

4. Input the value, which was obtained by adding the value inputted in the <Stopper X>

edit box of Station 2 to the value measure in the previous stage, in the <Stopper X>

edit box of Station 3. For example, if the coordinate of Stopper X of Station 2 is

628.226 mm and the value measured by the steel ruler is 750.7 mm, input 1378.926

mm in the <Stopper X> edit box of Station 3 and 1346.426mm in the <Sensor X> edit

box, which was obtained by subtracting 32.5mm from the value inputted in the

<Stopper X> edit box.

5. Save the data by clicking the <Update> button.

15-1

System Setup

Chapter15. System Setup

Describe system setups except for the calibration items mentioned in the preceding

chapter.

The items on this menu are setup at the time of shipment. Therefore, do not perform

“Calibration System Setup” except when setup is required for the maintenance of the

machine.

Warning hanging the set up status by an unauthorized user could

damage the equipment or result in personal injury.

Unauthorized user must not change the set up status of the

equipment.

When a submenu of the <Sys. Setup> menu is selected, corresponding dialog box is

displayed on the screen. While the corresponding dialog box is displayed, selecting the

menu once more activates the dialog box.

Figure15.1 When the Sys. Setup menu is selected

Figure15.2 Submenus of the Sys. Setup menu
