14.3.7.2. Fix Cam. Thermal Origin Calibration

Refers to the calibration method that is performed to calibrate the thermal origin of the

Fix1 camera. It is performed to compensate the fiducial camera position by teaching any

one point on the ANC.

<7. Fix Cam. Thermal Origin> Button

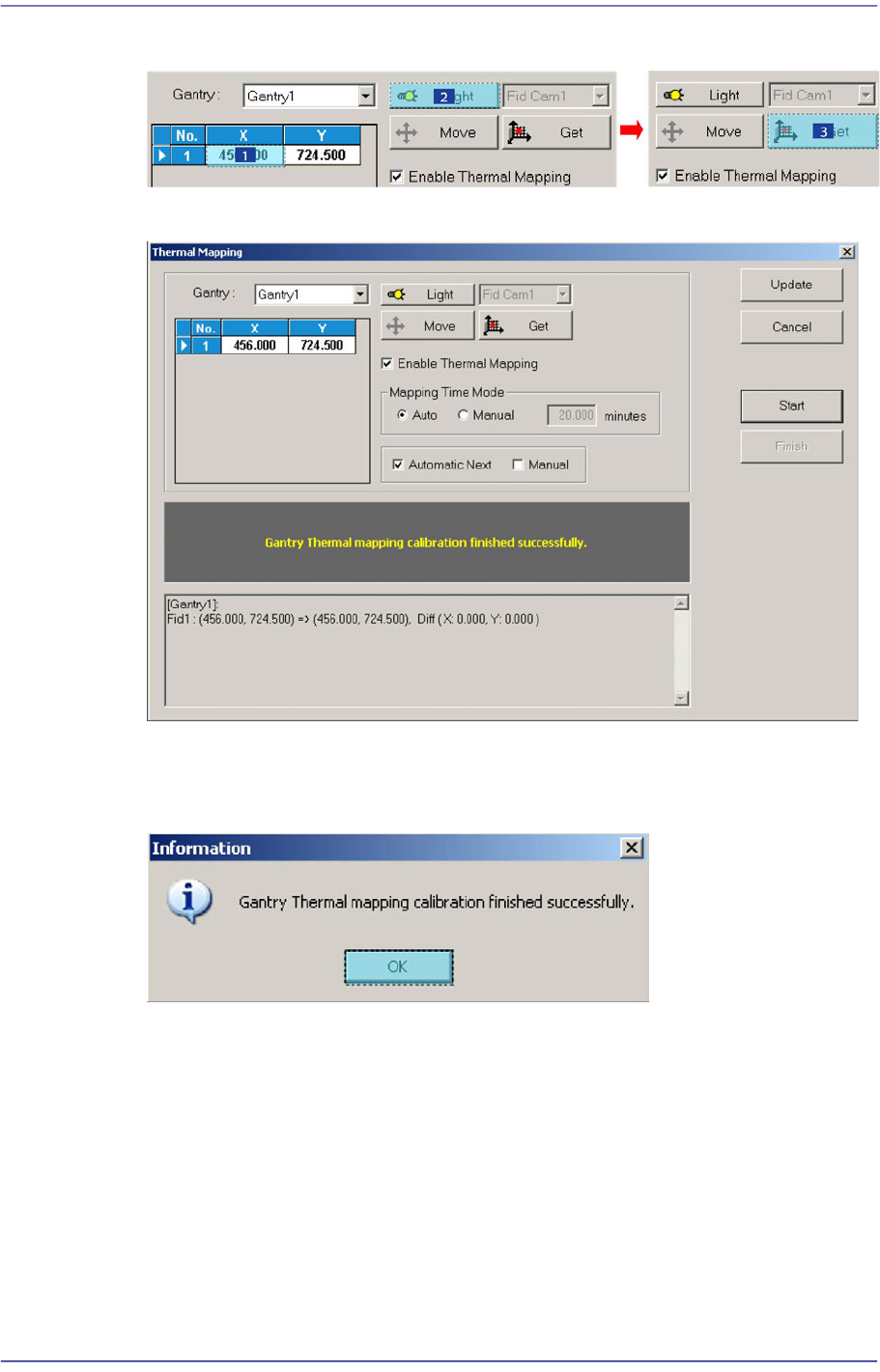

1. Clicking the <7. Fix Cam. Thermal Origin> button will display the following screen.

2. Click the <Move> button to move the Head Assembly to the fiducial position on the

ANC and teach the corresponding fiducial accurately using the fiducial camera and

14-49

Machine Calibration

then save the coordinates using the <Get> button.

3. If the <Start> button is clicked, the equipment performs calibration automatically.

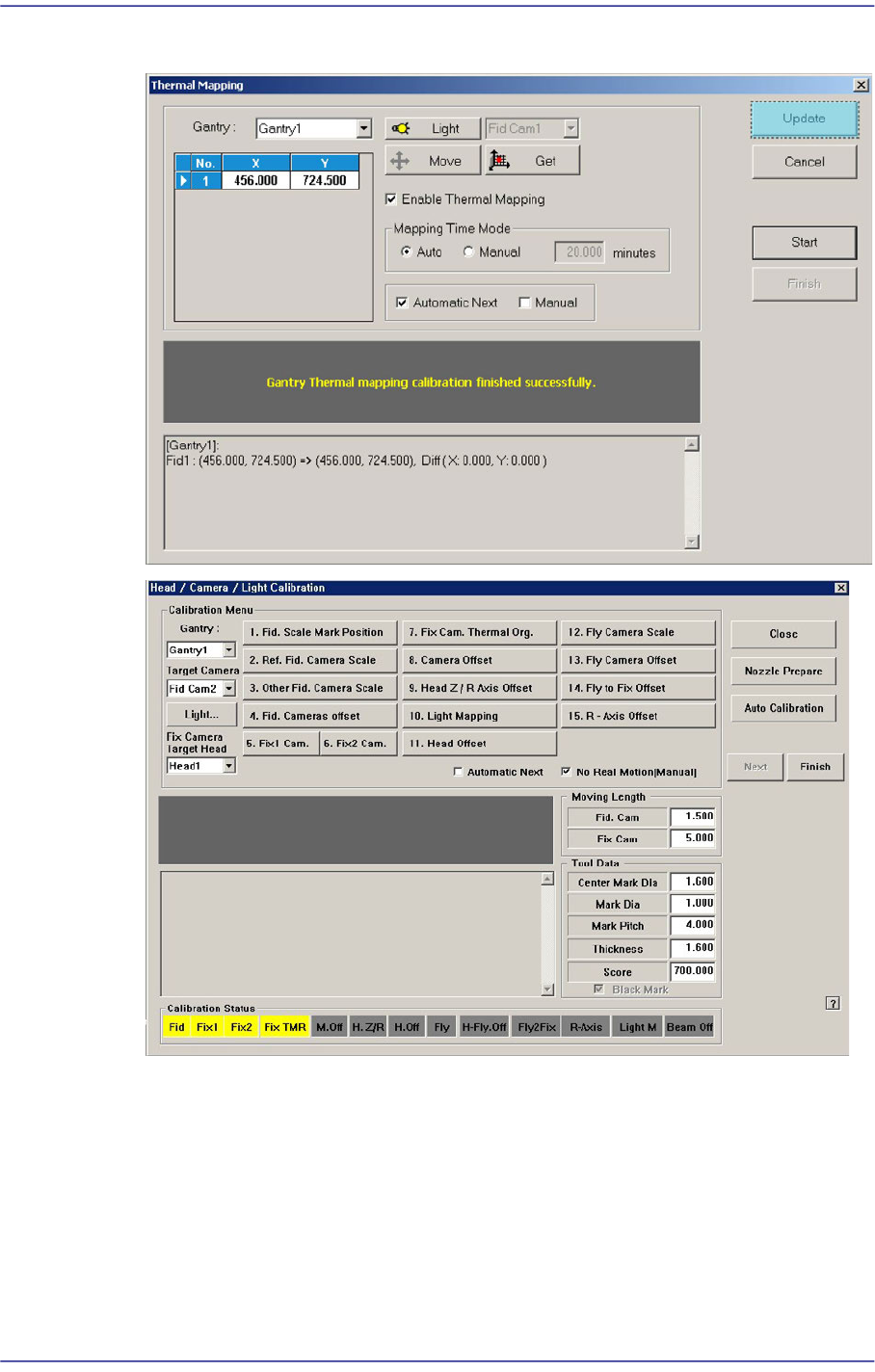

4. Once automatic calibration is completed, a message "Gantry Thermal mapping

calibration finished successfully" is displayed, showing result value as indicated in the

following figure.

14-50

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

5. Click <Update> button to apply the new calibration value.
