8-23 Feeder Setup Displays the sh ape of the feeder that is installed on the feeder base grap h ically .

8-22

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

<Z> edit box

Enters the offset value.

<OK> button

Saves the edited contents and closes the dialog box.

<Cancel> button

Closes the dialog box without saving the edited contents.

 <Z Teach> button

Measures the Z axis height for the pickup point of feeder automatically using

pneumatic pressure. Select the part (pickup point of the feeder) of the feeder to be

taught and select the head to perform teaching from the <Device> combo box in the

<Teach> group. Then insert the CN040 nozzle into the nozzle holder of the selected

head and click this button.

 <Part Outline> check box

If this check box is selected, when the fiducial camera is moved to the position of the

corresponding feeder to check the pickup position, the outline image that considers the

angle at which the corresponding part is picked up is displayed on the SMVision

window.

 <Display> button

8-23

Feeder Setup

Displays the shape of the feeder that is installed on the feeder base graphically.

8-24

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

8.1.3. Tray Unit

Set various data for tray feeders. When “Tray Unit” is selected, the initial screen looks as

follows.

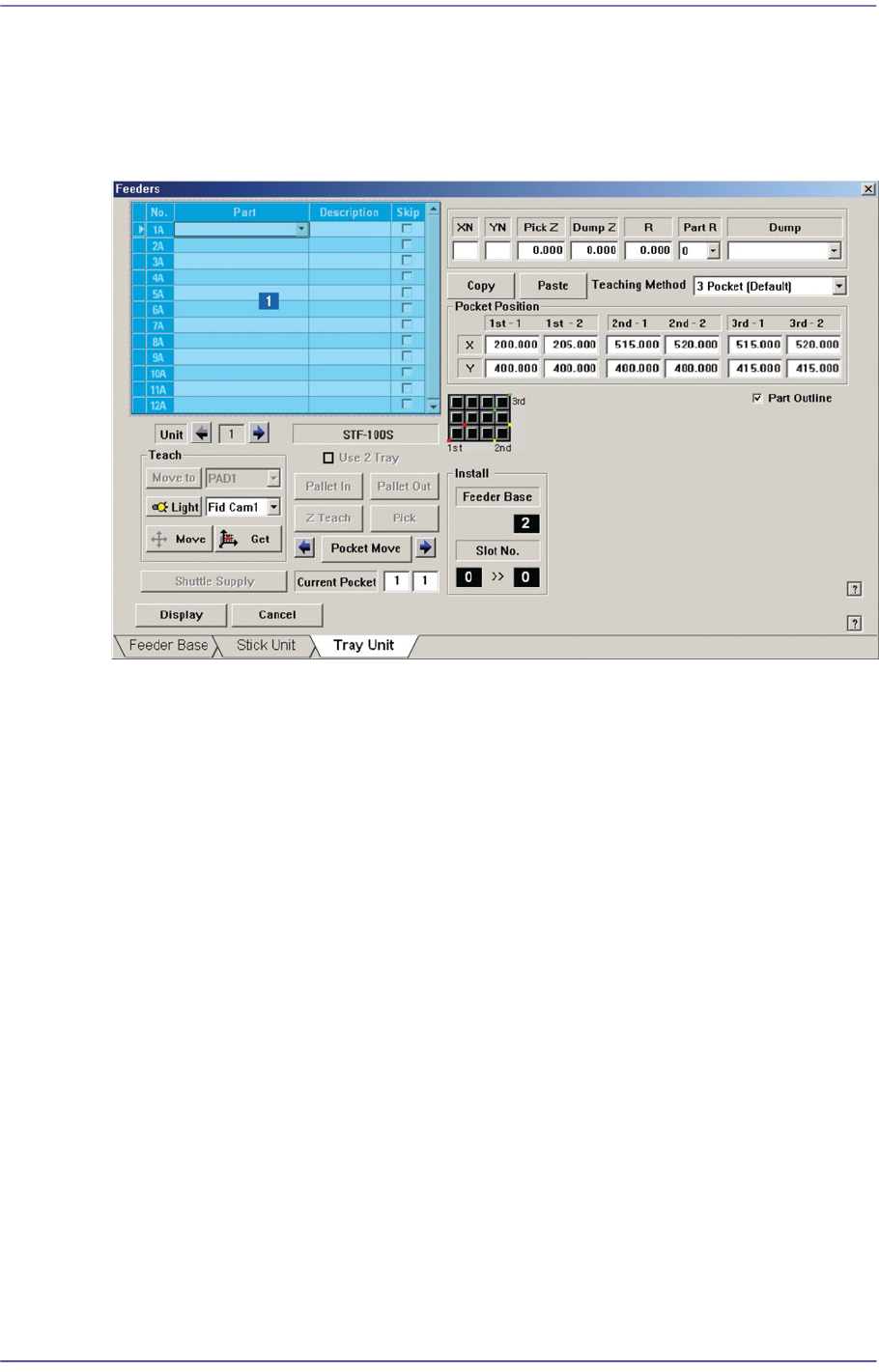

Figure8.10 “Tray Unit” dialog box

1: Grid

 ‘Grid’ group

Create and edit data according to the type of the corresponding tray.

<No> column

Refers to the serial number of the tray unit. Basically, “Single” has 10 trays. Each

means one tray.

<Part> column

Select the part to install on the corresponding tray. When the <Part> column is

clicked on, a Combo Box appears, and among the components registered in <1.2

Part>, a list of components to be supplied to “Tray” are displayed.

Next is the screen that shows component selection in the Combo Box of <Part>

column.
