Production Information Management

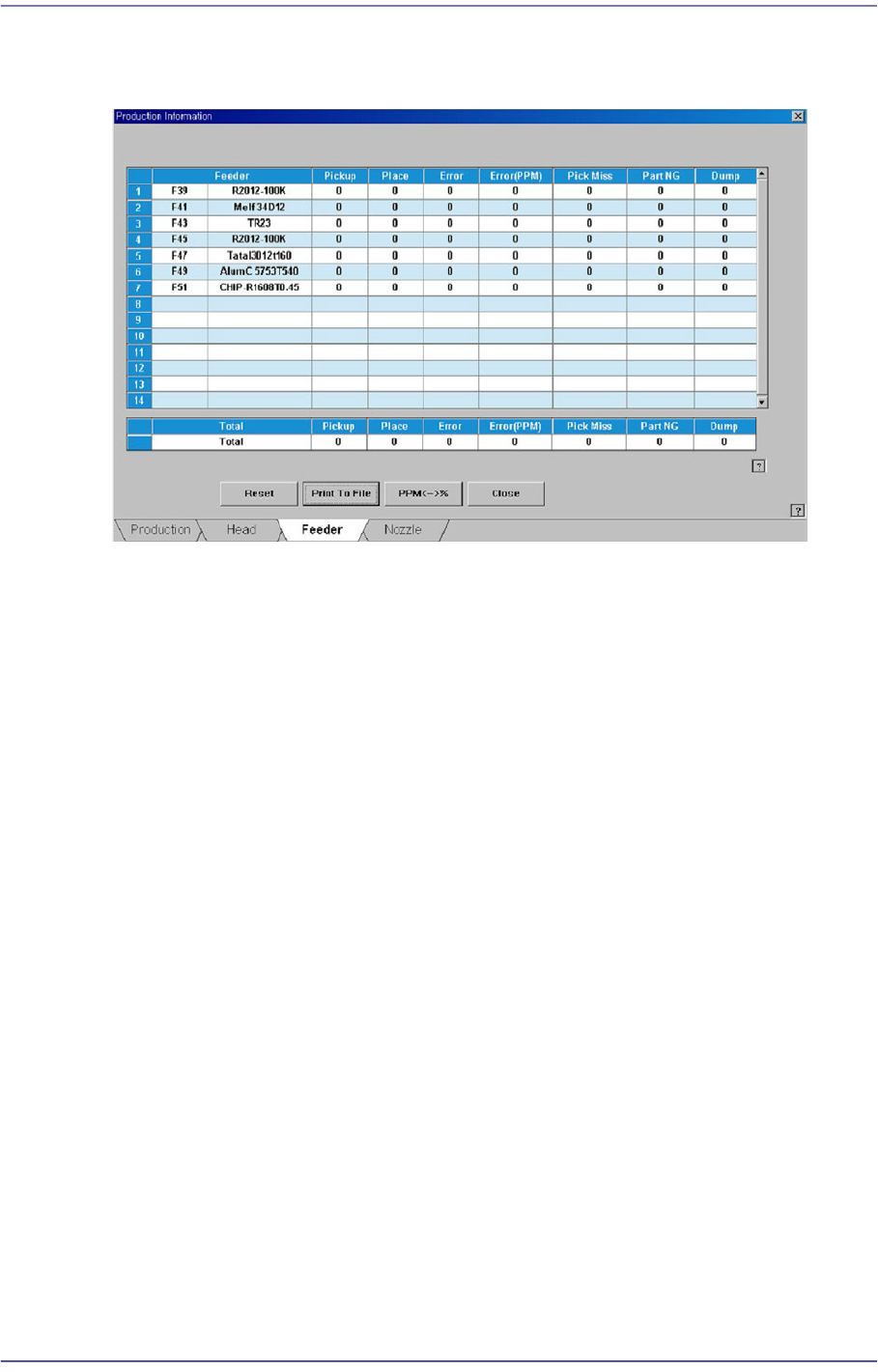

18.1.3. Feeder

Displays the operation information of each feeder.

 <Feeder> column

Indicates the information on the slot where the feeder is installed and the parts are

supplied.

 <Pickup> column

Displays the number of components picked up from the corresponding feeder.

 <Place> column

Displays the number of components placed from the corresponding feeder.

 <Error> column

Displays the number of components placed from the corresponding feeder.

 <Error (PPM)> column

Indicate the feeder error, which caused the fed parts not to be placed, in the PPM unit.

 <Pick Miss> column

Indicates the number of part pickup failures.

 <Part NG> column

Indicates the number of part recognition failures using ‘Vision’ after pick up by the

feeder.

 <Dump> column

Indicates the number of times part dumping has been performed by the corresponding

head.

18-8

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

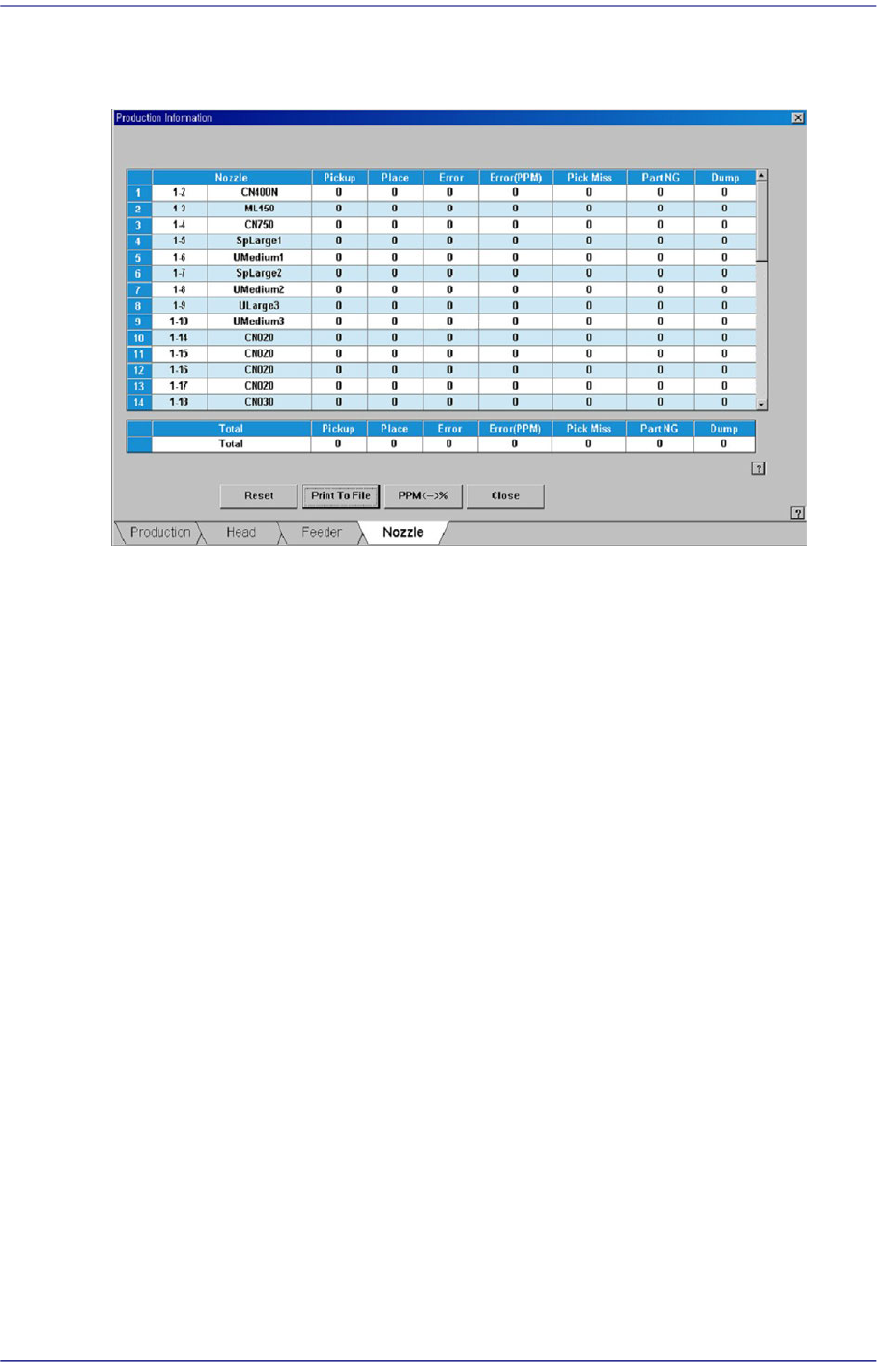

18.1.4. Nozzle

Displays the operation information of each nozzle.

 <Nozzle> column

Indicates the type of nozzles and number of holes where nozzles are arranged in the

ANC.

 <Pickup> column

Displays the number of components picked up by the corresponding nozzle.

 <Place> column

Displays the number of components placed by the corresponding nozzle.

 <Error> column

Indicate the nozzle error, which caused the parts not to be placed.

 <Error (PPM)> column

Indicate the nozzle error, which caused the parts not to be placed, in the PPM unit.

 <Pick Miss> column

Indicates the number of failures in pickup the parts by nozzle.

 <Part NG> column

Indicates the number of part recognition failures using ‘Vision’ after parts are picked

up by nozzles.

 <Dump> column

Indicates the number of times part dumping has been performed by the corresponding

head.
