14-47 Machine Calibration Memo The range o f t h e r eference va lues for the ‘ fly-camera calibration’ is as follows:. Mega FOV 3 5 ScaleX:33.1~36.1 ( μm/pixel) ScaleY : 33.1~36.1 (μm/pixel) R:-1~1(deg) Mega FOV 4 5…
14-46
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

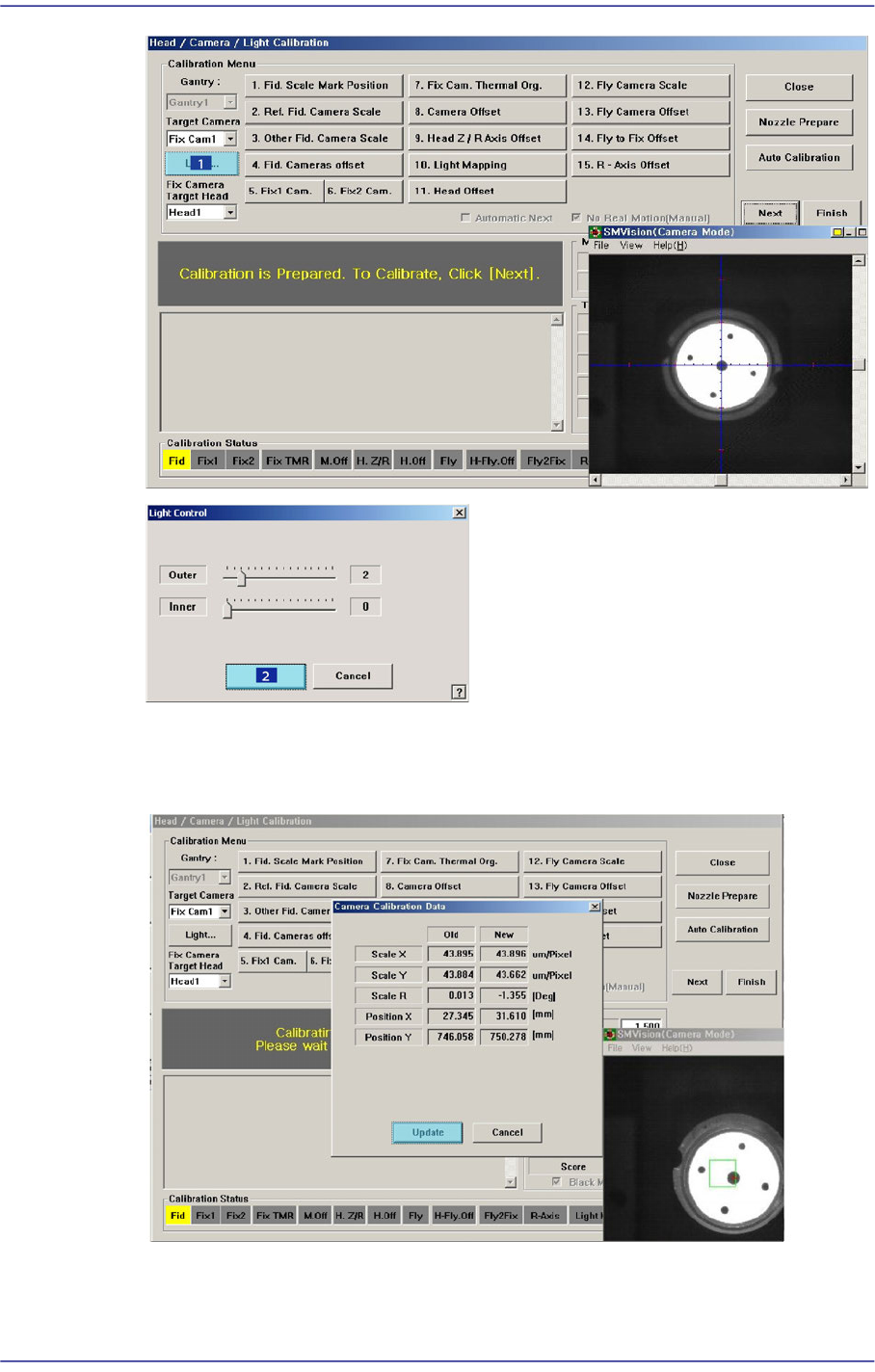

6. The calibration is performed automatically. If it is completed, the calibration result is
displayed as shown in the following figure. Click the <Update> button to apply the
new calibration value.
14-47
Machine Calibration
Memo The range of the reference values for the ‘fly-camera calibration’ is as
follows:.
Mega FOV 35
ScaleX:33.1~36.1 (μm/pixel)
ScaleY: 33.1~36.1 (μm/pixel)
R:-1~1(deg)
Mega FOV 45
ScaleX:42.7~45.7 (μm/pixel)
ScaleY: 42.7~45.7 (μm/pixel)
R:-1~1(deg)
14-48
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
14.3.7.2. Fix Cam. Thermal Origin Calibration
Refers to the calibration method that is performed to calibrate the thermal origin of the
Fix1 camera. It is performed to compensate the fiducial camera position by teaching any
one point on the ANC.
<7. Fix Cam. Thermal Origin> Button

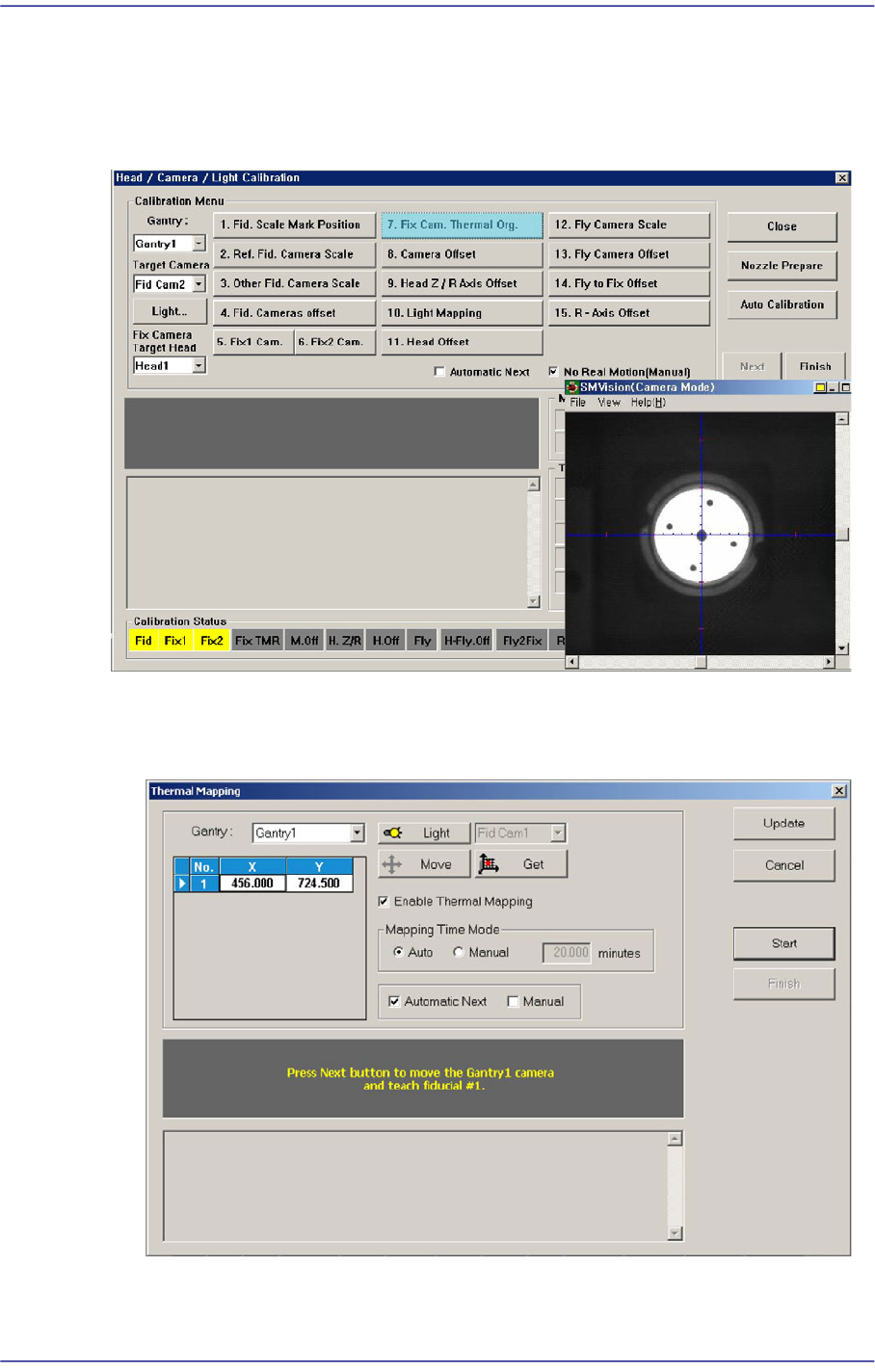

1. Clicking the <7. Fix Cam. Thermal Origin> button will display the following screen.
2. Click the <Move> button to move the Head Assembly to the fiducial position on the
ANC and teach the corresponding fiducial accurately using the fiducial camera and
