<Placements> column
Displays the number of times each nozzle is used. In other words, the number of
placement points using the corresponding nozzle.
<# of Nozzles Arranged> list box
This list box indicates the types and number of nozzles that are arranged in each ANC
currently.
<Nozzle> column
Displays the nozzle name.
<ANC-1 ANC-2> column
Displays the ANC where the nozzle is arranged.
<Assign Nozzle> button
Used to assign applicable heads for each nozzle separately. When this button is clicked
on, the following dialog box is displayed.

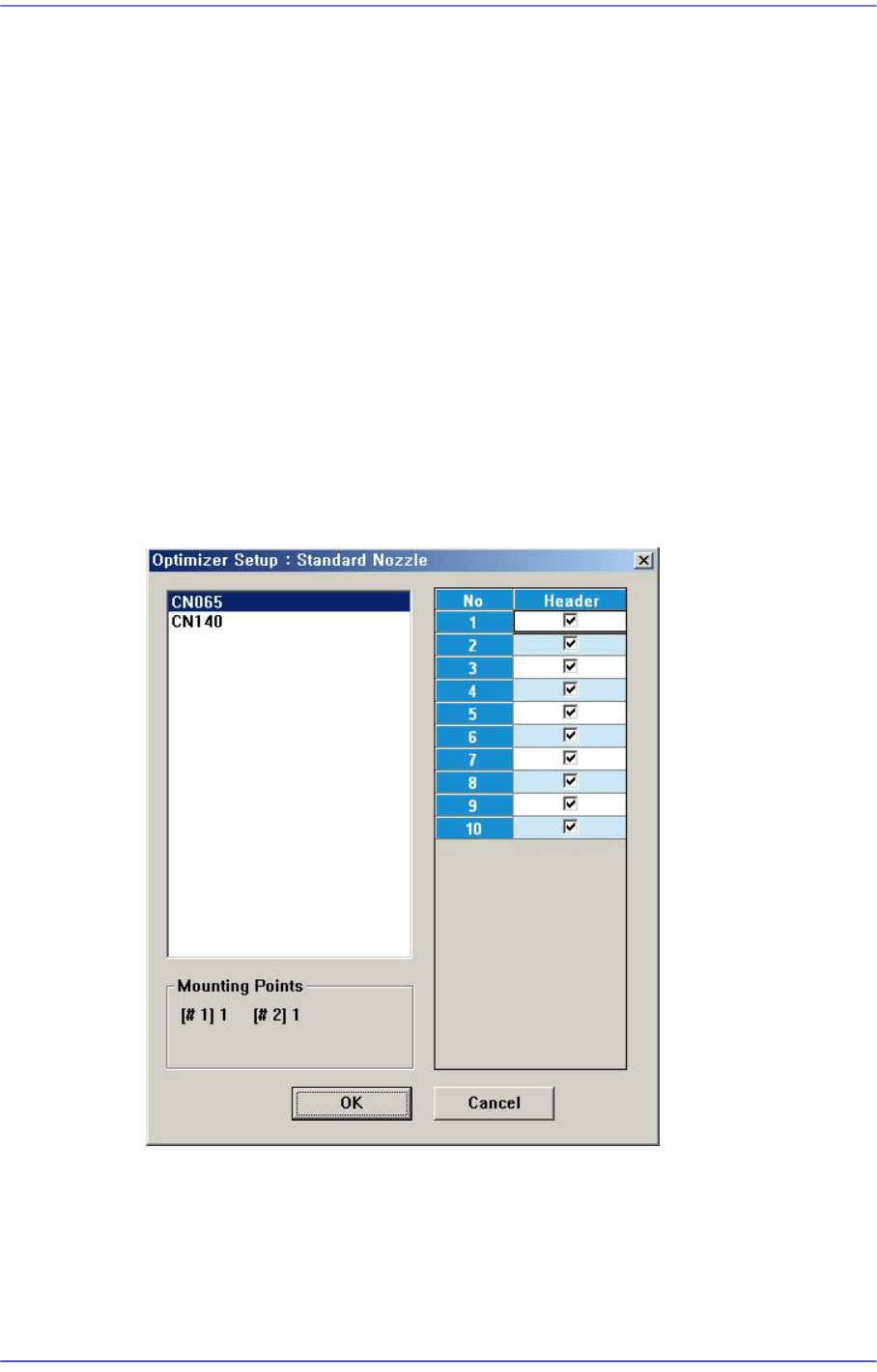

Figure10.3 “Optimizer Setup: Assign Nozzle” dialog box
Basically all nozzle types can be applied to any head, therefore all heads are checked.
But there are occasions when a certain nozzle has to be operated in a certain head.
Also, this can be used when the user wants to assign a certain head to a certain nozzle.
The above figure shows the nozzle CN040 can operate on any head between Head1
and Head10.
10-5
Optimization
<Useful Heads> check box group
The heads that can be used by the selected nozzle type. As a standard, check so that
Head1 ~ Head10can be used.
<Mounting Points> group
This group shows the number of components used by the nozzle selected for the
current PCB. This can be used as a reference data when the user assigns the applicable
heads to each nozzle.
#1 shows the total number of placement points of the component for which #1 nozzle
is selected and #10 shows the total number of placement points of the component for
which #10 nozzle is selected.
Figure 10.3 shows that CN040 is selected for 1# nozzle of three components and for
2# nozzle of one component.
<OK> button
Saves the selected options and closes the dialog box..
<Cancel> button
Cancels the selected options and closes the dialog box.
10-6
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
10.3. Feeder Lane

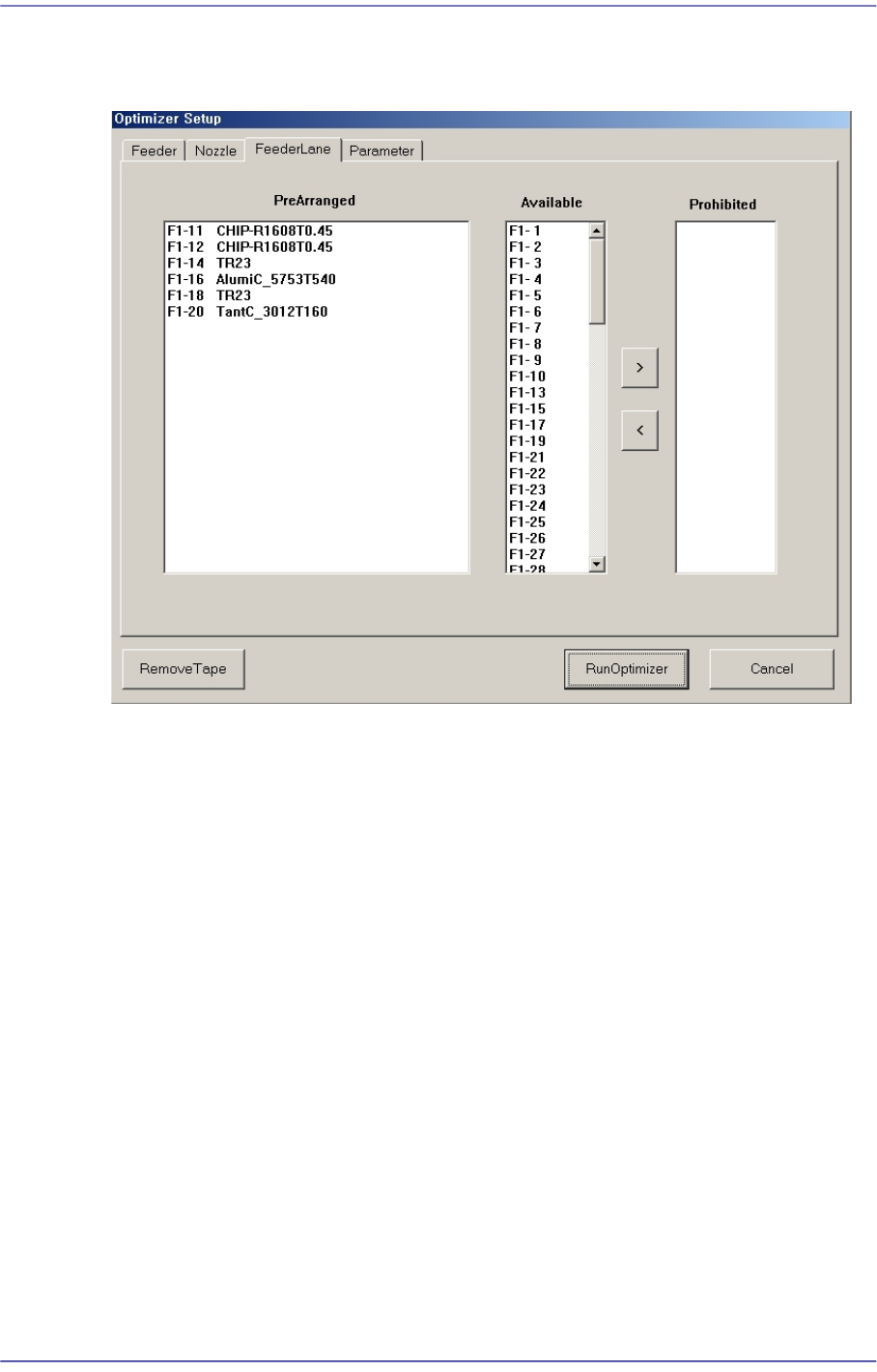

Figure10.4 “Optimizer Setup: Feeder Lane” dialog box
This dialog box to set the feederbase slot to be used for feeder arrangement by the
Optimizer. The devices that can be arranged on the feederbase slot include tape feeder and
stick feeder unit.
Current status of feeder arrangement in the feeder base slots is indicated. If the optimizer
cannot arrange the devices due to a defective feeder base slot or for other reasons, the
feeder base slot that must not be arranged can be designated.
<PreArranged> list box
Indicates the arrangement status of feeders currently installed in the feeder base slots.
Of the feeder base slot number, ‘F’ refers to the front feeder base and ‘R’ the rear
feeder base
For parts which are transferred to the tape feeder, a part name is indicated after the
number of the slot in which the feeder is installed. For stick feeder or tray feeder,
corresponding feeder type is indicated. In addition, the slot of the feeder base that
cannot be used due to interference with other devices is indicated by a dotted line.
<Available> list box
Displays the feederbase slot where devices can be arranged in the Optimizer.
<Prohibited> list box
For the feeder base slot in which no device is desired to be arranged, click the arrow
