7-45 Part Registration / Increases/ decrea s es the value when the leads are on or beneath the body . Increases/ decrea s e the corner length. / Increases/ decrea s es the value when the leads are at the l e ft or ri…
7-44
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
possible to adjust the size of the selected object using the Edit & Adjust Key.
Adjust Lead Pitch
After pressing this button, select an object whose lead pitch is to be adjusted. It is
then possible to adjust the lead pitch of the selected object using the Edit & Adjust
Key.
Adjust Lead Foot Length
After pressing this button, select an object whose lee foot size is to be adjusted. It
is then possible to adjust the lead foot size of the selected object using the Edit &
Adjust Key.
Adjust Lead Num
After pressing this button, select an object whose Lead Num (lead count) is to be
adjusted. It is then possible to adjust the Lead Num(lead count) of the selected
objects using the Edit & Adjust Key.
Edit Adjust Key
After selecting the Edit Object icon button, it is possible to move the corresponding
object and adjust the related properties of the object using the Edit Adjust Key.
Move Object
:Moves an object to the left
:Moves an object to the right
:Moves an object up
:Moves an object down
Object Size/ Pitch/ Foot Length
/ :Adjusts the value so that it will increase.
/ :Adjusts the value so that it will decrease.
Lead Num/ Corner Width and Length
7-45
Part Registration
/
Increases/ decreases the value when the leads are on or beneath the body.
Increases/ decrease the corner length.
/
Increases/ decreases the value when the leads are at the left or right of the
body
Increases/ decrease the corner width.
‘Button’ Menu
Performs partial automatic recognition, adds an object, copies and deletes an object,
and performs object grouping.
button

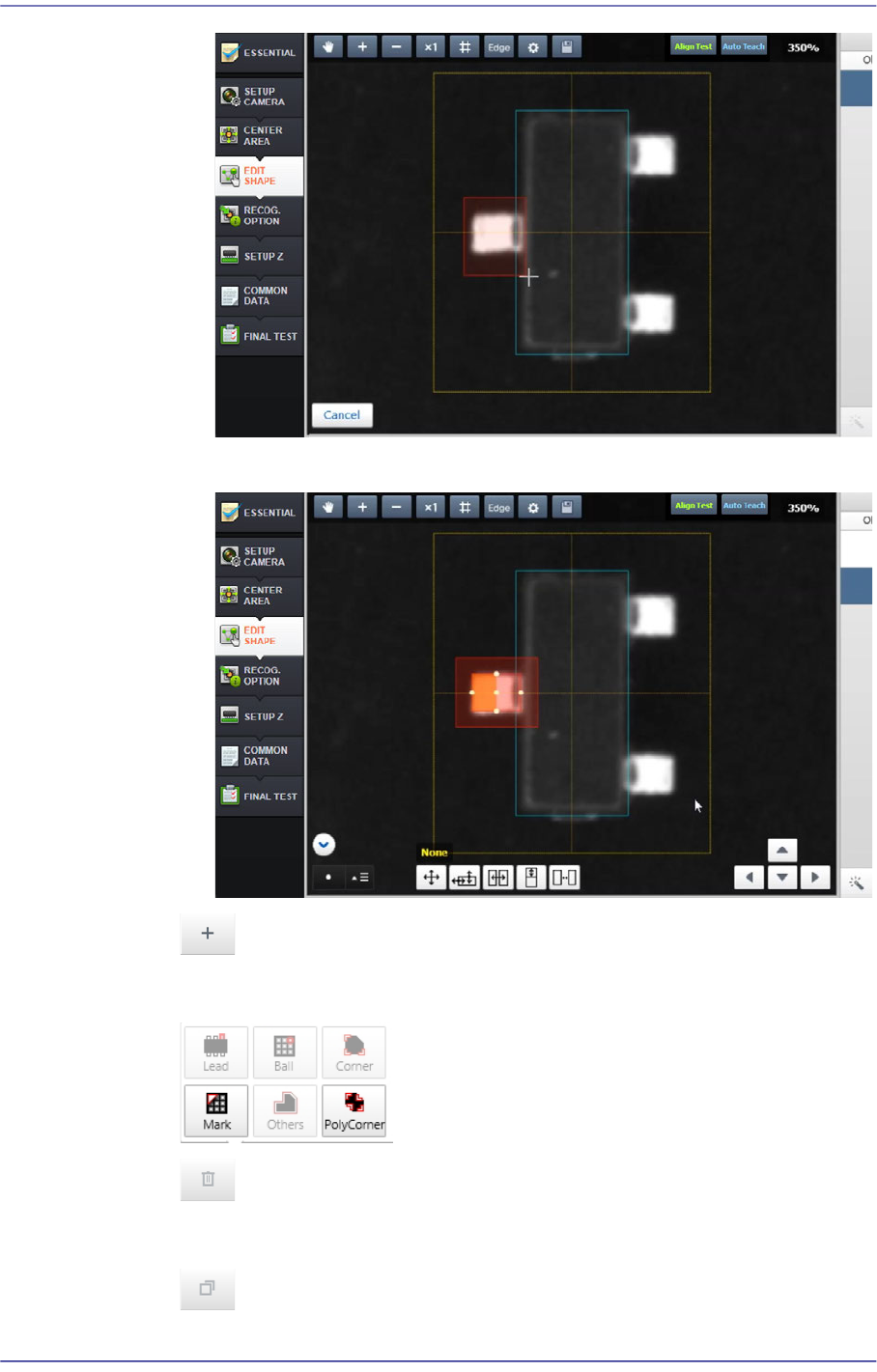

Automatically recognizes the part shape partially in the area selected by the user
from the vision window.
1) Select a shape object to be added (Lead)
2) Drag and select the area to be recognized partially using the mouse
7-46
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
3) Create a shape object to be recognized partially and perform a recognition test
button
Adds a lead, ball, corner, mark and other shape objects manually.
button
Deletes the object selected from the <Object List> group.
button
