14-50 Fast Flexible Placer SM481(L) PLUS Administ r ator’s Guide 5. Click <Update> b ut ton to apply the new calibration v a lue.
14-49
Machine Calibration
then save the coordinates using the <Get> button.
3. If the <Start> button is clicked, the equipment performs calibration automatically.
4. Once automatic calibration is completed, a message "Gantry Thermal mapping
calibration finished successfully" is displayed, showing result value as indicated in the
following figure.
14-50
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
5. Click <Update> button to apply the new calibration value.
14-51
Machine Calibration
14.3.7.3. Fiducial Cameras Offset Calibration
Measure the offset between the center of the 1st fiducial camera and 2nd fiducial camera.
In order to calibrate the fiducial camera offset, the ‘Fix-Camera Calibration’ and the
‘Fiducial Camera Scale Calibration’ must be preceded.
In order to perform the calibration, use the calibration Tool.
The following is the procedure to calibrate the Fid Cam Offset of the head;
1. Click the <4. Fid Cameras Offset> button.

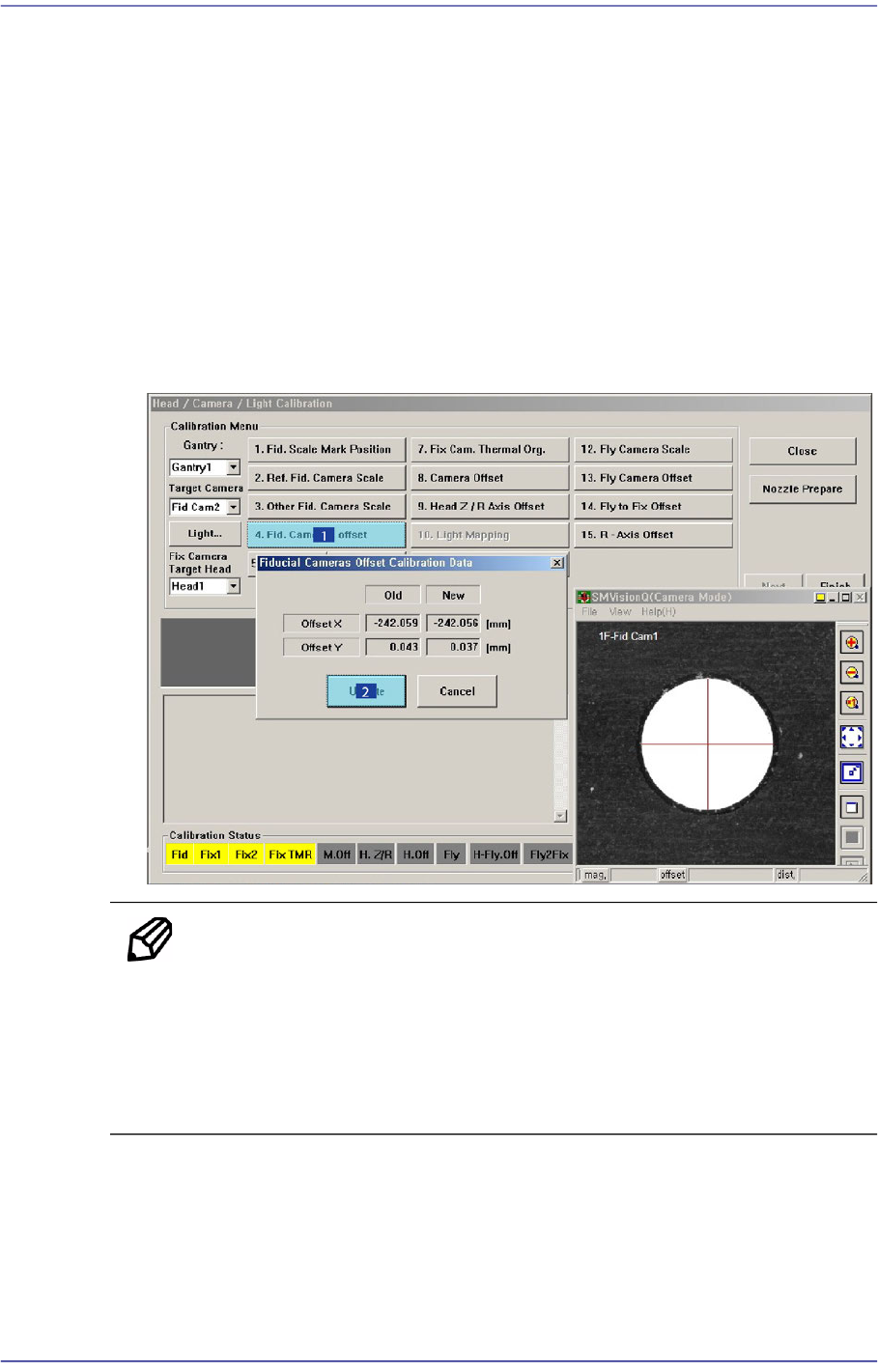

2. The calibration is performed automatically. If it is completed, the calibration result is
displayed as shown in the following figure. Click the <Update> button to apply the
new calibration value.
Memo The reference values for the calibration of the Fiducial Camera
Offset(FOV 7.5)is as follows.
Gantry1
Offset X : -243.0mm ~ -241.0mm
Offset Y : -1.0mm ~ 1.0mm
