15-38

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

15.5.3. <Device> tab dialog

Set whether to use or not to use the ANC and camera and set the constant parameter to be

used for the vision system. When this button is selected, the following screen is displayed.

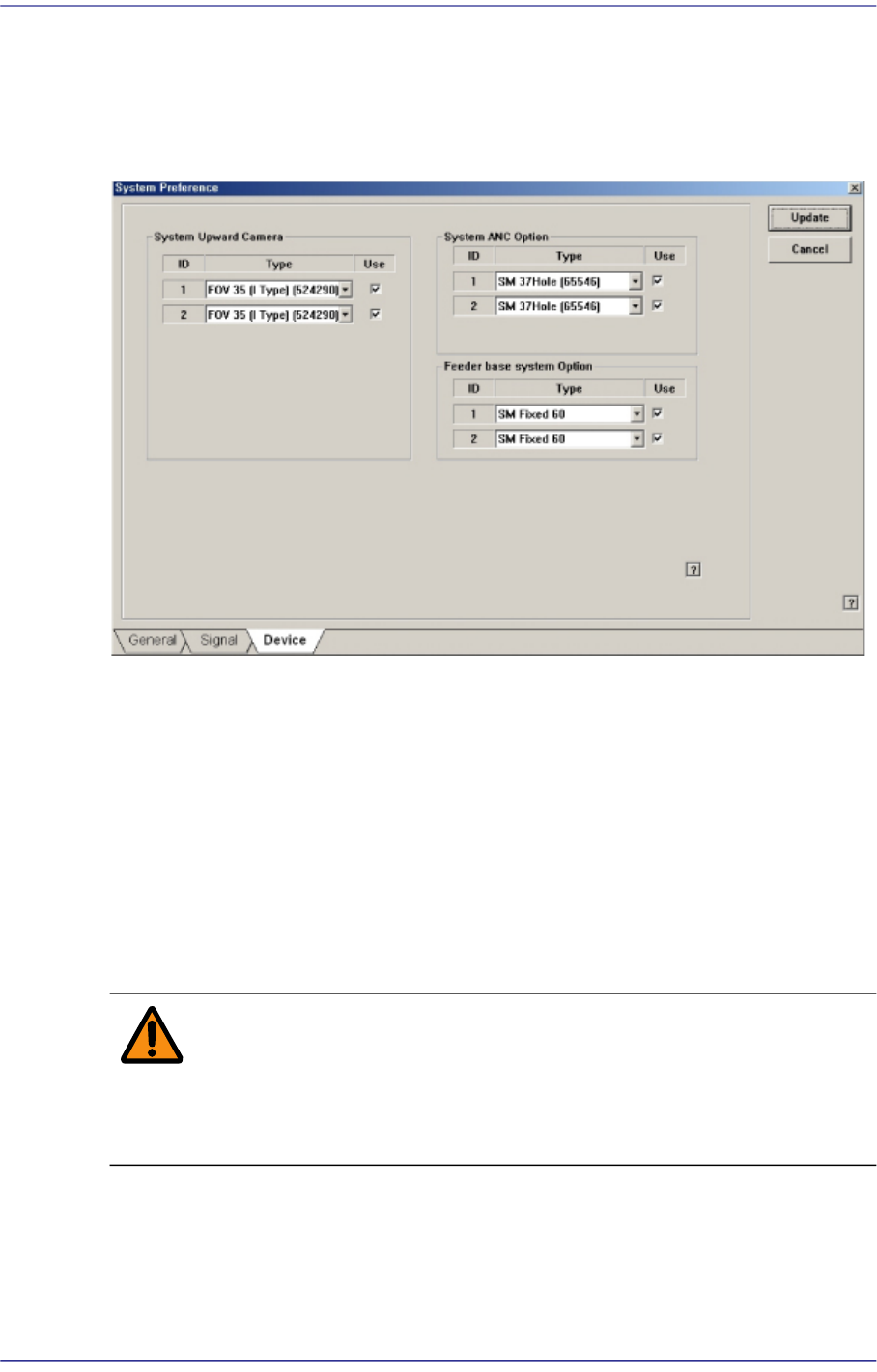

Figure15.19 “Device” tab dialog

 <System Upward Camera> group

Set whether to use or not to use the fix camera type available for the equipment. To use

the corresponding camera type, check the check box. In the SM411 model, this

function is not available.

 <System ANC Option> group

Set whether to use or not to use the ANC type available for the equipment. To use the

corresponding ANC type, check the check box.

 <Feeder base system Option> group

Sets the type of the feeder base installed on the equipment.

Warning Changing the set up status by an unauthorized user could

damage the equipment or result in personal

injury.Unauthorized user must not change the set up status

of the equipment.

15.5.4. <SECS> tab dialog

Set the communication with the MES host. This function is selected when using the

gamma interface applied by Samsung Electronics.

15-39

System Setup

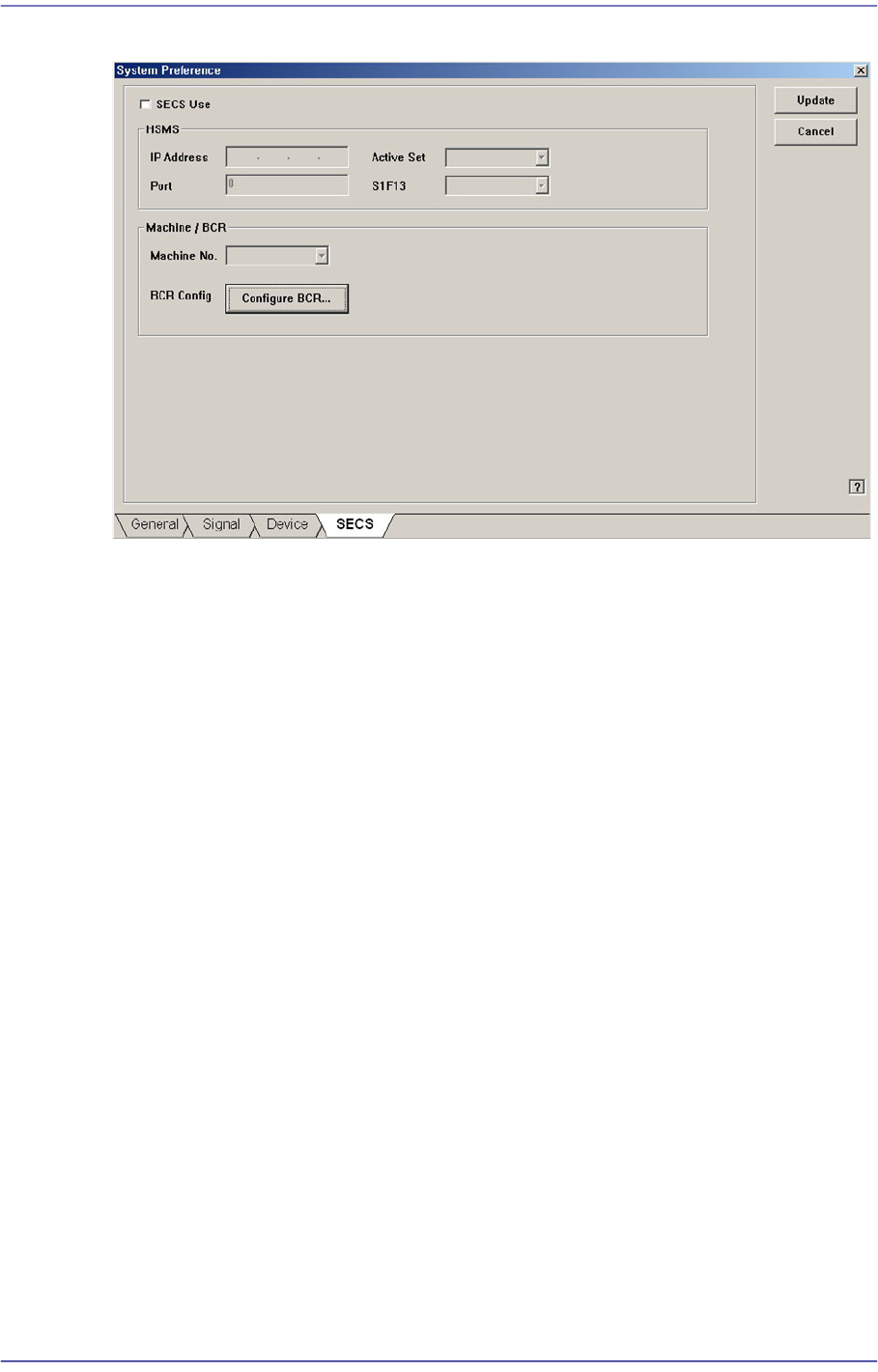

Figure15.20 “SECS” tab dialog

 <SECS Use> check box

Select this check box to perform setup for communication with the MES host.

 <HSMS> group

 <IP Address> edit box

Inputs the IP address assigned to the machine.

 <Active Set> combo box

Sets one of the items first to which the connection command will be transmitted

for communication between the MES host and the machine.

 Active: Attempts to connect the TCP/IP protocol to the host from the machine.

 Passive: Attempts to connect the TCP/IP protocol to the machine from the

host.

 <Port> edit box

Input the port assigned for communication between the MES host and the

machine.

 <S1F13> combo box

 Equipment: Attempts to connect the HSMS protocol to the host from the

machine.

 Host: Attempts to connect the HSMS protocol to the machine from the host.

 <Machine/ BCR> group

 <Machine No.> combo box

Sets the ID so that the MES host may recognize the machine.

15-40

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

 <Configure BCR...> button

Clicking this button will display the dialog box for the barcode scanner setup as

follows.

 <Enable> check box

Select this check box to use the barcode reader.

 <Port> combo box

Sets the port for communication between the machine and the barcode

scanner.

 Check the connection status between the MES host and the machine.

 When they are connected

 When they are not connected
