16-15
Diagnosis
16.5. Jogbox [F6]
Checks the operation of the Teaching Box. When this button is clicked on, the following
dialog box is displayed.
When each button in the actual Teaching Box is operated, displays the operation status.

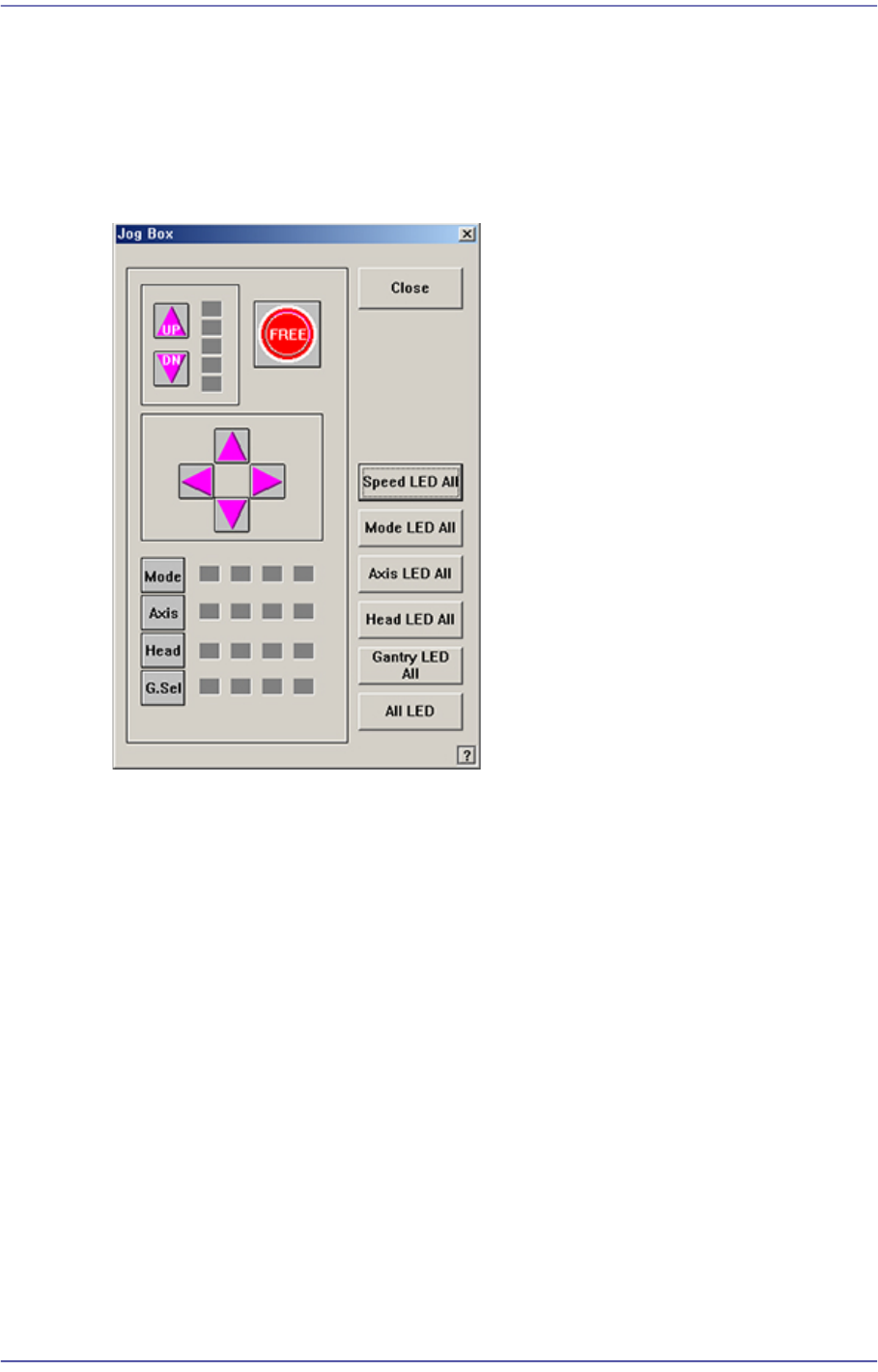

Figure16.8 “Jog Box Diagnosis” dialog box
<Speed LED All> button
Turns ON/OFF all Speed LEDs.
<Mode LED All> button
Turns ON/OFF all Mode LEDs.
<Axis LED All> button
Turns ON/OFF all Axis LEDs.
<Head LED All> button
Turns ON/OFF all Head LEDs.
<Gantry LED All> button
Turns ON/OFF all Gantry LED.Used only for machines with more than one gantry.
<All LED> button
Turns ON/OFF all Gantry LED.
<Close> button
Closes the dialog box.
16-16
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
16.6. Tray [F7]
Checks communication with the tray feeder. When this submenu is selected on, the
following dialog box is displayed.
Figure16.9 “Diagnosis: Tray Feeder Communication Diagnosis” dialog box
<Communication Channel> group
Select the communication channel to which the tray feeder is connected.Ch. 1: Selects
RS-232C communication Port1.Ch. 2: Selects RS-232C communication Port2.
<Command> combo box
Select the command to transmit to the tray feeder.
Update Status: Updates the status.
Pallet Out: Outputs the selected pallet from the tray magazine.
Move Pitch: Locates the selected pallet at the entrance of tray magazine output.
Pallet In: Brings the selected pallet into the tray magazine.
Home Search: Moves the tray feeder to Home.
<Change Pallet to> list box
Select the palette number to change.
<Execute> button
Transmits the selected command to the tray feeder.
<Current Palette No.> Static box
Displays the number of the pallet currently taken out.
16-17
Diagnosis
<Status> message box
Displays the status of command handling.
<Execution Time> Static box
Displays the time taken to handle the command.
<Close> button
Closes the current dialog box.
16.7. Motor IO [F9]
Indicates the input status of sensors related with the driving motor.

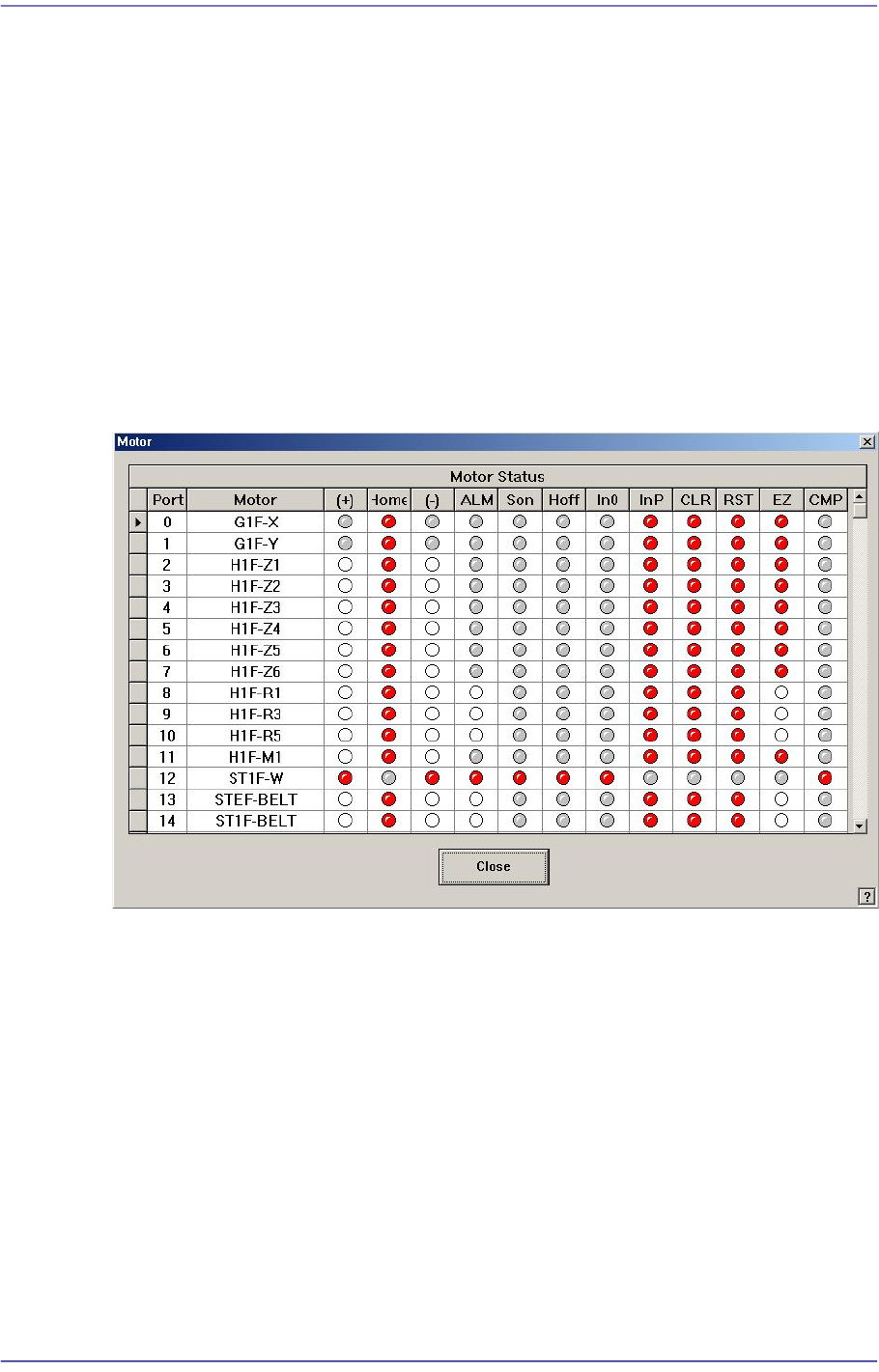

Figure16.10 “Motor” dialog box
