7-13 Part Registration  button Saves the image viewed in the vision wi ndow currently .  but ton Displays the nozzle shape in th e vision window .  but ton Displays the polarity of the par t in the vision window .  &…

7-12

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

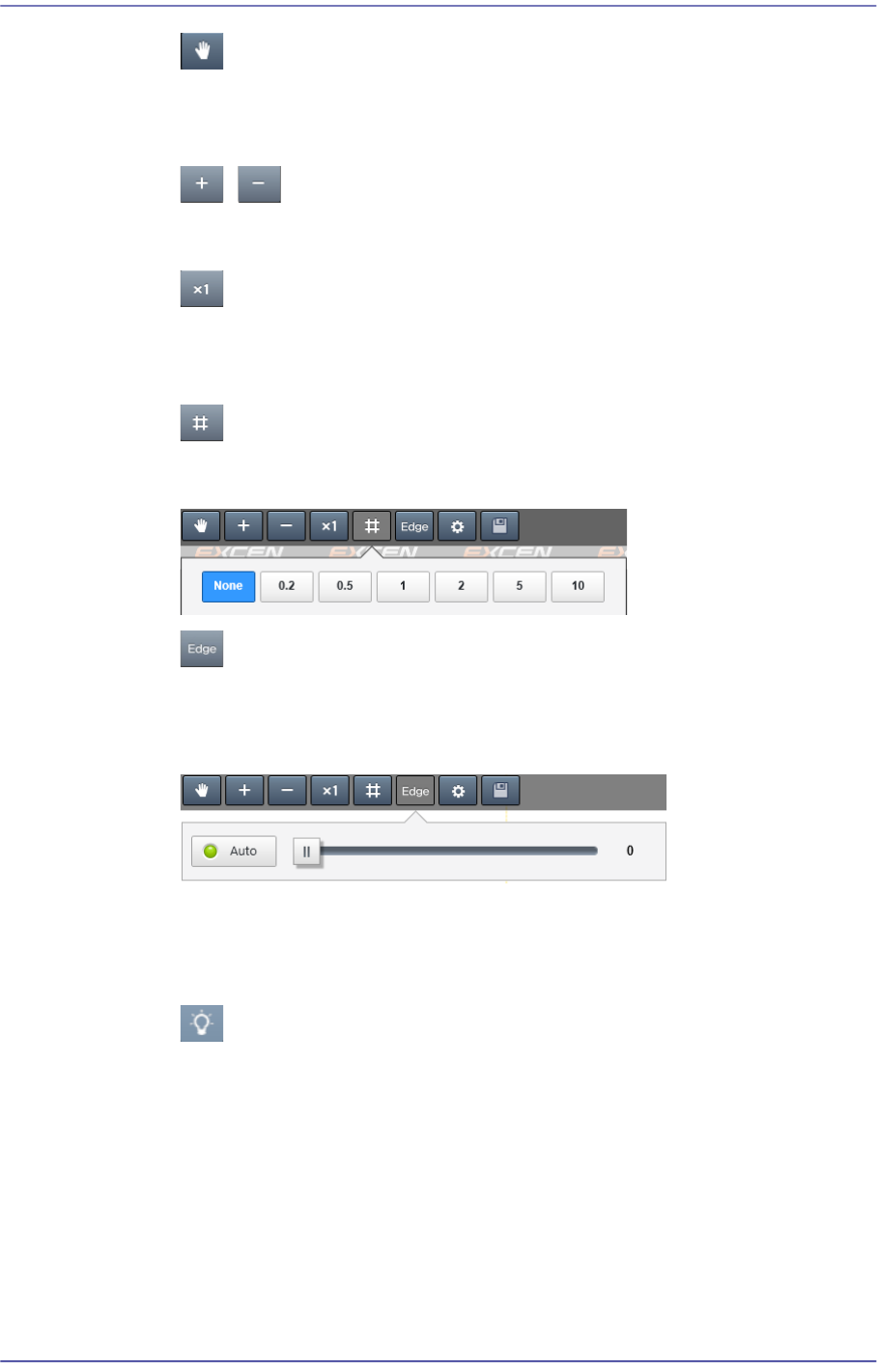

 button

When this button is selected, it is possible to move the vision image using the

mouse.

 / button

Zooms in/out the vision image.

 button

Shows the vision image at 100% in size. The image size is indicated as a

percentage(%) at the top right of the vision window.

 button

Sets the grid interval in the vision window. The unit of the set value is mm.

 button

Clicking this button will show the vision image in the following order:

Actual Image → Black and Image → Edge Image → Actual Image

 <Auto> switch button

Selected in cases to automatically set the threshold to be applied when

displaying a black and image.

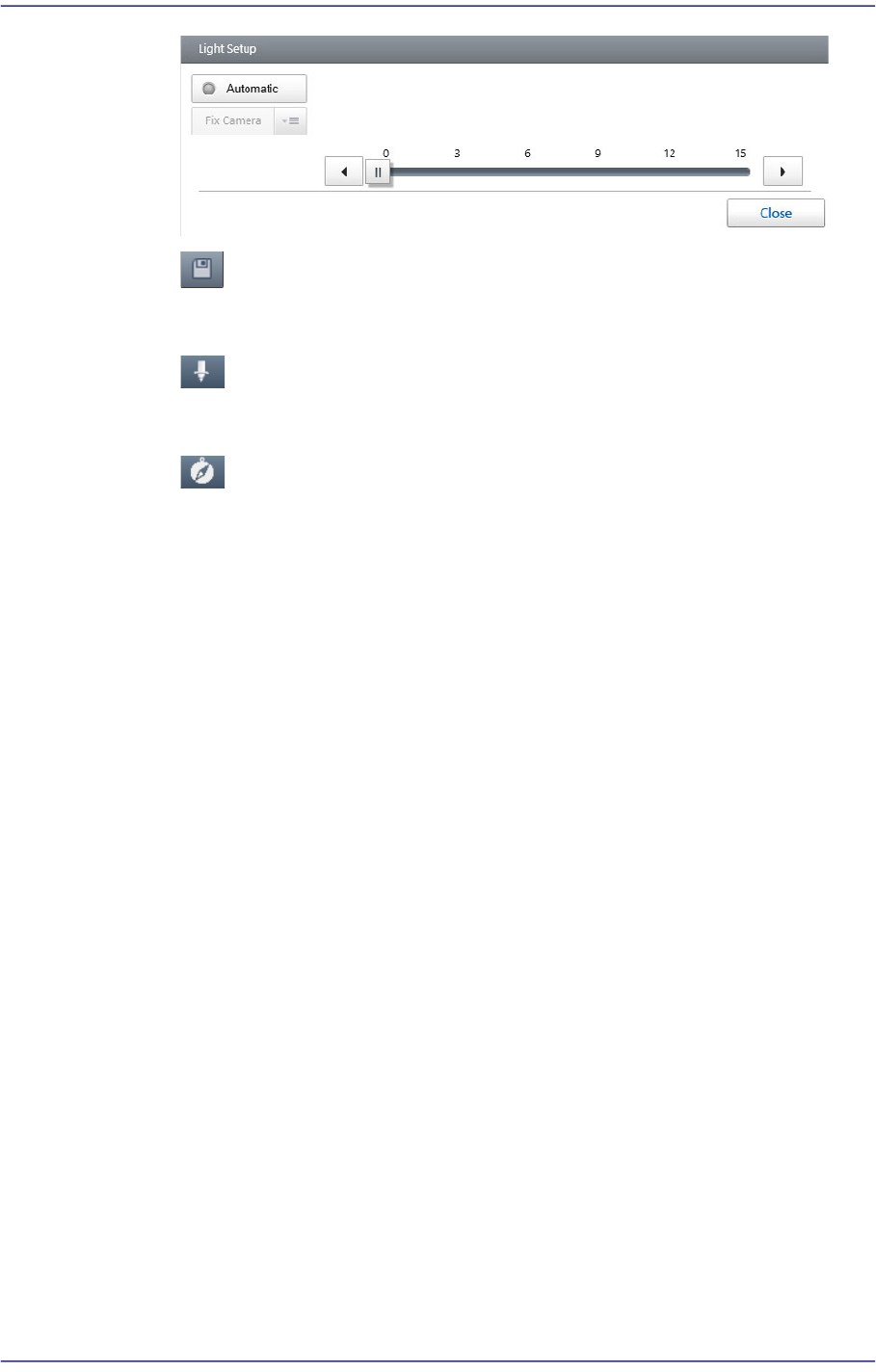

 button

Executes the dialog box that can set the lighting value of the camera recognizing a

part.

7-13

Part Registration

 button

Saves the image viewed in the vision window currently.

 button

Displays the nozzle shape in the vision window.

 button

Displays the polarity of the part in the vision window.

 <Align Test> button

Performs the part recognition test using the set part recognition data.

Displays the recognition test result at the bottom of the vision window.

 <Auto Teach> button

Finds the part recognition data automatically.

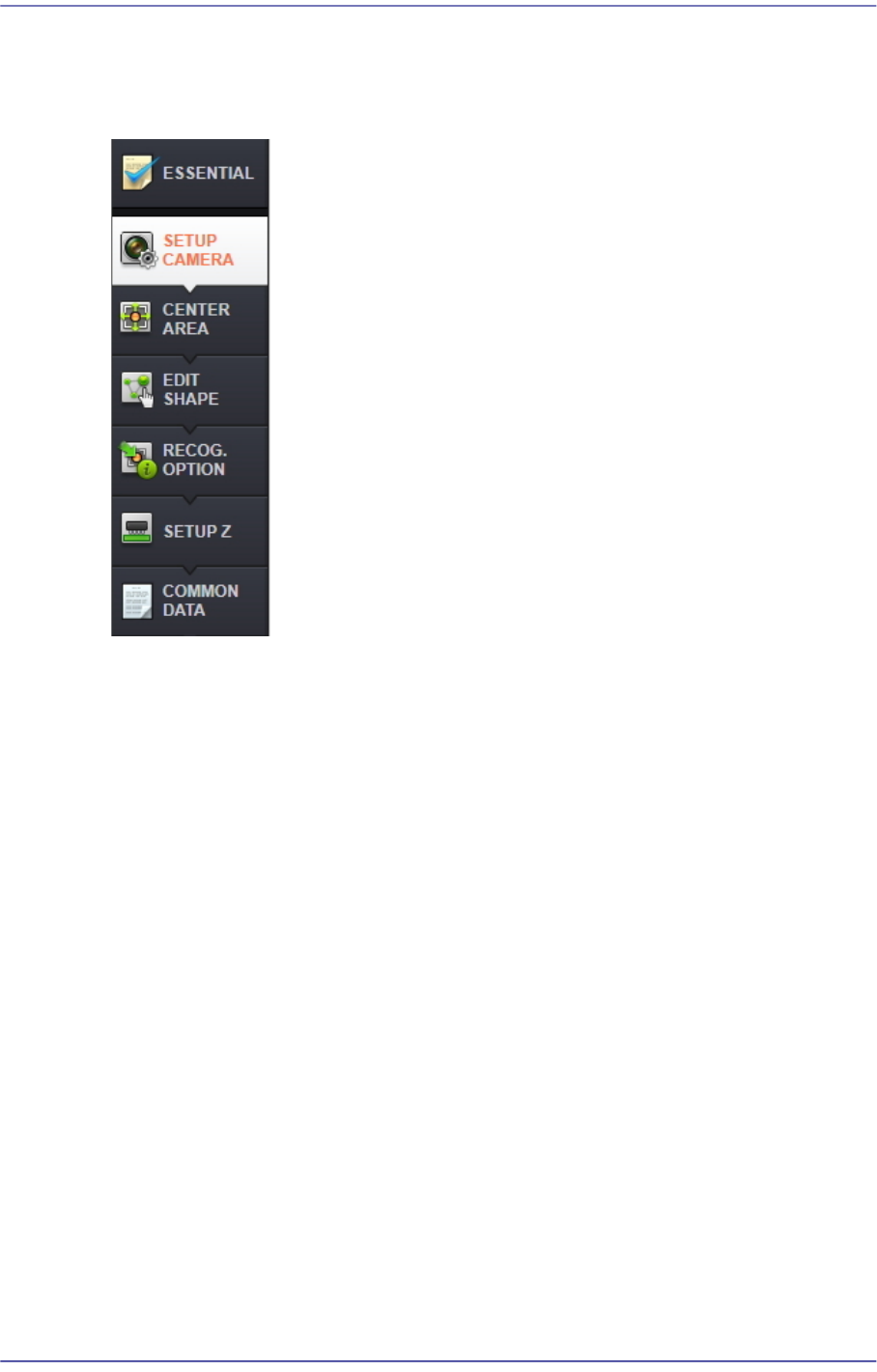

 'Part Parameters' area

Selected when registering a new part or modifying the data of the registered part. Part

data consists of two types of part parameters as follows:

For more details, refer to “7.2.2. Edit Part Parameter”.

7-14

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

7.2.2. Edit Part Parameter

It is possible to set the parameters related to part recognition as well as the parameters

related to feeders, nozzles, pneumatic pressure and speed.

7.2.2.1. ESSENTIAL

Of general common parameters, sets the mandatory parameters that the user must check

and set.
