Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

7.2. Standard part editing and registration

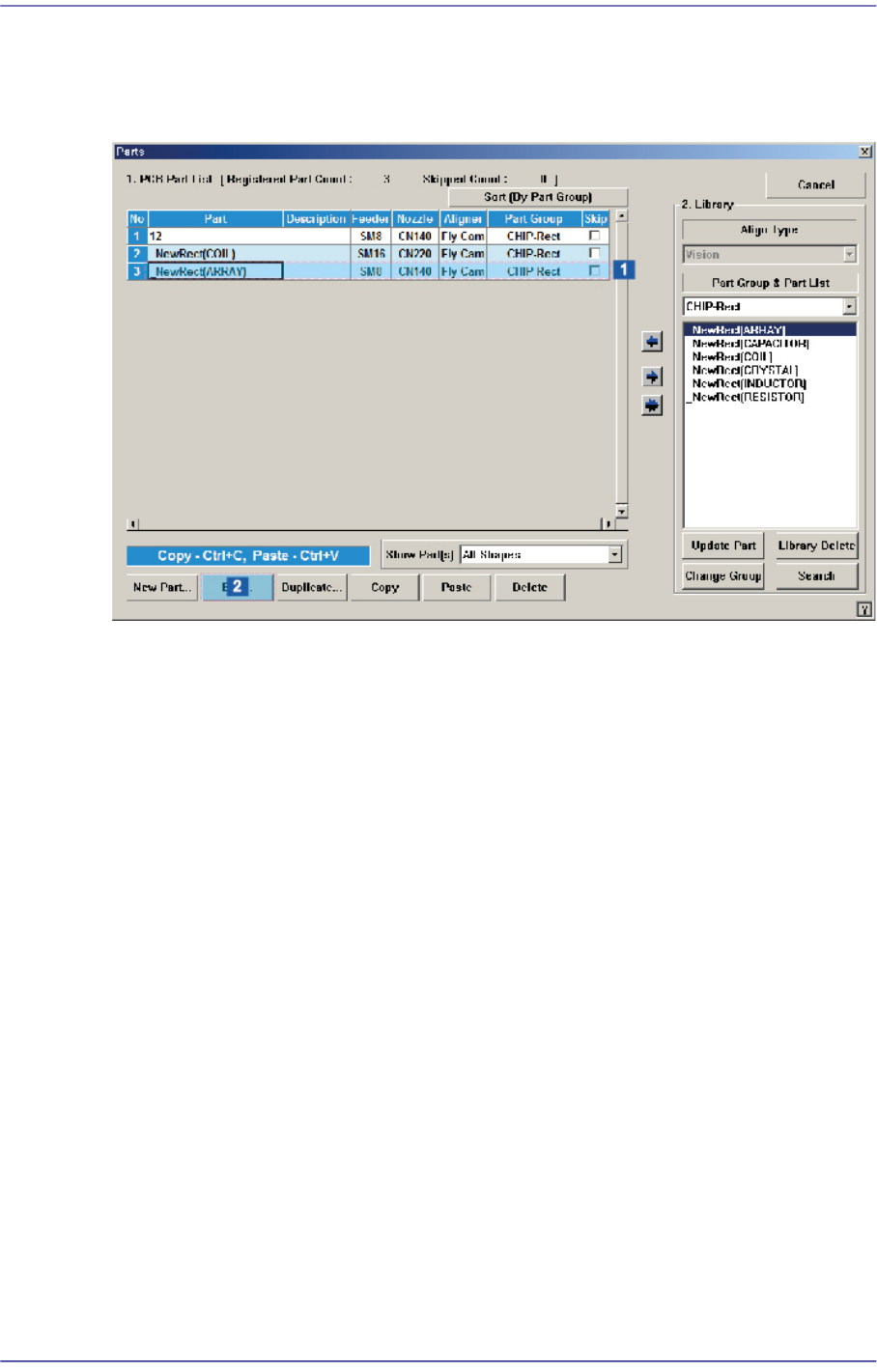

The part is registered by editing the standard part in the following manner. Select the part

to be edited in the <1. PCB Part List> and click the <Edit> button.

7-9

Part Registration

7.2.1. Screen Configuration

1: Title

2: Vision Window

3: Part parameters

 ‘Title’ area

 <Select Head> button

Selects the head to pick the part.

 <Image Refresh> button

Refresh the part image displayed in the vision window.

 <Machine Message> button

Executes the dialog box that can check an error message generated in the machine.

 button

It is possible to input further explanations for the corresponding part.

 caption button

7-10

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

Shows the unit system for the currently set items.

 button

Initializes the part data according to the item selected from the <Load Default

Data Level> selection box.

1: Check Box

 <Load Default Data Level> combo box

Select the vision algorithm to be applied in advance when placing a part.

 High-Performance

Selected when initializing parameters of the part by giving priority to

productivity.

 Safety-Mounting

Selected when initializing parameters of the part in order to prevent the

pickup and placement errors to the maximum extent.

 ‘Check Box' group

Selects the parameter to be initialized as a default value.

 button

Restores the modified part data to the data before modification.

 button

Displays the part registration status as a grade.
