14-19
Machine Calibration
bottom right. Set the Pixel Count Percentage to a value greater than 90% for
testing.

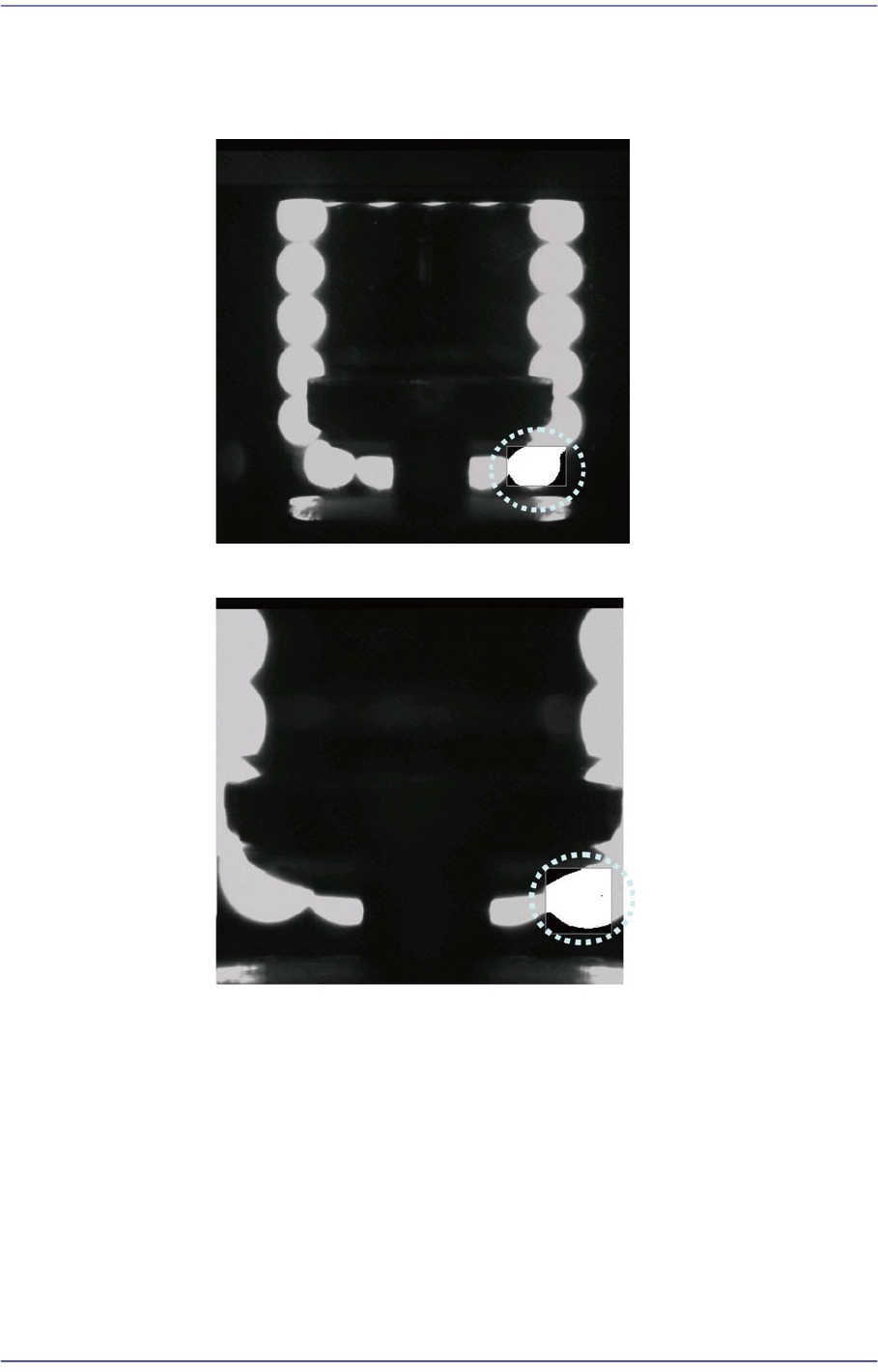

<In the case of fly-camera with FOV 25mm>
<In the case of fly-camera with FOV 16mm>
14-20
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
14.2. Camera [F5]
Sets various data on the camera.

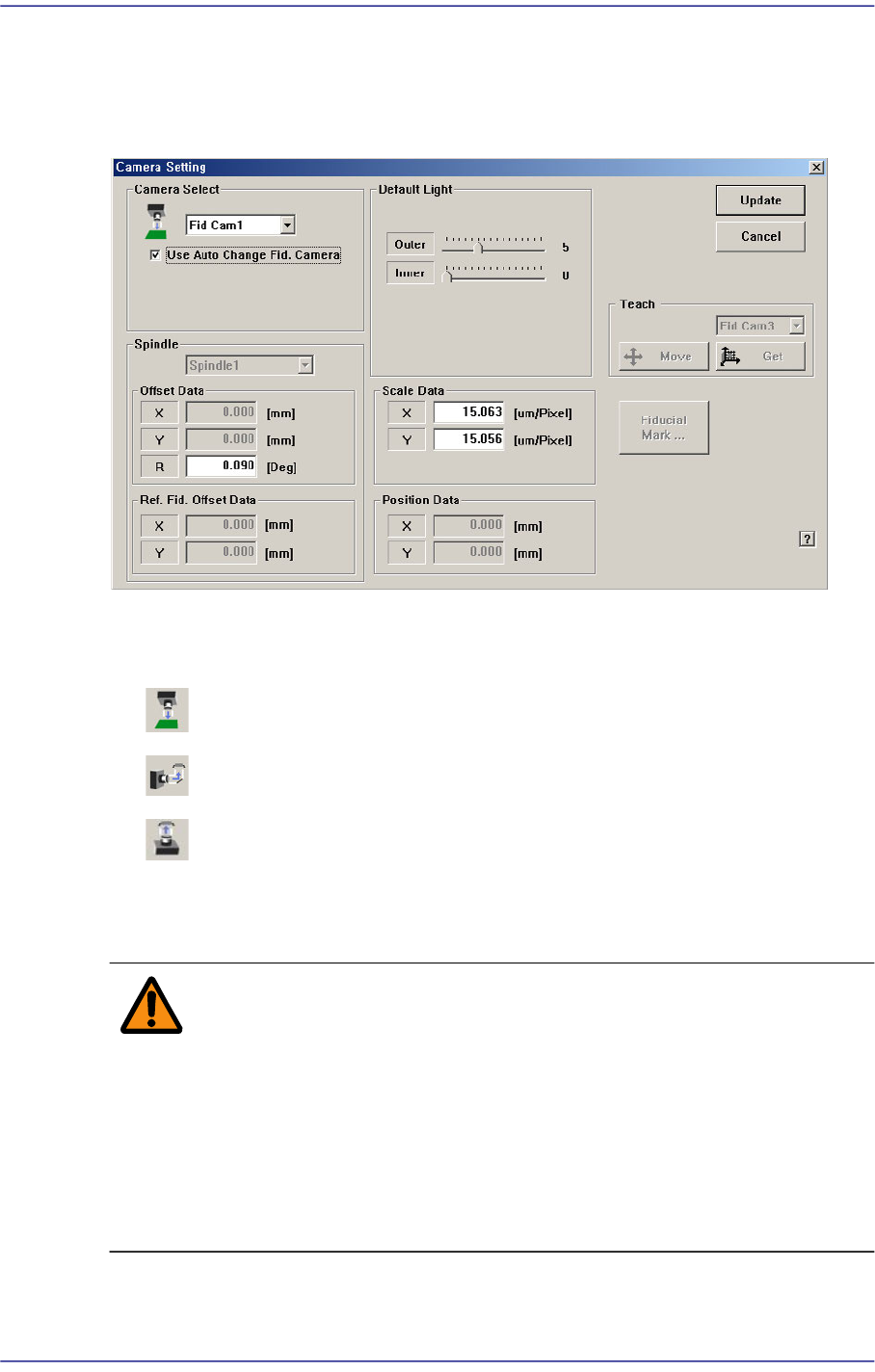

Figure14.7 “Camera Setting” dialog box
<Camera Select> combo box
Select the camera type to set. Available camera types are as follows.
Move Camera: Camera used for position teaching or fiducial mark check.
Fly Camera: Camera used for component check, it is attached to each head.
Fix Camera: Camera used for component check, it is fixed on the machine
base.
Above screen is the case where the camera type is set to “Fiducial Camera”.
Warning Operation error caused by unauthorized or untrained
personnel or insufficient checking before calibration could
severely damage the equipment or the set up data, or it
could cause personal injury of the operator or the worker
near the equipment. Before carrying out calibration, check
the item to be calibrated and check if there is any worker
near the equipment. And calibration must be carried out by
an authorized and trained user only.
14-21
Machine Calibration
<Scale Data> group
Sets the scale of the camera selected from the <Camera Select> combo box. It can be
set up directly and performing calibration for the camera will input the result value
automatically.
<X> edit box
Set the resolution of the camera in X direction. The unit used is the number of
pixels per mm.
<Y> edit box
Set the resolution of the camera in Y direction. The unit is the number of pixels
per mm.
<R> edit box
Setup the R-axis assembling condition of the camera. The unit is degree.
<Offset Data> group
Sets the camera offset selected from the <Camera Select> combo box. It can be set up
directly and performing calibration for the camera will input the result value
automatically.
<X> edit box
Set the offset value of the camera in X direction between the center of the each
head and center of the camera.
<Y> edit box
Setup the Y-direction offset value of each head center and the camera center.
<R> edit box
Setup the R-direction offset value of each head center and the camera center.
<Default Light> group
Set the default light value. Please refer to “7.1.1 Common Align Data”for more
information.
<Position Data> group
Set the position of the fix camera.
<X> edit box
Set the X position value of the fix camera.
<Y> edit box
Set the Y position value of the fix camera.
<Ref. Fid. Offset Data> group
Each head has its own reference fiducial mark, which is used to correct the offset.
<Teach> group
Set the position offset of the fix camera.
