4-3
Tools Shortcut Menu
Memo By double clicking on the display window area with the left side
Button of the mouse while pressing the ‘shift’ Button of the keyboard,
the mode is changed to ‘super compact’.
Minimizes the SMVision.
Maximizes the SMVision.
4.2.1.3. Toolbar
Zoom in the image.
Zoom out the image.
Displays and image in actual size.
4.2.1.4. Menu
4.2.1.4.1. File
Bitmap Save…
Saves the video image shown on SMVision into a file.
Export Device…
Saves the most recently recognized parts information into a file.
Memory Save…
Saves the most recently recognized video image into a file.
Exit
Closes the SMVision.
4-4
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
4.2.1.4.2. Help

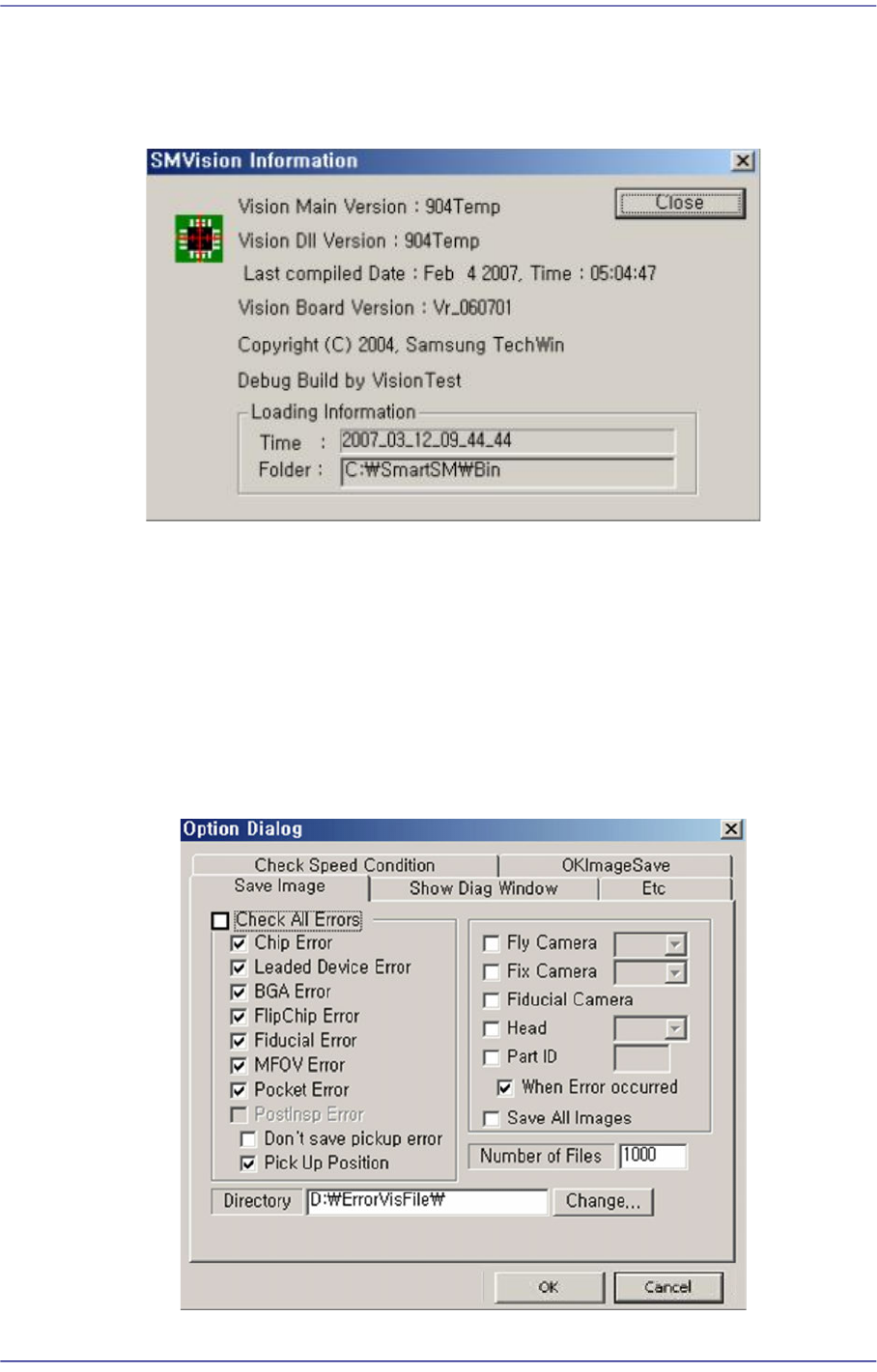

SMVision Info…
Displays the version of the SMVision.
4.2.1.4.3. View
This menu appears in ‘Manager Mode’ only.
Dialog… submenu
<Save Image> Tab Dialog
In case error occurs while recognizing, the data used for recognition and the
corresponding images are saved. Also, saving all of the successfully recognized
images is possible.
4-5
Tools Shortcut Menu
<Check All Errors> check box group
Able to assign parts type and save errors of the corresponding parts, or assign
a camera and save the errors of the parts recognized by the corresponding
camera.
<Number of File> edit box
This can set the maximum number of files that can be saved. The maximum
available number is 5000.
<Directory> group
Saved location is ‘D:\ErrorVisFile’.

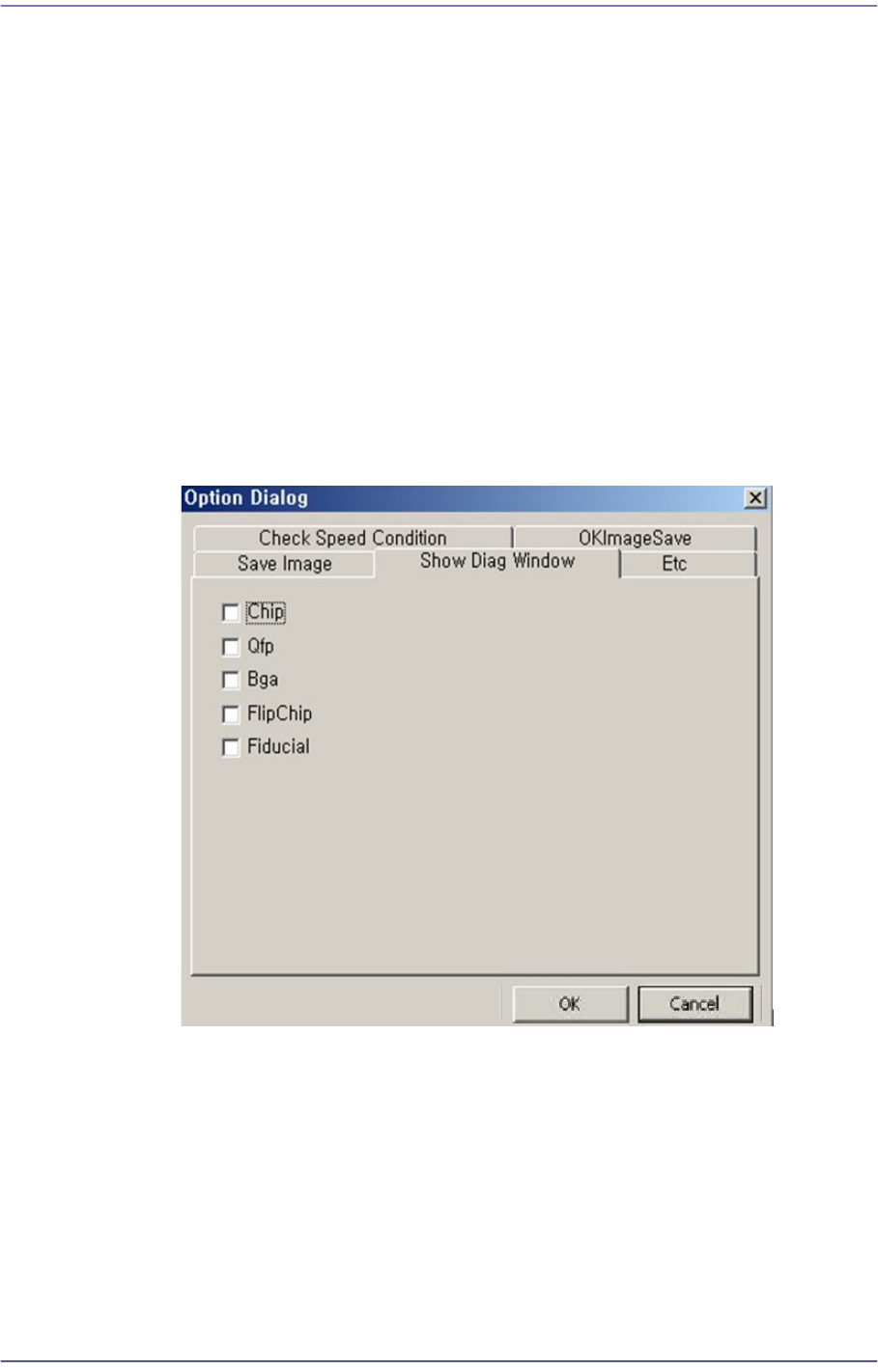

<Show Diag Window> Tab Dialog
In case error occurs while recognizing, the data used for recognition and the
corresponding images are saved. Also, saving all of the successfully recognized
images is possible.
