Terms used in explaining the screen of MMI are shown below.

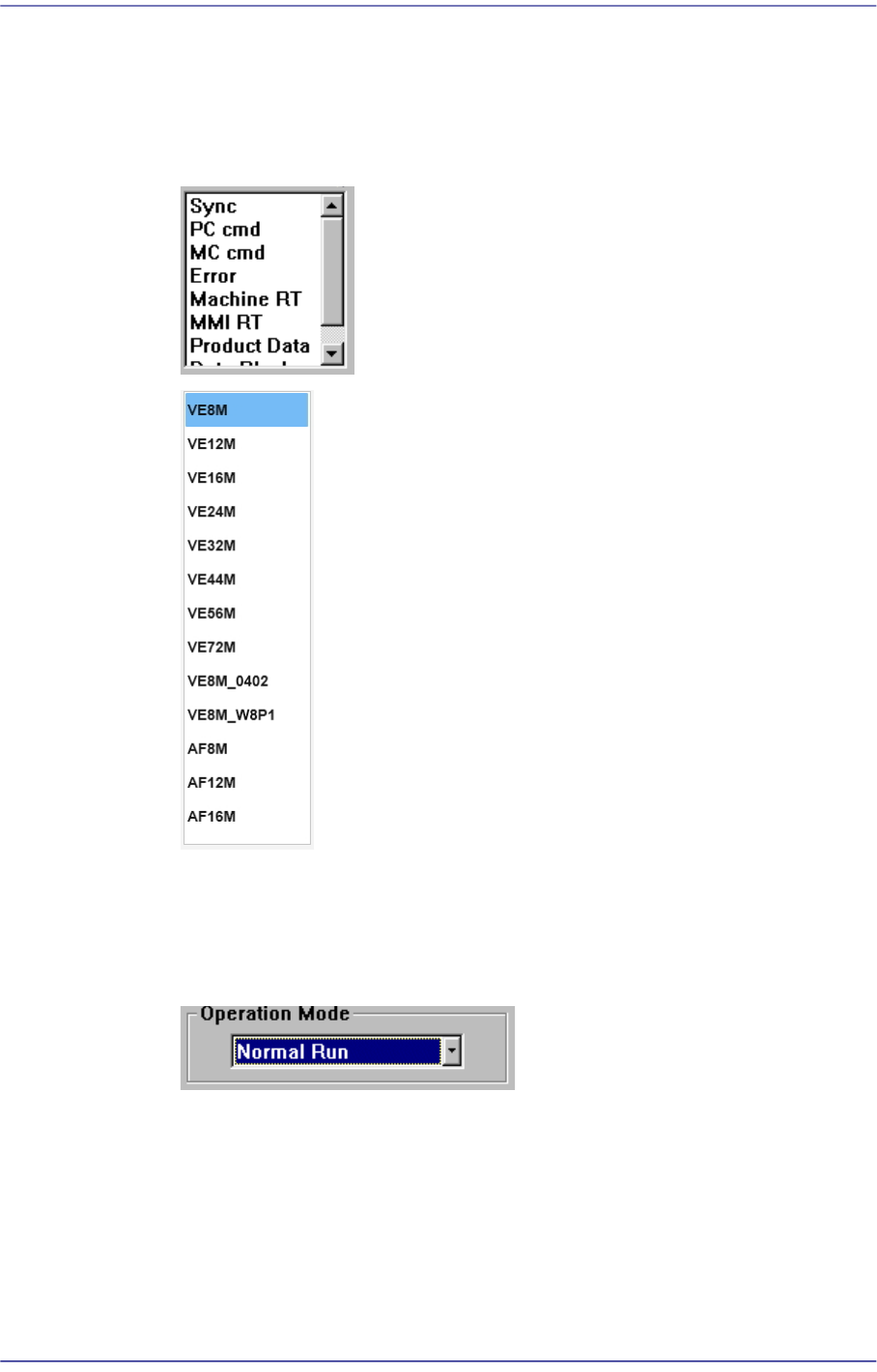

 List Box

It is possible to select one of the various values inputted in advance.

 Combo Box

This has the same function as the list box in that one of many inputted values can

be selected from this box. contrary to the list box, however, the entire values are

displayed by pressing an arrow button at lower right.

 Selection Box

The function of this selection box is the same as the function of the list box that

can select one of the various values inputted in advance. However, unlike the list

box, pressing this button will display a popup window from which an item can be

selected.

Preface

xxiii

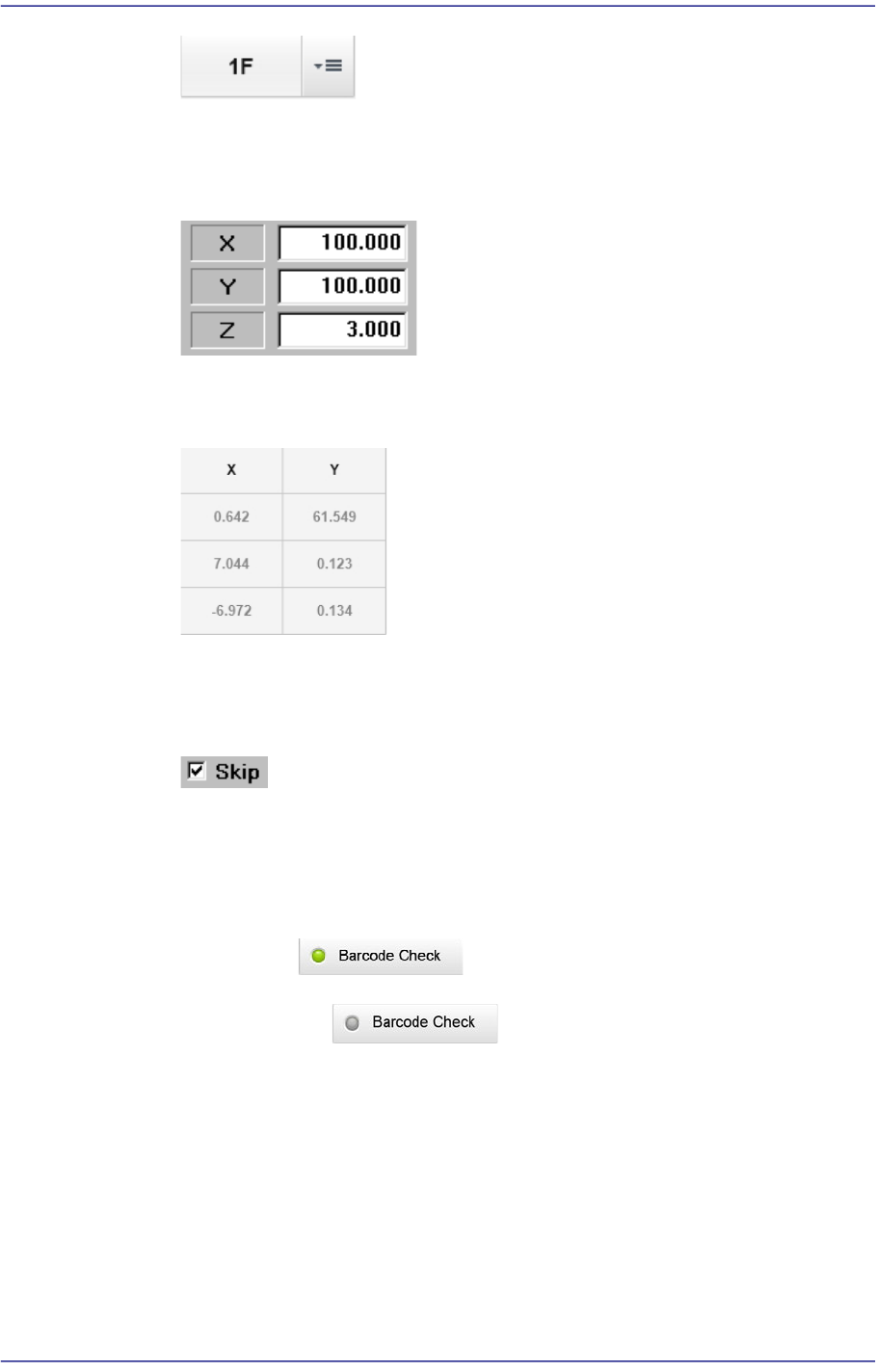

 Edit box

Values can be inputted into this box. If a white portion is clicked on with a mouse,

it enters the state ready for inputting values.

 View Field

Shows set values. This field is not selected and the values cannot be modified.

 Check Box

This button enables determination of whether to use a function presented or to

select from multiple.

 Switch Button

Allows a certain function to be applied or not. Pressing this button will apply the

corresponding function. Pressing it once more will not apply the corresponding

function.

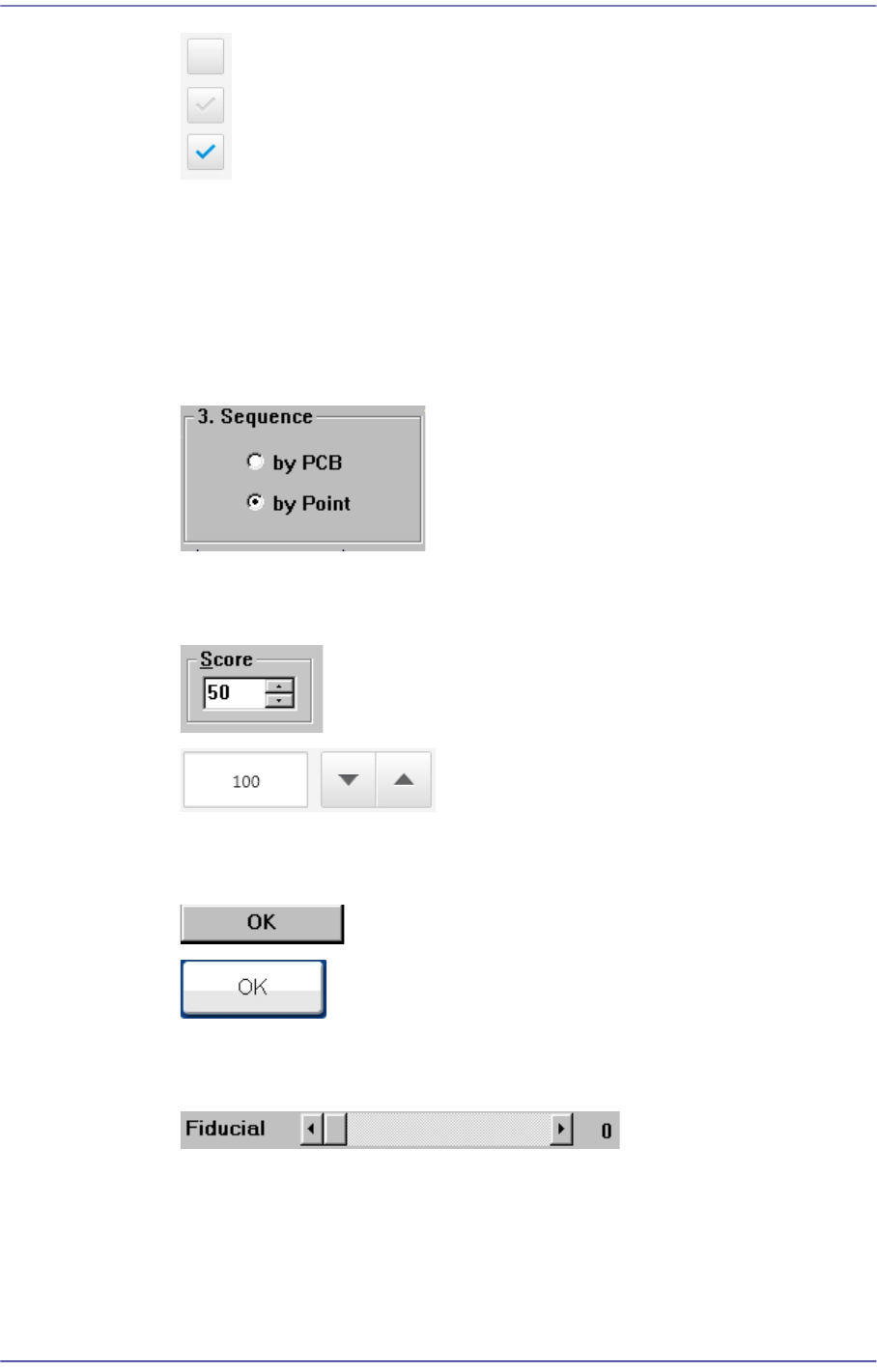

 Selected:

 Not selected:

 Check Button

Determines whether to use the presented function. Pressing this button will select

the three states in order as follows:

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

xxiv

1: Not selected

2: Indicated in gray

3: Selected

 Option Button

This Button is used when selecting only one from among many options. If one

Button is clicked on, selection of another button is disabled.

 Spin Button / Spin Box

Pressing the arrow button will increase or decrease the value by a certain value.
