8-17 Feeder Setup <Feed Time> c olumn When a stick feeder is installed in the corresponding slot, set the component supply time of the st ick feeder . Basically st ick f eeders are vi bra tion type, t he refore c…
8-16
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
8.1.2. Stick Unit
Install stick feeder and set data on the stick feeder. When “Stick Unit” is selected, the
initial screen looks as follows.

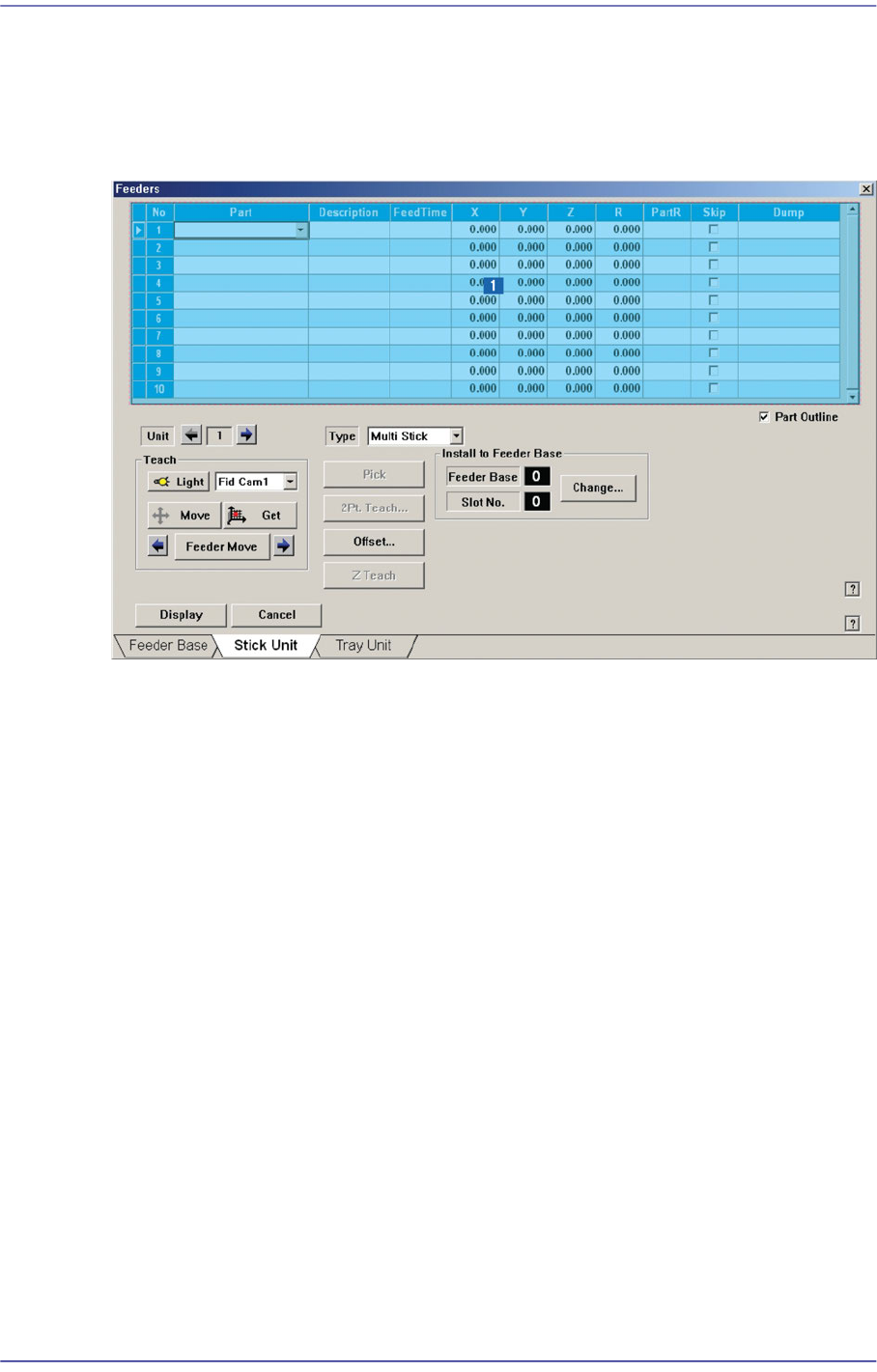

Figure8.7 “Stick Unit” dialog box
1: Grid
‘Grid’ group
Create and edit data according to the stick unit type selected in the <Type> combo
box.
<No> column
A serial number of the stick unit slots. The number of slots of the stick feeder is as
follows. Serial number is created depending upon the number of slots.
Multi Stick - Max. 10 sets
Feeds up to 10 parts at a time.
<Part> column
Select the part to install in the corresponding slot. When the <Part> column is
clicked on, a Combo Box is displayed, and of the components registered in <1.2
Part>, a list of parts to be supplied to “Stick” are displayed. Select the component

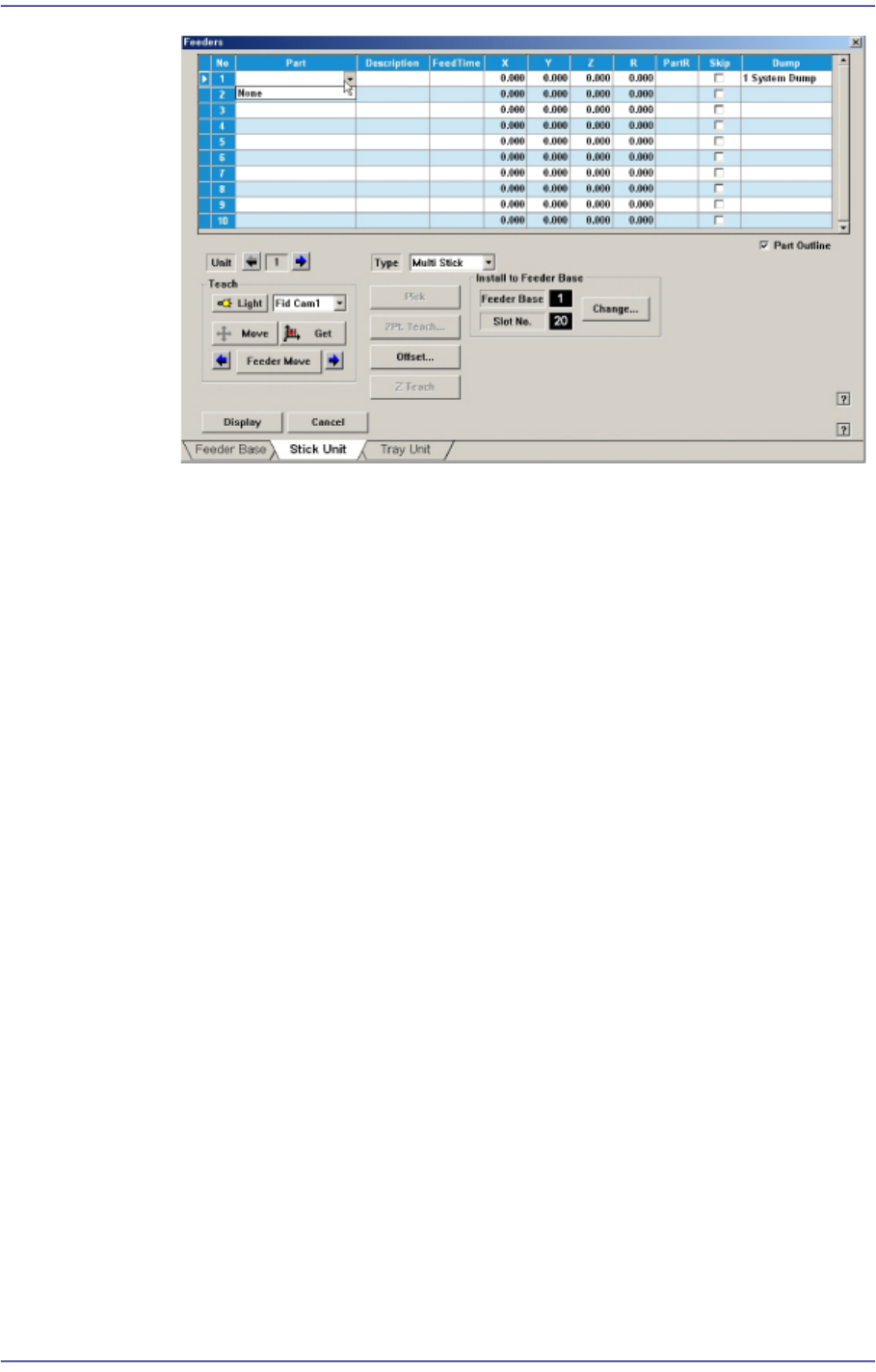

to install in this list. Next is a screen showing component selection in the Combo
Box of <Part> column.
8-17
Feeder Setup
<Feed Time> column
When a stick feeder is installed in the corresponding slot, set the component
supply time of the stick feeder. Basically stick feeders are vibration type, therefore
certain time interval is necessary after a component is picked up until the next
component moves to the the pick-up position. The time is set here.
<X> column
When the stick feeder is installed in the corresponding slot, set the X position to
pick up the component supplied from the stick feeder.
<Y> column
When the stick feeder is installed in the corresponding slot, set the Y position to
pick up the component supplied from the stick feeder.
<Z> column
When the stick feeder is installed in the corresponding slot, set the Z position to
pick up the component supplied from the stick feeder.
<R> column
When the stick feeder is installed in the corresponding slot, set the R position
(rotation angle of the head) to pick up the component supplied from the stick
feeder.
<PartR> column
When the stick feeder is installed in the corresponding slot, set the placement
angle of the component supplied from the stick feeder.
<Skip> column
When the stick feeder is installed in the corresponding slot, select whether or not
to pick up the component supplied from the stick feeder.
To pick it up, leave the check box as it is, and not to pick it up, check the check
8-18
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
box.
<Dump> column
When the stick feeder is installed in the corresponding slot, select the dump box
for the component placed on the stick feeder. Available dump boxes are as
follows.
System Dump: The dump box set in the system, it is installed in the front of the
conveyor.
User Dump: The dump box set in the system by the user, the location should be set
in the system..
<Unit> group
Select the feeder base unit to edit.
The and buttons are used for selecting the feeder base.
<Feeder Move> button
Moves the cursor only to the grid group where the feeder is installed.
button
Selects the slot previous to the slot of the currently selected stick feeder..
button
Selects the slot next to the slot of the currently selected stick feeder.
<Type> combo box
Select the type of stick unit to install. Available types are as follows.
Stack Stick: Stick unit where the same type of components are installed vertically.
Multi Stick: One or many types of components are installed horizontally.
Belt Multi Stick: Directly transfers the components supplied through the stick using
the motor driven belt conveyor.
Slim Stick: Composed of a structure that moves the stick forward and backward by
way of pneumatic pressure. The components are aligned on the component guide by
the impact caused from forward movement. They are then aligned with further
accuracy while slowly moving backward.
<Install to Feeder Base> group
When installing stick unit to the feeder base, set the feeder base unit and slot number
to install.
1.<Feeder Base>
Displays the feeder base where the corresponding stick unit is installed currently.
The numbers displayed are as follows.
