Tools Shortcut Menu
<Move> button
Moves the fiducial camera to the position at where an error has occurred.
<Move Next> button
Moves the fiducial camera to the position at where an error has occurred.
<Edit> button
Used to open the “Feeders” dialog box and edit the data related to the tape feeder, stick
feeder and tray feeder. For further details, refer to “8.1 Feeder [F4]”.
<Pusher U/D> button
Selects the feeder to which an error occurred in the list box for feeding.
Button
Stops the sound of the buzzer.
<Close> button
Close the corresponding dialog box.
4.9. Part Dump All
Used for dumping all the parts picked up by the head in the dump box.
4.10. Docking Cart
Used to manipulate the movement of the front or rear side docking cart clamp when
applying the docking cart to the machine. Docking cart is option.
4-24
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
4.11. PM Manager
The PM Manager is a management menu that is used for the maintenance of the machine
in the MMI (Man-Machine Interface), an application program for machine operation. The
items to be inspected as well as check periods can be checked through the PM Manager,
and the machine can be managed more efficiently through the schedule check function.
For more details, refer to “Appendix. PM Manager” of the “Administrator’s Guide”
4.12. Data Logging
Selected when the Telemetry file is saved.
5-1
Help Shortcut Menu
Chapter5. Help Shortcut Menu
The <Help> menu has Language, Help and About command.

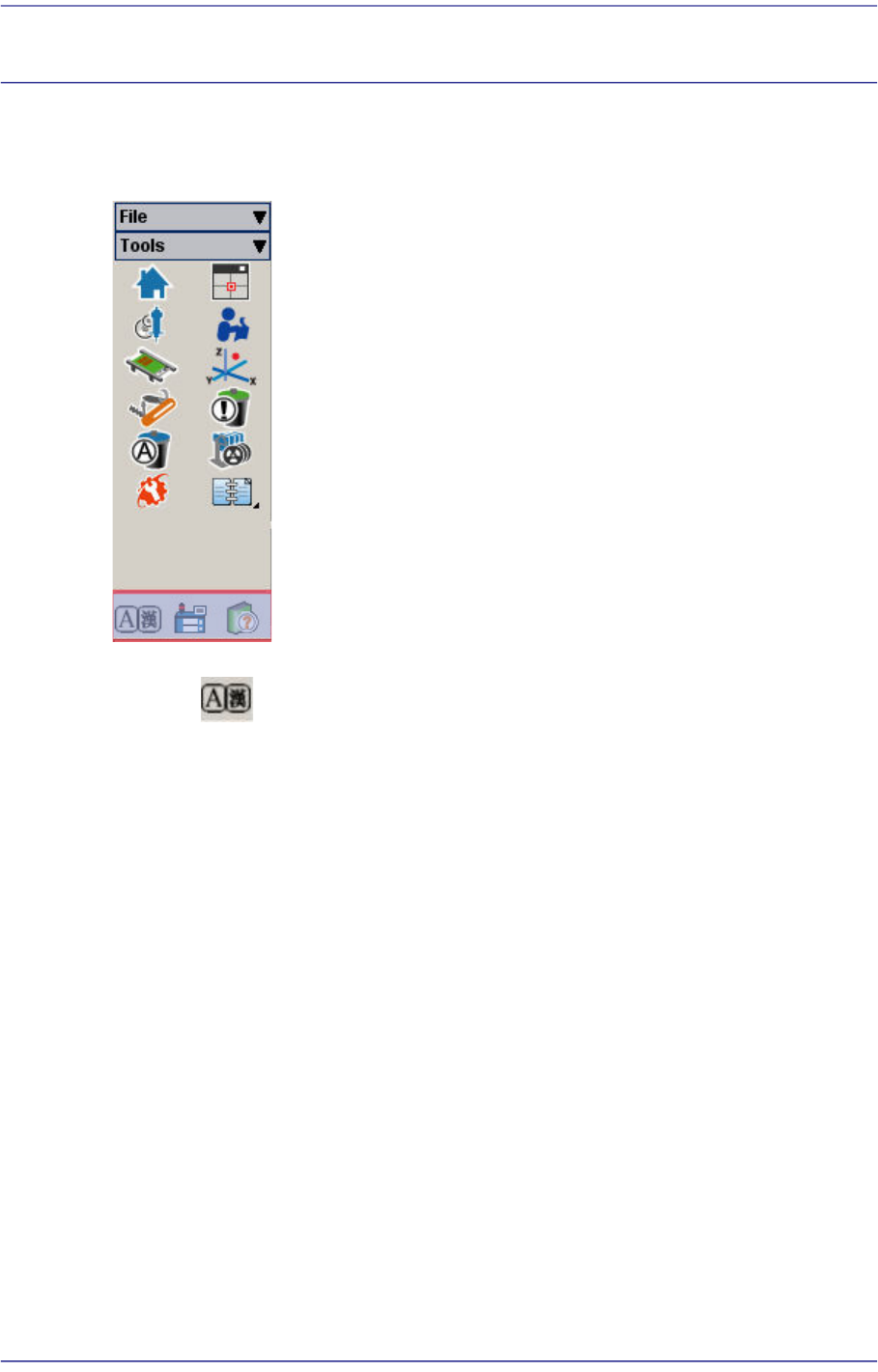

Figure5.1 Help Shortcut Menu
5.1. Language
Used to convert the language indicated on the MMI screen from the user defined language
to English and vice versa. (Ex. Chinese <-> English, German <-> English)
Language conversion can only be carried out when the machine is running and the
language is changed to the designated default language.
