15-19 System Setup  For the Fly Camera Input the sid e illumination value within the ran ge of 256 values.  For the Fix Camera Input the sid e illumination value within the ran ge of 4096 values.  <Back1> / <…

15-18

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

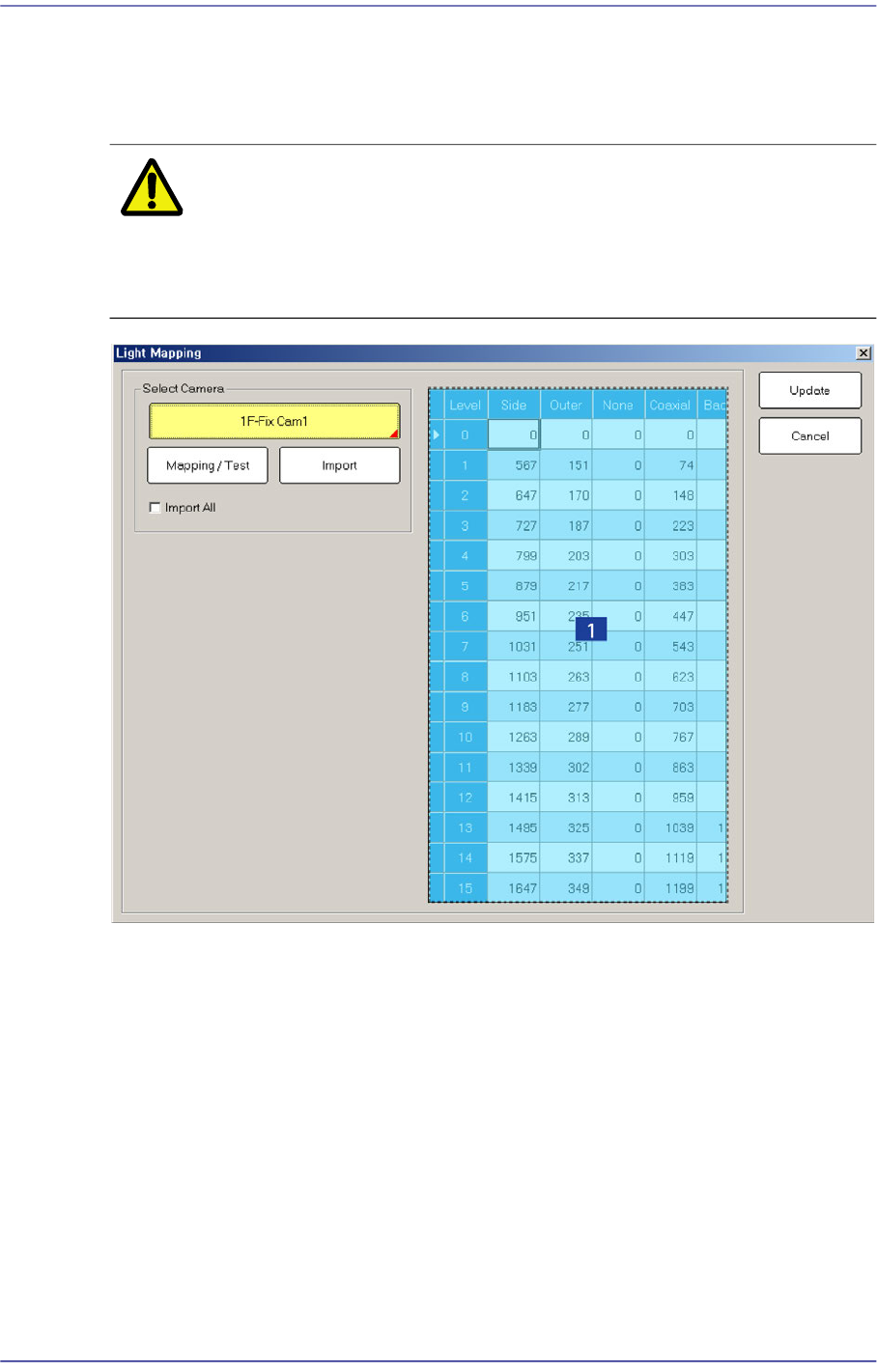

15.4. Light Mapping

Calibrate the brightness of the light for the camera. In order to perform this calibration,

insert the LightFly or LightFix into the No. 1 nozzle of the ANC.

Caution Since the nozzle for the SM32x,SM411, SM421 model is

not compatible to the one for the light mapping used for the

SM32x,SM411, SM421 model, do not use it for this

machine.

1: Light Level group

 <Select Camera> combo box

 Selection Control

Select the camera to perform light mapping.

Repeat this procedure for all fly cameras and fix cameras.

 Light Level group

Sets the brightness by light level.

 <Level> column

Dislays 16 steps of lighting.

 <Side>/ <Outer>/ <Coaxial> column

15-19

System Setup

 For the Fly Camera

Input the side illumination value within the range of 256 values.

 For the Fix Camera

Input the side illumination value within the range of 4096 values.

 <Back1> / <Back2> column

Enabled only when the fix camera was selected. The value within the range up to

4096 for each light level is inputted.

 <Mapping/Test> button

Perform test or automatic mapping for the light level for the camera selected from the

<Select Camera> group.

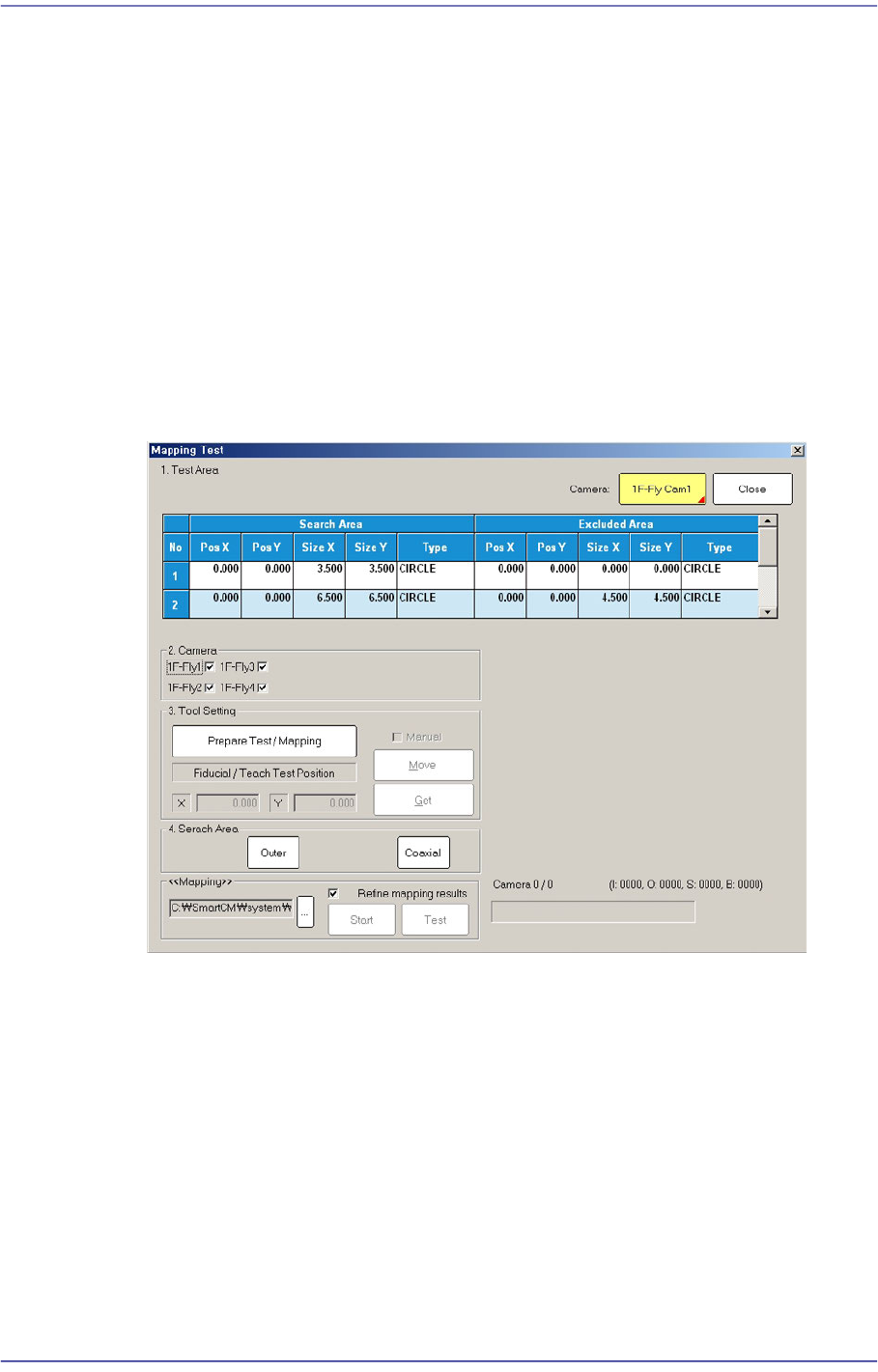

Figure15.10 When the Fly Camera is selected

15-20

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

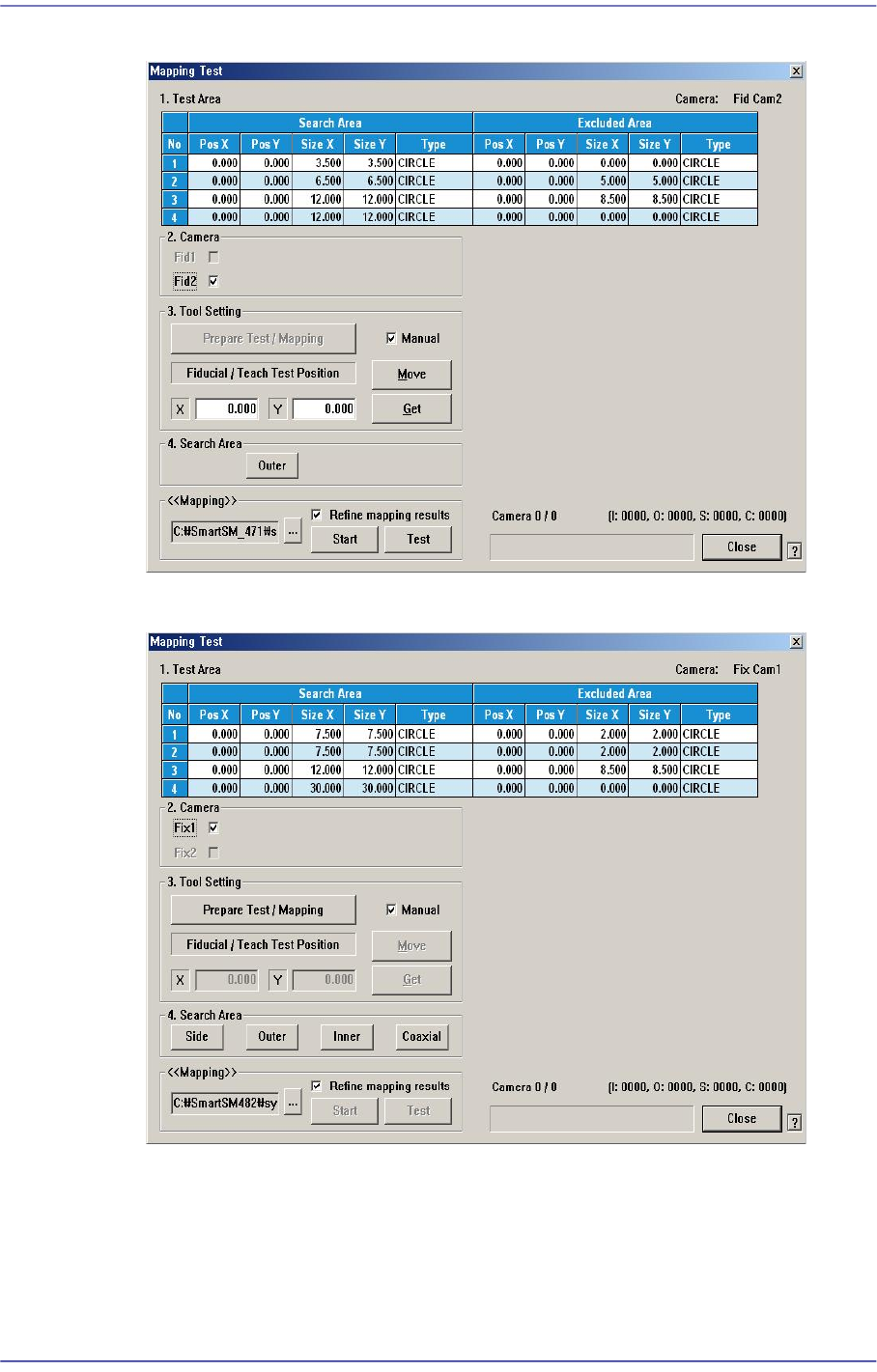

Figure15.11 When the Fid Camera is selected

Figure15.12 When the Fix Camera is selected

 <1. Test Area> group

Designates the area for which the nozzle for test checks the brightness of the

lighting. The are can be designated up to 4. the search area and excluded area are

designated together. The test area is set automatically. Do not change this value.
