<File Menu> Tab
Sets the authorization level for the submenus of <File Menu> menu.
The authorization setup can be used only for the Service mode or higher. It is set up by
checking or releasing the check of the check box for the corresponding item in the
Setup screen..
Submenus of the corresponding menu are enabled or disabled as shown below
according to the setup performed in the Setup menu. The disabled menu cannot be
used.
1: User authorization level setup menu
2: User authorization level release menu
<Telemetry Auto Save> check box
Selecting this check box will allow the Telemetry Log file to be saved automatically
when an emergency condition occurs. The name of the folder and file for default
saving is “C:SmartSM\Log\Machine Type_SW Version_Machine Unit
Information_Time of Occurrence(_E-Error Code).tmr”.
The basic concept for saving a log file is as follows:
1st Stage
1. Clicking the Stop button (<Up Load> button) will:
In the Start state: Upload and save the file automatically.
In the Stop state: Save the uploaded information in the file automatically.
2. Clicking the Start button will:
In the Start state: Change the state to the Stop state and save the file
automatically. The state is then changed to the Start state.
In the Stop state: Delete the uploaded information and change the state to the
Start state.
3. Define the rule for naming files when using automatic saving.
15-31
System Setup
(Machine Type and Version_Unit Information_Creation Date_E-Auto_File
Index.tmr)
Ex) SM411V1.047_Undefined_20080317_103705_E-Auto_0.tmr
4. Save the Telemetry file in the Log directory.
5. Of the Telemetry files automatically saved in the Log directory, only the five
most recent files are kept and older files are deleted automatically.
When performing works including measurement with the Telemetry being
finished forcedly, press the <Upload> button to change the state to the Stop state
and minimize the Telemetry screen and then perform the work.
2nd Stage
When an EMG level error occurs, save the log automatically and stop/start the
system automatically.
Define the rule for naming files when using automatic saving using the details
of the error.
(Machine Type and Version_Unit Information_Creation Date_E-Auto_File
Index.tmr)
Since the automatic Telemetry saving function may decrease the systems’
performance, use an option to turn off the corresponding function when faced with this
problem.
<Scale> option button group
Able to setup the system of unit (mm/inch/mil) used by MMI of the equipment.
<Confirm before Move> option button group
Determines whether to display the confirm window prior to movement.
<None> option button: when this button is selected, does not display the confirm
message box when the movement command is transferred to the equipment.
<Z axis> option button: If this button is selected, when the movement command is
transferred to the equipment, displays the confirm message box if the command is
for Z-axis movement.
<XY, Z axis> option button: If this button is selected, when the movement
command is transmitted to the equipment, displays the confirm message box if the
command is for XY, and Z axes movement.
<Use OLP DB> check box
Selected when synchronize the part DB of each machine in the inline composed of
several machines.
Selecting this check box will allow the part DB to be shared between machines by
transmitting the part DB of the current machine to the T-OLP of the T-Solution.
<Use 2D Barcode> check box
In order to set the 2D barcode parameter of the PCB, select this check box.
15-32
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

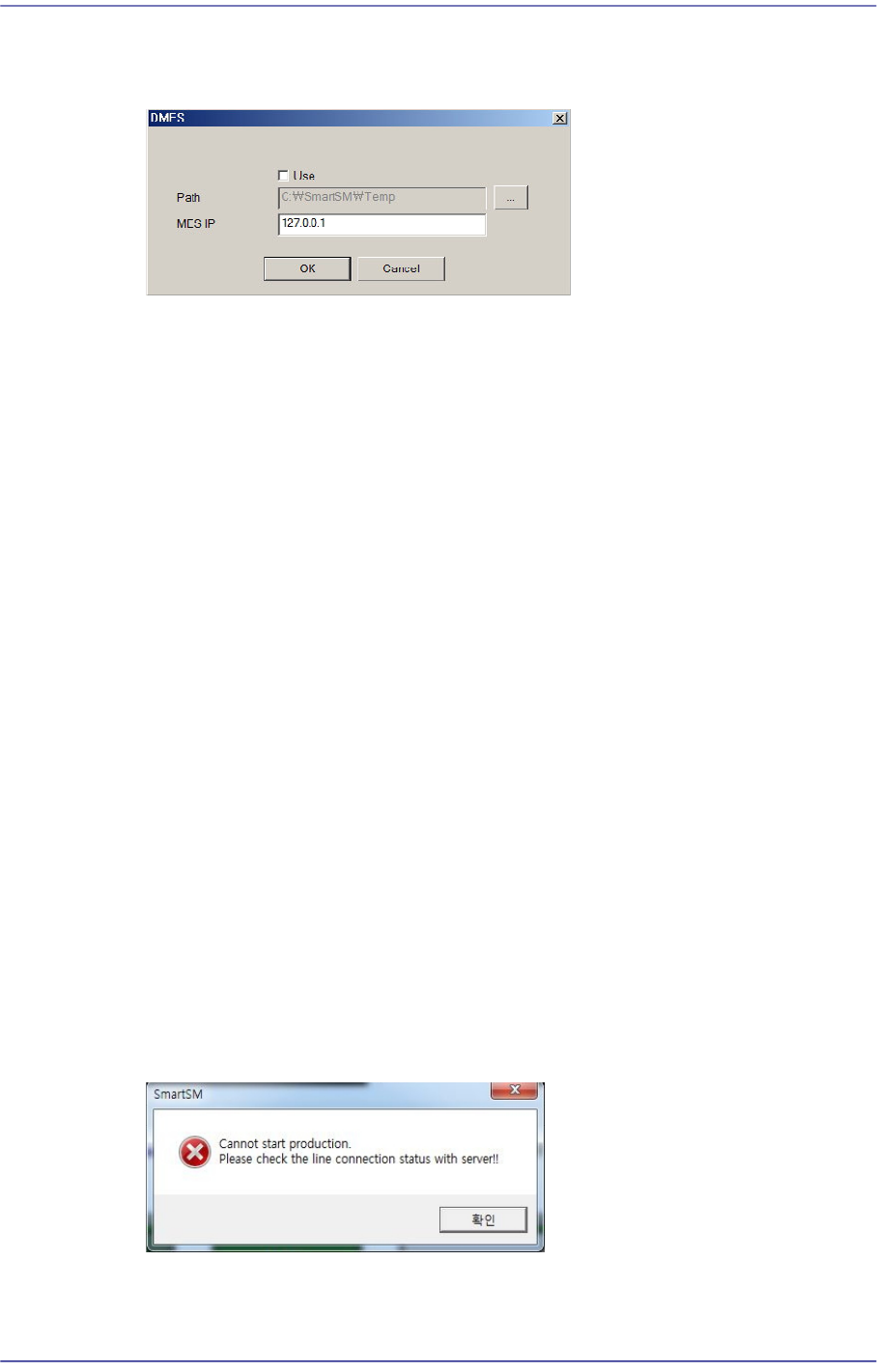

< Use DMES> check box
Sets the IP for communication with the MES host.
<Show Backup Pin> check box
When using the function for sequential changing in the T-Solution, select this check
box to enable the backup pin dialog box.
<Use 1D Barcode JobChange> check box
It is possible to automatically download the corresponding PCB program by scanning
the barcode of the reel list printed in the T-Solution.
<1D Barcode Scan wait time(sec)> check box
When recognizing the 1D barcode using the scanner, sets the time in seconds taken
until the 1D barcode is recognized.
<Use Multi-Vendor> check box
Refers to the function used to produce PCBs by using parts made by several
manufacturers for a part.
If a PCB program is created by registering a sub part for one part for one part in the
TOLP of the T-Solution, allows the work to be performed by using sub parts when
placing a part on the PCB with this check box being selected.
<Use Place Offset> check box
Modifying the part parameters will automatically save the modified part parameters in
the UPD.
<PNP Connection Check> check box
Checks whether the machine and PNP are connected before starting production.
Starting production with the machine not connected to the PNP will display an error
message.
<Use NewPartEditor> check box
Selecting this check box will execute the NPE (New Part Editor) while editing a part.
