Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

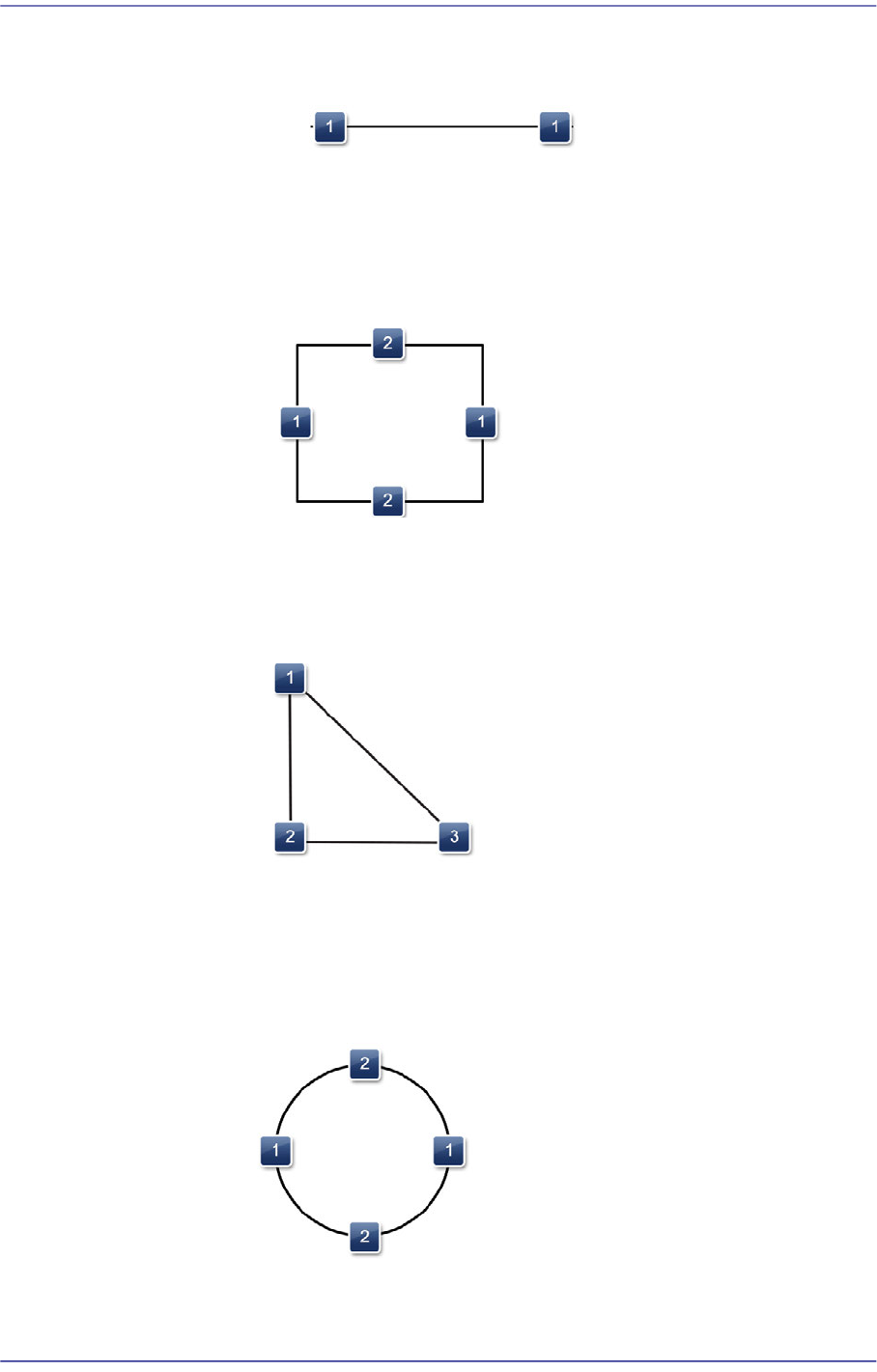

1: Length and direction of the line ( Position change of the selected point )
Shape definition - Others (Rectangle)
1: Length of the rectangle in the X direction
2: Length of the rectangle in the Y direction
Shape definition - Others (Triangle)
1: Position change of the selected point
2: Position change of the selected point
3: Position change of the selected point
Shape definition - Others (Circle)
1: Length of the oval in the X direction
2: Length of the oval in the Y direction
7-43
Part Registration
Shape definition - Others (Polygon)
1: Basic Marker(Min Mark: 3)
2: Basic Marker
3: Basic Marker
4: Basic Marker
5: Additional Marker (Double clicking the line will add a marker / Double clicking a
marker will remove the marker)
6: Additional Marker
<X/ Y> edit box
Input the X and Y offsets between the vision window center and the center of
the selected object.
<Width> edit box
This input field is not enabled when the selected object is a dot, straight line,
triangle or polygon.
Input the width of an object to suit the image of an actual part. If the selected
object is round, input the diameter.
<Height> edit box
This input field is not enabled when the selected object is a dot, straight line,
triangle or polygon.
Input the height of an object to suit the image of the actual part.
Object Editing Icon button
Can be used when editing a shape object in the machine's panel monitor.
Move Object
After pressing this button, select an object to be moved. It is then possible to move
the selected object using the Edit & Adjust Key.
Adjust Object Size
After pressing this button, select an object whose size is to be adjusted. It is then
7-44
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
possible to adjust the size of the selected object using the Edit & Adjust Key.
Adjust Lead Pitch
After pressing this button, select an object whose lead pitch is to be adjusted. It is
then possible to adjust the lead pitch of the selected object using the Edit & Adjust
Key.
Adjust Lead Foot Length
After pressing this button, select an object whose lee foot size is to be adjusted. It
is then possible to adjust the lead foot size of the selected object using the Edit &
Adjust Key.
Adjust Lead Num
After pressing this button, select an object whose Lead Num (lead count) is to be
adjusted. It is then possible to adjust the Lead Num(lead count) of the selected
objects using the Edit & Adjust Key.
Edit Adjust Key
After selecting the Edit Object icon button, it is possible to move the corresponding
object and adjust the related properties of the object using the Edit Adjust Key.
Move Object
:Moves an object to the left
:Moves an object to the right
:Moves an object up
:Moves an object down
Object Size/ Pitch/ Foot Length
/ :Adjusts the value so that it will increase.
/ :Adjusts the value so that it will decrease.
Lead Num/ Corner Width and Length
