1-6 Fast Flexible Placer SM481(L) PLUS Administ r ator’s Guide File New × ○ ○ ○ Open × ○ ○ ○ Recent Files × ○ ○ ○ Save × ○ ○ ○ Save As × ○ ○ ○ Merge × ○ ○ ○ ErrorMsgBar Show/Hide ○ ○ ○ ○ Windows T ools × ○ ○ ○ Exit × ○ ○…
1-5
Operation Mode and Password Change
Utility Print
○ ○ ○ ○
Util/ Pd.Info △ ○ ○ ○
Copy
○ ○ ○
File Man
○ ○ ○
Bypass
○ ○ ○ ○
Warmup
○ ○ ○ ○
Diagnosis I/O Status
○ ○ ○
Conveyor
○ ○ ○
Light
○ ○ ○
Vacuum
○ ○ ○
Jog box
○ ○ ○
Tray
○ ○ ○
Head
○ ○ ○
Motor I/O
○ ○ ○
Sys.Setup Head
○ ○
Conveyor
○ ○
Position
○ ○
Camera
○ ○
Periph.
○ ○
Calib.
○ ○
Pref.
○ ○
Device
○ ○
Menu bar Sub Toolbar
Operator/
Leader
Programmer
Manager
Service
1-6
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
File New ×
○ ○ ○
Open ×
○ ○ ○
Recent Files ×
○ ○ ○
Save ×
○ ○ ○
Save As ×
○ ○ ○
Merge ×
○ ○ ○
ErrorMsgBar
Show/Hide
○ ○ ○ ○
Windows Tools ×
○ ○ ○
Exit ×
○ ○ ○
Tools Homing
○ ○ ○ ○
SMVision
○ ○ ○ ○
ANC △ ○ ○ ○
Operate Mode
○ ○ ○ ○
Conveyor ×
○ ○ ○
Position ×
○ ○ ○
Manual Tool ×
○ ○ ○
Dump information
○ ○ ○ ○
Dump All ×
○ ○ ○
Docking cart ×
○ ○ ○
PM Manager
○ ○ ○ ○
Data Logging ×
△ ○ ○
Menu bar Sub Toolbar
Operator/
Leader
Programmer
Manager
Service
1-7
Operation Mode and Password Change
1.1.2. Setting Manager Mode
The system manager password is needed to use the system setup menu. Access with
system manager and the password setup must be done in the following manner.
When accessing with system manager and setting up the password, perform access and
setup as follows.
When accessing with system manager, perform access as follows.

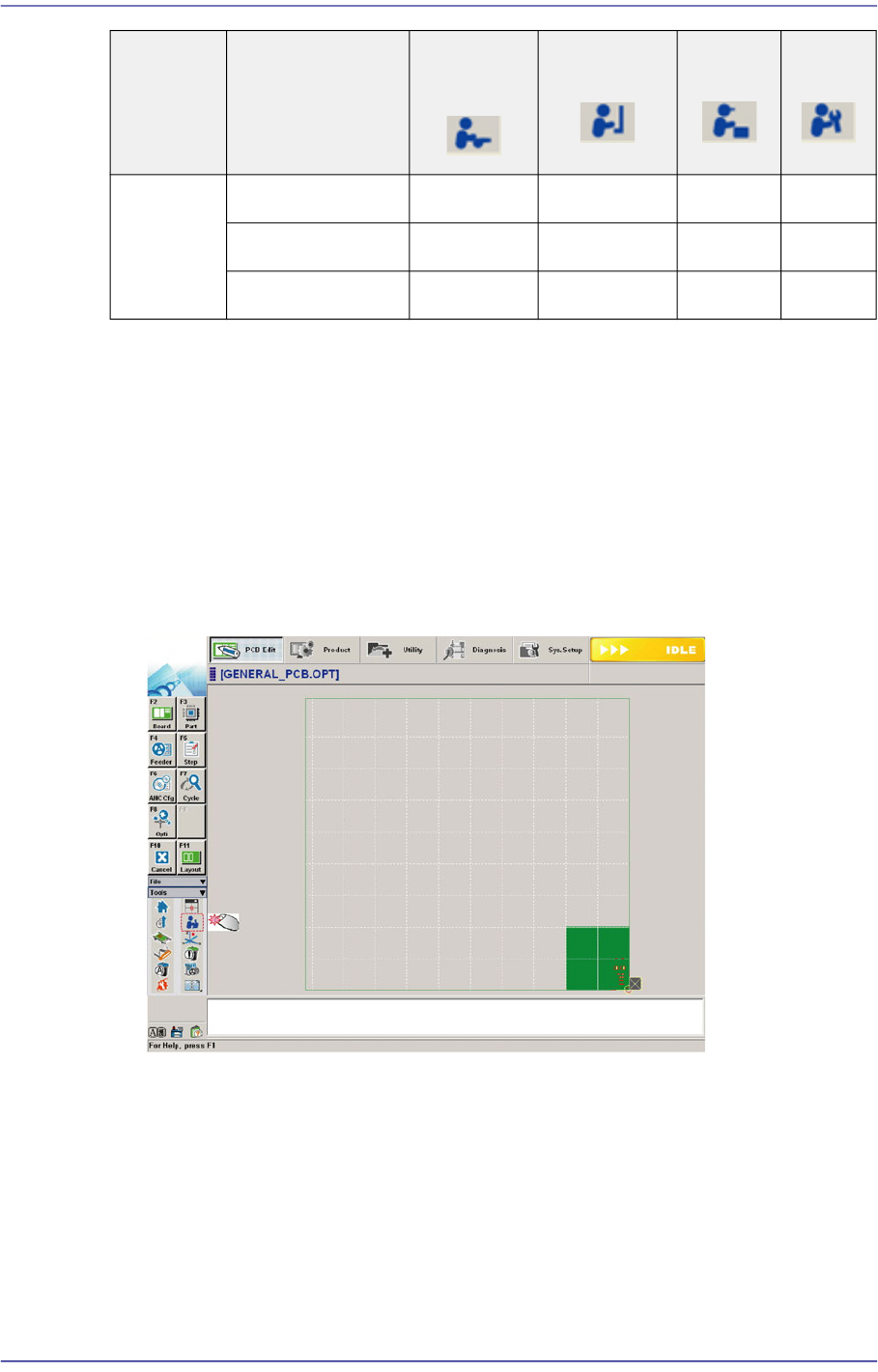

1. Click the ‘Operation Mode Change’ Button in the submenu
ETC Language
○ ○ ○ ○
About
○ ○ ○ ○
Help
○ ○ ○ ○
Menu bar Sub Toolbar
Operator/
Leader
Programmer
Manager
