14-41

Machine Calibration

14.3.6. ANC Pos. Scan

Teach the 2 fiducial marks on the top surface of the ANC. Compensate the relative

coordinate system of the front and rear ANCs.

Refer to “6.3 Fiducial Mark Setup” for more information.

14-42

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

14.3.7. Head & Camera Calibration

Perform the camera calibration function. The calibration sequence and tools necessary for

calibration are as follows.

 Fix Camera Scale Calibration (CNT20 Nozzle)

 Fix Camera Thermal Origin

 Fiducial Cameras Offset Calibration (Calibration Tool)

 Cameras Offset Calibration (Calibration Glass)

 Head Z & R Offset Calibration (CN040 Nozzle)

 Light Mapping (Light Fly Nozzle)

 Head Offset Calibration

 Fly Camera Scale & Rotation Calibration

 Fly Camera Offset Calibration

 Fly To Fix Offset Calibration

 R-Axis Offset Calibration

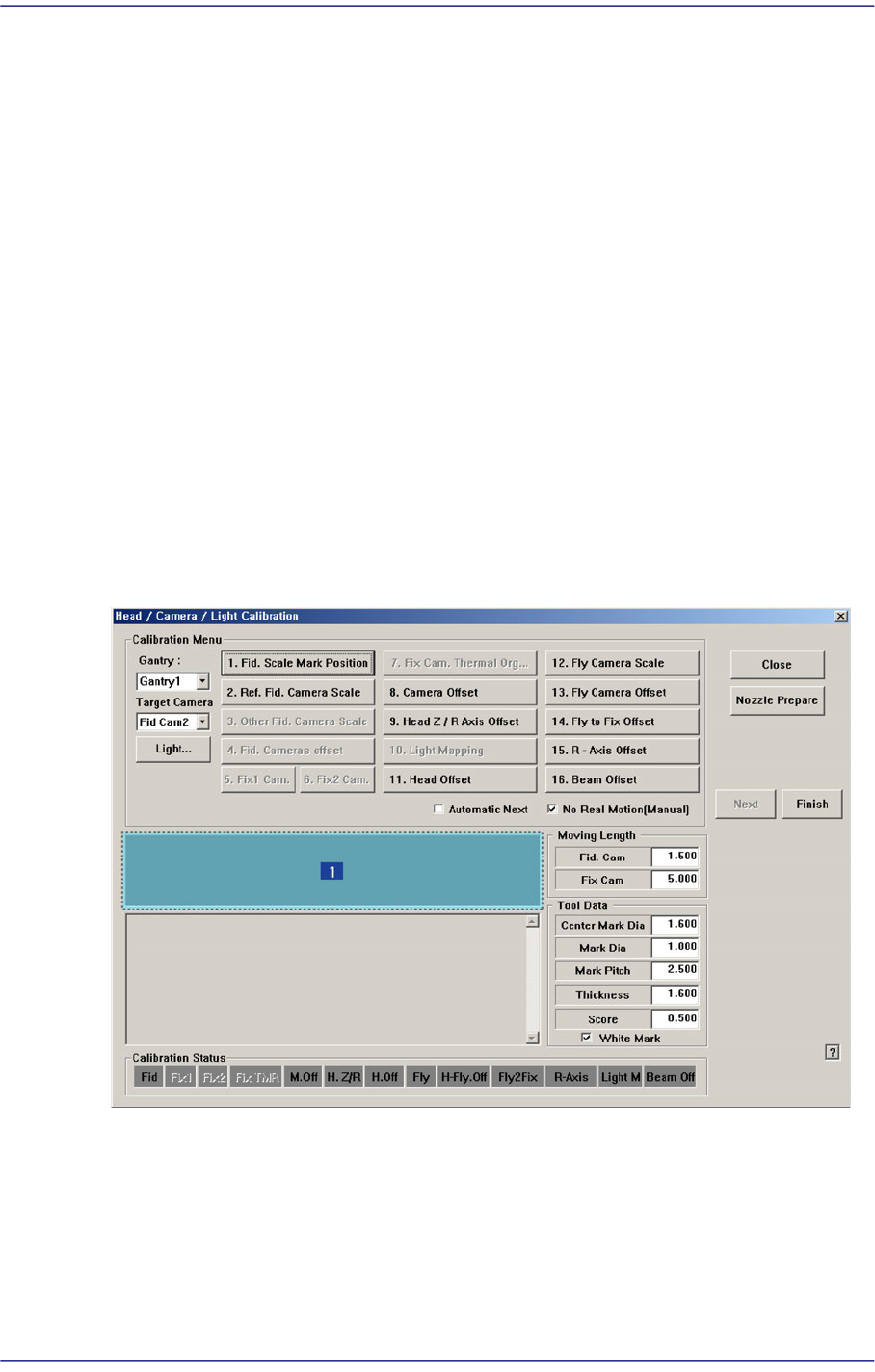

Figure14.13 “Head/ Camera/ Light Calibration” dialog box

1: Head/ Camera/ Light Calibration” dialog box

 <Calibration Menu> group

Select an item to be calibrated. If you click the button of a specific item, the

description on the works to be performed are displayed in the message box in order.

Follow the instructions to complete the calibration.

14-43

Machine Calibration

 <Gantry> combo box

Select the Gantry for performing Calibration

 <Target Camera> combo box

Select the camera to set light value.

 <Light…> button

Set the light value for the selected camera.

14.3.7.1. Fix Camera Scale Calibration

The fix camera calibration must be performed before performing fiducial camera offset

calibration.

First, teach the fiducial mark on the upper surface of the fix camera and perform

calibration of the fix camera scale using the CNT20 nozzle.

 <5. Fix 1 Camera> button

This calibration is performed to calibrate the Scale (um/pixel), Rotation (deg) and

Position (mm) of the fix-camera.

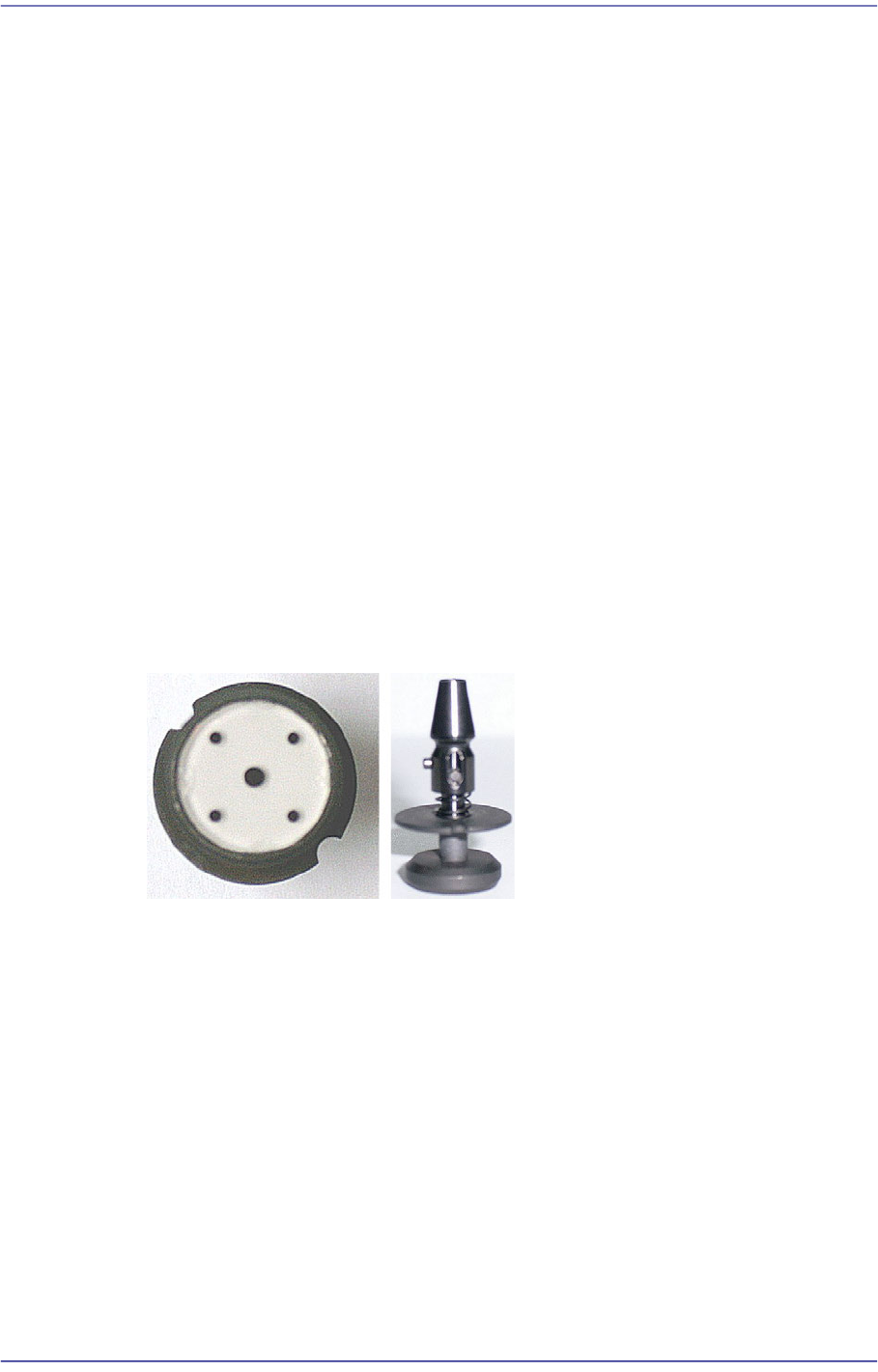

In order to perform this calibration first, the R-Offset Calibration must be performed in

advance and the calibration-nozzle must be used. Use Hole #1 as the ANC hole

exclusively used for the calibration-nozzle.

The following is the procedure to calibrate the Fix Camera Scale;

1. If the <5. Fix1 Camera> button is clicked, the message “First, We must Put all Nozzles

From Heads on Manually. To Move down Z Axis, Click [Next]” appears in the

message box. Click the <Next> button to move down the Z axis of the head in order to

manually move all nozzles inserted in the nozzle holder of the head.
