9-12
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

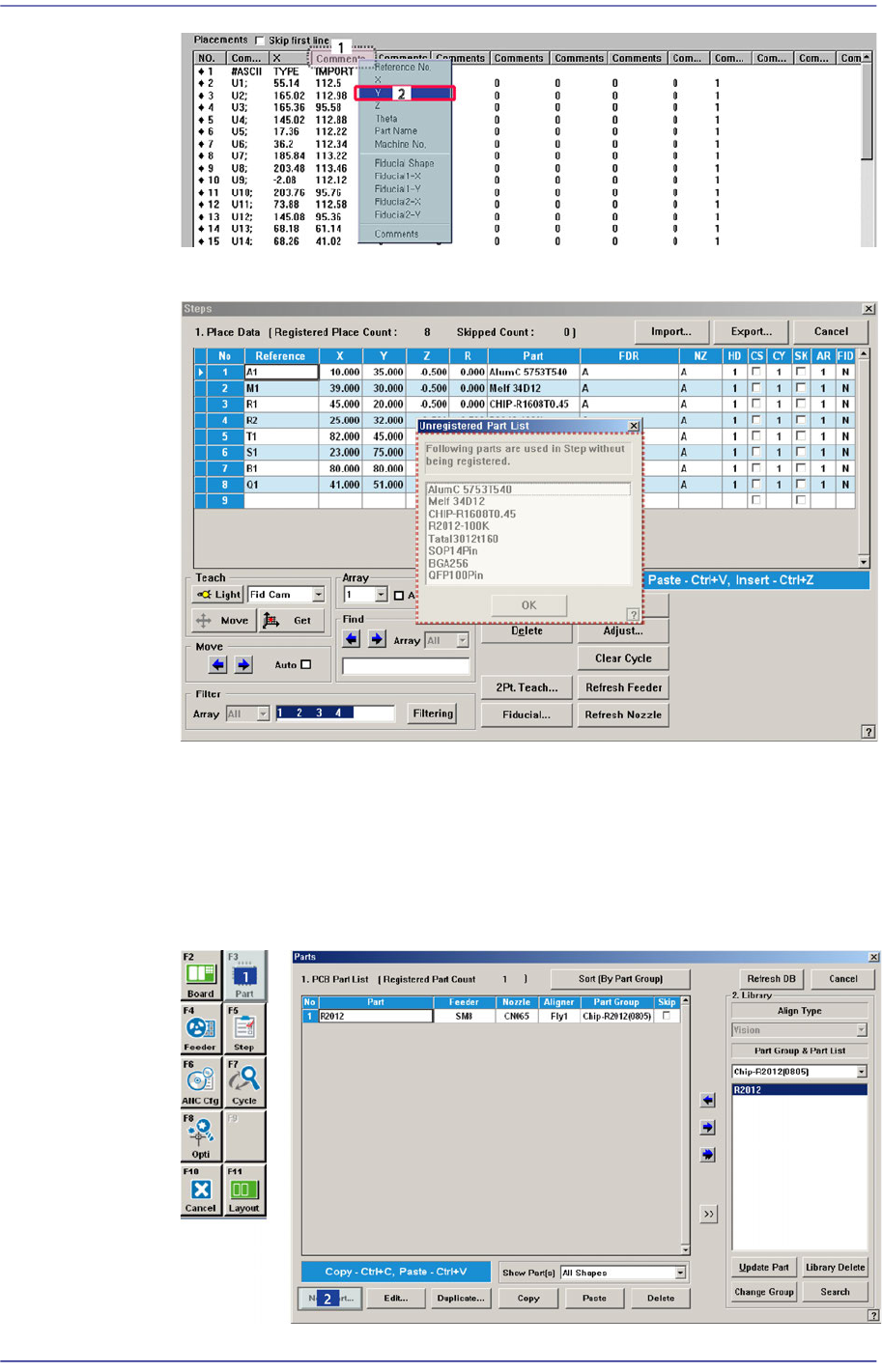

The following figure shows the import completed screen.
When the component imported from the CAD data is not registered, the
unregistered component must be registered.
If the data of the part to be placed has not been registered in the Part DB of the
machine, the list screen of these parts (list for unregistered parts) is indicated in
the screen. Register the parts in this list in the “Parts” dialog box in the “Part”
menu.
9-13
Step Programming
The component that has already been registered in the Local Part DB is
registered automatically as can be seen above. Click the <New Part…> button
and execute the <Part Edit> dialog box.
When the button is clicked, the unregistered part list is displayed as
shown in the following figure.
When the <OK> button is clicked after selecting a component, the name of the
selected file is inputted in the <1.Part Name> edit box.
Select the <Package Group> corresponding to the selected component and
revise the component profile according to the selected component.
Click the <Register> button to register the component to the PCB Part List.
9-14
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
When all the unregistered part information is registered, they are displayed as
follows.
