Preface

xxiii

 Edit box

Values can be inputted into this box. If a white portion is clicked on with a mouse,

it enters the state ready for inputting values.

 View Field

Shows set values. This field is not selected and the values cannot be modified.

 Check Box

This button enables determination of whether to use a function presented or to

select from multiple.

 Switch Button

Allows a certain function to be applied or not. Pressing this button will apply the

corresponding function. Pressing it once more will not apply the corresponding

function.

 Selected:

 Not selected:

 Check Button

Determines whether to use the presented function. Pressing this button will select

the three states in order as follows:

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

xxiv

1: Not selected

2: Indicated in gray

3: Selected

 Option Button

This Button is used when selecting only one from among many options. If one

Button is clicked on, selection of another button is disabled.

 Spin Button / Spin Box

Pressing the arrow button will increase or decrease the value by a certain value.

 Button

Pressing this button will perform specific work.

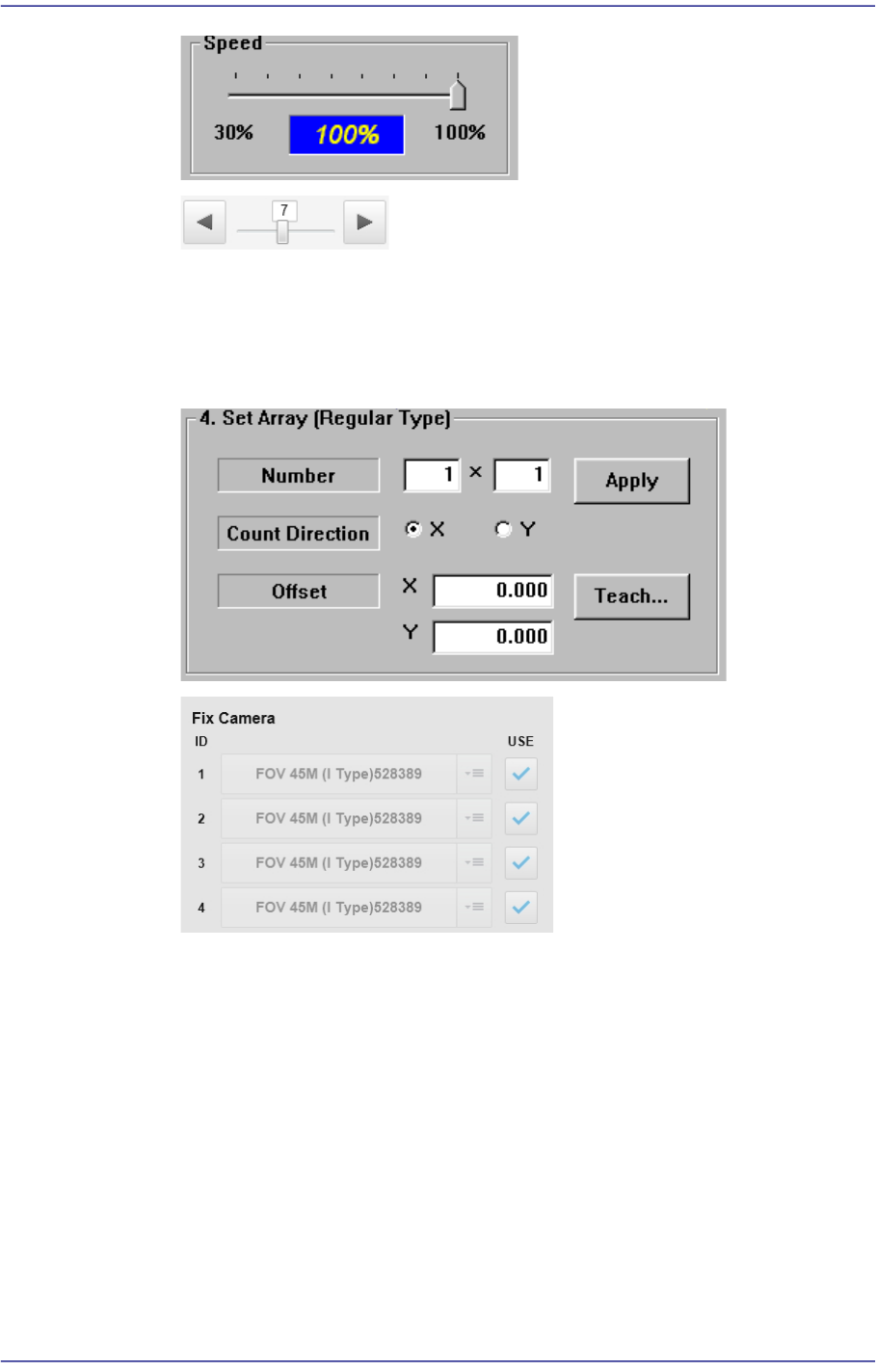

 Control box

This is a box for adjusting the set values by using a scroll bar.

 Slide bar / Slider

Adjusts a set value using the slide bar.

Preface

xxv

 Group

The above items are gathered into this area. In this manual, it is called “<XX>

group” based on the name XX above the group.

Example: <Set Array [Regular Type].> group / <Fix Camera> group

 Tab

When there are several screen in the submenu, selects the tab on the screen to

change the screen. (The following screen shows that the 'Head' tab is selected.)
