Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
<Part Sync> combo box
Selects how to manage part information in PCB files as well as in the Local DB
(UPD.mdb) for part information with the same part name when opening a PCB file.
None
Brings the part information from the PCB file while opening the PCB file. Part
information is not updated in the local DB.
Update PCB Part from Part Library
While opening a PCB file, if the component information with the same part name
is in the local DB, selecting this check box makes the component information in
the local DB loaded instead of the component information in the opened PCB file.
Update Part Library from PCB Part
If part information with the same part name as in the PCB file exists in the local
DB while opening the PCB file, the information in the PCB file is taken and the
local DB is updated with the part information..
Part Sync by PCB and DB
When opening the PCB file, the part information in the PCB file to be opened is
overwritten with the part information in the DB. When saving the PCB file, the
part information in the PCB file is saved in the local DB.
<Open> button
Selects a file and closes the “Open” dialog box.
<Cancel> button
Cancels the file selection and closes the “Open” dialog box.
3-9
File Shortcut Menu
3.3. Save [Ctrl+S]
Used to perform setup related to the current PCB or to save the completed file. Clicking
the ‘Save’ icon Button and selecting ‘Save’ or ‘Save As’ will display the following dialog
box.

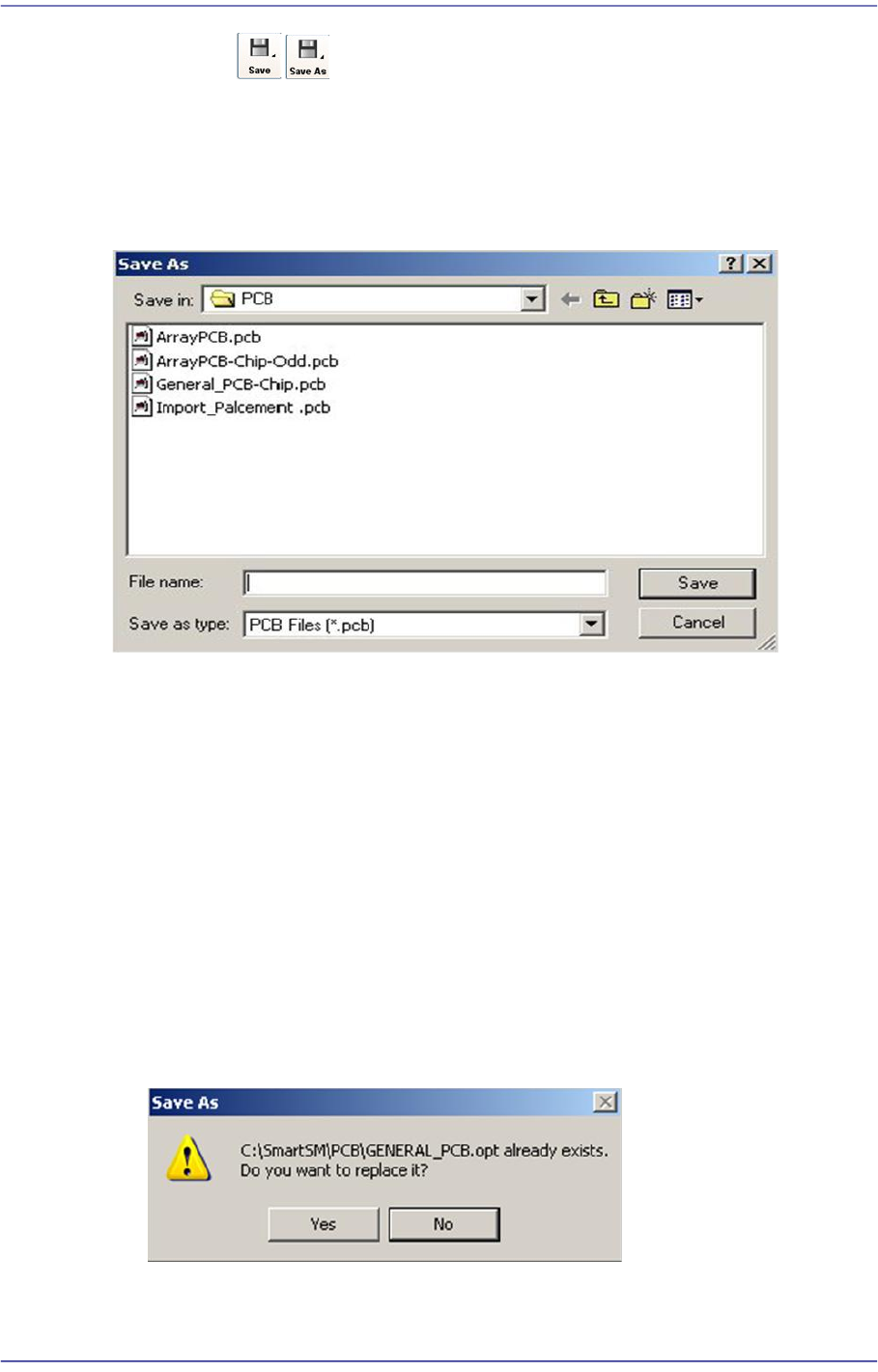

Figure3.6 “Save As” dialog box
<Save in> combo box
Specify the directory in which the file is located. Displays the files under the directory
specified here in the <File list> list box.
List box
Displays existing files. When a file name is clicked on, displays the file name in the
<File name> edit box.
<File name> edit box
Enter a new file name. Up to eight characters can be entered. If the number of
characters exceeds the limit or if a file with the same name already exists in the
directory, the following message box is displayed immediately after you click on the
<OK> button.
Figure3.7 “save As” message box
3-10
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
<Save file as type> combo box
Select file format to be displayed in the <File list> list box. When the triangular Button
is clicked on, accessible file types are displayed.
PCB Files(*.pcb)
Save the file names with a ‘pcb’ extension. Files with a ‘pcb’ extension are PCB
files for which optimization was not executed
PCB 40 Files(*.pcb)
Indicates only the file with extension of ‘pcb’, which is compatible to the CP40
equipment.
OPT Files(*.opt)
If the optimization is completed and automatically save as to ‘opt’ files. Files with
an OPT extension are PCB files on which an optimization result was reflected.
OPT 40 Files(*.opt)
Indicates only the file with extension of ‘opt’, which is compatible to the CP40
equipment.
XML Files(*.xml)
Save the file names with a ‘xml’ extension. Files with an ‘xml’ extension cannot
be used with our SM400 series machines and PCB files.
PCB V1 Files(*.pcb)
As a file with a ‘pcb’ extension, it allows the PCB file to be used with the machine
to which the flux system is not applied among the SM400 series models. It does
not support operation by POP method.
PCB V2 Files(*.pcb)
Saves the file with a pcb extension (MMI Version 2.0 and higher) which can
perform the POP function. This file does not support the block board function.
<Save> button
Selects a file and closes the “Save As” dialog box
<Cancel> button
Cancels the <Save As> command and closes the “Save As” dialog box.
Caution If the extension of PCB File is changed arbitrarily, the PCB
File will not be recognized.Do not change the extension of
PCB File.
