14-45 Machine Calibration Caution Cautions to be taken when inserting the nozzle. Insert the nozzle by referring to the follo w ing figure. 5. The message “Move T o Ce nter Pos i tion of [Fix1] Camera. T o Move, Click [N…
14-44
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
2. Then, after the head assembly moves to the designated position, move all Z axes
down. At this time, remove all inserted nozzles manually
3. “Then the message “Next Attach the Calibration Tool to Head 1. Click [Next] for
Moving Down Head. After Moving, Attach the Tool to head Manually” appears. Click
the <Next> button after inserting the CNT20 nozzle at nozzle holder of Head #1
manually.
4. The message “Move To Center Position of Calibration Tool. To Move, Click
[Next].”appears. appears in the message window. Click the <Next> button to move the
head assembly to the calibration tool position on the ANC.
14-45
Machine Calibration

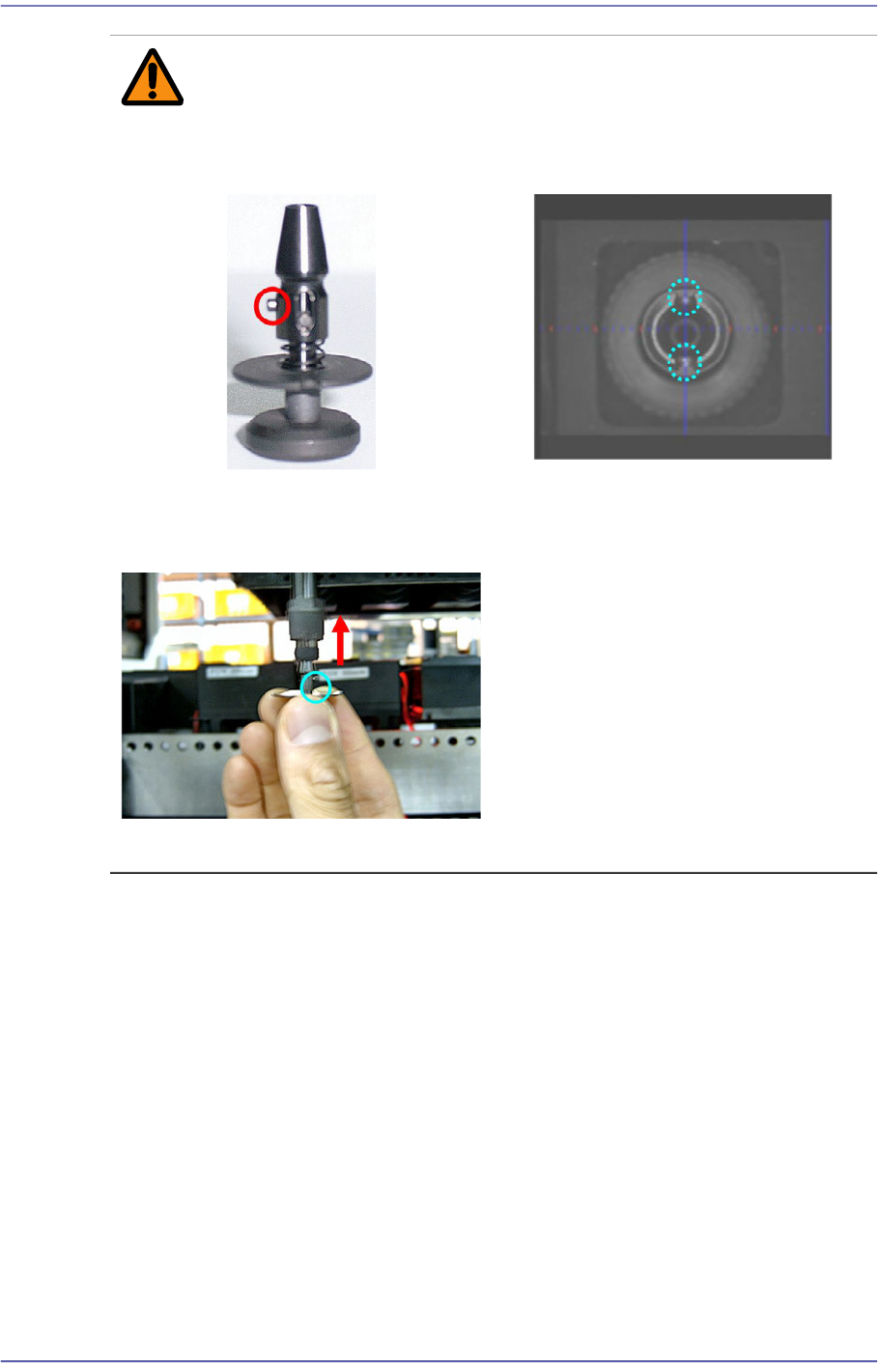

Caution Cautions to be taken when inserting the nozzle.
Insert the nozzle by referring to the following figure.
5. The message “Move To Center Position of [Fix1] Camera. To Move, Click [Next]”
appears in the message window. Click the <Next> button to move the head assembly
to the center of the fix-camera.
Direction Setup Pin of CNT20 nozzle
Direction Setup Groove of Nozzle
Holder
The CNT20 nozzle must be inserted
in the nozzle-holder so that the
direction-setup pin of the CNT20
nozzle is suitable for the direction-
setup groove of nozzle-holder.
Otherwise, an error may occur.
14-46
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
6. The calibration is performed automatically. If it is completed, the calibration result is
displayed as shown in the following figure. Click the <Update> button to apply the
new calibration value.
