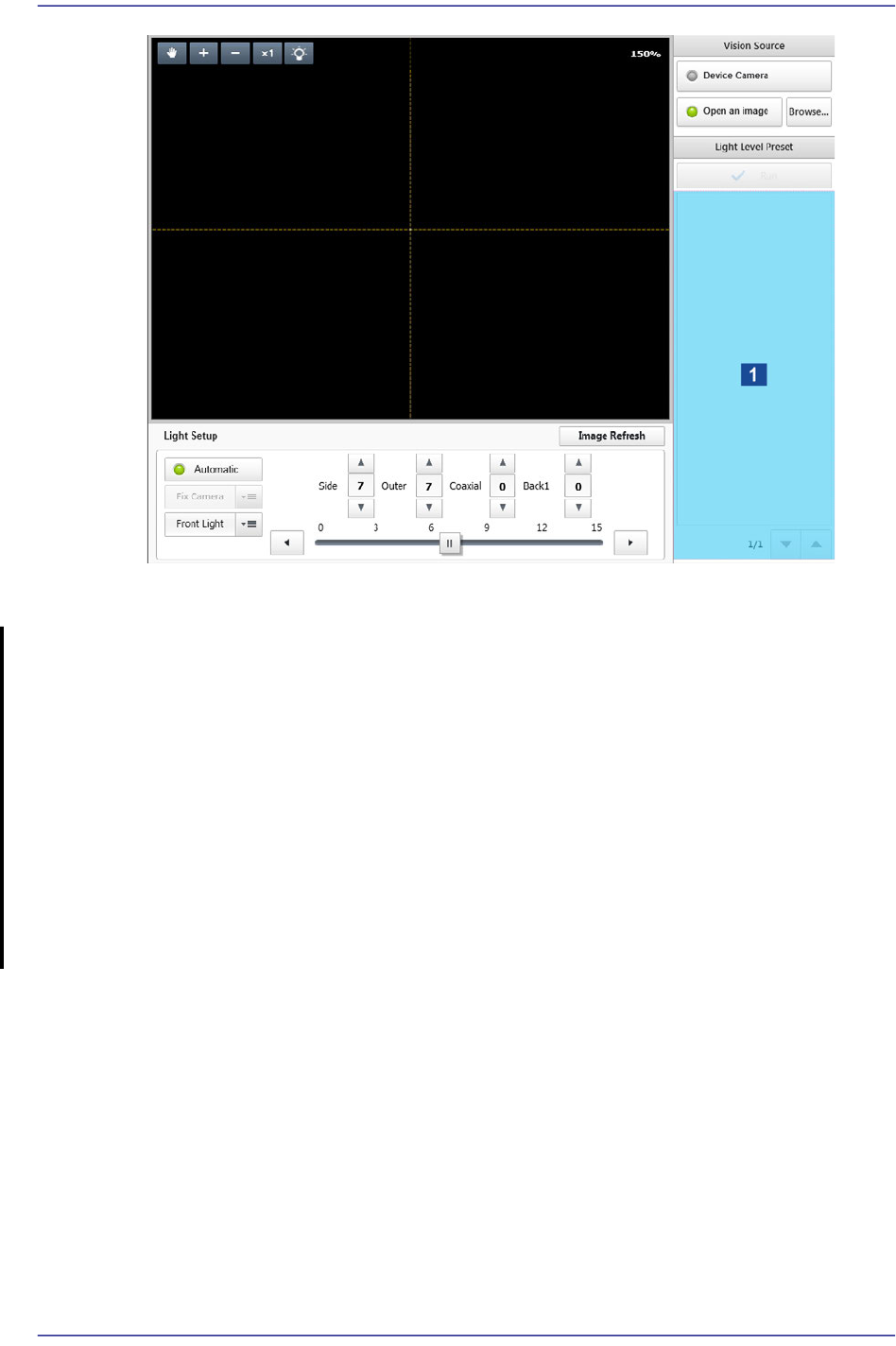

1: Thumbnail Image

 <Vision Source> group

Selects the source of a vision image.

 <Device Camera> switch Button

Selected in cases to used the camera image of the ELITE PRO as the source of the

vision image.

 <Open an image> switch Button

Selected in cases to use the saved part image as the source of the vision image.

 <Browse...> button

Enabled only when the <Image open> switch button is selected. Executes the

dialog box so that the saved part image can be selected.

 <Light Level Preset> area

It is possible to view a part image at the lighting value recommended depending on the

part group selected from the <Part Category> group.

 <Run> button

Captures the part image according to the recommended lighting value and shows it

in the 'Thumbnail Image' area.

If it starts to capture the part image by clicking the <Run> button, this button is

changed to the <Stop> button.

 'Thumbnail Image' area

7-22

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

Displays the thumbnail image of the part captured according to the lighting value.

 <Light Setup> group

Sets the lighting value of the camera recognizing a part.

 <Automatic> switch button

Selected when the camera to recognize the part is set automatically.

 <Image Refresh> button

Refresh the image of the displayed part in the vision window.

7-23

Part Registration

7.2.2.3. CENTER AREA

Sets the part inspection range and part center in order to recognize a part easily.

 <Align & ROI> switch button

Using the mouse will automatically set the part inspection range and part center by

drawing a rectangle using the mouse so that the part is to be included in the vision

window.

In addition, it creates a part image by automatically rotating the part image at an angle

at which the part can be easily edited.
