9-7
Step Programming

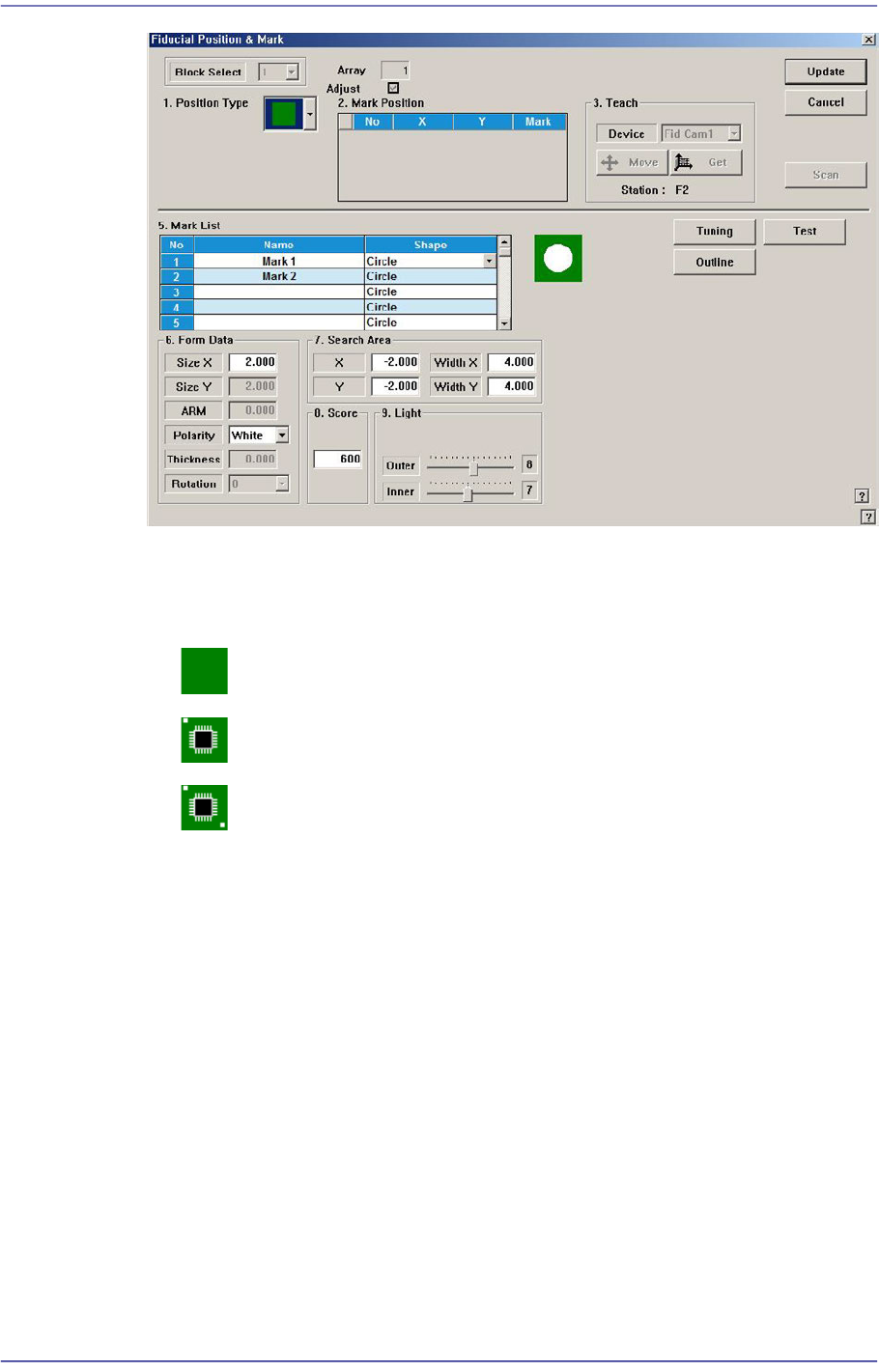

<Position Type> combo box
Select the number of fiducial marks. Available numbers of fiducial marks are as
follows.
None: No fiducial mark.
1 Part: 1 fiducial mark for placement point adjustment.
2 Part: 2 fiducial marks for placement point adjustment.
Please refer to “6.3. Fiducial Mark Setup” for more information.
<Offset…> button
Adds the offset value to the position of placement point. Before executing this
function, X column or Y column or Z column or R column or the line to add the offset
value must be selected in the grid. When this button is clicked on, the following dialog

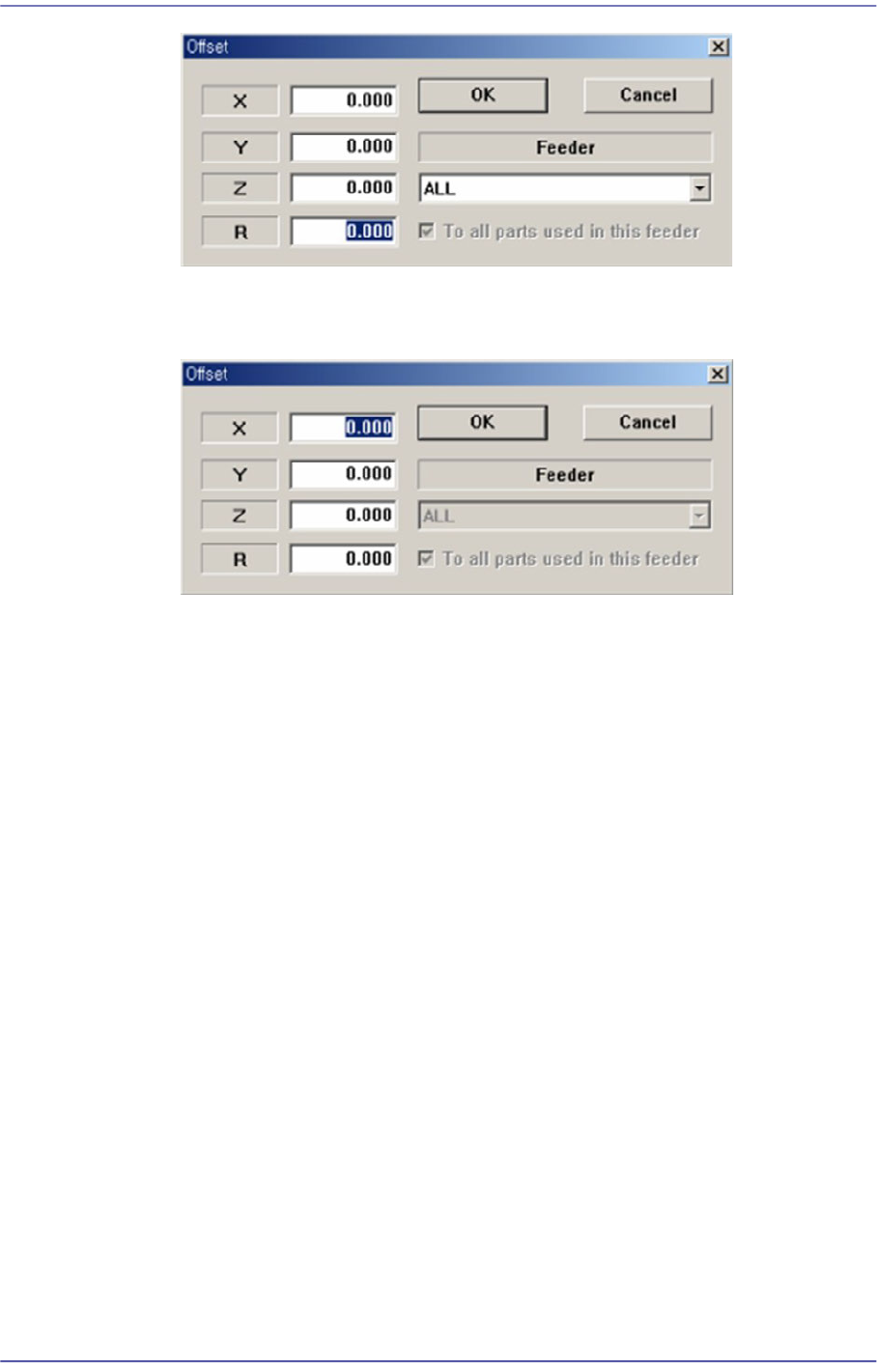

box is displayed.
<When one of X, Y, Z, and R is selected>
Apply the offset value to the selected part.
9-8
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
<When the row is selected>
Apply the offset value to all parts.
<X> edit box
Set the X offset value.
<Y> edit box
Set the Y offset value.
<Z> edit box
Set the Z offset value.
<R> edit box
Set the R offset value.
<OK> button
Closes the dialog box and adds the set offset value to the selected line in the grid.
<Cancel> button
Ignores the set offset value and closes the dialog box
<Adjust…> button
It is a function used to change the PCB step coordinate or to check and adjust the gap
between the previous fiducial mark coordinate and the current fiducial mark
coordinate to use the previous step coordinate when the backup table is down
accidentally.
<Clear Cycle> button
Initialize the placement cycle.
9-9
Step Programming
<Refresh Feeder> button
When the feeder setup has been changed in the “feeder” dialog box, clicking this
button will allow the feeder changed in the “Step” dialog box to be set up again.
<Refresh Nozzle> button
When the nozzle arrangement on the ANC has been changed, clicking this button will
allow the nozzle changed in the “Step” dialog box to be set up again.
<Place Parts> button
This function is provided to perform testing in preparation for operation or to
compliment some placement points during operation. It is used to place parts at the
placement point selected from the <Step> dialog box.
The number of placement points available with this function is maximum 150 points.
The conditions for enabling this button are as follows;
Login with authority level higher than that of the programmer
Completed PCB file download
PCB is loaded at the placement station on the conveyor.
<Parts Placed> check box
Select this check box to have placement work skipped for the corresponding part when
placing a PCB later by check-marking the placement point of the part, for which
placement testing has been completed, on the <PL> column using the <Place Parts>
button.
<POP Steps Only> check box
Selects only the placement point of the POP part among all placement points in order
to indicate it in the dialog box. This function can be used for the machine in which a
flux unit is installed.
<Import…> button
Converts externally created ASCII data into step data for this machine.
