Preface xiii QFP208 0.5 P ± 0.05 mm ± 0.18 ° 1.0 Upward V ision(Mega- FOV35mm, Mega- FOV45mm) QFP256 0.4 P ± 0.05 mm ± 0.12 ° 1.0 Upward V ision(Mega- FOV35mm, Mega- FOV45mm) QFP304 0.5 P ± 0.45 mm ± 0.15 ° 1.0 Upward V …
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
xii
The pick and place cycle time
Tablei.2The pick and place speed
Memo In actual placement, the conditions that determine the cycle time may
vary depending on many factors such as the type of components, size
of PCB, placement position, etc. For more detailed information,
please contact our business department or the local agent.
Placement Accuracy
The placement precision for applicable components type is shown in the following table,
and is applicable to general components usage as well.
The degree of placement may be different according to the composition of options for the
camera used for recognition of parts.
Classifi
cation
Speed Remarks
Chip
40,000 CPH(1608)
Simultaneous Pickup Standard Fly Vision
Classification XY R Cpk Remarks
Chip 0402 ± 0.04 mm ± 5.00 ° 1.0 Flying Vision MEGA
FOV24 mm, Mount
Offset
Chip 0603 ± 0.08 mm ± 5.00 ° 1.0 Flying Vision MEGA
FOV24 mm
Chip 1005 ± 0.10 mm ± 5.00 ° 1.0 Flying Vision MEGA
FOV24 mm
Lead IC 0.4
Pitch
± 0.05 mm ± 0.30 ° 1.0 Flying Vision MEGA
FOV24 mm
CSP Ball 0.4
Pitch
± 0.05 mm ± 0.30 ° 1.0 Flying Vision MEGA
FOV24 mm
QFP100 0.5 P ± 0.06 mm ± 0.30 ° 1.0 Upward
Vision(FOV35mm,
FOV45mm)
QFP168 0.3 P ± 0.03 mm ± 0.30 ° 1.0 Upward Vision(Mega-
FOV35mm)
Preface
xiii
QFP208 0.5 P ± 0.05 mm ± 0.18 ° 1.0 Upward Vision(Mega-
FOV35mm, Mega-
FOV45mm)
QFP256 0.4 P ± 0.05 mm ± 0.12 ° 1.0 Upward Vision(Mega-
FOV35mm, Mega-
FOV45mm)
QFP304 0.5 P ± 0.45 mm ± 0.15 ° 1.0 Upward Vision(Mega-
FOV45mm)
BGA256 1.0 P ± 0.10 mm ± 0.40 ° 1.0 Flying
Vision(FOV25mm),
Upward
Vision(FOV35mm,
FOV45mm)
BGA □12 0.5 P
± 0.06 mm ± 0.30 ° 1.0 Upward Vision(Mega-
FOV35mm, Mega-
FOV45mm)
BGA □17 0.75
P
± 0.10 mm ± 0.40 ° 1.0 Upward
Vision(FOV35mm,
FOV45mm)
Classification XY R Cpk Remarks
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
xiv
Mechanical Specifications

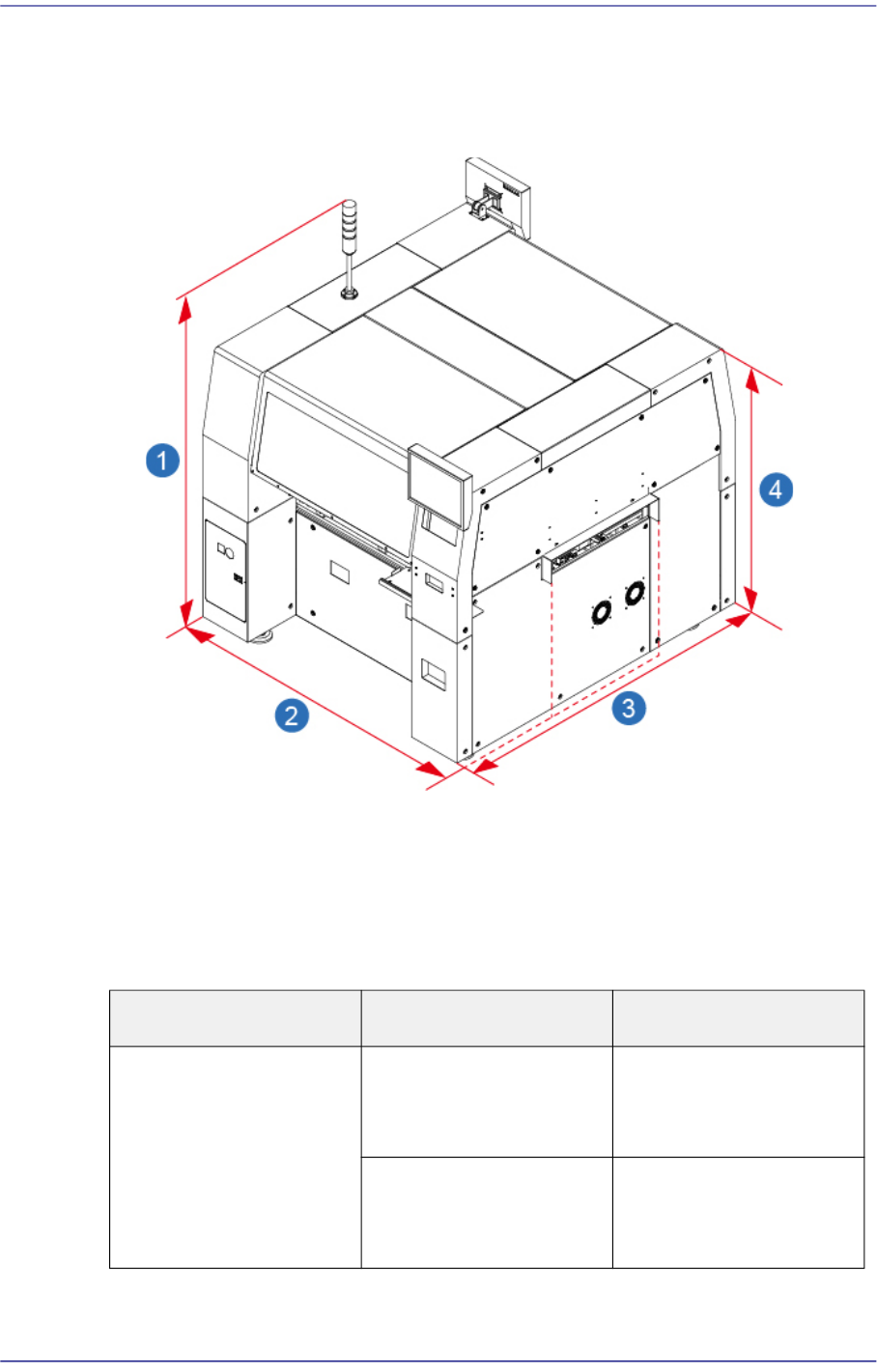

Size and mass of the machine
Height (Under the condition that the height of the PCB upper surface is 900 mm)
1: Up to the upper surface of signal light (2,090 mm)
2: Length (1,650 mm)
3: Width (1,680 mm)
4: Up to the upper surface of cover (1,530 mm)
Mass
Type Mass (kg) Remarks
SM481PLUS
(Standard 2 Feeder base)
1,655
Height=900mm
The mass which does not
include the Feeder.
1,715
Height=950mm
The mass which does not
include the Feeder.
