2-1
Structure of MMI Menu
Chapter2. Structure of MMI Menu
The menu structure and the functions of each menu of MMI (Man-Machine Interface),
which serves as the application program for the operation of this machine, are briefly
explained in this chapter. For detailed information on each menu, please refer to “Chapter
6Board Definition” ~ “Chapter 16 Production Information Management”.
2.1. Man-Machine Interface (MMI)

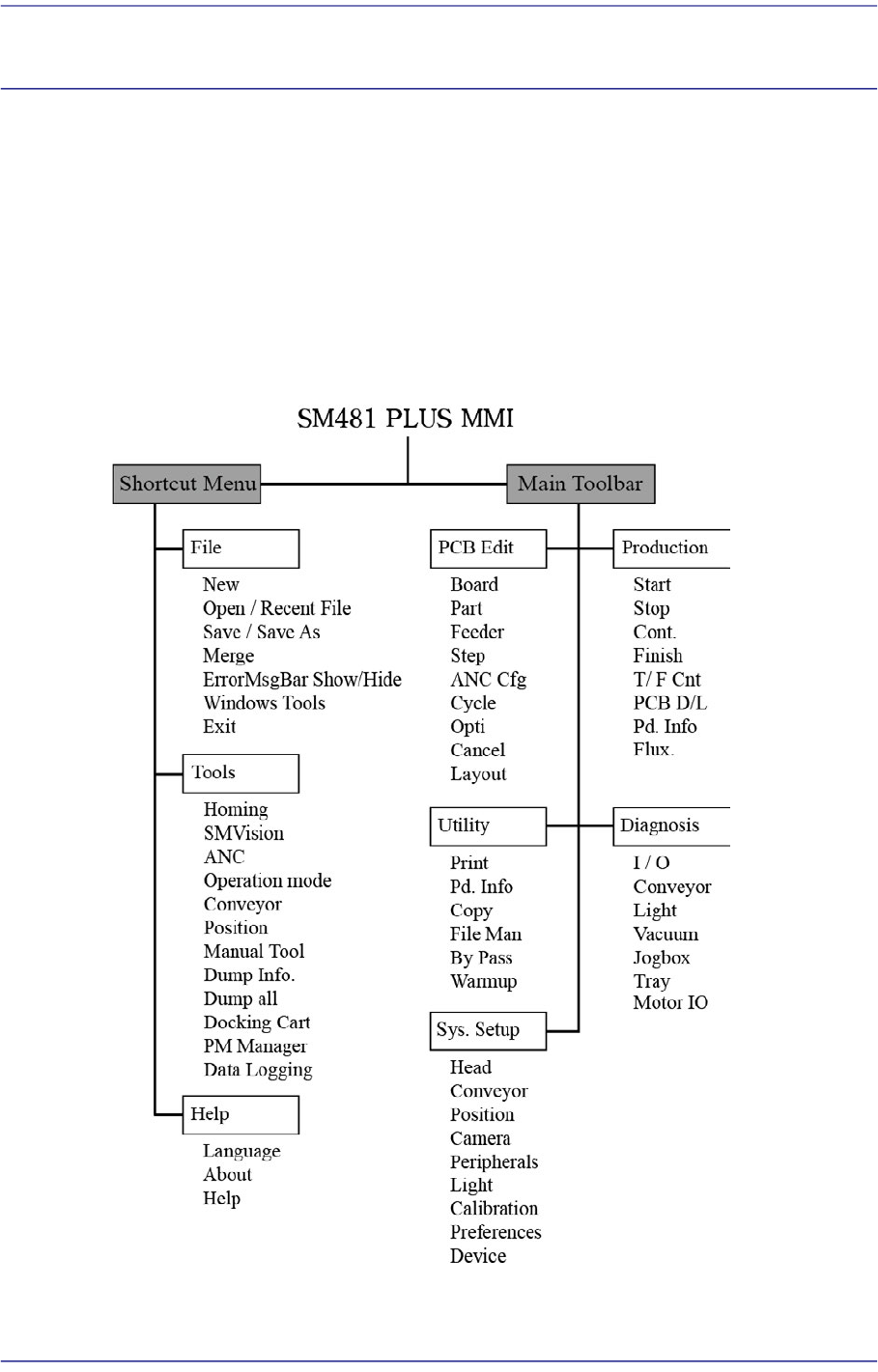

2.1.1. Menu Tree
Figure2.1 Menu Tree of MMI
2-2
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
2.1.2. Summary of functions
This section includes information on all the menus that are displayed on the MMI main
window.
2.1.2.1. The submenus of Shortcut Menu
2.1.2.1.1. File Shortcut Menu
New
Used to create a new PCB file.
Open
Used to edit an existing PCB file.
Save
Used to save an opened file.
Save As
Used to save an opened file under a different name.
Recent File
Displays a list of files worked on recently.
Merge
Merges the part library files.
ErrorMsgBar Show/Hide
Execute ErrorMsgBar dialog box.
Windows Tools
Explorer: Indicates the Windows Explorer.
Calculator: Indicates the calculator.
Paint: Indicates the Paint.
Notepad: Indicates the Notepad.
Exit
Ends MMI session and goes back to Windows or terminates the operation of the
machine.
2.1.2.1.2. Tools Shortcut Menu
Homing
Returns the motors for the X, Y, Z, theta (R) and mirror axes to the point of origin.
SMVision
Changes the operation mode.
2-3
Structure of MMI Menu
ANC
Registers various information on the ANC (Auto Nozzle Changer).
Operation mode
Changes the operation mode.
Conveyor
Executes the conveyor dialog box.
Position
Used when it is necessary to refer to the current coordinate of each driving axis during
teaching or calibration.
Manual Tool
Used when it is necessary to refer to the current coordinate of each driving axis during
teaching or calibration.
Dump Info.
Used to check the message window indicating the information on the parts and feeders
dumped due to placement error.
Dump all
Used to dump all parts picked up by the head to the dump box.
Docking Cart
Used to manipulate the movement of the docking cart clamp in the machine to which
the docking cart is applied.
PM Manager
The PM Manager is a management menu that is used for the maintenance of the
machine in the MMI (Man-Machine Interface), an application program for machine
operation. The items to be inspected as well as check periods can be checked through
the PM Manager, and the machine can be managed more efficiently through the
schedule check function. For more details, refer to the “Appendix. PM Manager’s
Guide” of “Administrator’s Guide”.
Data Logging
Used to find the cause of problems occurring in the machine.
2.1.2.1.3. The submenus of the help menu
Language
Enables indication of the messages in English while operating the equipment.
About
Displays the equipment’s application program’s current version and miscellaneous
information.
