1 Purpose This procedure establishes proper methods and practices for quantifying the surface topography/texture of metallic foil using a noncontact, optical or laser, 3-D surface measurement device. The primary reported…
IPC-2-2-21-5
Figure

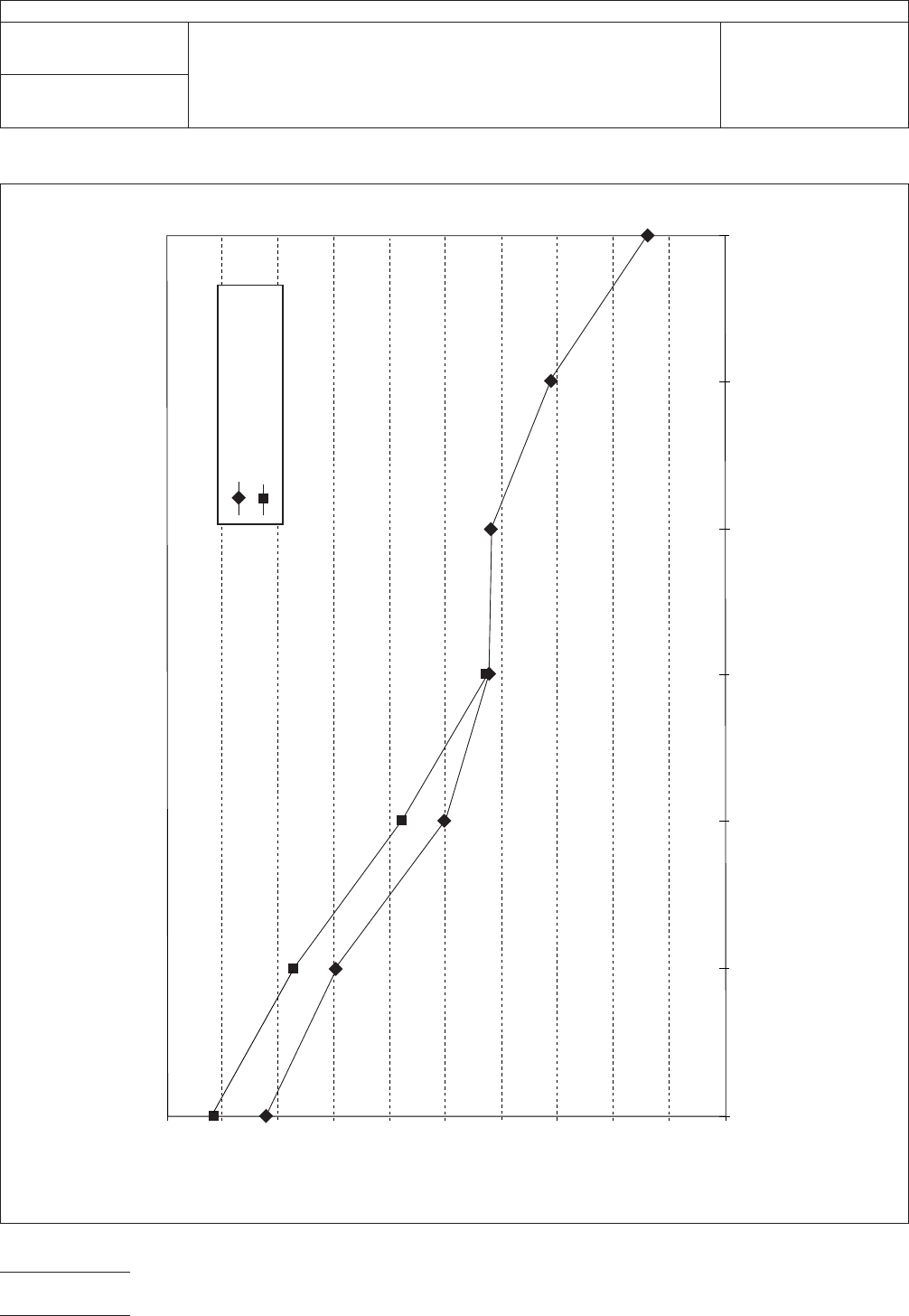

5 Planarity Chart for Method.xls
6.4
3.2
1.60.8
0.40.2
0.1
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
T
race Width (mm)
Planarity Test Method - Sample A
Pr
ofilometer Method A
% Planarity
X-Section Method A
IPC-TM-650
Number
2.2.21
Subject
Planarity
of Dielectrics for High Density Interconnection (HDI)/
Microvia Technology
Date
11/98
Revision
P
age4of4
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
1 Purpose This procedure establishes proper methods and
practices for quantifying the surface topography/texture of
metallic foil using a noncontact, optical or laser, 3-D surface
measurement device. The primary reported values will include
Sa, Sq and Sz (see 6.3 for further information on these param-
eters) where S values are 3-D measures.
2 Applicable Documents
2.1 IPC
1
IPC-4562 Metal Foil for Printed Board Applications
2.2 International Standards
2
ISO 16610 Geometrical Product Specifications (GPS) –
Filtration
ISO 25178-2 Surface Texture: Areal – Part 2: Terms, Defini-
tions and Surface Texture Parameters
3 Metallic Foil Sample Preparation
3.1
The samples tested will be a single-layer material taken
from a representative location of metallic foil. The size of the
physical sample will be determined based on the easiest
method for obtaining a representative sample, but should be
no larger than 50 mm x 50 mm [nominally 2 in x 2 in]. Opera-
tors of the measurement tool will orient the sample so the
measurements are across the machine direction of the foil
sample or the surface of the Physical NIST Traceable
Standards.
3.2 The samples will be tested as received, but proper care
must be taken to prevent scratches, dents or bending to
insure the integrity of the surface. Operators of the measure-
ment tool will orient the sample so that the measurements are
across the machine direction of the foil sample.
4 Equipment / Environment
4.1
A noncontact 3-D tool will be used for this procedure
and it will be calibrated according to the machine manufactur-
er’s instructions.
Examples: Wyko-NT-1100, Zygo 5000, Zygo 600, Veeco
NT-9300, Keyence VK-9700 or equivalent.
4.2 The tool will be placed on a lab bench or other sturdy
table top and should be placed in an area away from
machines that produce large amounts of noise/vibration.
Follow test device manufacturer’s recommendations for envi-
ronmental conditions, including for vibration.
5 Procedure for testing upon metallic foil and physical
NIST Traceable Standards
5.1
The operator will set up the measurement tool program
to scan a minimum area of 200,000 square microns having a
maximum length to width aspect ratio of 5:1 with an objective
magnification of 50X for measuring the surface roughness of
either a physical standard or a foil sample. Such specification
requirements may necessitate stitching or ‘‘step and repeat-
ing’’ multiple images so as to obtain data from a properly
sized area.
5.2 No filters shall be used with this test method.
5.3 Prior to measurement of metallic foil samples the tool
operator will assure the 3-D tool is currently properly cali-
brated. Verification needs to be performed by testing the
actual physical NIST Traceable Standards at least monthly on
the 3-D measurement tool.
5.4 Physical Standards will be oriented so the measurement
is perpendicular to the grain of the Standards. Operator will
locate the measurement center point in the XY axis to match
the XY center point of the specific patch being measured on
the Standard set. This is done to assure the measurement
always takes place in the same location upon the Standard
surface.
1. www.ipc.org
2. www.iso.org
3000 Lakeside Drive, Suite 105N
Bannockburn, IL 60015-1249
IPC-TM-650
TEST METHODS MANUAL
Number
2.2.22
Subject
Noncontact Metallic Foil Surface Topography/
Texture
Date
5/20
Revision
Originating Task Group
Metallic Foil Task Group (3-12a)
Material in this Test Methods Manual was voluntarily established by Technical Committees of IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by IPC.
Page1of5
NIST Certified Standards
5.5 The test settings used for measuring the metallic foil
samples shall be the same as used for measuring the NIST-
certified standards.
6 Measurement Parameters and Machine setup
6.1
All measurements will be done using a saved set-up and
measurement parameters (commonly termed ‘‘a template’’) to
insure that all measurements are done using the exact same
test method. Programs and procedures for each piece of spe-
cific equipment shall be saved and distributed to colleagues
across the country so all facilities are taking the exact same
measurements using the exact same test procedure. For
example, procedures for laser or white light techniques will be
different.
6.2 The equipment manufacturer should be consulted to
define the specific measurement machine template needed to
assure compliance with this measurement procedure.
6.3 The specifics of the surface measurements are listed
below.
Primary Measurement Values: Sa, Sq, Sz
• Sa is defined as the average absolute value height in refer-
ence to the mean plane.
• Sq is defined as the root mean square (RMS) height in ref-
erence to the mean plane.
• Sz is defined as the absolute vertical distance between the
highest peak and deepest valley.
7 Measurement Results
7.1
The values for Sq, Sa and Sz will be used to quantify the
overall surface texture/topography of various metallic foils and
will be reported. These values were chosen as they provide
the most up-to-date surface measurement capabilities using a
noncontact 3-D surface measurement tool.
Height 9 mm
x 200 µm (width); centered on the xy axis
Center point of Measurement spot and Standard
Grain direction of the standard is across the width
Measurement standard minimum size 1000 µm (height)
Width 3 mm
IPC-TM-650
Number
2.2.22
Subject
Noncontact Metallic Foil Surface Topography/Texture
Date
5/20
Revision
Page2of5
