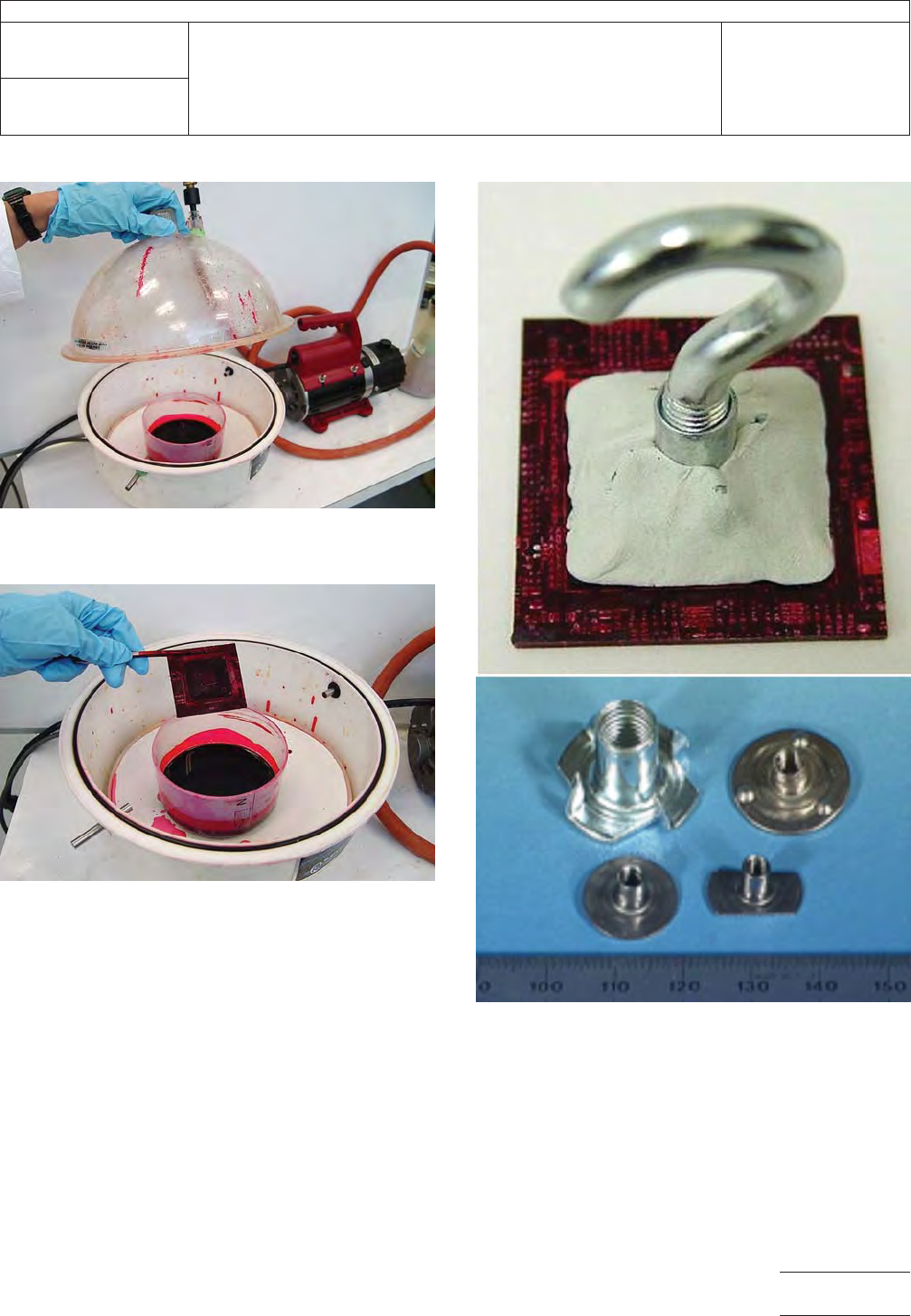

Figure 7 Dye Vacuum Station – Sample Completely
Submerged in Dye
Figure 8 Sample Being Removed From Dye
Figure 9 Sample Prepped With Tee Nut, Pull Hook
and Molding Compound (Top) and Examples of Tee
Nuts (Bottom)
Note: Sample is ready for pulling.
IPC-TM-650
Number
2.4.53
Subject
Dye and Pull Test Method (Formerly Known as Dye and Pry)
Date
8/2017
Revision
Page5of11

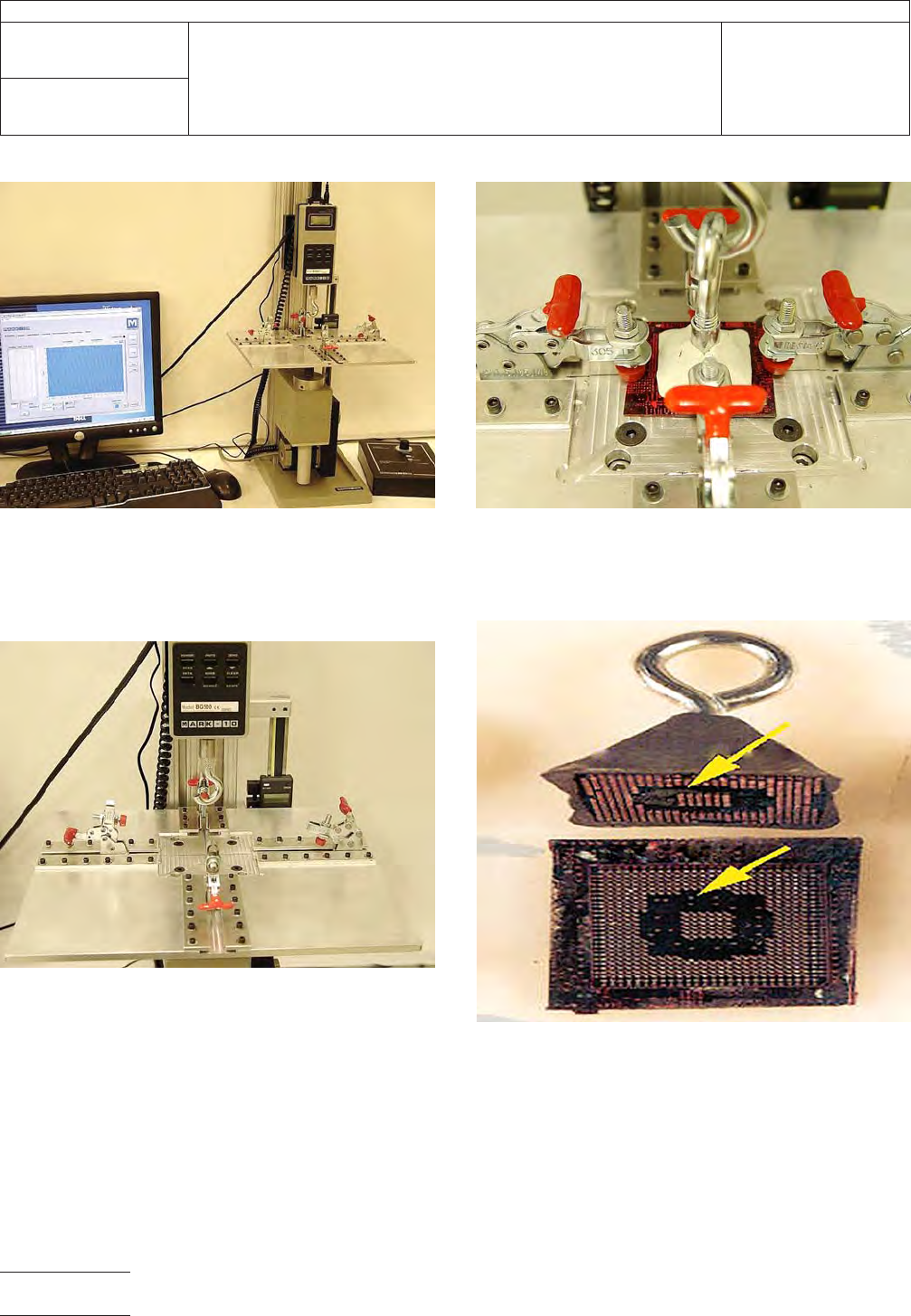

Figure 10 Example of Pull Method to Remove the BGA
From the Board
Note: These photographs are for reference only and should not be
construed as implying that a measurement is being made in accord
with this method.
Figure 11 Example of a Pull Tester Stage and Clamps
Note: These photographs are for reference only and should not be
construed as implying that a measurement is being made in accord
with this method.
Figure 12 Typical Pull-Test Fixture With Stage Clamps
Note: These photographs are for reference only and should not be
construed as implying that a measurement is being made in accord
with this method.
Figure 13 Example Showing Ball Grid Array (BGA)/
Part (Top) and Remaining Board (Bottom)
IPC-TM-650
Number
2.4.53
Subject
Dye and Pull Test Method (Formerly Known as Dye and Pry)
Date
8/2017
Revision
Page6of11

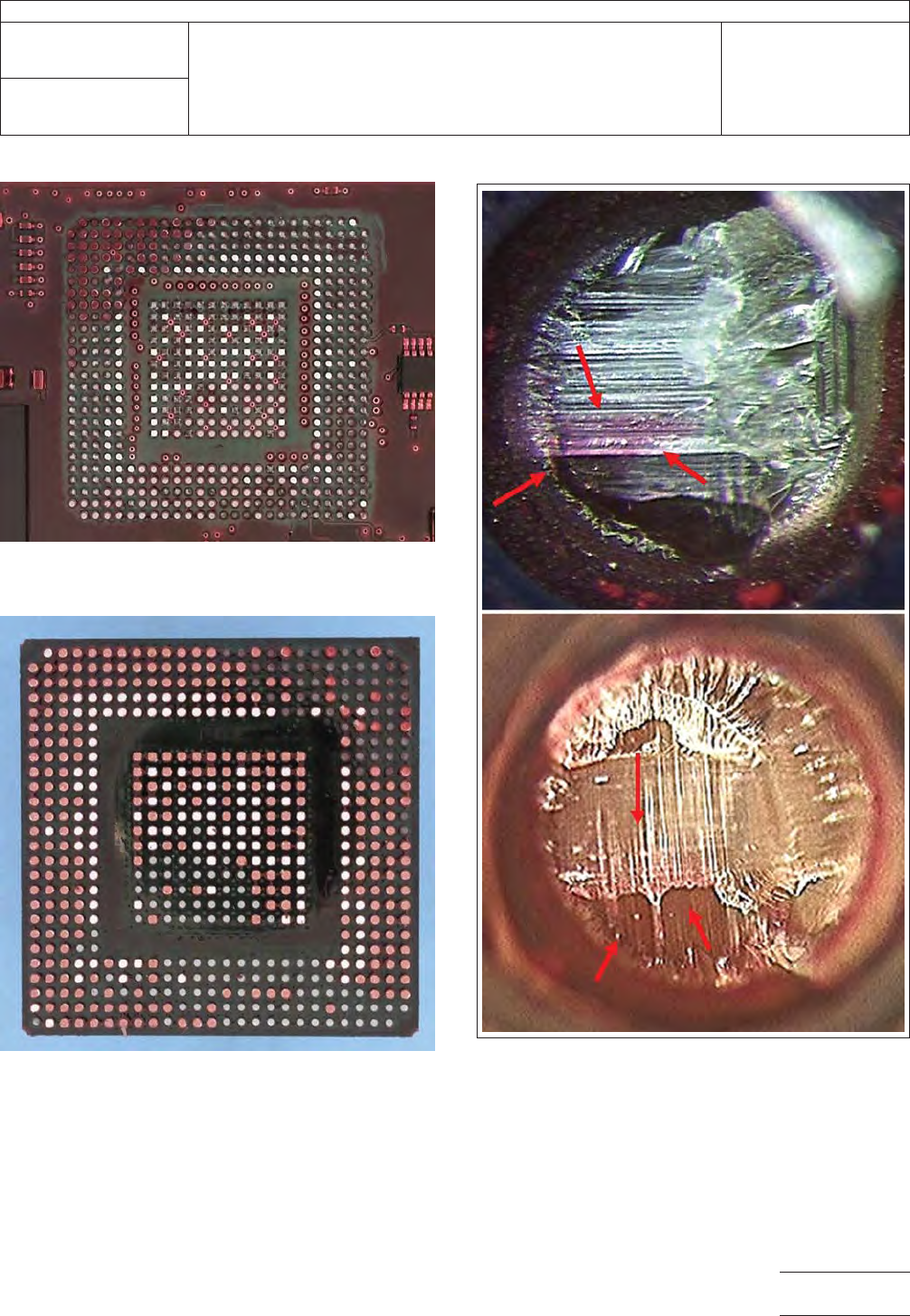

Figure 14 Mirrored Dye Indication Following Pull –
Board Side
Figure 15 Mirrored Dye Indication Following Pull –
Part Side
Figure 16 Examples of Board Showing Laminate
Fractures (Pad Cratering)
Note the faint (pink stain) red dye indication.
