IPC-2555-6 Figure 6 Base Cover Board with Copper Foil Ground Plane IPC-2555-7 Figure 7 Detail of the Supplied Launcher Body , Omni-Spectra Part No. 2070-5068-02 or Equivalent IPC-TM-650 Number 2.5.5.5 Subject Stripline T…

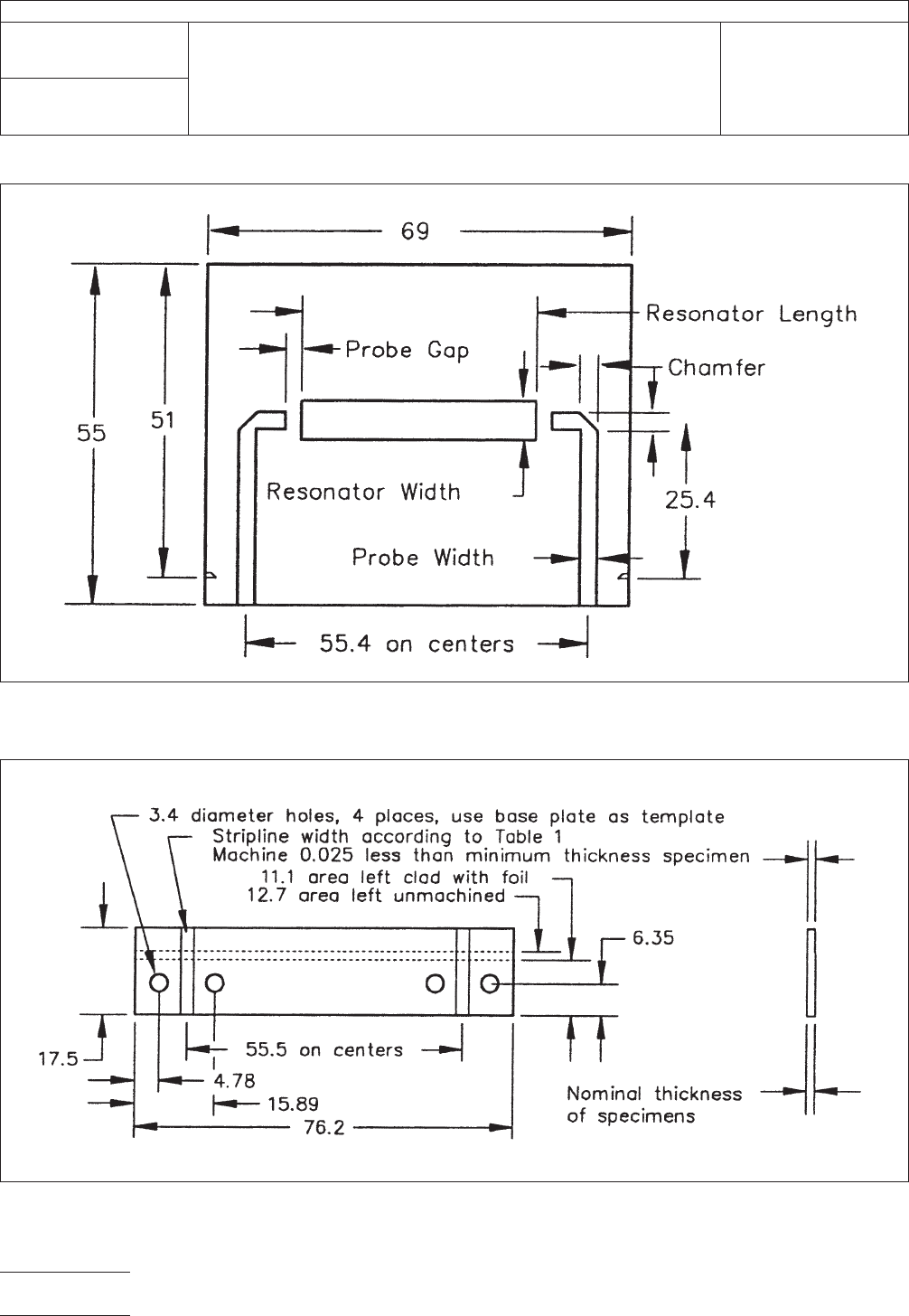

IPC-2555-4
Figure
4 Generalized Resonator Pattern Card Showing Dimensions of Table 1 and Made of Laminate Matching the
Nominal Permittivity of Material to be Tested
IPC-2555-5
Figure
5 Base Stripline Board with Copper Foil and Dielectric Matching the Nominal Permittivity of the Material to be
Tested
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
14 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
IPC-2555-6
Figure
6 Base Cover Board with Copper Foil Ground Plane
IPC-2555-7
Figure
7 Detail of the Supplied Launcher Body, Omni-Spectra Part No. 2070-5068-02 or Equivalent
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
15 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
IPC-2555-8
Figure
8 Brass or Aluminum Base Plate for Clamping the Base Cards and Connecting Launcher Bodies to the Base Card
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
16 of 25
