4.4.11 TDR ESD Protection TDR equipment shall pro- vide ESD protection commensurate with the test environment. It is recommended that samples be grounded to remove any residual static to protect against static discharge …

EBW requirements agreed upon between customer and ven-

dor.

4.4.5.2 RIE Risetime The rise time (10%-90%) for RIE

shall be 250 ps or as agreed upon between vendor and cus-

tomer with an open tip of the probe as illustrated in Figure 4-5.

4.4.5.3 SPP Risetime The rise time (10%-90%) for SPP

shall be 11 to 35 ps or less at the open tip of the probe or

cable connector as illustrated in Figure 4-5. SPP has an addi-

tional requirement of an impulse forming network to be

located between the TDR head and the test probe.

4.4.5.4 SET2DIL Risetime The rise time (10-90%) for

SET2DIL shall be <35 ps at the open tip of the probe or cable

connector as illustrated in Figure 4-5.

4.4.6 TDR Impedance The impedance of the TDR unit

should be 50 Ω with an impedance uncertainty less than or

equal to ± 0.5 Ω.

4.4.7 TDR System Calibration Follow the TDR instrument

manufacturer’s recommendation for the frequency of factory

calibration. Since RIE is related to the ratio of loss, field cali-

bration reverts to insuring proper results from calibration stan-

dards.

4.4.8 SPP Impulse Forming Network Requirement The

pulse width at the output of the IFN observed at the probe tip

shall be a minimum of 20 ps. The recommendation is to have

a 20 ps to 60 ps pulse width detected in TDT through the

measurement set-up on typical line lengths used in the test

coupon.

4.4.9 Printed Board Connectors The TDR cable connec-

tion shall utilize a ‘‘SMA,’’ 3.50 mm, or 2.92 mm connectors

at their measurement ports. It is recommended that cable

connections be tightened with a torque wrench to follow

specifications, unless otherwise specified by the manufacturer

of the connector or cable.

Three general probing solutions may be utilized to perform the

SPP extraction: microprobe pads, SMA connectors, and

handheld probes. Surface-mounted SMAs, as shown in Fig-

ure 4-6, are recommended for SPP. They may be either

bolted or slip-fitted into the alignment holes as explained ear-

lier. The bolt-down specification for a Molex SMA style con-

nector, part number 73251-1850, is shown in Figure 4-6.

4.4.10 TDR Cabling All test cables shall meet the follow-

ing minimum specifications:

a) Coaxial with a 50 ±1 Ω characteristic impedance

b) 2.92 mm, 3.50 mm, or SMA connectors

c) Max cable insertion loss ≤2.50 dB at 65 GHz, 50 GHz,

40 GHz, or 26.5 GHz, respectively

d) Probing insertion loss ≤0.33 dB at 65 GHz, 50 GHz,

40 GHz, or 26.5 GHz, respectively

IPC-25512-4-5

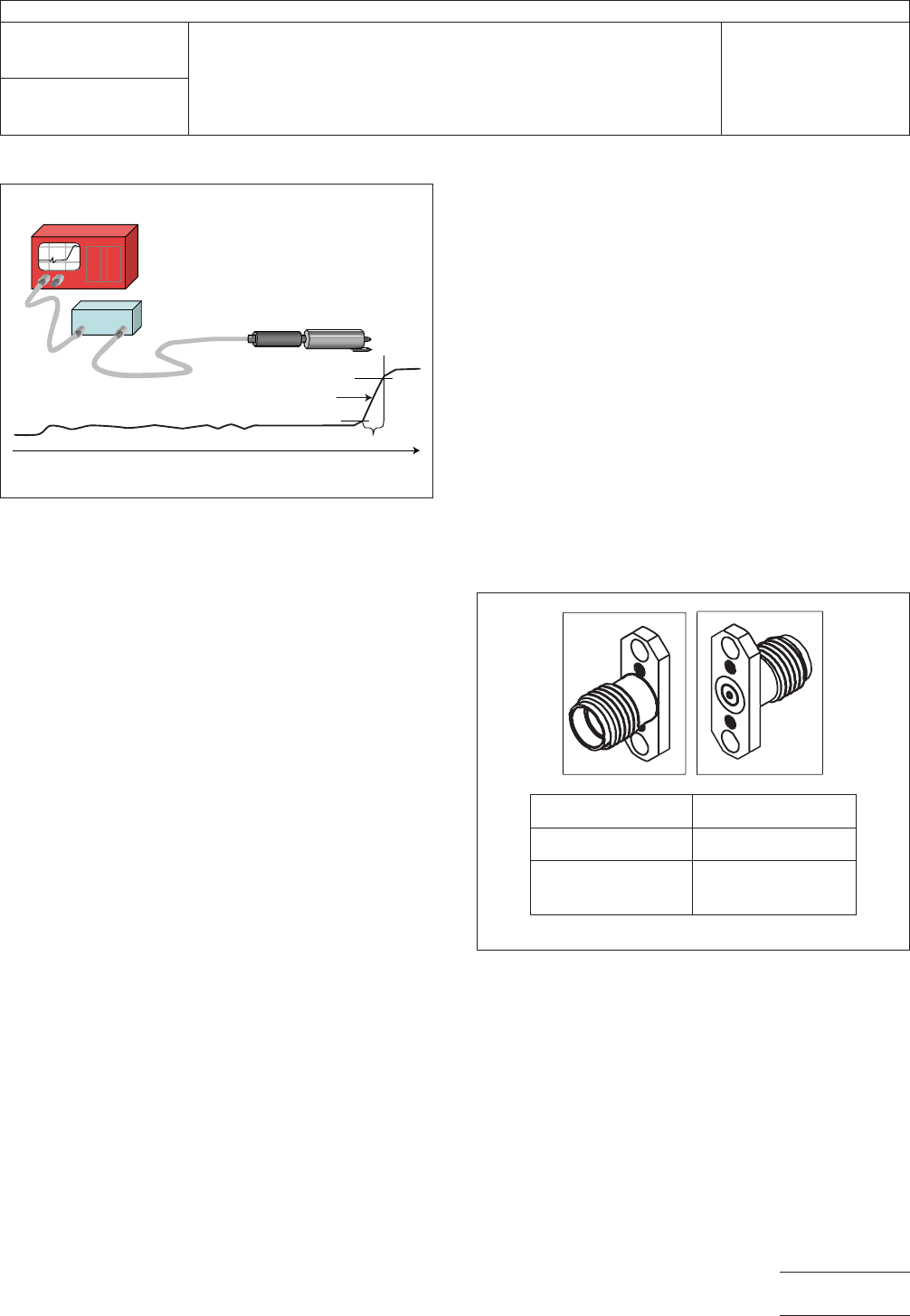

Figure 4-5 Measurement of Maximum Slope of Step

Risetime at Open End of Probe

TDR Instrument

probe

SIU

Maximum

risetime

Rise time

Time

IPC-25512-4-6

Figure 4-6 Bolt Down Torque Requirement for 2

Connector Styles

Connecter Type Required Torque

SMA 5 in-lb (0.56 N-m)

3.50 mm

2.92 mm

8 in-lb (0.90 N-m)

IPC-TM-650

Number

2.5.5.12

Subject

Test Methods to Determine the Amount of Signal Loss on

Printed Boards

Date

07/12

Revision

Page 11 of 24

4.4.11 TDR ESD Protection TDR equipment shall pro-

vide ESD protection commensurate with the test environment.

It is recommended that samples be grounded to remove any

residual static to protect against static discharge with in the

test environments.

Static can be built up on samples prior to test and can dam-

age the sampling heads in the TDR/TDT equipment. There-

fore, it is recommended that ESD protection be used. Such

protection must be supplied internally to the TDR system.

Samples should be grounded to remove any residual static

and/or passed through some type of deionization device prior

to testing. This can be done by shorting each line to ground

with a simple connection between one end of the lines and

the instrument ground. Keeping the relative humidity in the

test area between 45% and 55% may minimize the buildup of

static. Operators are always required to have a grounding

strap around one wrist havinga1MΩ resistor in series with it.

Special waxing can be used on the lab floor to prevent body

charge build-up. Always use a grounded, conductive table

mat. Always wear a heel strap. Always ground the center con-

ductor of a test cable before making a connection to static-

sensitive equipment.

4.5 SPP Test Apparatus

4.5.1 Other SPP Equipment Requirements

An LCR

meter is required that can measure capacitance at 1 MHz.

4.5.2 SPP Software The following software is required for

implementation of the SPP technique:

a) Gamma-Z software for signal processing or equivalent

b) 2D field solver such as CZ2D, which can be downloaded

from: www.alphaworks.ibm.com/tech/gammazandcz2d,

or equivalent

4.6 FD Test Apparatus The measurement equipment

needed includes a VNA, cabling, a probing solution, and a

calibration structure and calibration coefficients that are

acquired from the probe or connector manufacturer. The

probing solution should match the test sample chosen from

the above described samples. High performance connectors

and cables are recommended in performing VNA measure-

ments. Optionally, a TDT system may be used in place of a

VNA to acquire frequency domain attenuation and loss data.

5 Procedures

5.1 EBW Measurements Procedure

5.1.1 Measurement Process

This procedure will measure

the maximum slope of the rise time of the combined measure-

ment system and DUT and determine a loss factor. Recom-

mended resolution is 4000 points with a horizontal scale of

200 ps/div.

Step 1 – Probe the interconnect (see Figure 5-1) and measure

the maximum slope of the step response in Megavolts/second

(e.g., 430 Megavolts/second). The maximum slope may be

directly acquired from TDR equipment with that capability.

Step 2 – Report the Loss Factor at the test system bandwidth

(as measured within 4.4.5.1) (e.g., 430 Megavolts/second @

14.5 GHz).

5.2 RIE Measurement Procedures Figure 5-2 summa-

rizes the RIE measurement procedure.

The RIE method utilizes a comparison between a reference

loss (line) measurement and a test conductor (line) measure-

ment. The reference measurement may be a calibration stan-

dard or short length of conductor in the neighborhood and on

the same layer as the conductor to be measured.

5.2.1 TDR – Open or Unterminated Line Requirement

The RIE method requires a measurement of lines where one

end is a probe launch and the other end is left unterminated

or open. The probe injects a fast step at the launch point in

much the same manner specified in IPC-TM-650, Method

2.5.5.7. The injected step causes a wave to propagate down

the line; most of the wave is reflected by the open end of the

line and travels back to the source where it is measured as the

superposition of the incident wave and all the reflections.

IPC-25512-5-1

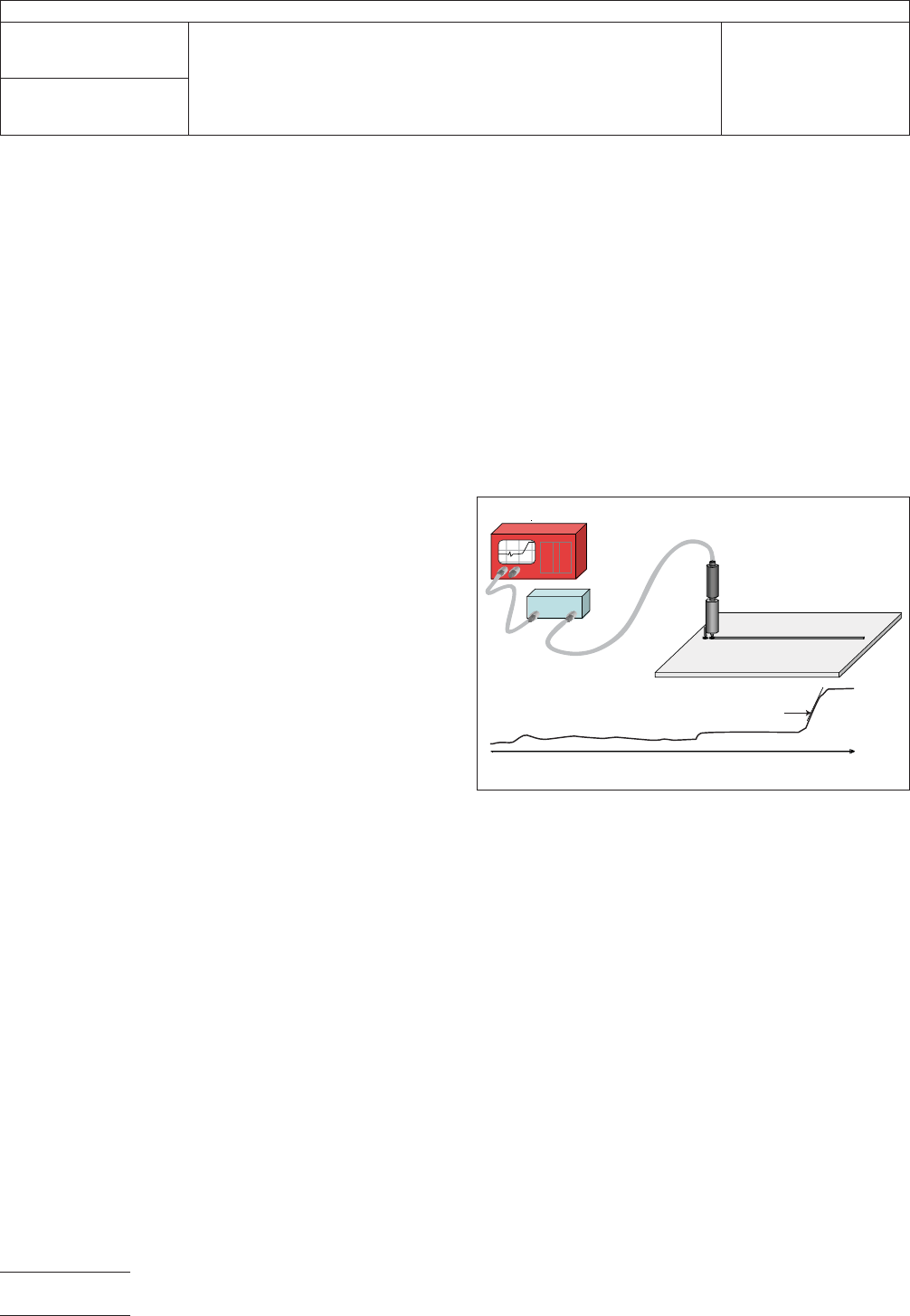

Figure 5-1 Measurement of Maximum Slope of Step Rise

Time at Open end of DUT

TDR Instrument

probe

SIU

Maximum

risetime

DUT

(interconnect)

Time

IPC-TM-650

Number

2.5.5.12

Subject

Test Methods to Determine the Amount of Signal Loss on

Printed Boards

Date

07/12

Revision

Page 12 of 24

These are the TDR waveforms used in the RIE loss calcula-

tion.

It is recommended to be positioned within 80% of the vertical

screen scale in reference to the representative waveform. The

signal on the screen must have a resolution of at least 5% of

the measured signal.

Figure 5-3 specifies two time regions. T0 and T1. The sum of

T0 and T1 represents the time range for the captured wave-

form. Figure 5-3 specifies the point between T0 and T1 which

corresponds to the point where the probe contacts the

printed board, or where the rising edge would be if the probe

were disconnected from the sample. The TDR specification

for T0 and T1 is found in Table 5-1.

Each TDR waveform is averaged on the TDR instrument at

least 16 times. The time base and offset remain the same for

all measurements.

5.2.2 Measurement and Processing Two TDR wave-

forms are captured. One corresponds to a reference and the

second corresponds to the test line.

The measured waveforms require post-processing. TDR

waveform is processed as follows:

a) Filtering

b) Cubic spline fit

c) Using derivative to find impulse response

d) Calculating RIE loss ratio

5.2.2.1 Recursive Digital Filtering of Spline Data The

two TDR waveforms are filtered using the method prescribed

in Equation 5-1.

Let S

j,0

= A

for k = 1 to N

j,k

2,k +

i=1

(

i-1

⋅ S

i,k

)

Assign B

= S

j,N

[5-1]

Where:

N is the number of filtering iterations

is the j

point of the on of the acquired TDR waveforms

Sj,k is the j

point of the k

filtered waveform

j is an index for the waveform points

Bj is the j

point of the filtered waveform

The number of filter iterations depends on the number of

samples in the acquired TDR waveform and specified in Table

5-2.

5.2.2.2 Resampling with a Cubic Spline Fit The next

step is to resample the filtered TDR data to 10,000 points (J).

This is accomplished with a cubic spline fit.

5.2.2.3 Impulse Response The impulse response of the

reference and test specimen, respectively I_R

and I_T

is cal-

culated by taking the derivative of the respective resample

step waveforms RB

and TB

. One method to perform this

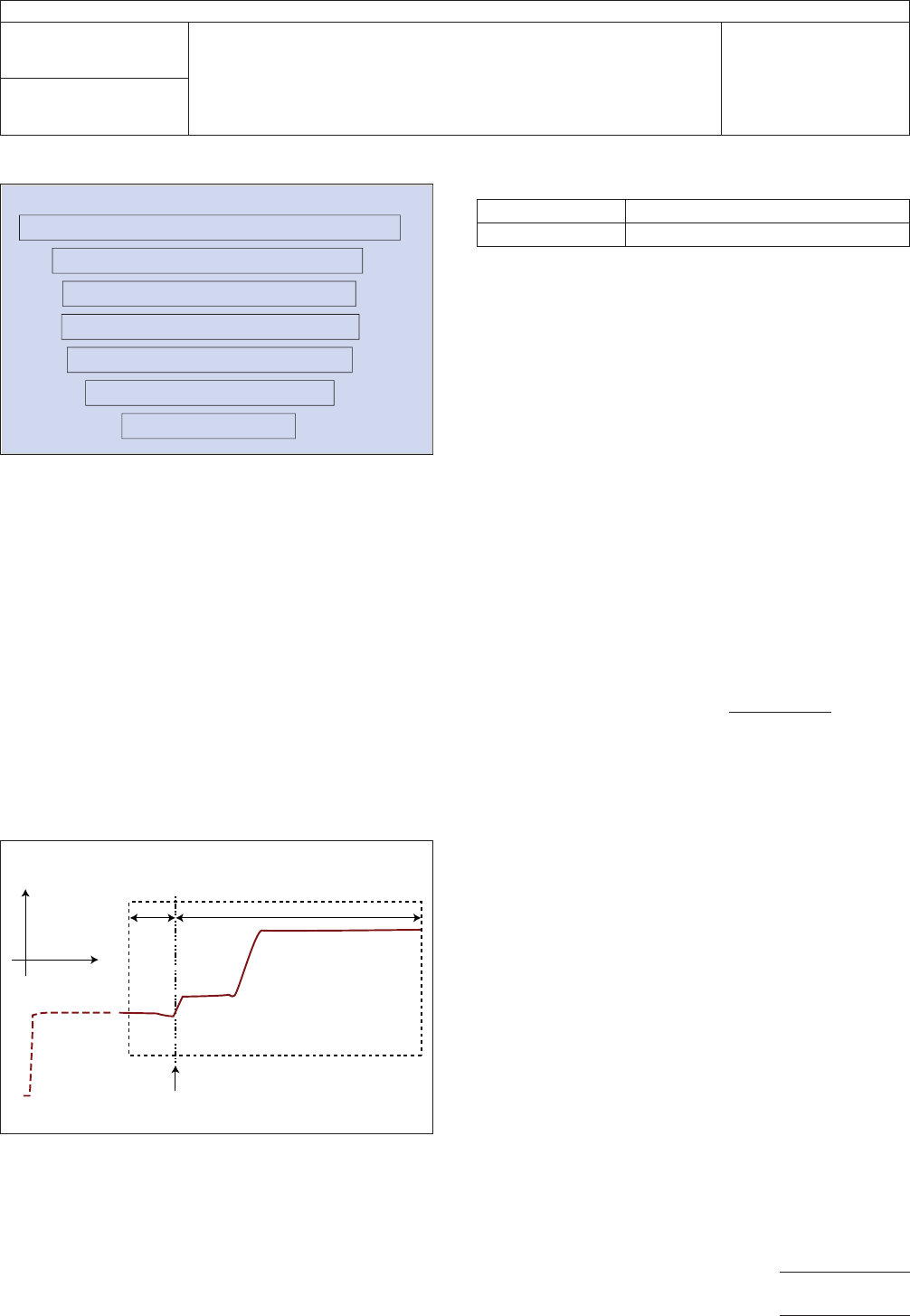

Figure 5-2 RIE Flowchart

RIE TDR PROCESS

Acquire TDR response for one reference and line under test

Averaging filter of re-sampled TDR waveforms

Cubic spline re-sampling of TDR waveforms

Perform Derivative of filtered TDR waveforms

Determine RIE loss from reference Sample

Determine RIE loss from test Sample

Determine RIE loss ratio

IPC-25512-5-3

Figure 5-3 Waveform Position on TDR Screen

Voltage

Time

Corresponds to probe launch

T0 T1

TDR Display Window for RIE

Table 5-1 RIE TDR Time Range Speciﬁcations

T0 50 ps (typical)

T1 At least twice the transit delay
