1 Scope The dielectric withstanding voltage test (Hipot test) consists of the application of a voltage higher than the oper- ating voltage for a specific time across the thickness of the test specimen’s dielectric layer.…

5.1.2

Immerse

and agitate the test specimens in 2-propanol

for 30 seconds. Scrub with a soft bristle brush and spray with

clean 2-propanol.

5.1.3

Place

the cleaned specimens in an oven maintained at

50°C [122°F] for three to five hours to dry.

5.1.4

Remove

the specimens from the oven and place in a

desiccator to cool.

5.1.5 Conformal

coat the test specimens and cure in accor-

dance with the suppliers recommendations. If the specimens

are not used immediately, seal the specimens in Kapac®

bags.

5.2

Procedure

5.2.1

For

each individual specimen, secure all the positive

leads (1, 3 and 5) together and the negative (2 and 4)

together.

5.2.2

Attach

the leads of the Hi-Pot Tester to the wires of

the test specimen.

5.2.3

Raise the test voltage from zero to 1,500 VAC at 100

VAC per second.

5.2.4 Apply the test voltage of 1,500 VAC at 50-60 Hz for

one minute and record any leakage rate.

5.2.5

After

the one-minute duration, turn off the voltage and

disconnect the test specimen from the Hi-Pot Tester.

6.0

Evaluate

6.1

Record

if the specimen exhibits flashover, sparkover or

breakdown.

6.1.1

Record

the leakage current of each specimen.

IPC-TM-650

Number

2.5.7.1

Subject

Dielectric

Withstanding Voltage - Polymeric Conformal Coating

Date

07/00

Revision

age2of2

电子技术应用　　　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

1 Scope The dielectric withstanding voltage test (Hipot test)

consists of the application of a voltage higher than the oper-

ating voltage for a specific time across the thickness of the

test specimen’s dielectric layer. This is used to prove that a

printed board can operate safely at its rated voltage and with-

stand momentary voltage spikes due to switching, surges,

and other similar phenomena. Although this test is similar to a

voltage breakdown test, it is not intended for this test to cause

insulation breakdown. Rather, it serves to determine whether

the test specimen’s layers have adequate withstanding volt-

age. This document is applicable to thin dielectric materials

such as those defined by IPC-4821.

The results can be indicative of a change or a deviation from

the normal material characteristics resulting from manufactur-

ing, processing or aging conditions. The test is useful for qual-

ity acceptance and in the determination of the suitability of the

material for a given application and may be adapted for pro-

cess control.

2 Applicable Documents

IPC-4821

Specification for Embedded Passive Device

Capacitor Materials for Rigid and Multilayer Printed Boards

3 Test Specimen

3.1 Qualification Testing

For laminate-like capacitor

materials, test specimens shall be 50 mm [1.97 in] diameter

circular electrodes (see ‘‘Top Imaged Foil’’ in Figure 1) that

shall be formed by imaging and then etching the copper foil,

unless otherwise as agreed upon by user and supplier

(AABUS). Spacing between adjacent Top Imaged Foil con-

ductors is recommended to be ≥100 times the dielectric thick-

ness. In order to avoid field gradient and mechanical stress

concentration, which can cause faulty dielectric breakdown,

the Bottom Foil can be either a circle larger than the Top

Imaged Foil or can be a continuous copper sheet. The con-

tinuous copper sheet will be required for very thin capacitor

dielectric layers that are not self-supporting.

For nonlaminate-like capacitor materials, the test specimen’s

Top Imaged Foil can be a size other than a 50 mm [1.97 in]

diameter circle, if this size is not practical or typical. The test

specimen’s Top Imaged Foil size for these nonlaminate-like

materials should be set to the largest size normally recom-

mended for this product (see 5.2.4). The thickness for the test

specimens should be the typical/recommended thickness. A

minimum of five test specimens shall be tested for qualifica-

tion.

3.2 Conformance Testing Test specimens can be the

same as used for qualification testing or can be other sizes or

shapes. For testing in printed board environments, actual

innerlayer power and ground features are typically used,

although other board features or test specimens can also be

used. Please note that adjustments for capacitor plate size are

required in the test procedure (see Section 6).

IPC-2572-1.eps

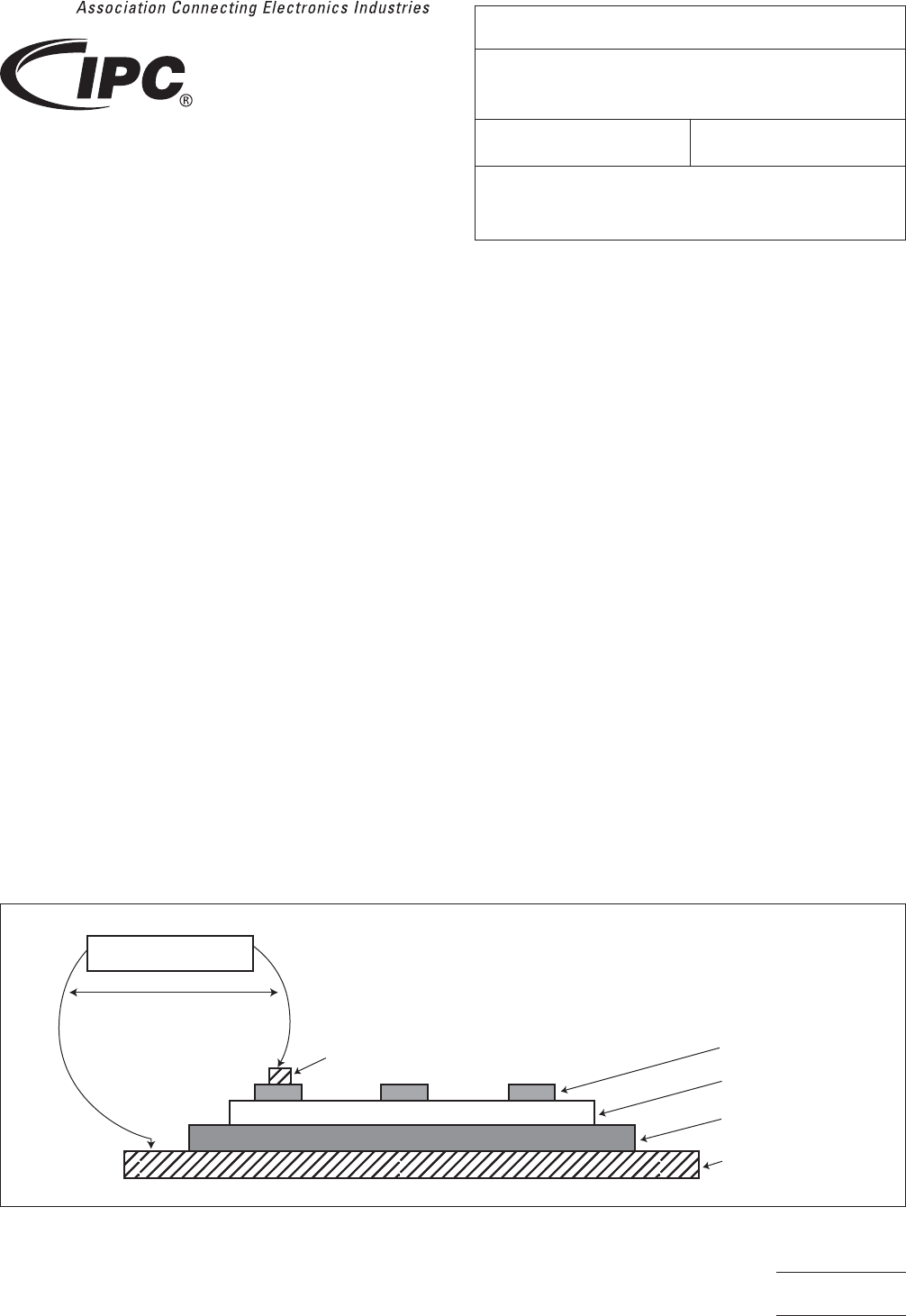

Figure 1 Typical Test Specimen

Hi-Pot Tester

Bottom Contact

Top Contact

Top Imaged Foil

Dielectric

Bottom Foil

Electrical Connections

to Top and Bottom Contacts

3000 Lakeside Drive, Suite 309S

Bannockburn, IL 60015-1249

IPC-TM-650

TEST METHODS MANUAL

Number

2.5.7.2

Subject

Dielectric Withstanding Voltage (Hipot Method) -

Thin Dielectric Layers for Printed Boards

Date

11/2009

Revision

Originating Task Group

Embedded Devices Test Methods Subcommittee

(D-54)

Material in this Test Methods Manual was voluntarily established by Technical Committees of IPC. This material is advisory only

and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this

material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.

Equipment referenced is for the convenience of the user and does not imply endorsement by IPC.

Page1of3

3.3 Test Specimen Conditioning All qualification test

specimens shall be conditioned at 23 °C±3°Cand50%±

10% RH for 24 hours, before testing. For conformance test-

ing, such conditioning is optional.

4 Apparatus

4.1 Hipot Test Instrument

A Hipot test instrument is a

piece of equipment capable of supplying a range of DC test

voltages appropriate for the materials under test with adjust-

able ramp rate and hold-time settings. The Hipot equipment

shall have an adjustable threshold current setting. (see 5.2.4)

The user shall ensure that the Hipot test instrument satisfies

the original manufacturer’s technical specifications.

4.2 High Voltage Connections Contacts (conductor

plates) apply the voltage from the Hipot test instrument to the

test specimen’s Top Imaged Foil and Bottom Foil (see Figure

1). These contacts should not contain sharp points that could

damage either the copper foil or the dielectric layers of the test

specimens.

CAUTION: Dangerous voltages may be present on the test

connections. Use proper machine guarding and/or machine

interlocking.

5 Procedure

5.1

This test method shall be performed on fresh test

specimens. Hipot testing shall not be conducted on test

specimens that have previously been exposed to high voltage

levels or other similar testing.

NOTE: Some dielectrics may show acceptable Hipot results

(i.e., ‘‘Pass’’) after defects have been ‘‘burned out’’ at high

voltage (see Section 6).

5.2 Program the Hipot test instrument with the appropriate

peak voltage, voltage ramp rate, hold time at peak voltage

and current threshold level. These values shall be recorded.

5.2.1 The peak voltage should be as specified in the mate-

rial Specification Sheet (see IPC- 4821) under the parameter

‘‘Hipot (Volts DC).’’

5.2.2 For qualification testing, the voltage ramp rate shall

be 5% of the peak voltage per second, unless otherwise

specified. For conformance testing, the voltage ramp rate

shall be 5% of the peak voltage per second or AABUS.

5.2.3 For qualification testing, the hold time at peak voltage

shall be 30 seconds +3 / -0 seconds. For conformance test-

ing, the hold time at peak voltage shall be a minimum of 10

seconds or AABUS.

5.2.4 The threshold settings shall be set to a value greater

than the in-rush current (due to the charging of the test speci-

men) observed when the voltage is increased (see 6.1). Many

commercial Hipot test instruments display the current during

the test. The in-rush current can be determined by setting the

threshold current to a high value and then observing the cur-

rent spikes as the voltage is ramped to the peak voltage. After

several test specimens have been tested and the currents

observed, set the threshold current to be greater than the

highest current observed. For example, if the in-rush current is

20 microamperes and the current at peak voltage is 1 micro-

ampere, set the threshold current to 40 microamperes.

5.3 The test specimen shall be placed between the con-

tacts of the Hipot test equipment (see Figure 1). Start the

Hipot sequence.

5.4 Upon completion of the test, the Hipot sequence should

include the discharge of the test specimen.

SAFETY NOTE: Larger test specimens, with high capaci-

tance density, may take more time than expected to dis-

charge.

5.5 Reporting The Hipot test instrument indicates either

Pass or Fail of the material under test. A current surge above

the threshold current setting indicates a Failure. This includes

very short term current surges or ‘‘arcs’’ that occur due to the

burnout of defects. Such unacceptable current surges may

also be the result of dielectric failure or manufacturing defects.

For qualification testing, if the test specimen Passes, record

the leakage current per unit area and the passing voltage. If

the qualification test specimen Fails, record the failure voltage

and threshold current per unit area of each test specimen.

For conformance testing, reporting requirements should be

AABUS.

6 Notes

6.1

When the Hipot test instrument voltage changes from

one level to the next higher level during the ramp-up to the

final voltage, the in-rush current will initially surge above the

steady state current because the capacitor is charging. It is

possible that this surge in current could exceed the threshold

IPC-TM-650

Number

2.5.7.2

Subject

Dielectric Withstanding Voltage (Hipot Method) - Thin Dielectric

Layers for Printed Boards

Date

11/2009

Revision

Page2of3
