IPC-2555-11

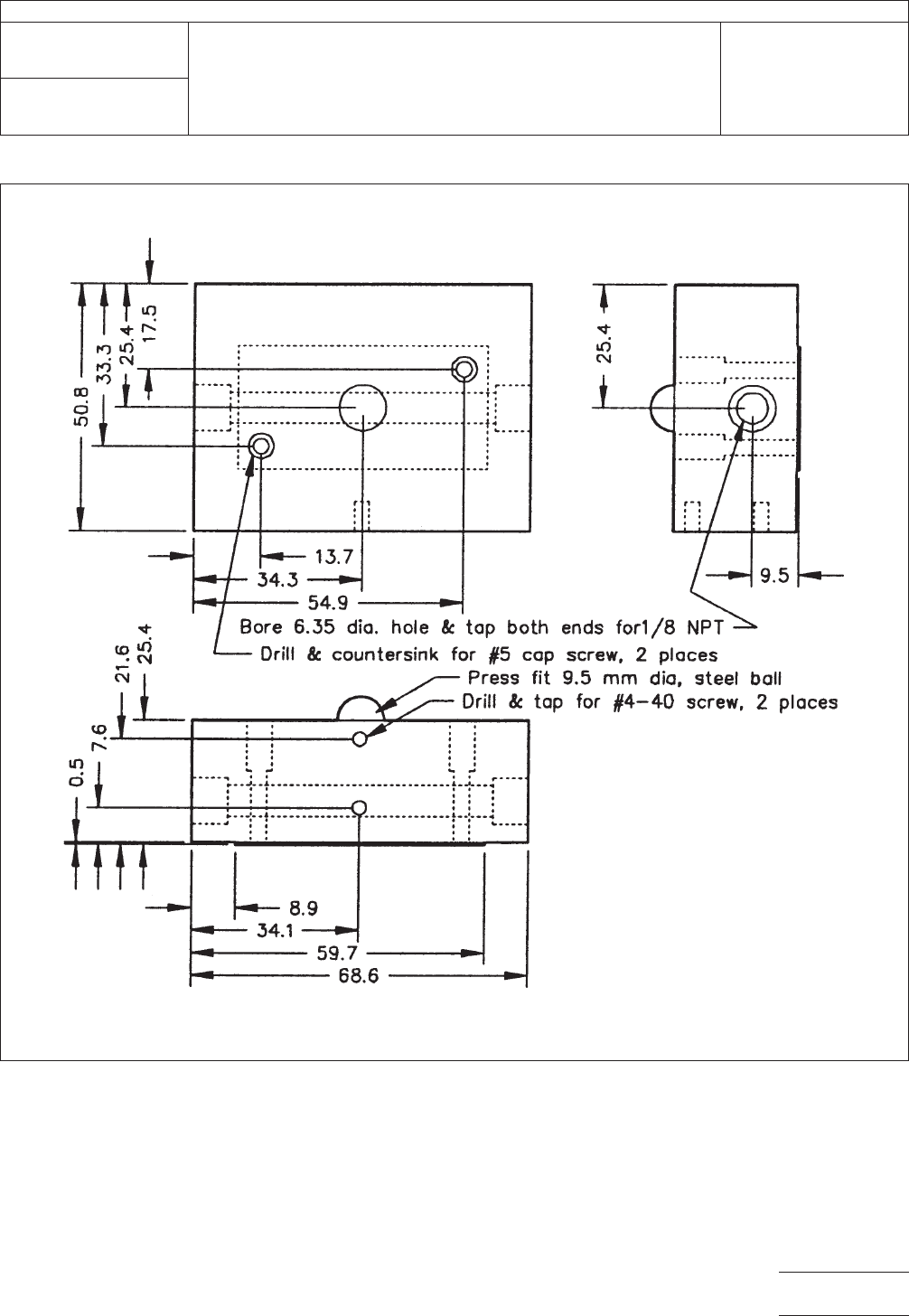

Figure
11 Aluminum Block for Temperature Control and Transfer of Pressure to the Clamp Plates, Fitted with Tapped
Holes for Slide, Embedded Steel Ball, and Tapped for Tubing Fittings for Circulating Fluid
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
19 of 25
电子技术应用　　　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
IPC-2555-12

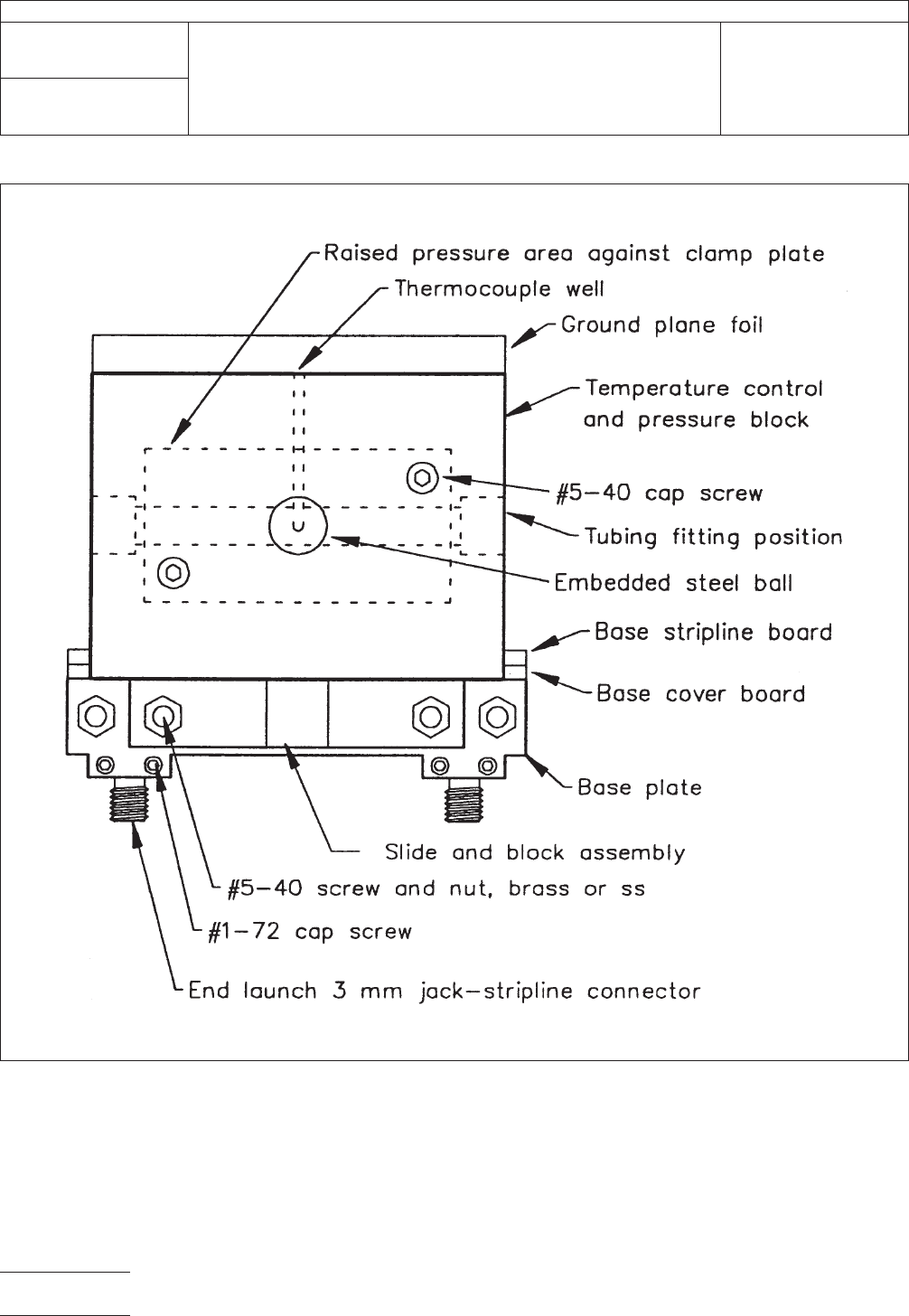

Figure
12 Face View of Fixture Assembly
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
20 of 25
电子技术应用　　　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
IPC-2555-13

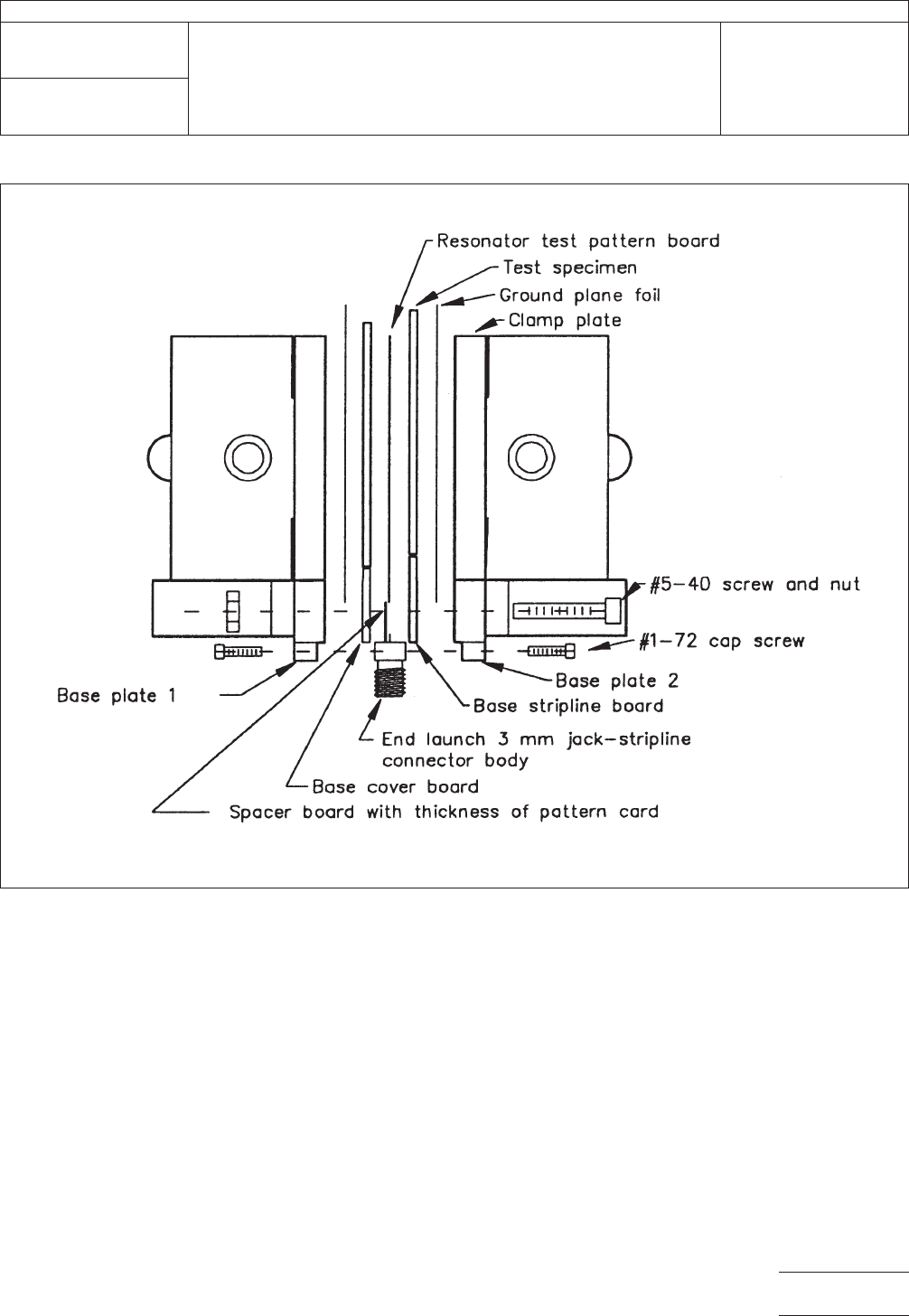

Figure
13 Exploded Side View of Assembly
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
21 of 25
