1.0 Scope This method is designed to evaluate the resis- tance of solder mask or conformally coated surfaces to rub- bing abrasion. 2.0 Applicable Documents None 3.0 Test Specimen An IPC Multipurpose Test Board, Number I…

5.1.4
Process Sequence
For
a breakdown of time and
temperature requirements of this test, see Table 1.
5.1.5
Apply
tape to both the treated and non-treated sur-
faces of the board using a wooden roller and fixed uniform
pressure (approximately 4.5 kg.). Peel tape on Instron or other
peel tester at 900 angle and a 5 cm/min. peel rate. Report the
peel force as kg/cm on both treated and non-treated portions
board.
5.1.6 Use
two boards per test. Put tape on each side of the
board and obtain tape results for one tape strip per side per
board.
5.2
Evaluation
5.2.1
Report
the tape peel strength in kg/cm width.
5.2.2
Report
the locus of failure of peeled tape (see Note 1.).
Note 1: The requirement of specifying the locus of mode of
failure of the tape is very important and a critical aspect of the
test. In order to be consistent with descriptions of failure
modes, a common set of criteria is used, as defined in Table
2. Figure 3 shows, in schematic, the various failure modes one
could obtain during performing this test. The three layers, from
bottom to top, are (1) the epoxy/glass substrate, (2) the adhe-
sive component of the tape, and (3) the tape backing (see top
left drawing in Figure 3).
5.2.3 Report the average of the two tape peel strengths (in
kg/cm width) for the same side of both boards.
T
able 1 Process Sequence
T
emp (°C) Time (Min)
Conditioner
32 4
Rinse 16-27 2-3
Etch 66 6.5
Air Dry – 0.75
Triple Rinse 16-27 3-5
Neutralizer 52 2.5
Rinse 25 5
Air Dry 25 Overnight
Table 2 Modes of Failure Shown in Figure 3
Notation
Meaning of Failure Mode
I
A/-TB
Interfacial
failure, between adhesive
and tape backing
C Cohesive failure within tape adhesive
M Mixed failure mode, a combination of
the other types
I
B/A
Interfacial
failure, between the board
and the adhesive of the tape.
IPC-2-4-26-3
Figure
3 Modes of Failure
IPC-TM-650
Number
2.4.26
Subject
Tape
Test for Additive Printed Boards
Date
3/79
Revision
P
age2of2
电子技术应用 www.ChinaAET.com

1.0
Scope
This
method is designed to evaluate the resis-
tance of solder mask or conformally coated surfaces to rub-
bing abrasion.
2.0
Applicable Documents
None
3.0
Test Specimen
An
IPC Multipurpose Test Board,
Number IPC-B-25 or any preproduction or production board
10.8 cm x 10.8 cm [4
1
⁄
4
i
n.x4
1
⁄
4
in.]
in size and coated with
solder mask or conformal coating.
4.0
Apparatus
4.1
Taber
Abraser Model 5130
4.2
1000
gram load for each wheel
4.3
CS-10
Calibrase wheels
5.0
Procedure
5.1 Preparation
5.1.1
Drill
or punch hole in middle of specimen for mounting
specimen on Taber Abraser.
5.1.2
Mount
calibrase wheels and pressure load (1000
grams) on equipment.
5.1.3
Clean
calibrase wheels (CS-10) according to recom-
mended procedures in Taber Abraser Manual.
5.2
Test
Place
sample on abraser and test specimen to the
required number of cycles of abrasion.
5.3
Evaluation
Examine
the coated board for break-
through to the conductive pattern or base material.
6.0
Notes
Taber
Abraser Model 5130, available from Tele-
dyne Taber, 455 Bryant St., N. Tonawanda, NY 14120 or
Pacific Scientific, Gardner Neotech Division, 2431 Linden
Lane, Silver Springs, MD 20910 or equivalent.
The
Institute for Interconnecting and Packaging Electronic Circuits
2215 Sanders Road • Northbrook, IL 60062-6135
IPC-TM-650
TEST
METHODS MANUAL
Number
2.4.27.1
Subject
Abrasion
(Taber Method) Solder Mask and
Conformal Coating
Date
1/95
Revision
B
Originating Task Group
Conformal Coating Task Group (5-33a)
Material
in this Test Methods Manual was voluntarily established by Technical Committees of the IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by the IPC.
P
age1of1
电子技术应用 www.ChinaAET.com

1 Scope This test method defines the procedure for deter-
mining the adhesion of solder resists (masks) used over melt-
ing metals, (such as solder plated and reflowed solder printed
boards both prior to and after soldering), nonmelting metals,
and printed board substrates.
2 Applicable Documents
J-STD-003
Solderability Test Methods for Printed Boards.
IPC-2221 Design Standard for Rigid Printed Boards.
3 Test Specimens The test specimen used shall be the
test coupon shown in Figure 1, which has the plated metal
surface that is applicable, and coated with solder resist.
4 Apparatus or Material
4.1 Tape
A roll of pressure sensitive self-adhesive film tape
1.3 cm [0.5 in] wide exhibiting an adhesive strength of at least
44 N/100 mm [40 oz-force/in] but no more than 66 N/100 mm
[60 oz-force/in] as tested per ASTM D3330, as amended. If
the tape has an advertised expiration date or shelf life it shall
not be used after the expiration date. If no such date exists,
the product may be used up to one year from date of pur-
chase. A noncomprehensive list of tapes meeting this require-
ment can be found at ‘‘Pull Test Tapes’’ under ‘‘Technical
Resources’’ at the IPC web site: www.ipc.org.
5 Procedure
5.1 Preparation
5.1.1
For qualification testing, test specimens are to be pre-
pared by processing 34.0 µm [1,339 µin], double clad epoxy
glass laminate through the standard plating process for the
metal coatings that are applicable. For production testing, the
coupons shall be representative of the board.
IPC-24281-1

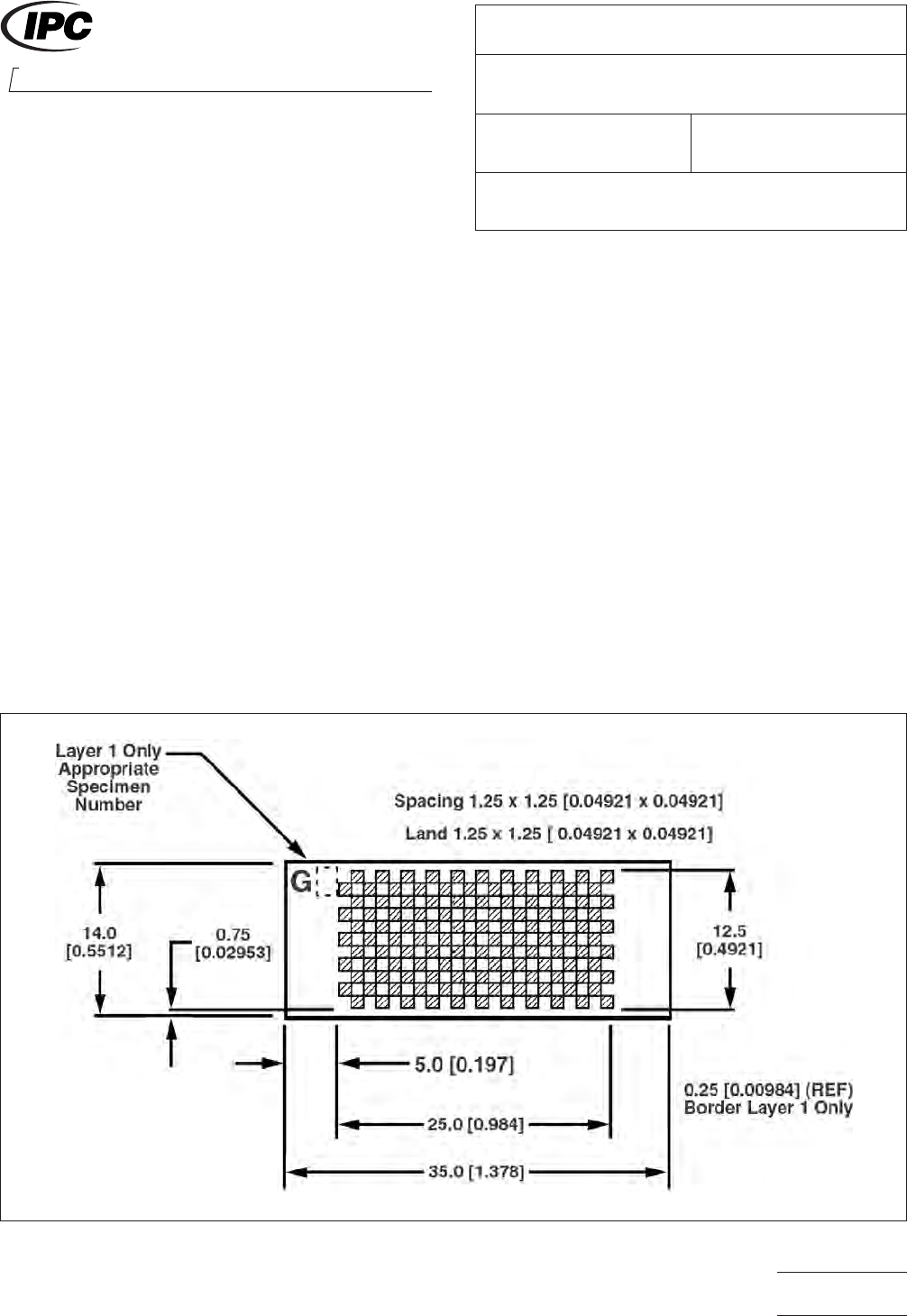

Figure 1 Test Coupon G of IPC-2221, mm [in]
3000 Lakeside Drive, Suite 309S
Bannockburn, IL 60015-1249
IPC-TM-650
TEST METHODS MANUAL
Number
2.4.28.1
Subject
Solder Mask Adhesion - Tape Test Method
Date
0
3/07
Revision
F
Originating Task Group
Solder Mask Performance Task Group (5-33B)
Material in this Test Methods Manual was voluntarily established by Technical Committees of IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by IPC.
Page1of2
