1.0 Scope This method is to determine the average force in grams required to propagate tearing through a specific length of the constant radius specimen. Because of the variation of materials and orientation of fibers, t…

5 Conditioning

5.1 Conditioning

The test specimens shall be conditioned

at23°C±2°C(73.4 °F ± 3.6 °F) and 50% ± 5% relative

humidity for not less than 24 hours prior to test.

5.2 Test Conditions Conduct tests in the Standard Labo-

ratory Atmosphere of 23 °C±2°C(73.4 °F ± 3.6 °F) and 50

± 10 percent relative humidity.

6 Speed of Testing A jaw separation of 25.4 mm [1 in]

shall be used. The rate of travel of the power activated grip

shall be 51 mm [2 in]/minute and shall be uniform at all

times.

7 Procedure

7.1

Measure the thickness of the specimen at several points

to the accuracy limits of the measuring devices specified in

4.3. Record the average thickness in millimeters or microns

[in].

7.2 Place the specimen in the grips of the testing machine

so that the long axes of the enlarged ends of the specimen

are in line with the points of attachment of the grips to the

machine.

7.3 Apply the load at 51 mm [2 in]/minute rate of grip sepa-

ration. After complete rupture of the specimen, the maximum

tearing load in grams [ounces] shall be noted from the dial

scale or recorder chart and recorded. Data from specimens

which break at some obvious flaw or which break in or at the

edges of the grips shall be discarded and retests made.

8 Calculation The average resistance to tearing shall be

calculated from five specimens tested in each principal direc-

tion of orientation. Data shall be recorded as grams [ounces]

of tearing resistance.

9 Report

9.1

Report the average thickness of all specimens.

9.2 Report the average transverse and the average longitu-

dinal initiation tear strength values.

IPC-TM-650

Number

2.4.16

Subject

Initiation Tear Strength, Flexible Insulating Materials

Date

03/14

Revision

Page2of2

1.0

Scope

This

method is to determine the average force in

grams required to propagate tearing through a specific length

of the constant radius specimen. Because of the variation of

materials and orientation of fibers, the method has been

designed to compensate and derive acceptable data.

2.0

Applicable Documents

ASTM-D-689

Tear

Strength

3.0

Test Specimens

least five specimens from each

direction are required to obtain an average result. They shall

be cut as per Fig. 1. A Thwing-Albert Co. TA63 Sample Cut-

ter, Catalog No. 98 may be used.

4.0

Apparatus

Pendulum Impluse Tester from Thwing-

Albert Co., or equal, having: stationary clamp, moveable

clamp, stop catch, pointer and scale.

5.0

Procedure

5.1 Preparation

5.1.1

Cut

specimens, adjust and calibrate apparatus paying

particular attention to the pendulum to be certain it swings

freely.

5.1.2

Separate

clamps 0-10 in. apart and align the speci-

men in the plate perpendicular to the plane of the oscillation

of the pendulum, with the edges of the jaws gripping the

specimen in a horizontal line.

5.1.3

The

clamping surface of the jaws must be at least 1 in.

in width and 0.5 in. in depth.

5.2

Test

5.2.1

Raise

the pendulum to its top position, place speci-

men midway in the clamps so that its upper edge is parallel to

the top of the clamps and the precut initial slit is at the bottom

of and between the clamps at right angles to their top.

5.2.2

Release

the stop latch and tear the specimen.

5.2.3

the pendulum section completes its swing, catch it,

being careful not to disturb the position of the pointer.

5.3

Evaluation

Examine

specimen carefully. If torn through

the constant-radius section within approximately 60° on either

side of the vertical line of intended tear, record the pointer

reading to the nearest 0.5 unit. If torn outside the 60°, disre-

gard specimen and test a new piece. Calculate the tearing

resistance in grams (R), as follows:

R =

SxC

= Corrected scale reading

S = Machine capacity in grams

n = Number of sheets torn

6.0 Notes Thwing-Albert

Instrument Co. is located in Phila-

delphia, Pennsylvania.

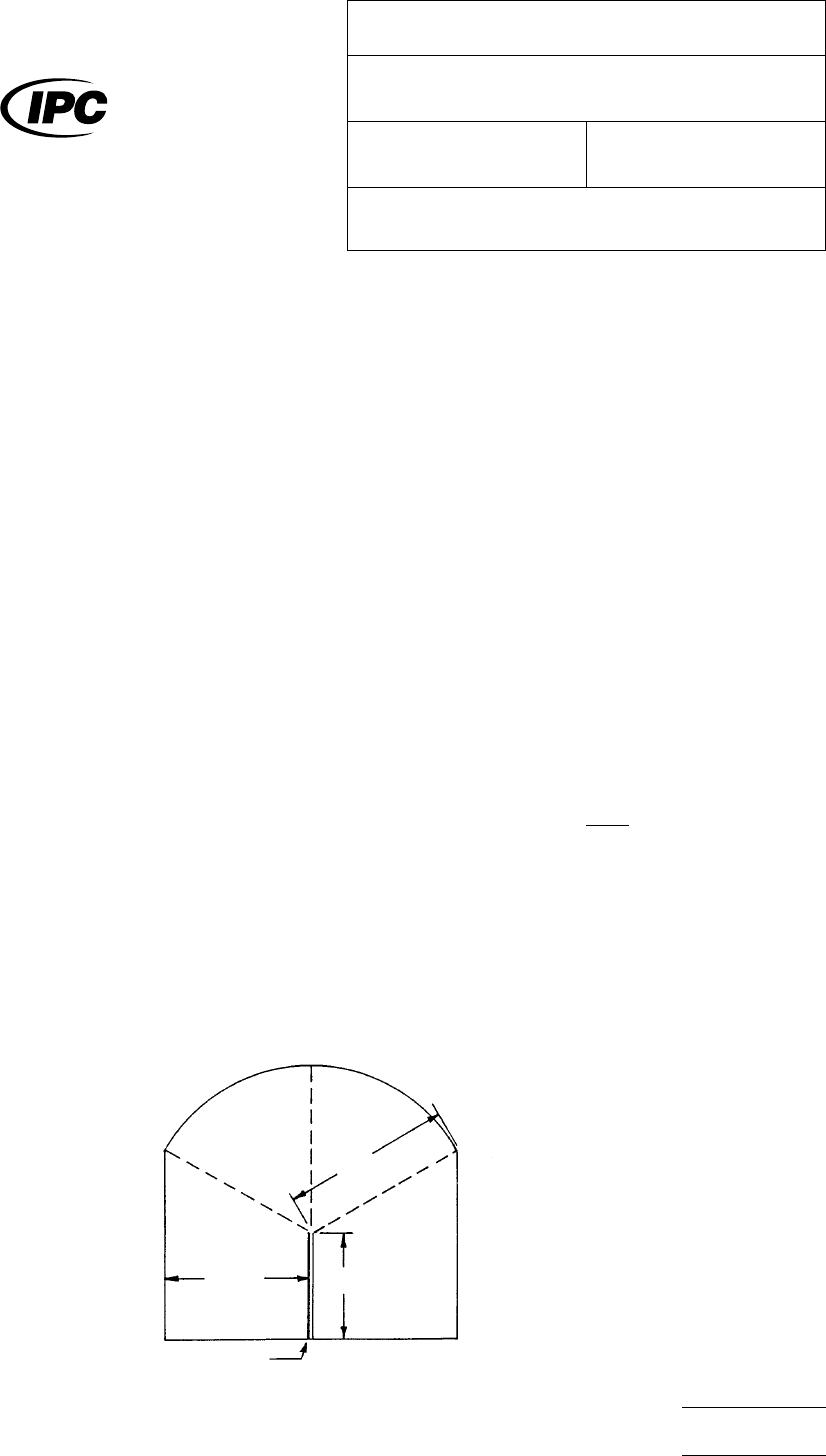

Figure

The

Institute for Interconnecting and Packaging Electronic Circuits

2215 Sanders Road • Northbrook, IL 60062-6135

IPC-TM-650

TEST

METHODS MANUAL

Number

2.4.17

Subject

Tear

Strength (Propagation)

Date

4/73

Revision

Originating Task Group

N/A

Material

in this Test Methods Manual was voluntarily established by Technical Committees of the IPC. This material is advisory only

and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this

material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.

Equipment referenced is for the convenience of the user and does not imply endorsement by the IPC.

age1of1

电子技术应用　　　　　　　ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

1 Scope This method covers the determination of the force

necessary to propagate a tear in flexible insulating mate-

rials that range between the thicknesses of approx.12 µm to

100 µm [approx. 0.0005 in to 0.004 in]. This test method is

based on ASTM D 1938.

2 Applicable Documents

ASTM D 1938

Standard Test method for Tear propagation

Resistance (Trouser Tear) of Plastic Film and Thin Sheeting by

a Single Tear Method

3 Test Specimen Preparations

3.1

If the specimens to be tested are clad flexible dielectric

materials, the copper foil shall be fully etched (removed) using

standard commercial practices. If the dielectric material to be

tested is unclad, use the material as it exists for this test

method. If the specimens are flexible insulating bonding mate-

rial that inherently has an adhesive that is not fully cured, full

curing of this adhesive shall be accomplished before the

material is tested.

3.2 The specimens shall be of the single-tear type and

shall consist (see Figure 1) of strips 75 mm [approx. 3 in] long

by 25 mm [approx. 1 in] wide and shall have a clean longitu-

dinal slit 50 mm [approx. 2 in] long cut with a sharp razor

blade or the equivalent (Note: All dimensions shall be mea-

sured to within a 0.5% tolerance.)

3.3 If the specimen is composed of a base dielectric plus

adhesive coated on one or both sides, the thickness of the

base dielectric needs to be measured, either via cross-

sectional analysis or if feasible, removal of the adhesive lay-

er(s). The thickness of the specimen below the slit (see Figure

1) shall be measured in three places and recorded in millime-

ters or microns [in]. This provides the user of this test method

with knowledge of only the base dielectric film thickness.

3.4 Sufficient specimens shall be cut to provide a minimum

of five specimens in both transverse and longitudinal axes and

identified. Specimens shall be free of nicks or other defects

that might cause premature test failure. Verification of lack of

defects in the slit shall be done using a minimum magnifica-

tion of 3X.

4 Test Equipment

4.1 Constant Strain Rate Tensile Test Machine

This

test machine shall have a weighing head that can measure

the load applied to tear the specimen. It should be equipped

with a device for recording the load carried by the specimen

and amount of separation of the grips during the test. The

testing machine shall be essentially free from inertia lag at

the specified rate of testing and shall indicate the load with

an accuracy of ± 2% of the indicated value, or better. A

device shall be included to control the grip separation rate at

250 mm [approx.10 in] ± 5% per minute.

4.2 Thickness Measuring Devices Suitable micrometers,

or thickness gages, reading to 2.5 µm [approx. 0.10 in] or less

shall be used for measuring the thickness of the specimens.

4.3 Cutter The cutter shall be a sharp razor blade or the

equivalent.

5 Conditioning

5.1 Conditioning

Condition the specimens at 23°C ± 2°C

[73.4°F ± 3.6°F] and 50% ± 5% relative humidity for not less

than 24 hours prior to test.

5.2 Test Conditions Conduct tests in the Standard Labo-

ratory Conditions of 23°C ± 2°C [73.4°F ± 3.6°F] and 50% ±

5% relative humidity.

6 Procedure

6.1

Secure tongue A (Figure 1) in one grip and tongue B in

the other grip of the tensile testing machine using an initial grip

separation of 50 mm [approx. 2 in]. Align the specimen so that

its major axis coincides with an imaginary line joining the cen-

ters of the grips.

6.2 Using a grip separation speed of 250 mm [approx. 10 in]

/ minute, start the tensile test machine and record the load

necessary to propagate the tear through the entire unslit

25 mm [approx. l in] portion.

6.3 Test not less than five (5) specimens in each of the

transverse and longitudinal directions.

3000 Lakeside Drive, Suite 309S

Bannockburn, IL 60015-1249

IPC-TM-650

TEST METHODS MANUAL

Number

2.4.17.1

Subject

Propagation Tear Strength, Flexible Insulating

Material

Date

1/13

Revision

Originating Task Group

Flexible Circuits Test Methods Subcommittee

(D-15)

Material in this Test Methods Manual was voluntarily established by Technical Committees of IPC. This material is advisory only

and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this

material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.

Equipment referenced is for the convenience of the user and does not imply endorsement by IPC.

Page1of2
