IPC-2555-8 Figure 8 Brass or Aluminum Base Plate for Clamping the Base Cards and Connecting Launcher Bodies to the Base Card IPC-TM-650 Number 2.5.5.5 Subject Stripline Test for Permittivity and Loss Tangent (Dielectric …

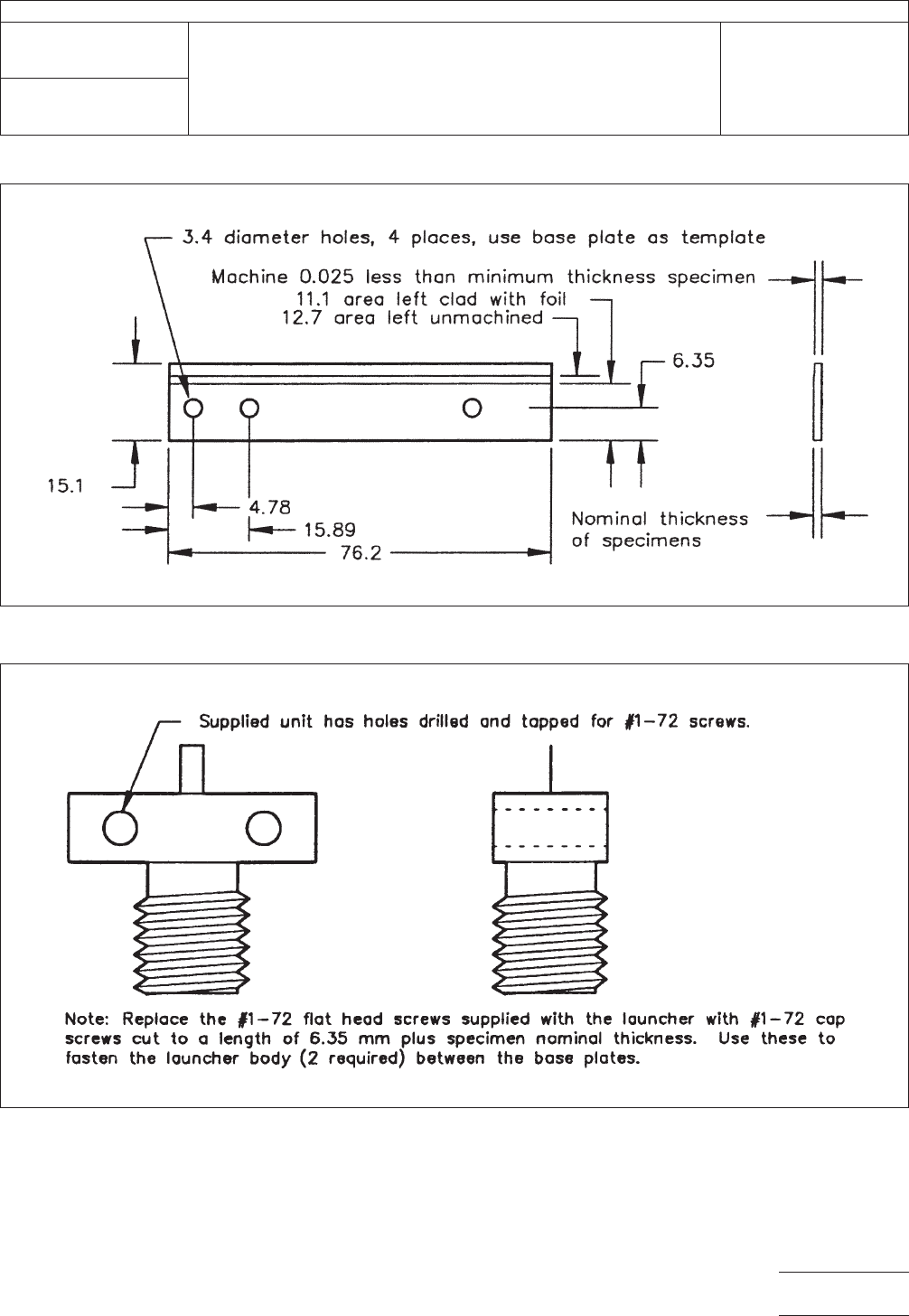

IPC-2555-6
Figure
6 Base Cover Board with Copper Foil Ground Plane
IPC-2555-7
Figure
7 Detail of the Supplied Launcher Body, Omni-Spectra Part No. 2070-5068-02 or Equivalent
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
15 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

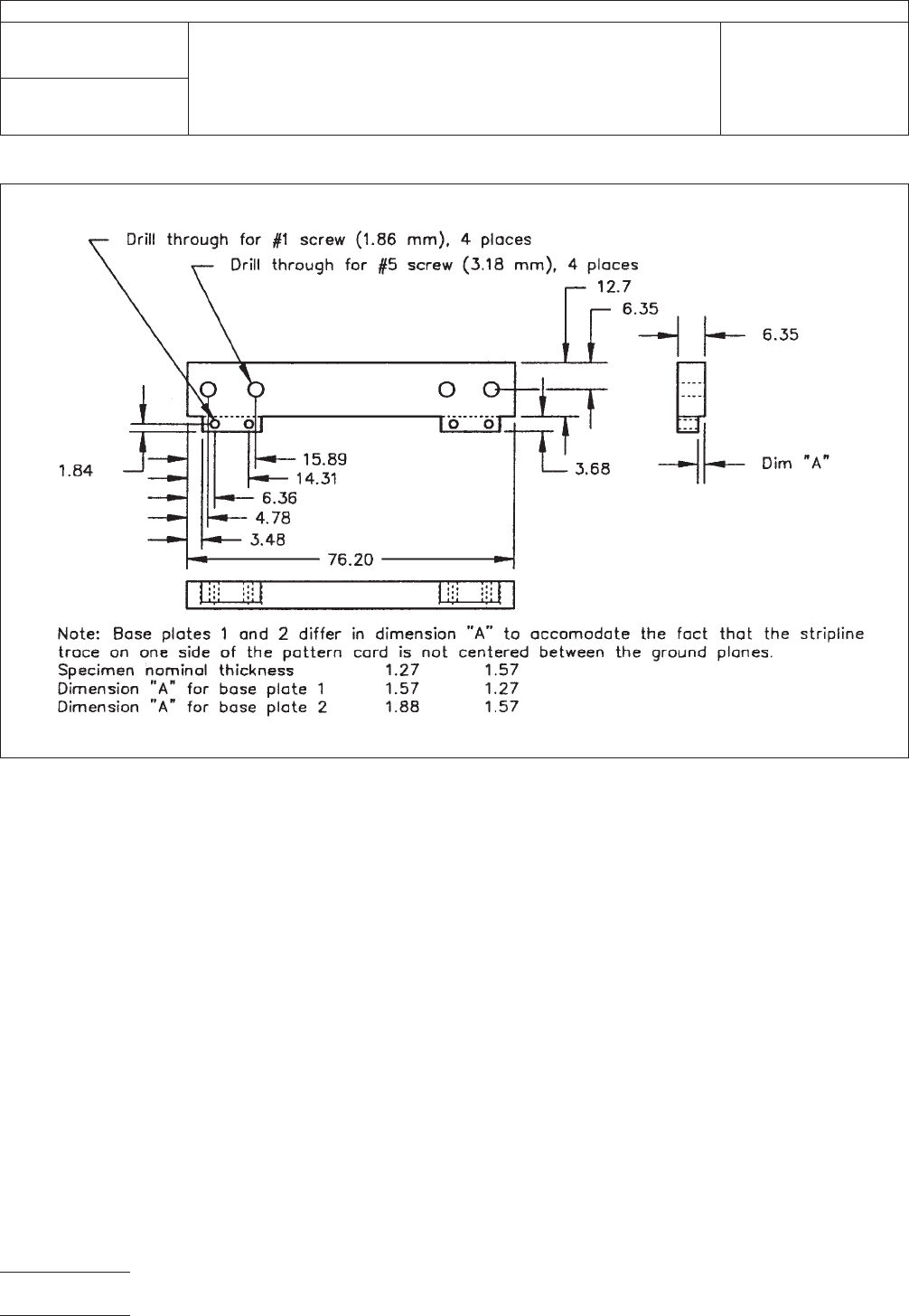

IPC-2555-8
Figure
8 Brass or Aluminum Base Plate for Clamping the Base Cards and Connecting Launcher Bodies to the Base Card
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
16 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

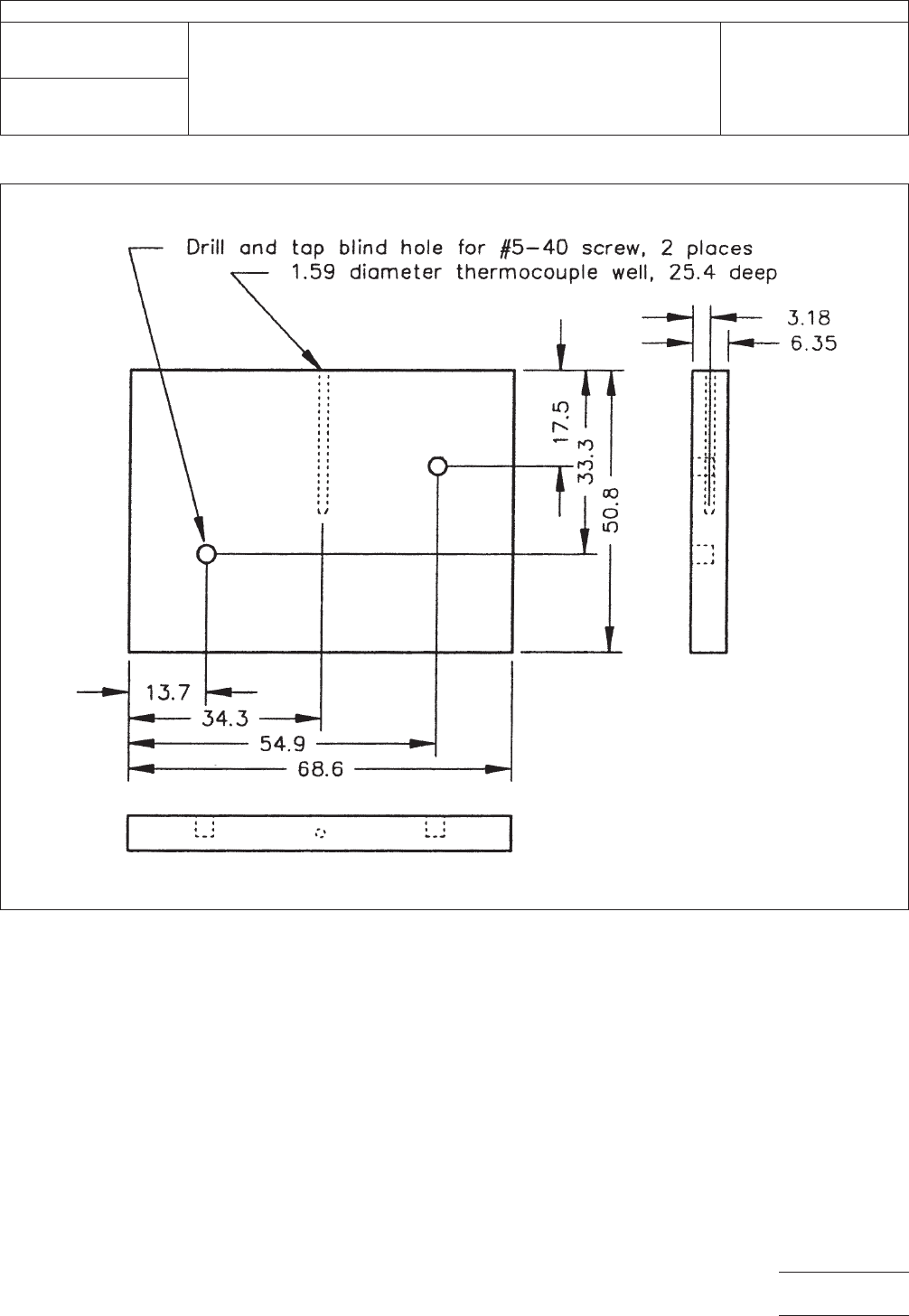

IPC-2555-9
Figure
9 Aluminum Clamping Plate Provided with Tapped Holes for the Pressure Block and a Thermocouple Well
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
17 of 25
