IPC-2555-9 Figure 9 Aluminum Clamping Plate Provided with T apped Holes for the Pressure Block and a Thermocouple Well IPC-TM-650 Number 2.5.5.5 Subject Stripline Test for Permittivity and Loss Tangent (Dielectric Consta…
IPC-2555-8
Figure
8 Brass or Aluminum Base Plate for Clamping the Base Cards and Connecting Launcher Bodies to the Base Card
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
16 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ
IPC-2555-9
Figure
9 Aluminum Clamping Plate Provided with Tapped Holes for the Pressure Block and a Thermocouple Well
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
17 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

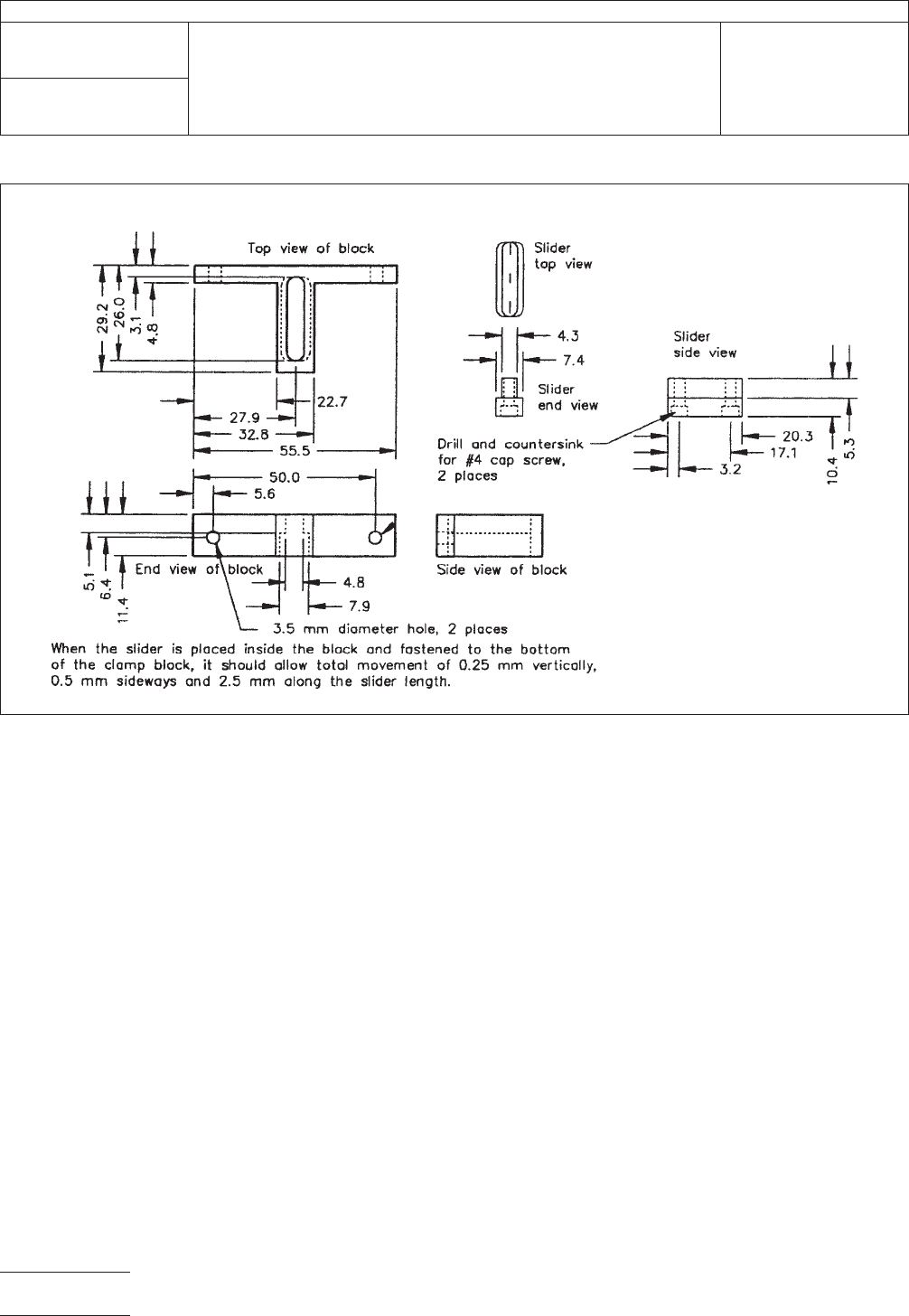

IPC-2555-10
Figure
10 Slider and Block for Connecting Pressure Block and Base Plate with Allowance for Opening the Fixture
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
18 of 25
