IPC-3-18-1 Figure 1 One-Piece Edge Connector Mechanical Gauges 31.75 mm Min. 3.56 mm ± 0.25 mm 15˚ See Detail ``C´´ 15 ˚ ± 3 0 ˚ 15 ˚ ± 3 0 ˚ Detail ``C´´ Dim. ``C´´ Dim. ``A´´ 1.7 mm ± 0.13 mm Rad. T yp. 3.43 mm ± 0.002…
1 Scope This test method is used to determine the
mechanical forces required to mate connectors before and
after the connectors are subjected to various environmental
stresses.
2 Applicable Documents None
3 Test Specimen
3.1
One piece connector (plug and receptacle), complete
with all applicable guide, keying, and engaging hardware or a
carot edge receptacle
3.2 Two piece connector (header and receptacle or plug
and receptacle), complete with all applicable guide, keying,
and engaging hardware and appropriate flat cable
3.3 Unless otherwise specified in the individual connector
specification, the test samples (or engaging hardware) shall
not be lubricated or otherwise coated prior to the test.
4 Apparatus
4.1
Test blade as shown in Figure 1, to simulate a mating
PWB of maximum thickness for card edge (one-piece) con-
nector
4.2 Mating connector to test for mating and unmating force
of two piece connectors
4.3 Force gauges of applicable range
4.4 Clamps, jaws, or other means to hold the receptacle
and header or receptacle and plug
4.5 Automatic or semi-automatic tester to mate and unmate
the connector at the specified rate.
Note: While manual cycling of the connectors is permitted,
proper alignment and orientation is most readily maintained in
a mechanical device specifically designed for this test.
5 Procedure
5.1
The samples shall be mounted in the tester and carefully
aligned.
5.2 Mating Force The samples shall be brought to a posi-
tion where mechanical mating begins and the force gauge is
at zero indication. The samples shall then be fully mated and
the force required for mating shall be recorded.
5.3 Unmating Force Once the mechanical mating is com-
plete and the force gage is at zero indication, the samples
shall be separated and the force required for separation shall
be recorded.
5.4 At the intervals specified in the individual connector
specification, inspections or tests may be performed.
5.5 During the final cycle, the force required for both mating
and unmating shall again be recorded.
6 Notes
6.1
Acceptance criteria shall be established in terms of the
maximum allowable total mating force and the minimum
allowable total separation force during the test.
6.2 The information in this test method is intended to paral-
lel the test method described in EIA-RS-364/TP-13.
2215 Sanders Road
Northbrook, IL 60062-6135
IPC-TM-650
TEST METHODS MANUAL
Number
3.18
Subject
Mating and Unmating Force, Connectors
Date
1/83
Revision
Originating Task Group
Material in this Test Methods Manual was voluntarily established by Technical Committees of the IPC. This material is advisory only
and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this
material. Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement.
Equipment referenced is for the convenience of the user and does not imply endorsement by the IPC.
Page1of2
ASSOCIATION CONNECTING
ELECTRONICS INDUSTRIES
IPC-3-18-1

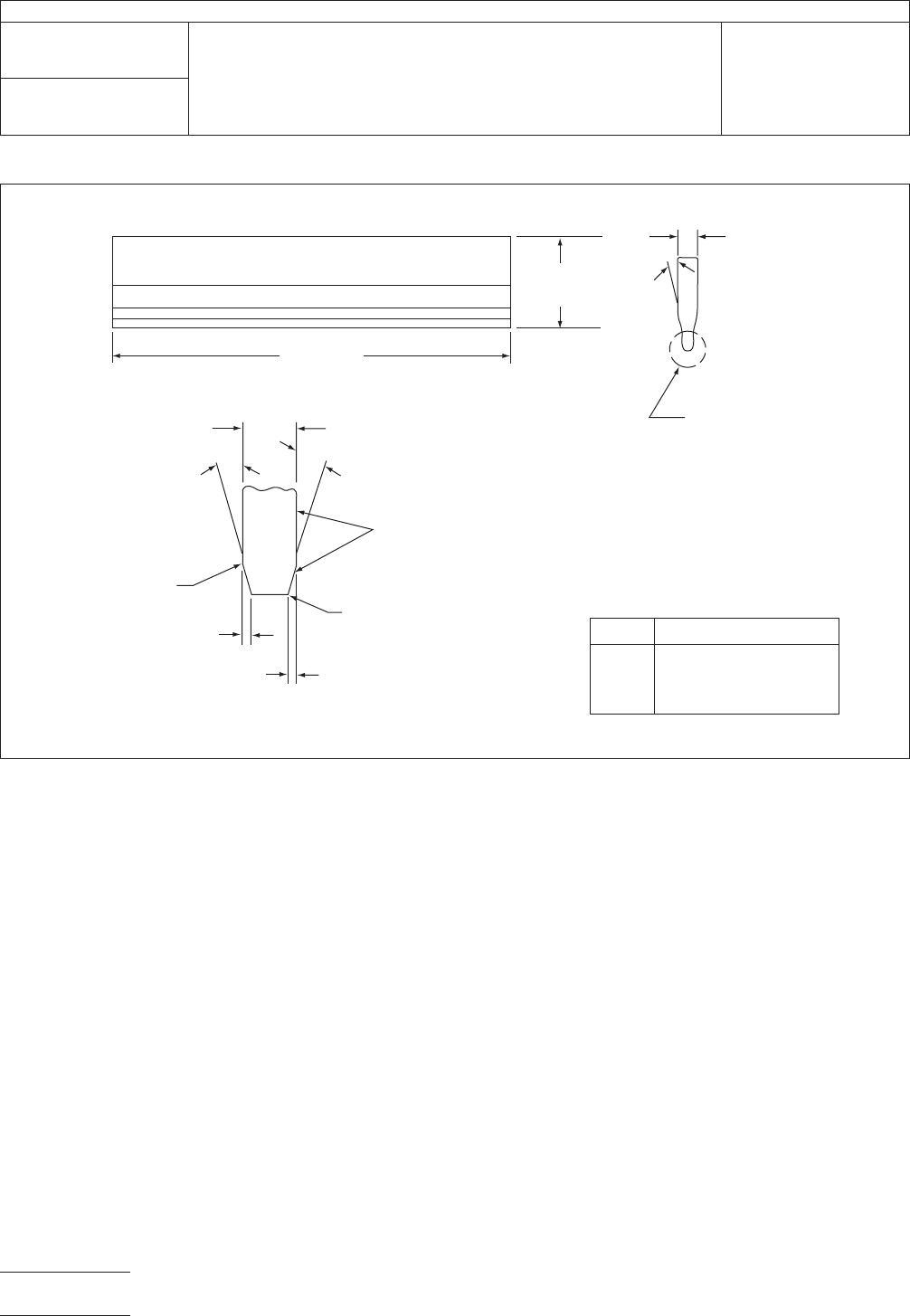

Figure 1 One-Piece Edge Connector Mechanical Gauges
31.75 mm
Min.
3.56 mm
± 0.25 mm
15˚
See Detail ``C´´
15˚ ± 30˚
15˚ ± 30˚
Detail ``C´´
Dim. ``C´´
Dim. ``A´´
1.7 mm ± 0.13
mm Rad. Typ.
3.43 mm ±
0.0025 mm
0.34 mm ± 0.0025 mm
Entire Surface 4 µm
Finish to 9.53 mm from
End (Typ. Both Sides)
0.25 mm ± 0.13 mm
Rad. Typ.
Size
Dim. ``C´´ ± 0.0001 mm
2
3
4
1.78 mm
2.62 mm
3.43 mm
IPC-TM-650
Number
3.18
Subject
Mating and Unmating Force, Connectors
Date
1/83
Revision
Page2of2
New Test Method Revision to Current Test Method
