IPC-2555-15 Figure 15 T est Fixture Construction, Older Design IPC-TM-650 Number 2.5.5.5 Subject Stripline Test for Permittivity and Loss Tangent (Dielectric Constant and Dissipation Factor) at X-Band Date 3/98 Revision …
IPC-2225-14
Figure

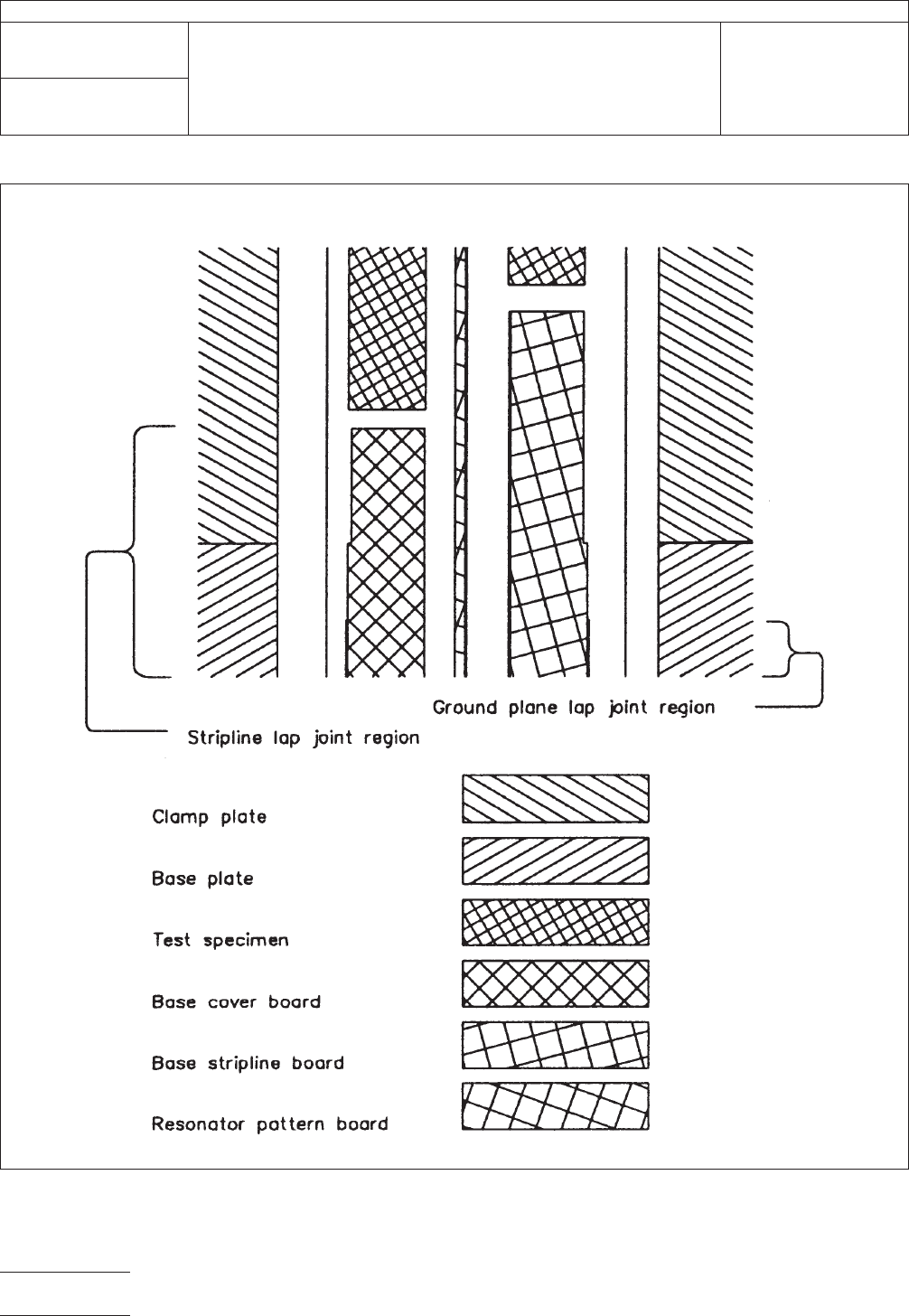

14 Enlarged Exploded Side View Sectioned Through a Probe Line Showing a Lap Conductor Joint
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
22 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

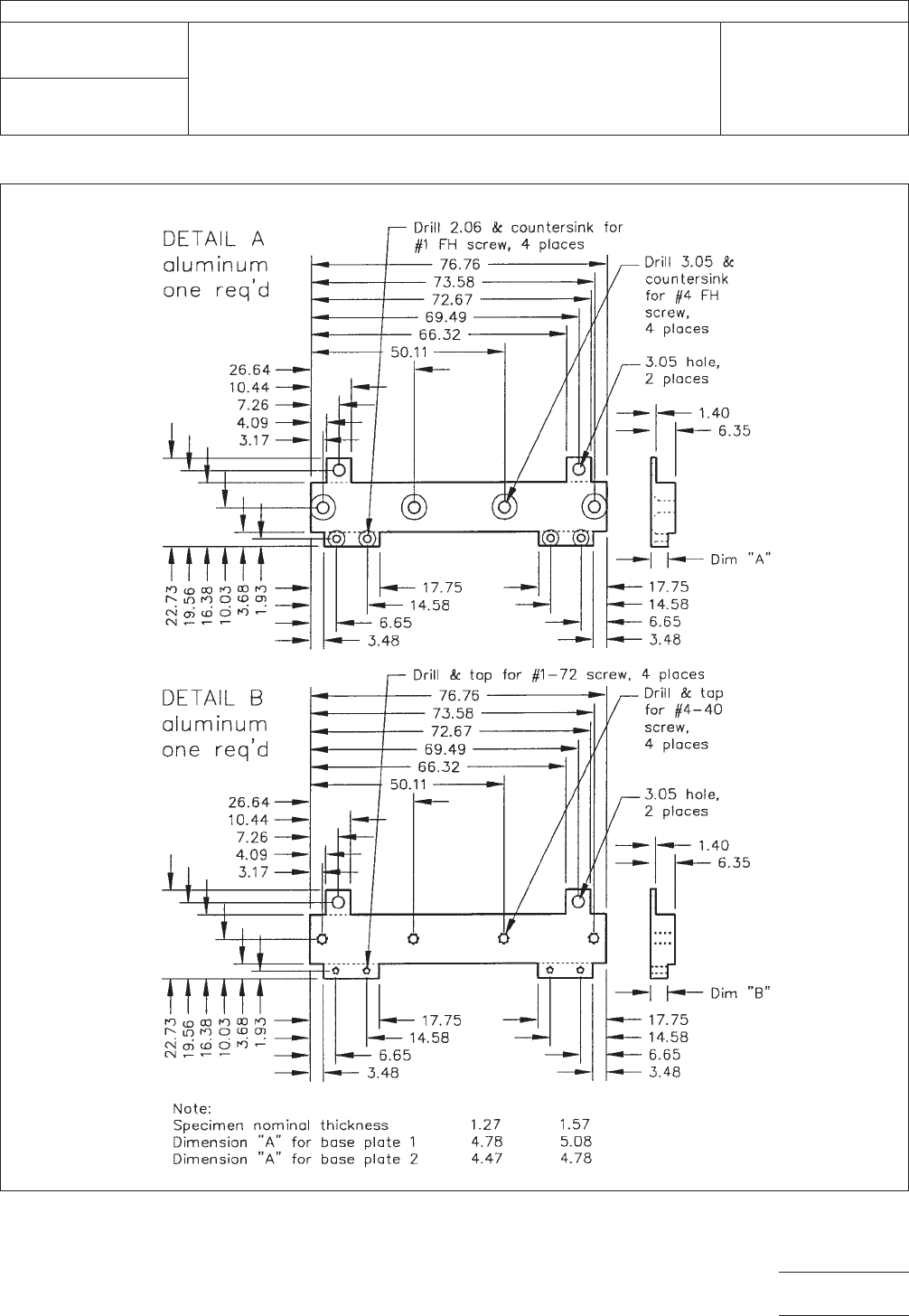

IPC-2555-15
Figure
15 Test Fixture Construction, Older Design
IPC-TM-650
Number
2.5.5.5
Subject
Stripline
Test for Permittivity and Loss Tangent (Dielectric Constant
and Dissipation Factor) at X-Band
Date
3/98
Revision
C
Page
23 of 25
电子技术应用 ｗｗｗ．ＣｈｉｎａＡＥＴ．ｃｏｍ

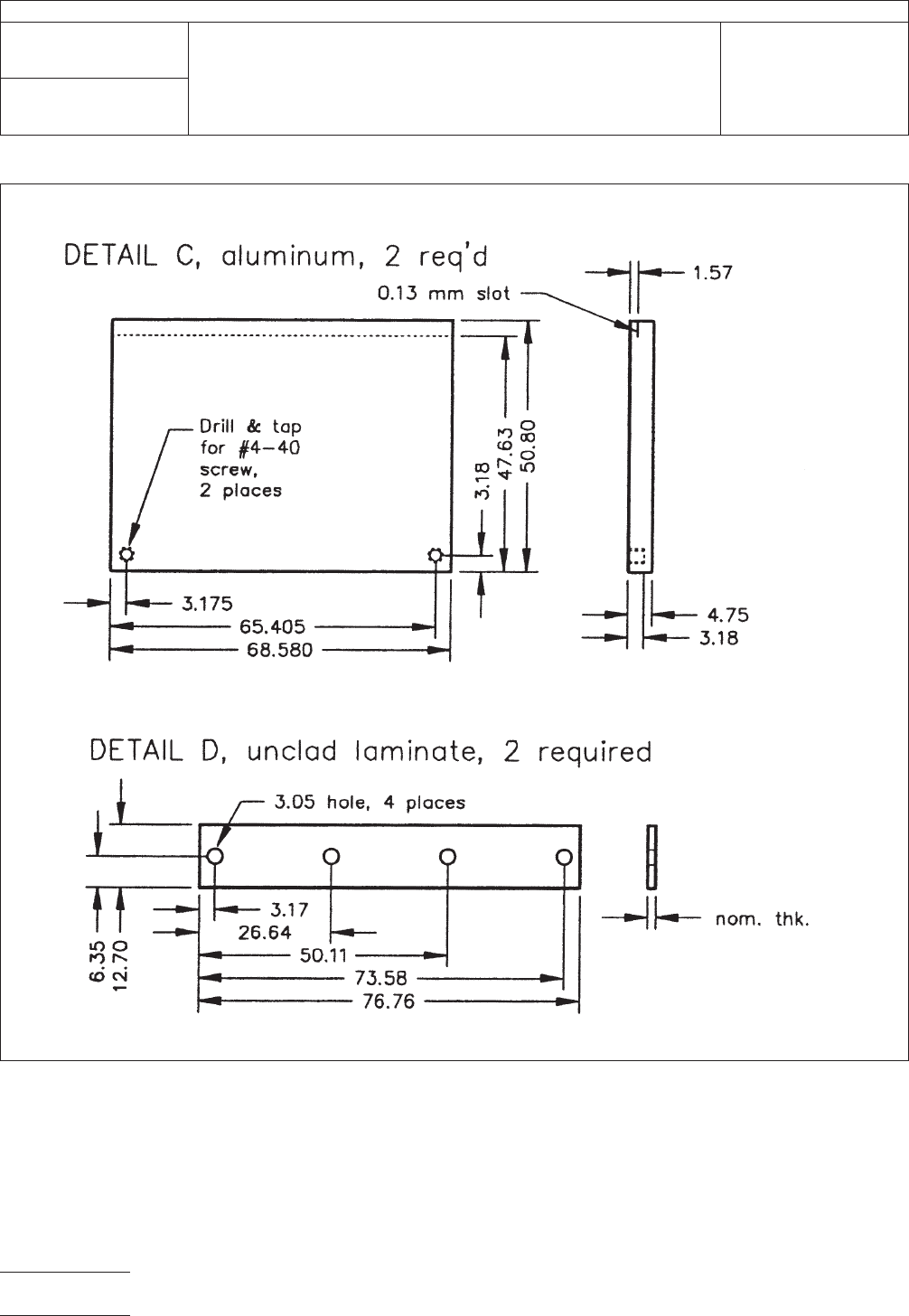

IPC-2555-16
