6|Function description

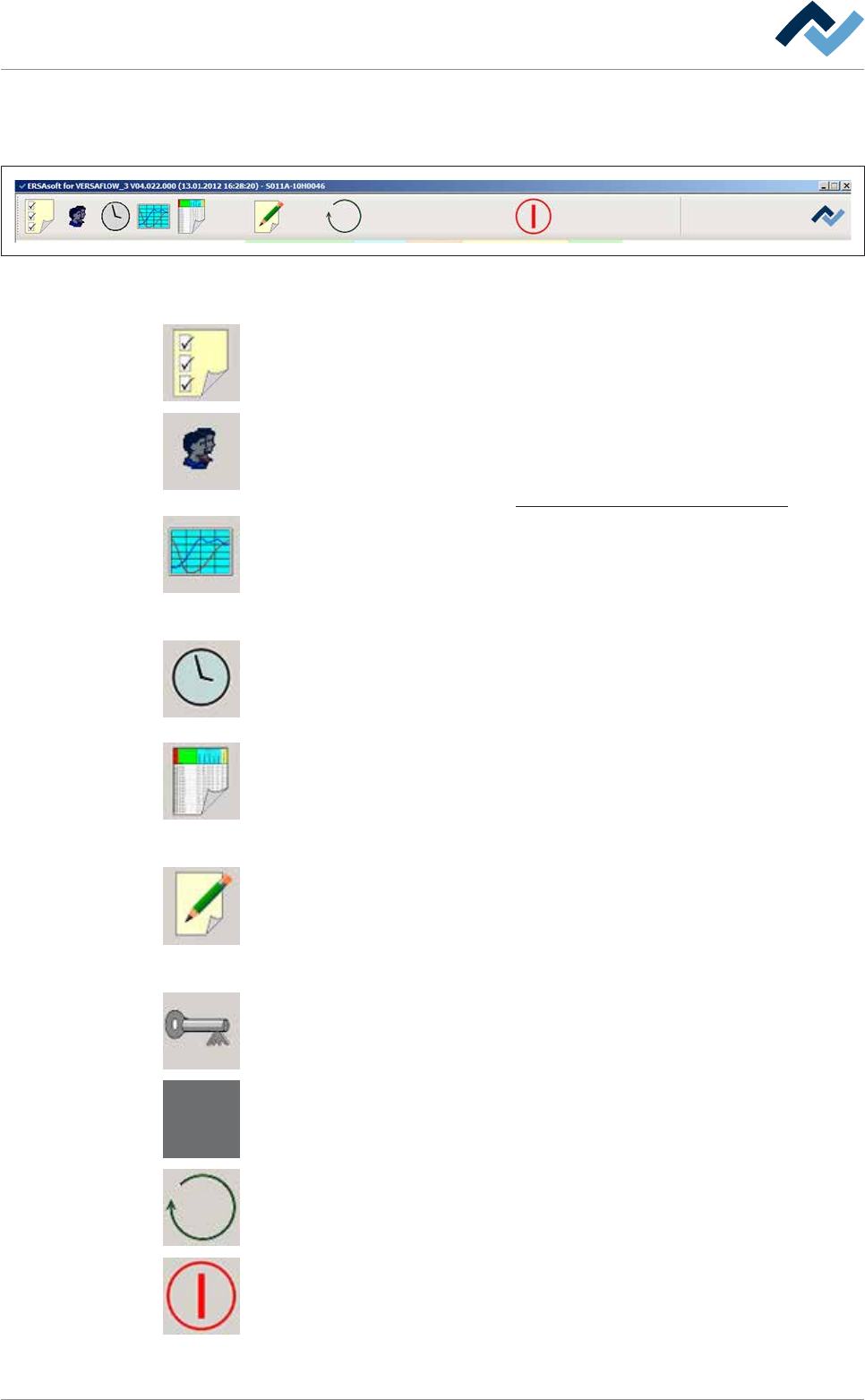

6.4.1 Top toolbar
This toolbar is located in the upper part of the start dialog:
Preheating Soldering module ExitInfeed Infeed unit
Solder pot
user: none maintenance mode
Flux unit
Fig.21: Top toolbar
The top toolbar contains the following buttons:
Configuration. Click on this button to open the [Configuration] dialog. Only trained
and qualified ERSA GmbH personnel may change the configuration of the machine.
General settings. Click on this button to open the [General settings] dialog. In this
dialog, you can create and administer users, determine the user language and col-
ours as well as the storage locations for process data and soldering programs.
On this regard, please read chapter The [General settings] editing dialog [
}131].
Process recorder. Click this button to open the [Process recorder] dialog. The pro-
cess recorder is used to record produced readings and to graphically display the re-
corded results. You can filter out individual readings to improve clarity. The read-
ings are saved automatically and can later be retrieved and printed for comparison.
On this regard, please read chapter The process recorder.
Weekly timer. Click on this button to open the [Weekly timer] dialog. In this dialog,
you can determine the current time as well as the switch-on and switch-off times
for the machine.
On this regard, please read chapter The [Weekly timer] setting dialog.
Edit soldering program. Click on this button to open the [Edit soldering program]
dialog. In this dialog, you can create soldering programs or edit and change existing
soldering programs. Several soldering programs can be combined into a library to
improve clarity.
On this regard, please read chapter The soldering program editor
Process data. Click on this button to open the [Process data] dialog. This function
allows the exact logging and documentation of the entire soldering process. You
can monitor, export and print the data of a manufacturing batch. You can have a
separate process data file generated automatically for each board of a series.
On this regard, please read chapter .
User log off. Click on this button to open the [User log off] dialog. Click on this but-
ton to log out the currently logged in user. The key disappears and the button is
then displayed in grey.
No user logged in. If no user is logged in, the key symbol is not visible. The button is
then displayed in grey.
Click on this button to change the operating mode of the machine or select a sol-
dering program.
On this regard, please read chapter Selecting and starting a soldering program
When the red symbol appears, the machine is in the [Maintenance mode] operat-
ing mode. By clicking on this button, you can switch to the [Movement off] operat-
ing mode.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 128/695

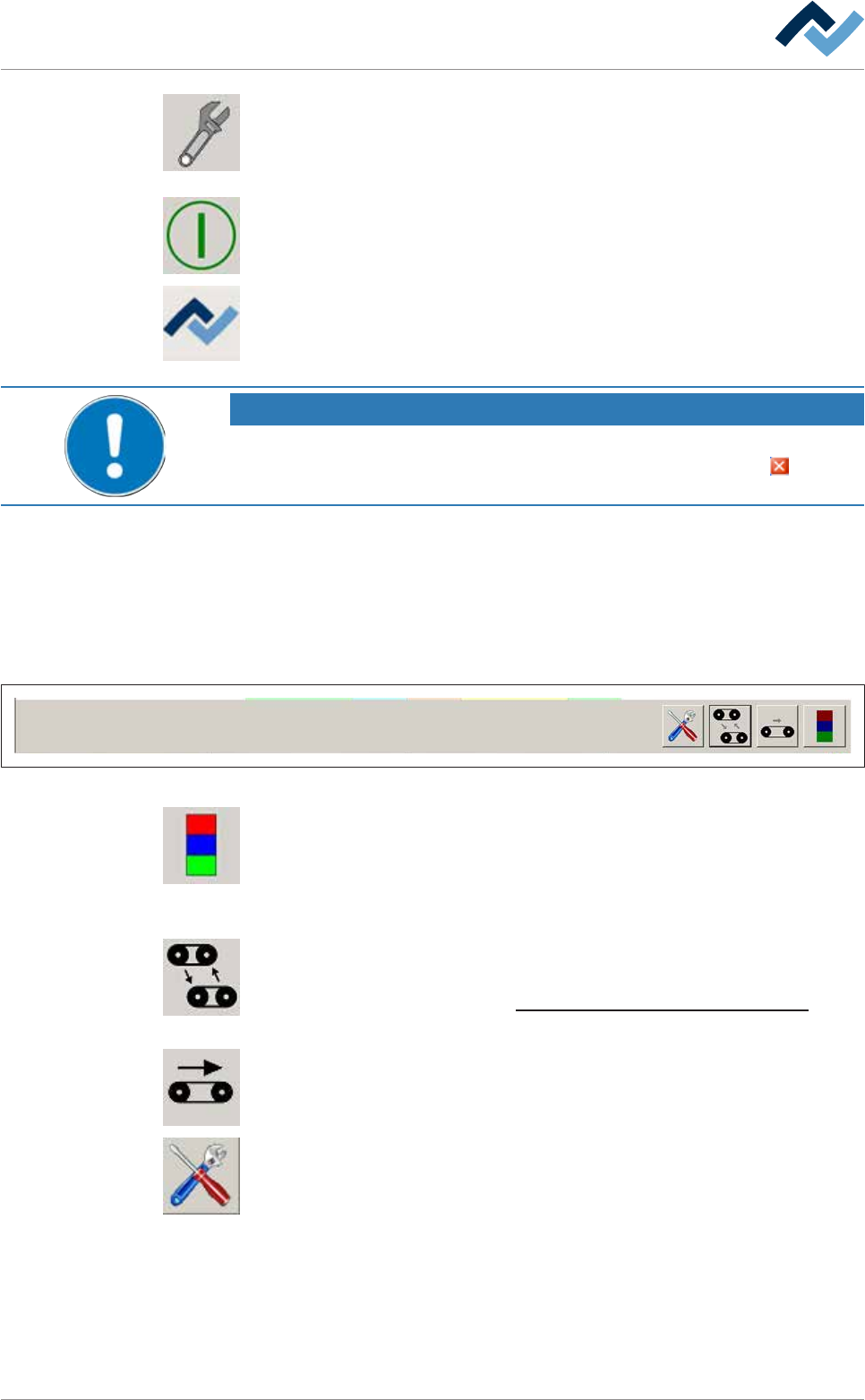

6|Function description
This button is only visible in the [Automatic mode] operating mode. By clicking on
this button, you can stop an active soldering program and set the machine to the
[Maintenance mode]operating mode.
On this regard, please read chapter Selecting and starting a soldering program
If the green symbol is displayed, the machine is in the [Movement off] operating
mode: Click on this button to switch to the [Maintenance mode] operating mode:
Version software. Click on this button to display the version of the currently in-
stalled software. In addition, you may display information about M1 control com-
ponents and visualization components.
NOTE
Exiting the control software
You can exit the control software by clicking the button in the start dialog
.
Also see
2 The [General settings] editing dialog [}131]
6.4.2 The bottom toolbar
This toolbar can be found in the lower part of the start dialog:
user: none maintenance mode
Fig.22: The bottom toolbar
Signal lamp. The button is displayed in each dialog, except for the [Messages] dia-
log, above the status bar. The [Messages] dialog opens when the button is clicked
on. The button will flash as soon as a message is available.
On this regard, please read chapter The [Messages] editing dialog.
Conveyor width adjustment. Clicking on this button opens the [Conveyor width ad-
justment] dialog. In this dialog, you can set the conveyor width of the machine.
On this regard, please read chapter The settings dialog [Width adjustment] [
}240].
All conveyors on. Click on this button to switch on all the machine conveyors simul-
taneously. If a conveyor is switched on, this button is displayed in yellow.
Global settings Click on this button to open the [General] setting dialog.
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 129/695
6|Function description
6.4.3 The status bar
The status bar can be found at the lower edge of the screen:
user: none Automatic mode Library Soldering program
Fig.23: The status bar displays the currently logged in user and the current operating mode of the machine. In addition, in auto-
matic mode the library and the currently active soldering program are displayed.
[User] The name of the currently logged in user is displayed in the status bar at the
lower left edge of the screen. If a user is logged in, the
button is visible in the
top toolbar of the start dialog. You can click on this button to log out the user. If
this button is not visible, no user is logged in. On this regard, please read chapter
Creating a new user. The green square in the right section of the status bar signals
the operator the control sovereignty as well as the proper communication between
PC and PLC.
