9|Spare and wear parts
9.5.2.4 Flexible rail 2, (dual track)
Overview

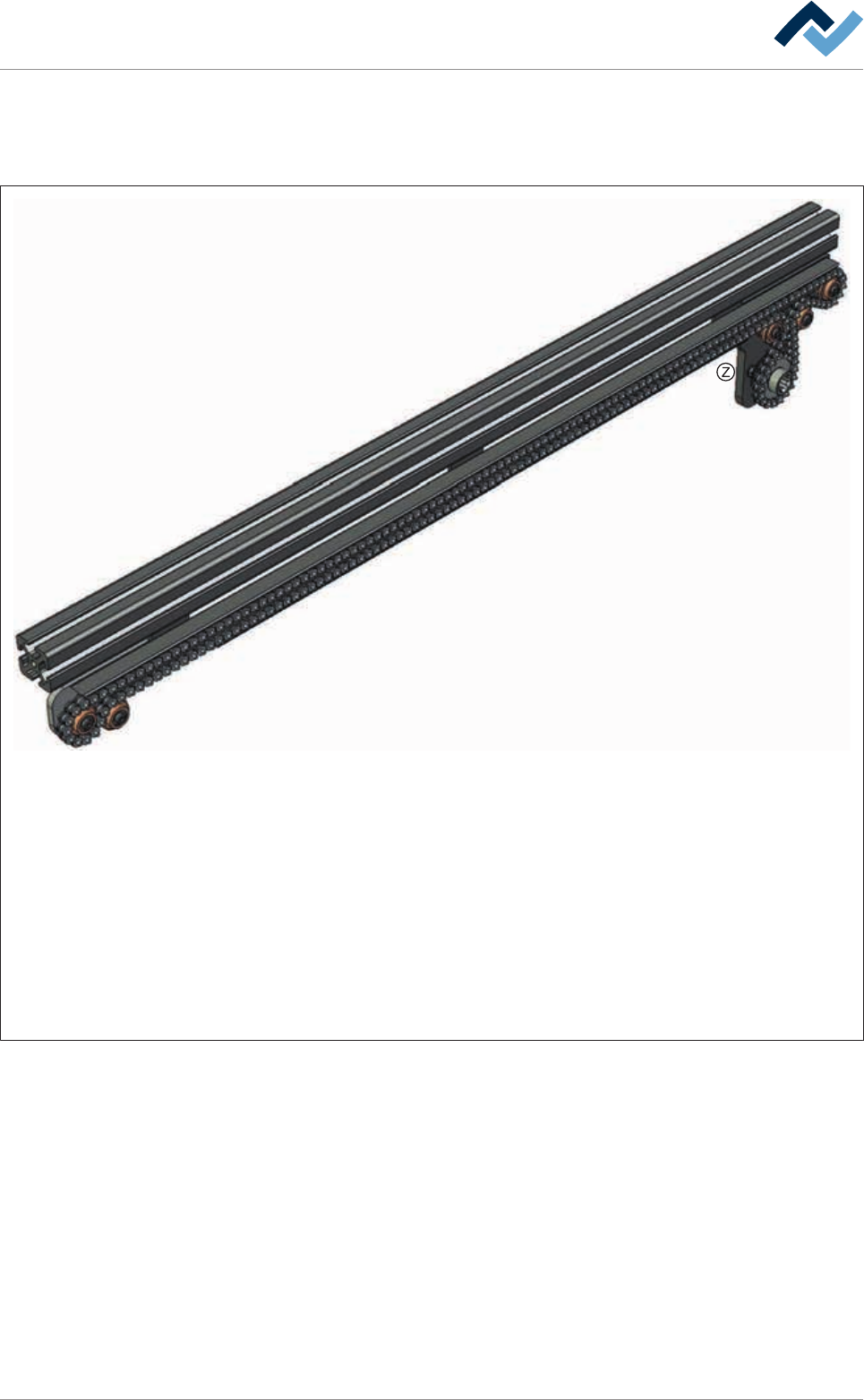

Fig.247: EM113-338-40-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 526/695
9|Spare and wear parts

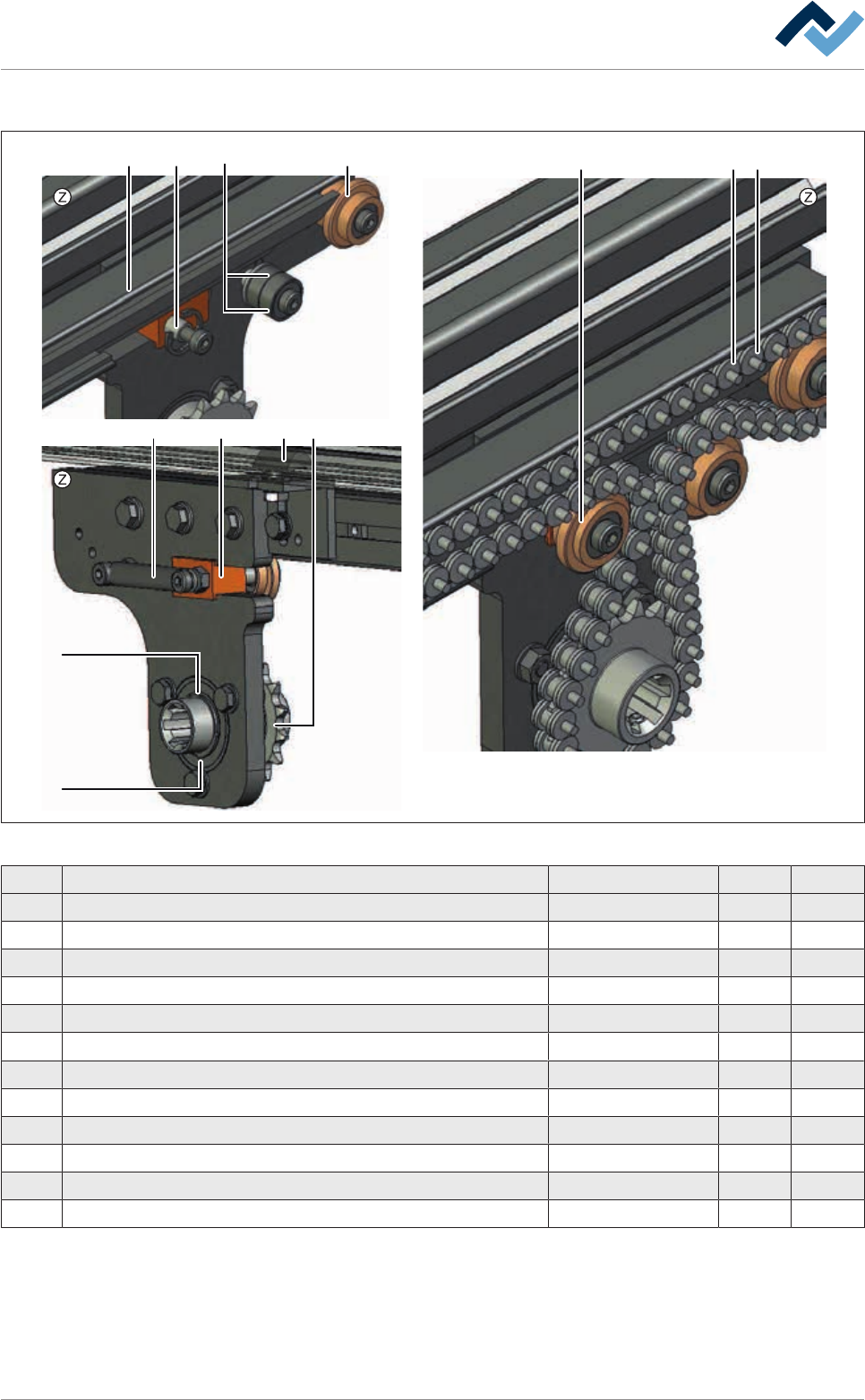

Flexible rail 2, (dual track), view [Z]
17 2
3 9
4 5 6
412
8
10
11
Fig.248: EM113-40-00a
Pos Designation Item number A B
1 Conveyor chain, 3 mm pins, bulk stock 208821 x
2 Chain joint 3 mm 208824 x
3 Groove nut, flute width 6 M4 26315 x
4 Sliding piece (chain tensioner) 169520 x
5 Distance bush 108981 x
6 Bearing 6LA624Z x
7 Deflection disk 143668 x
8 Deflection roller Ø 21 mm 107607 x
9 Chain wheel Z=15 170047 x
10 Circlip A 17 DIN 471 6SER-A170471 x
11 Bearing 6LA619032RS x
12 Spring 6FEDZ-094I x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 527/695
9|Spare and wear parts

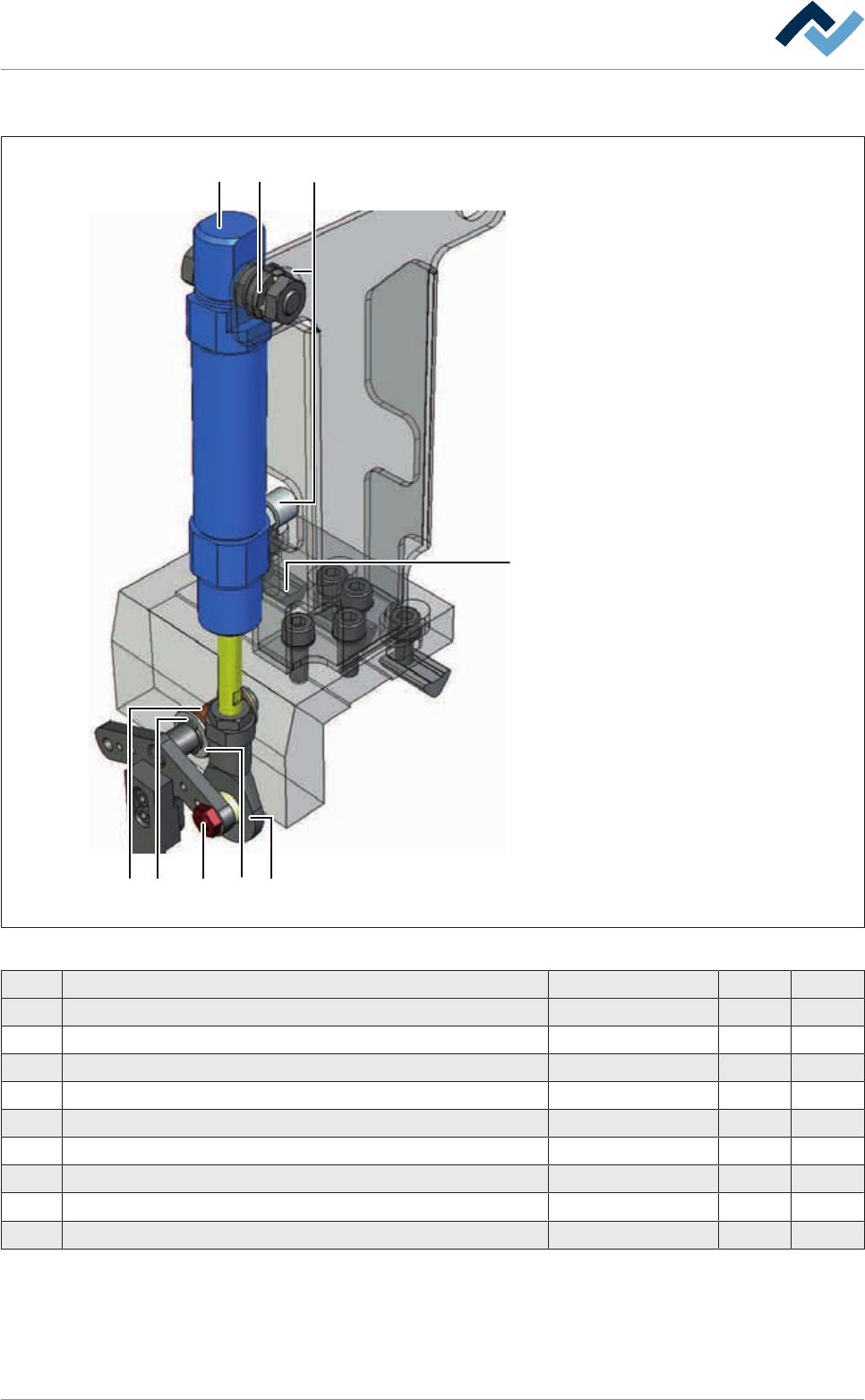

9.5.2.5 First stopper left, temperature resistant
2
9 1
5 7
3
8
4
6
Fig.249: EM113-37-12-00
Pos Designation Item number A B
1 Joint clip 170367 x
2 Swivel head M6 170366 x
3 Groove nut STM5 6ZIS049 x
4 Washer 8/14X1,0 DIN988 6SA08X1.00 x
5 Circlip A 8x0,8mm, DIN 471 6SER-A080471 x
6 Collar bush 143513 x
7 Pan head screw M5 170207 x
8 Straight screwing M5, stainless stell 97965 x
9 Cylinder, 2-acting Ø 16, stroke=20 Temp. resistant 85950 x
