9|Spare and wear parts
9.5.3.5 Roller conveyor extension, right
1
2
2
Fig.286: EM113-32-02-00
Pos Designation Item number A B
1 O-belt Ø 3-175, endless 143526 x
2 Collar bush 143513 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 565/695
9|Spare and wear parts

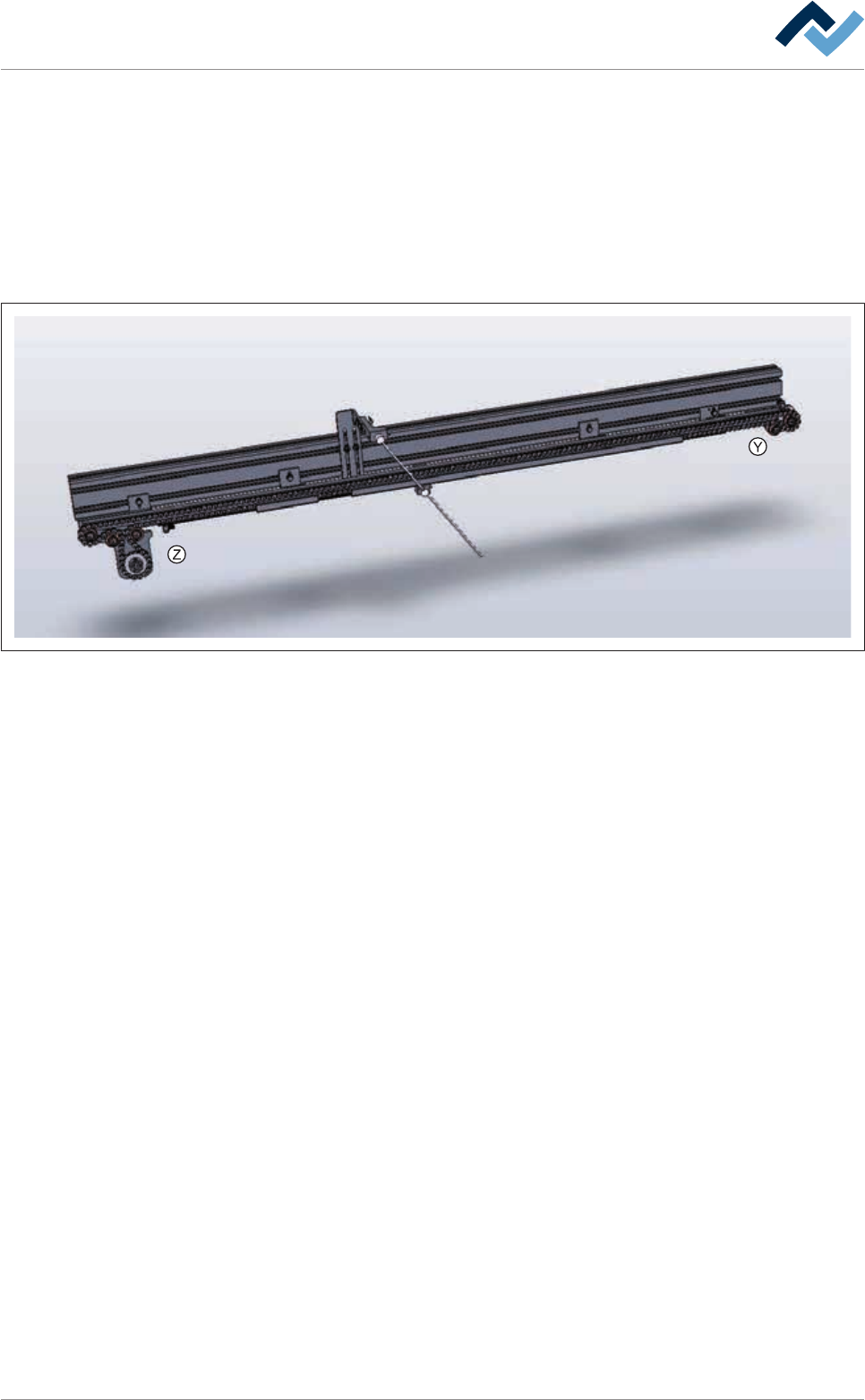

9.5.4 DIP soldering unit conveyor system
9.5.4.1 Fixed rail, DIP pump wheel
Overview
Fig.287: EM128-333-10-00
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 566/695
9|Spare and wear parts

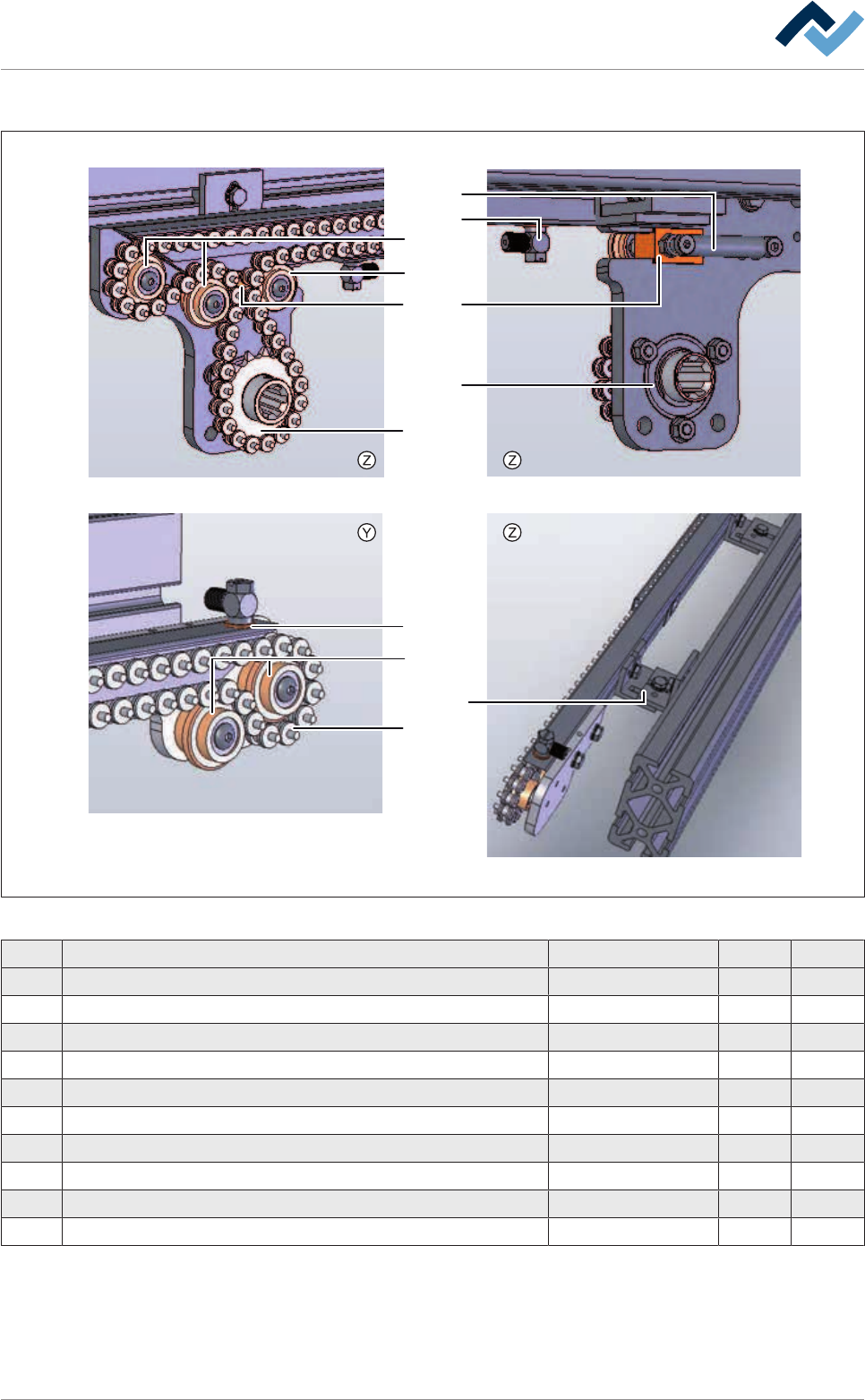

Fixed rail, DIP pump wheel, view [Y], [Z]
1
2
4
5
7
33
6
5
1
10
8
Fig.288: EM128-333-10-00a
Pos Description Item number A B
1 Deflection roller Ø 21 mm 107607 x
2 Deflection roller, Ø 20 mm 211062 x
3 Sliding piece (chain tensioner) 169520 x
4 Chain wheel Z=15 170047 x
5 Sealing ring, copper 153612 x
6 Spring 6FEDZ-094I x
7 Bearing 6LA619032RS x
8 Screw-in angle with cap nut 128566 x
9 Conveyor chain, 3 mm pins, bulk stock 208821 X
10 Chain joint 3 mm 208824 x
Ersa GmbH Operating Instructions_VF335_en|Rev. 14|30/11/2017 567/695
